הקדמה
This manual provides detailed instructions for the safe and efficient operation of your DIGITNOW M513 Record Player. Please read this manual thoroughly before using the product and retain it for future reference. This record player features a belt-drive turntable, external stereo speakers, Bluetooth connectivity, and Vinyl-to-MP3 recording capabilities.
פּראָדוקט איבערview
מאַכט זיך באַקאַנט מיט די קאָמפּאָנענטן און קאָנטראָלס פון אייער פּלאַטן שפּילער.
Figure 1: DIGITNOW M513 Record Player with external speakers and Bluetooth connectivity.

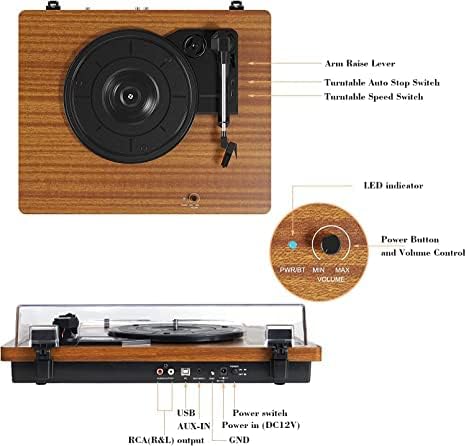

Figure 2: Top and rear panel controls including arm raise lever, auto stop switch, speed switch, power button, volume control, USB, AUX-IN, RCA(R&L) output, power input, and ground.
שליסל קאַמפּאָונאַנץ:
- פּלאַטע טעלער: Where vinyl records are placed.
- טאָנאַרם: האַלט דעם סטילוס און טראַקט די רעקאָרד גרובן.
- סטילוס (נאָדל): Reads the audio information from the record.
- External Stereo Speakers: צושטעלן אַודיאָ רעזולטאַט.
- שטויב דעקל: באַשיצט דעם דריי־טיש פֿון שטויב.
- קאָנטראָל פּאַנעל: Includes power, volume, speed selection, and input/output ports.
סעטאַפּ
- אויספּאַקן: Carefully remove all components from the packaging. Ensure all accessories (dust cover, 45 RPM adapter, RCA output cables, ground wire, USB cable, user manual) are present.
- אָרט: Place the record player on a stable, level surface away from direct sunlight, heat sources, and excessive vibration. Position the external speakers for optimal sound distribution.
- פֿאַרבינדן רעדנערס: Connect the provided external stereo speakers to the RCA output ports on the rear of the record player using the RCA cables. Ensure correct left (L) and right (R) connections.
- מאַכט קשר: Connect the DC 12V power adapter to the power input port on the rear of the unit, then plug the adapter into a wall outlet.
- שטויב דעקל אינסטאַלאַציע: Attach the dust cover to the hinges at the back of the turntable.
אַפּערייטינג ינסטראַקשאַנז
פּלייַינג רעקאָרדס
- מאַכט אויף: Turn the Power/Volume knob clockwise to power on the unit. The LED indicator will illuminate.
- אויסקלייַבן גיכקייַט: Choose the appropriate speed (33, 45, or 78 RPM) using the speed switch located on the top panel. Use the 45 RPM adapter for 7-inch records with large center holes.
- אָרט רעקאָרד: Carefully place your vinyl record on the turntable platter.
- הייבן טאָנאַרם: Use the arm raise lever to gently lift the tonearm.
- פאזיציע טאן-ארעם: Move the tonearm over the desired starting track of the record.
- נידעריקער טאָנאַרם: Slowly lower the tonearm using the arm raise lever. The stylus will make contact with the record, and playback will begin.
- סטרויערן באַנד: אַדזשאַסטירן דעם באַנד מיטן מאַכט/וואָלומען קנעפּל.
- אַוטאָ סטאָפּ: The record player features an auto-stop function. When enabled via the Auto Stop switch, the platter will stop spinning automatically when the record finishes. If disabled, the platter will continue to spin.
- ענדיגן ווידערשפּיל: At the end of the record, or when you wish to stop, use the arm raise lever to lift the tonearm, return it to the tonearm rest, and then lower the lever. Turn the Power/Volume knob counter-clockwise to power off the unit.
פיגורע 3: דעטאַילעד view of the stylus, belt-driven design for smooth music, and 33/45/78 RPM speed options for various record sizes.
בלועטאָאָטה קאַנעקשאַן

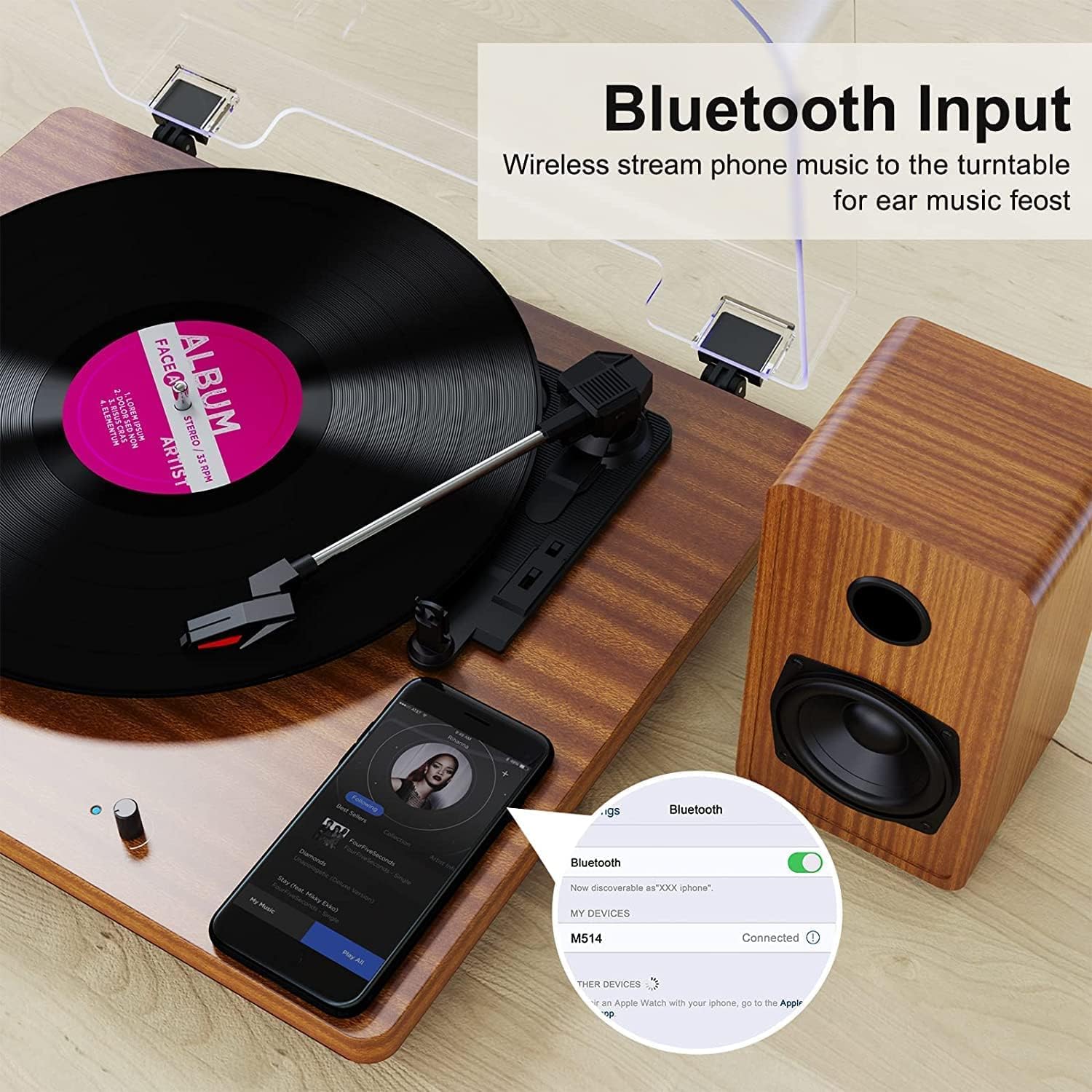

The record player can receive audio wirelessly from your Bluetooth-enabled devices.
- אַקטיווירן בלועטוט מאָדע: Ensure the record player is powered on. The unit will automatically enter Bluetooth receiving mode if no record is playing or AUX input is not connected. The LED indicator may change color or blink to indicate Bluetooth mode.
- אַקטיווירן בלועטוט אויף מיטל: אויף אייער סמאַרטפאָון אָדער אַנדער בלוטוט מיטל, אַקטיוויזירט בלוטוט און זוכט פֿאַר פֿאַראַן דעוויסעס.
- פּאָר דיווייס: Select "DIGITNOW" or a similar name from the list of available devices to pair. Once connected, you will hear a confirmation sound.
- שפּיל אַודיאָ: Play music from your device, and it will stream through the record player's speakers.
Video 1: Demonstrates the setup and Bluetooth connection process for the DIGITNOW M513 Record Player, including placing a record and pairing with a smartphone.
וויניל-צו-MP3 רעקאָרדינג
Convert your vinyl records to digital MP3 files via a USB connection to your computer.
- פאַרבינדן צו קאָמפּיוטער: Use the provided USB cable to connect the record player's USB port (PC OUT) to a USB port on your Mac or PC.
- ינסטאַלירן ווייכווארג: Refer to the detailed instructions in the included user manual for information on compatible recording software and installation.
- אָנהייב רעקאָרדינג: Follow the software's instructions to begin recording audio from your vinyl record to your computer.
Figure 4: Connection diagram illustrating USB for PC recording, AUX-IN for external audio sources like CD players, and RCA OUT for external speakers.
External Audio Connections
- AUX אַרייַנשרייַב: Connect external audio sources (e.g., CD player, smartphone, digital media player) to the AUX-IN port on the rear panel using a 3.5mm audio cable. The record player will play audio from the connected device through its speakers.
- RCA רעזולטאַט: For enhanced or louder sound, connect the RCA(R&L) output ports to an external amplifier or powered speakers using RCA cables.
וישאַלט
- רייניקן דעם סטיילוס: Gently clean the stylus regularly with a soft brush designed for stylus cleaning, brushing from back to front. Avoid touching the stylus with your fingers.
- רייניקונג די אַפּאַראַט: Wipe the record player and dust cover with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Belt Maintenance: The belt-drive system is designed for durability. If the platter does not spin or spins inconsistently, the drive belt may have slipped during shipping or use. Refer to the full user manual for instructions on how to re-seat or replace the drive belt.
- רעקאָרד זאָרג: Keep your records clean and free of dust to ensure optimal sound quality and prolong stylus life. Store records vertically in their sleeves.
טראָובלעשאָאָטינג
| פּראָבלעם | מעגלעך סיבה | לייזונג |
|---|---|---|
| קיין מאַכט | מאַכט אַדאַפּטער נישט פארבונדן אדער אַוטלעט אַרבעט נישט. | Ensure power adapter is securely plugged into the unit and a working wall outlet. Check the power switch. |
| קיין געזונט | Volume too low; speakers not connected; incorrect input mode. | Increase volume. Verify speaker connections. Ensure correct input mode (Phono, Bluetooth, AUX). |
| איבערשפּרינגען אָדער פֿאַרדרייען קלאַנג | Dirty or damaged record; worn or dirty stylus; unit not level. | Clean record. Clean or replace stylus. Place unit on a level surface. |
| Record plays too fast/slow | אומרעכטע גיכקייט איינשטעלונג. | Adjust the speed switch to 33, 45, or 78 RPM as appropriate for the record. |
| כאַמינג ראַש | Ground wire not connected; interference from other electronics. | Ensure the ground wire is properly connected (if applicable). Move the unit away from other electronic devices. |
ספּעסאַפאַקיישאַנז
- מאָדעל: M513
- סאָרט: DIGITNOW
- פּראָדוקט דימענשאַנז: 15 X 12.87 X 6.22 אינטשעס
- נומער וואָג: 11.77 פונט
- גיכקייטן: 33 1/3, 45, 78 רפּם
- דרייוו טיפּ: גאַרטל-דרייוו
- מאָטאָר טיפּ: דק מאָטאָר
- קאַנעקטיוויטי: Bluetooth, AUX-IN, RCA Output, USB (for Vinyl-to-MP3 recording)
- אַרייַנגערעכנט קאַמפּאָונאַנץ: Dust cover, 45 RPM adapter, RCA output cables, ground wire, USB cable, user manual
- מאַטעריאַל: פּלאַסטיק, האָלץ
- ספּעציעלע פֿעיִקייטן: Bluetooth Function, RCA Output, Vinyl-to-MP3 Recording, Auto Stop
וואָראַנטי און שטיצן
For warranty information, technical support, or service inquiries, please refer to the contact details provided in the original product packaging or visit the official DIGITNOW webזייטל. האַלט אייער קויף קוויטל ווי אַ באַווייַז פון קויפן פֿאַר וואָראַנטי קליימז.
