HUTT S55PRO Window Cleaning Robot User Manual

1. הקדמה

This manual provides essential information for the safe and efficient operation of your HUTT S55PRO Window Cleaning Robot. Please read this manual thoroughly before using the device and retain it for future reference.

The HUTT S55PRO is an AI variable frequency window cleaning robot designed for automated cleaning of various smooth surfaces, including glass, marble, and tiles. It features advanced navigation, powerful suction, and specialized cleaning technologies to ensure thorough cleaning.

2. זיכערקייַט אינפֿאָרמאַציע

אָבסערווירן די פאלגענדע זיכערהייט מיטלען צו פאַרמייַדן שאָדן אָדער שעדיקן צו די מיטל:

• Always attach the safety rope before operation, especially when cleaning high-rise windows. Ensure the safety rope is securely fastened to a stable anchor point capable of supporting at least 148KG.
• Do not use the robot on broken or cracked glass.
• Ensure the power cord is securely connected and not tangled during operation.
• האַלט הענט און פרייַ קליידער אַוועק פון באַוועגלעכע טיילן בעת ​​אָפּעראַציע.
• The robot is equipped with a 30-minute emergency backup battery. This battery is for emergency power only and not for continuous operation.
• Do not immerse the robot in water or other liquids.
• Use only the provided cleaning solution or distilled water in the water tank.
• Supervise the robot during its first few uses to ensure proper function and safety.

Image: The HUTT S55PRO robot demonstrating its comprehensive safety architecture, including a securely attached safety rope for high-rise window cleaning.

3. פּעקל אינהאַלט

באַשטעטיקן אַז אַלע זאכן זענען פאַראַן אין פּעקל:

• HUTT S55PRO Window Cleaning Robot
• ווייַט קאָנטראָל
• מאַכט אַדאַפּטער
• זיכערקייַט שטריק
• Cleaning Pads (6 pieces / 3 pairs)
• Cleaning Solution Bottle
• באַניצער מאַנואַל (דעם דאָקומענט)

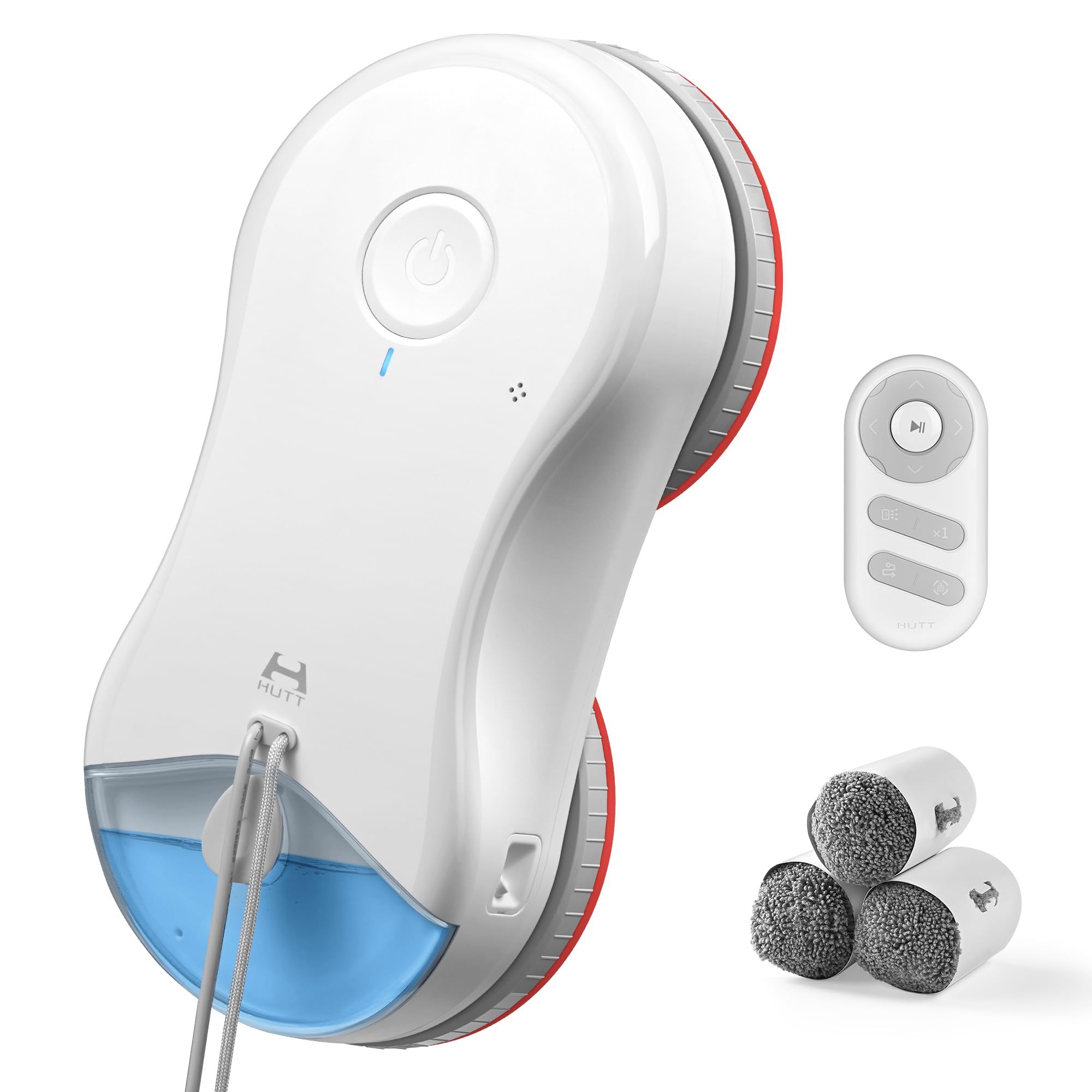

Image: All components included in the HUTT S55PRO product box, laid out for inspection.

4. פּראָדוקט איבערview

The HUTT S55PRO incorporates several advanced technologies for effective window cleaning:

4.1. 3D Floating Dual Drive System

This system features spring-loaded pads and an inward-tilted chassis to ensure stable suction and deeper edge cleaning. It utilizes a Swing-Rotate Scrub Drive System for powerful cleaning and a patented 3D Floating Disc with Spring Suspension for stable suction and precise movement, even on fully wet windows.

Image: An illustration of the robot's underside, highlighting the 3D Floating Dual Drive System with its two rotating pads for stable and effective cleaning.

4.2. Patented 3D Floating Cleaning Disc

Engineered by HUTT, this disc provides 30% better climbing stability, allowing the robot to navigate and clean effectively on various surfaces.

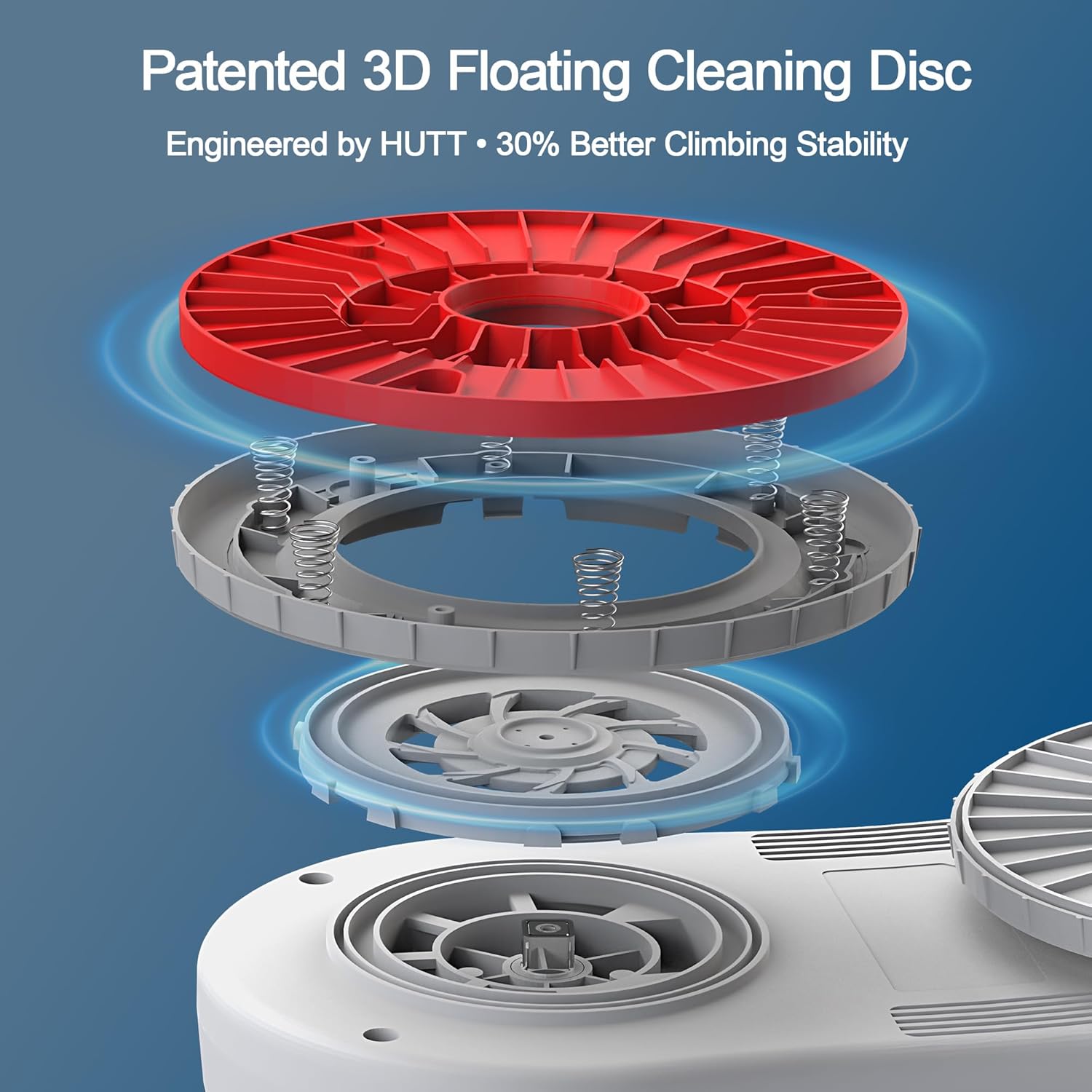

בילד: אן עקספלאדירטע view demonstrating the components of the patented 3D Floating Cleaning Disc, including its spring suspension mechanism.

4.3. HydroJet Spray Technology

The robot features a pump-driven wide spray system with an 80ml visible tank. It delivers a 120° HydroJet Spray, ensuring 99% wet cleaning coverage and a high spray volume of 2000mg/min. This technology helps dissolve up to 15 types of stubborn stains and can clean up to 60m² per refill.

בילד: א דעטאַלירטע view of the robot's HydroJet Spray Technology, illustrating the water tank and the wide-angle spray for effective stain dissolution.

4.4. Optimal Suction and Adaptive Cleaning

The HUTT S55PRO offers auto-adjustable suction power ranging from 2000-6500 Pa, managed by HUTTHINK 5.0 AI variable frequency algorithm. This allows it to adapt to different surfaces and levels of dirt, providing optimal cleaning for various scenarios, including glass, marble, wooden cabinet doors, and bathroom tiles. It features a 55 N high-pressure NIDEC motor with up to 60% more power and innovative 3D airflow with dual motors and a pressure sensor.

Image: A visual representation of the robot's optimal suction capabilities and its internal mechanical structure.

Image: The HUTT S55PRO robot demonstrated cleaning different surfaces, including windows, marble walls, and bathroom tiles.

5. סעטאַפּ

Follow these steps to prepare your HUTT S55PRO for operation:

1. Attach Cleaning Cloths: Securely attach the provided cleaning cloths to the rotating pads on the underside of the robot.
2. Fill with Water or Glass Cleaner: Open the water tank cap and fill the 80ml tank with clean water or a suitable glass cleaning solution. Close the cap tightly.
3. Secure the Safety Cord: Attach the safety rope to the designated anchor point on the robot and then securely fasten the other end to a strong, stable object indoors.
4. פאַרבינדן די מאַכט צושטעלן: Plug the power adapter into the robot and then into a power outlet. Ensure the connection is firm.
5. מאַכט אויף: Place the robot on the surface to be cleaned and press the power button. The robot will adhere to the surface.

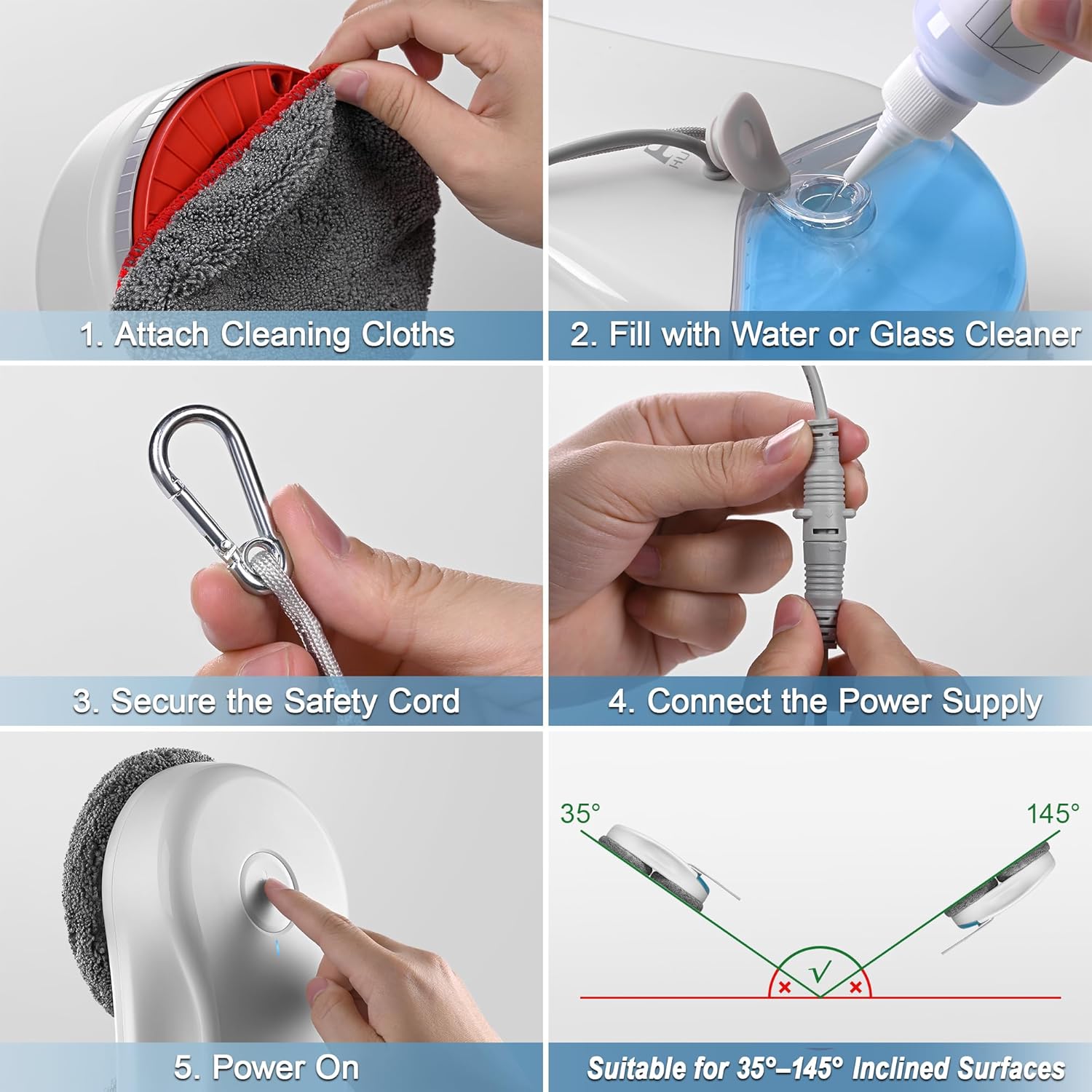

Image: A visual guide detailing the five essential steps for setting up the HUTT S55PRO robot before its first use.

6. אַפּערייטינג ינסטרוקטיאָנס

The HUTT S55PRO offers various cleaning modes and intelligent features for automated cleaning.

6.1. One-Click Easy Control

The robot utilizes HUTT SLAM 4.0 Navigation for fully automated cleaning, including auto navigation and return functions. It also features smart edge detection to prevent collisions.

Image: The robot in action on a window, with an overlay showing its auto navigation and smart edge detection capabilities, controlled by a remote.

6.2. Intelligent Path Planning

Choose from four cleaning modes to suit your needs:

• Z Shape Auto Cleaning: Standard automatic cleaning pattern.
• רייניקונג צוויי מאָל: For a deeper cleaning result, the robot will clean the area twice.
• אָרט רייניקונג: For targeted cleaning of specific dirty areas.
• רעזומע רייניקונג: The robot will wipe down from its current position.

The remote control allows for manual movement (Up/Down/Left/Right), Start/Pause/Continue, Water Spray On/Off, Cleaning Twice, and Spot Cleaning functions.

בילד: אן איבערview of the robot's intelligent path planning modes (Z Shape, Cleaning Twice, Spot Cleaning, Resume Cleaning) and the corresponding remote control functions.

6.3. AI Intelligent Obstacle Avoidance

The HUTT S55PRO features AI Variable Frequency technology with the HUTTHINK AI Variable Frequency Algorithm, enabling 0.02s real-time path adjustment when obstacles like door handles are encountered. This ensures smooth and uninterrupted cleaning.

7. וישאַלט

Regular maintenance ensures optimal performance and longevity of your robot.

• רייניקונג פּאַדס: After each use, remove the cleaning cloths and wash them thoroughly. Replace them when they show signs of wear or reduced cleaning effectiveness.
• וואַסער טאַנק: Empty any remaining water or cleaning solution from the tank after use. Rinse the tank with clean water to prevent residue buildup.
• Robot Body: ווישט אָפּ די אויסערלעכע זייט פון ראָבאָט מיט אַ ווייכן, טרוקענעם שטאָף. ניצט נישט קיין שרײַבנדיקע רייניקונגס־מיטלען און טונקט נישט דעם ראָבאָט אין וואַסער.
• סענסאָרס: Periodically clean the sensors on the robot's underside with a soft, dry cloth to ensure accurate navigation and edge detection.

8. טראָובלעשאָאָטינג

If you encounter issues with your HUTT S55PRO, refer to the following common problems and solutions:

9. ספּעסאַפאַקיישאַנז

10. וואָראַנטי און שטיצן

For warranty information and customer support, please refer to the official HUTT webזייטל אדער קאָנטאַקט אייער הענדלער. האַלט אייער קויף קוויטל ווי אַ באַווייַז פון קויפן.
