OWLNV N9 3-10.5X Digital Night Vision Scope Instruction Manual

הקדמה

This manual provides detailed instructions for the proper use and maintenance of your OWLNV N9 3-10.5X Digital Night Vision Scope. Please read this manual thoroughly before operating the device to ensure optimal performance and safety.

Image: The OWLNV N9 3-10.5X Digital Night Vision Scope, a versatile device for day and night observation.

זיכערקייַט אינפֿאָרמאַציע

• Do not look directly into the sun through the device.
• Avoid direct exposure of the infrared illuminator to human or animal eyes.
• האַלטן די מיטל אַוועק פון עקסטרעם טעמפּעראַטורעס און הומידיטי.
• סטאָר די מיטל אין אַ טרוקן, קיל פּלאַץ ווען ניט אין נוצן.
• Use only approved batteries and charging accessories.

פּעקל אינהאַלט

• OWLNV N9 Digital Night Vision Scope
• וסב טשאַרדזשינג קאַבלע
• Mounting Accessories (plastic rings, connection sleeve)
• באַניצער מאַנואַל
• ריטשאַרדזשאַבאַל באַטאַרייע (פאַר-אינסטאַלירט אָדער באַזונדער)

פּראָדוקט איבערview

Image: Detailed diagram illustrating the various components of the OWLNV N9 Digital Night Vision Scope.

1. Eyepiece Connection Sleeve
2. Eyepiece Focus Adjustment Ring
3. לאָגאָ
4. Red Dot Adjustment Holes
5. טיפּ-C טשאַרדזשינג פּאָרט
6. טף קאַרד שפּעלטל
7. Stretchable IR Illuminator
8. פּלאַסטיק רינג
9. רויט דאָט
10. באַטערי אָפּטייל
11. לענס
12. סקרין ווייַז
13. Fastening Buckle
14. Power / Sleep Key
15. ינדיקאַטאָר ליכט
16. Menu / Playback Key
17. WiFi / Zoom Key
18. Red Dot Key
19. OK / Record / Photo Key
20. B&W / IR Illuminator Key

סעטאַפּ

1. באַטעריע אינסטאַלאַציע און ערשטע אָפּצאָל

Ensure the battery is correctly installed and fully charged before first use. If the device does not power on, check for a protective adhesive strip on the battery contacts and remove it.

• Open the battery compartment (refer to Product Overview, item 10).
• Insert the provided 3200mAh rechargeable battery, ensuring correct polarity.
• If a protective adhesive strip is present on the battery's contact point, remove it before insertion.
• נאָענט די באַטאַרייע אָפּטייל.
• Connect the device to a power source using the Type-C charging cable (refer to Product Overview, item 5). The indicator light (item 15) will show charging status.

2. Mounting to a Rifle Scope

The N9 Digital Night Vision Scope is designed to attach to the eyepiece of your existing rifle scope.

1. Wrap the eyepiece of your rifle scope with a PVC tape for a secure fit.
2. Select a plastic ring of appropriate thickness to ensure a snug fit between the rifle scope's inner wall and the sleeve's outer wall (gap less than 0.1mm).
3. Insert the eyepiece of your rifle scope into the connection sleeve (item 1) of the N9 unit. Ensure the reticle of your rifle scope is upright.
4. Fasten the buckle (item 13) upward to secure the connection.

3. Eyepiece Focus Adjustment

Rotate the Eyepiece Dioptric Adjustment Ring (item 2) until you achieve a clear view of your rifle scope's reticle icon on the N9 screen.

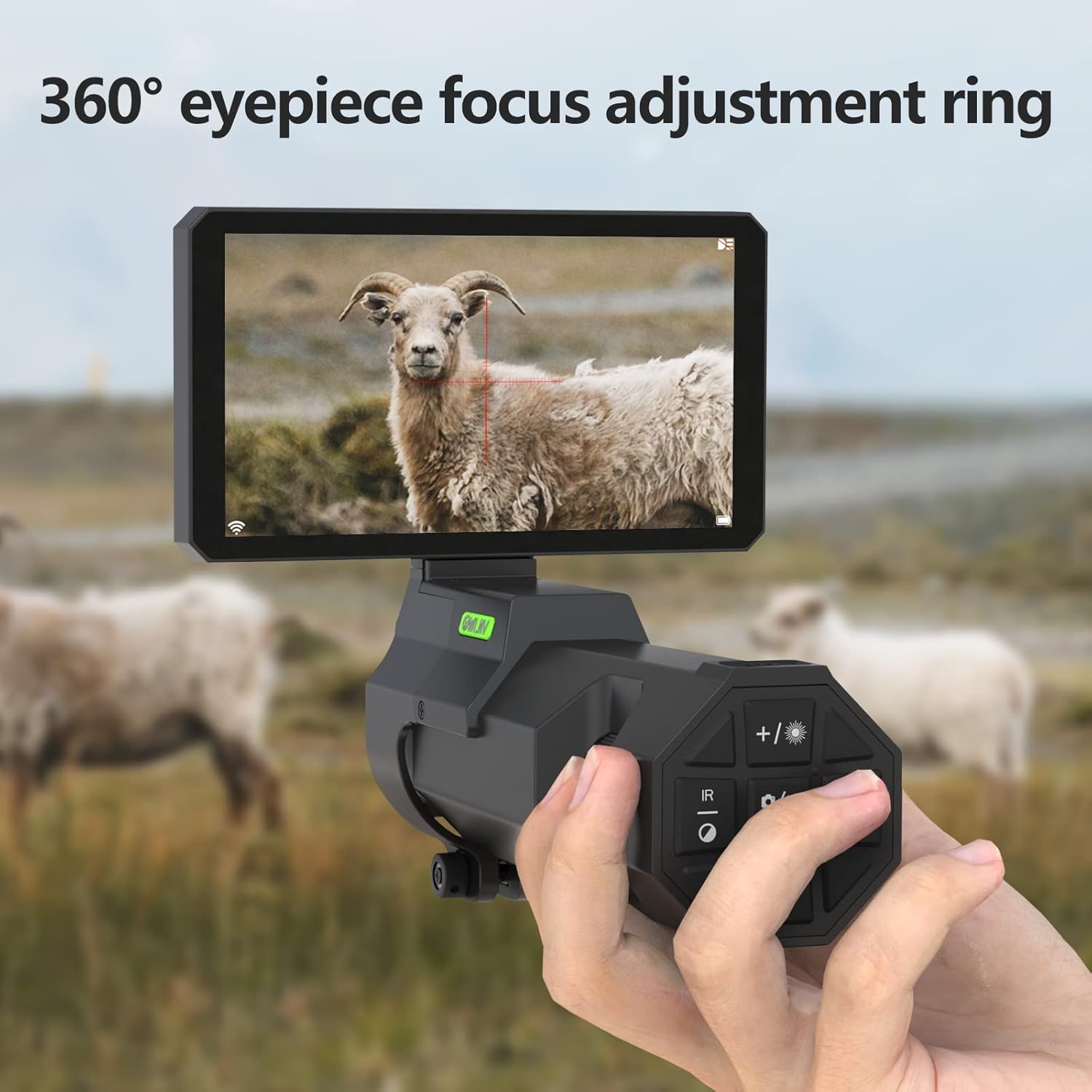

Image: A hand rotating the 360-degree eyepiece focus adjustment ring for clear reticle visibility.

4. Objective Lens Focus Adjustment

Rotate the Objective Lens Ring (item 11) on the N9 unit until you obtain a clear and well-focused image of your target.

5. Reticle Adjustment (Zeroing)

To align the N9's display with your rifle scope's reticle:

1. Go to the Menu (item 16).
2. Select and enter "Reticle Adjustment".
3. Adjust the x-axis and y-axis by pressing the Up/Down and Left/Right buttons (part of item 19, OK/Record/Photo Key cluster).
4. Press OK (item 19) to save after the cross-hair of your rifle scope is center-aligned on the N9 screen.

אַפּערייטינג ינסטראַקשאַנז

1. מאַכט אויף / אויסגעלאשן

• To power on, press the Power/Sleep Key (item 14) once.
• To power off, press and hold the Power/Sleep Key (item 14) for a few seconds.

2. Day and Night Vision Modes

The device supports both day and night vision modes.

Image: Visual comparison of the OWLNV N9's performance in daytime and nighttime conditions.

• The device automatically switches between day (color) and night (black and white) modes based on ambient light.
• You can manually toggle between B&W (Night) and Color (Day) modes using the B&W / IR Illuminator Key (item 20).

3. IR Illuminator Adjustment

The integrated 850nm IR illuminator (item 7) enhances visibility in low-light conditions.

Image: Demonstrates three adjustable levels of infrared illumination for varying distances and conditions.

• Press the B&W / IR Illuminator Key (item 20) to cycle through three brightness levels of the IR illuminator.
• Adjust the beam of the stretchable IR illuminator (item 7) by extending or retracting it.

4. אויפנעמען ווידעא און נעמען בילדער

The N9 supports HD 1080P photo and video recording.

Image: Visual guide on how to capture photos and record videos using the device.

• Insert a TF card (Max 128GB) into the TF Card Slot (item 6) before recording.
• Press the OK / Record / Photo Key (item 19) once to take a photo.
• Press and hold the OK / Record / Photo Key (item 19) to start video recording. Press again to stop.

5. WiFi Connectivity and Digital Zoom

• The device features built-in WiFi for transferring videos and images to your smartphone. Refer to the specific app instructions for connection.
• Use the WiFi / Zoom Key (item 17) to activate the 3x-10.5x digital zoom function, allowing for closer observation of distant targets.

6. שלייף רעקאָרדינג

Image: Explains the automatic loop recording feature, allowing settings for 1, 3, or 5-minute segments.

• The device supports automatic loop recording, which can be set for 1, 3, or 5-minute intervals via the menu.
• When the TF card is full, older recordings will be overwritten. Back up important content regularly.

וישאַלט

• רייניקונג לענסעס: ניצט אַ ווייכע, לינט-פֿרייע שטאָף ספּעציעל דיזיינד פֿאַר אָפּטישע לענסעס. ניצט נישט קיין שאַרפֿע מאַטעריאַלן אָדער שאַרפֿע כעמיקאַלן.
• רייניקונג קערפער: ווישט דעם אַפּאַראַט־קערפּער מיט אַ ווייכן, דamp cloth. Avoid getting moisture into electronic components.
• סטאָרידזש: Store the device in its original packaging or a protective case in a cool, dry environment. Remove the battery if storing for extended periods.
• באַטערי זאָרגן: לאָדט אויף די באַטאַרייע רעגולער, אפילו אויב זי ווערט נישט גענוצט, כדי צו האַלטן איר לעבנסדויער.

טראָובלעשאָאָטינג

ספּעסאַפאַקיישאַנז

וואָראַנטי און שטיצן

The OWLNV N9 Digital Night Vision Scope comes with a 2 יאָר וואָראַנטי. For technical support, warranty claims, or any inquiries, please contact OWLNV customer service through the official channels provided at the point of purchase or on the OWLNV brand store.

OWLNV is committed to providing professional night vision products and offers return and exchange services within the warranty period.
