VEVOR VT50J Pneumatic Upholstery Stapler Instruction Manual

1. הקדמה

Thank you for choosing the VEVOR VT50J Pneumatic Upholstery Stapler. This tool is designed for efficient and precise stapling in various applications, including upholstery, light furniture assembly, woodworking, and decorative finishes. It operates with compressed air and is compatible with 20-gauge T50 staples. Please read this manual thoroughly before operation to ensure safe and effective use.

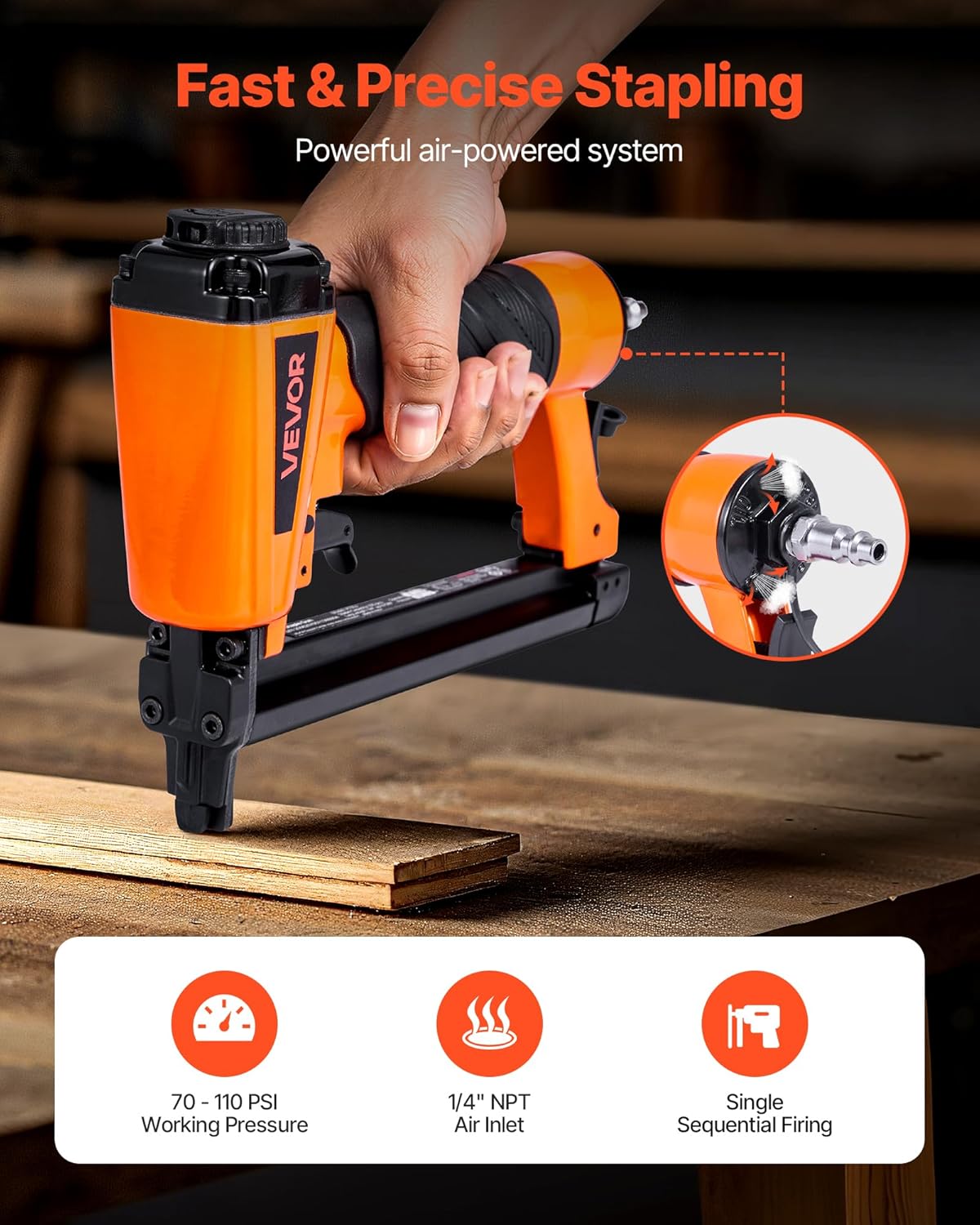

Image: The VEVOR VT50J Pneumatic Upholstery Stapler in operation, highlighting its air-powered system for fast and precise stapling. Key features like 70-110 PSI working pressure, 1/4" NPT air inlet, and single sequential firing are visible.

Image: The VEVOR VT50J stapler shown in various applications, including assembling a stool, wood frame, picture frame, and cat tree, demonstrating its versatility for light-duty furniture assembly.

2. זיכערקייַט אינסטרוקציעס

Always follow basic safety precautions when using pneumatic tools to reduce the risk of injury.

• טראָגן אויג שוץ: Always wear safety glasses to protect your eyes from flying debris.
• טראָגן געהער שוץ: Pneumatic tools can be loud; use ear protection during operation.
• אָפּשטעקן לופט צושטעל: שטענדיק אָפּשטעקן די לופט צושטעל איידער איר מאַכט אַדזשאַסטמאַנץ, רייניקט פאַרשטאָפּונגען, אָדער דורכפירט וישאַלט.
• טשעק לופט דרוק: Ensure the air compressor is set to the recommended working pressure (70-110 PSI).
• האַלט די אַרבעטס־געגנט ריין: Maintain a clean and well-lit work area. Cluttered or dark areas invite accidents.
• זיכערער ארבעטסשטיק: Always secure the material you are working on to prevent movement.
• פֿאַרמייַדן אַקסאַדענטאַל פייַער: The tool is equipped with a safety switch to prevent accidental firing. Do not bypass or disable safety features.
• געהעריק גריפּ: Maintain a firm, non-slip grip on the tool handle.
• Never Point at People: Never point the tool at yourself or others, even if it is not connected to an air supply.
• Use Correct Staples: Only use staples that are compatible with the tool's specifications.

3. פּעקל אינהאַלט

באַשטעטיקן אַז אַלע זאכן זענען פאַראַן ביים אויספּאַקן:

• 1 x VEVOR VT50J Pneumatic Upholstery Stapler
• 1 x M4 / 3 mm Spanner
• קסנומקס רענטגענ סאַפעטי ברילן

4. פּראָדוקט איבערview

The VEVOR VT50J is a lightweight and durable pneumatic stapler designed for comfort and efficiency. Its high-strength aluminum alloy housing ensures longevity, while the ergonomic non-slip rubberized handle provides a secure grip and reduces fatigue during extended use.

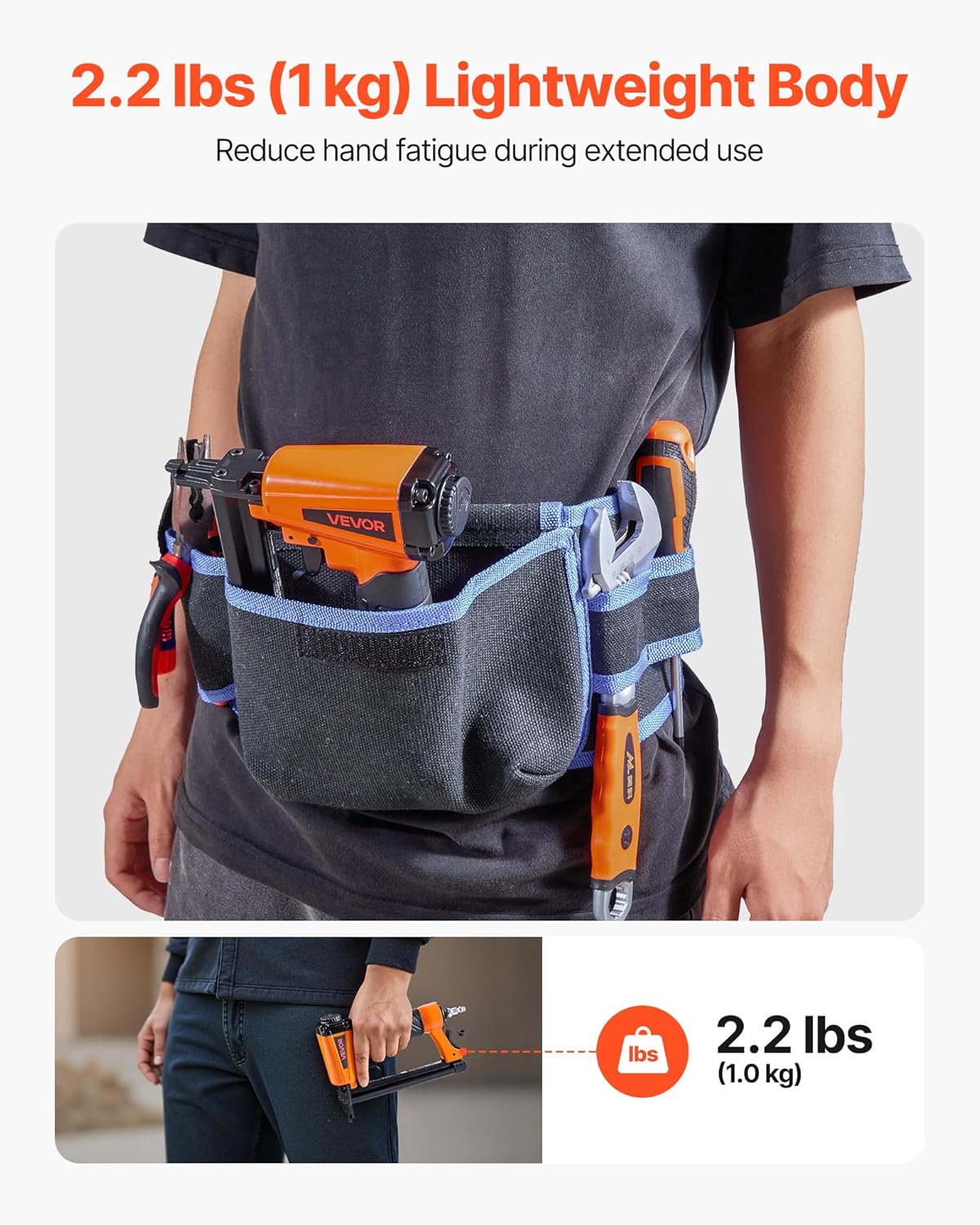

Image: A user demonstrating the lightweight nature of the VEVOR VT50J Pneumatic Upholstery Stapler, shown attached to a tool belt, indicating ease of handling and reduced hand fatigue.

בילד: א דעטאַלירטע view of the VEVOR VT50J Pneumatic Upholstery Stapler, showcasing its robust aluminum alloy housing, which contributes to its sturdy, high hardness, and durable construction.

5. סעטאַפּ

5.1 Connecting to Air Compressor

1. Ensure your air compressor is turned off and depressurized.
2. Connect a 1/4" NPT air hose (not included) to the air inlet of the stapler.
3. Set your air compressor's output pressure between 70-110 PSI.
4. Turn on the air compressor and check for any leaks at the connection point.

5.2 Loading Staples

The stapler is compatible with 20-gauge T50 staples, with a 7/16" (10.8mm) crown and lengths from 5/32" to 5/8" (4mm - 16mm). The magazine capacity is up to 100 staples.

1. Disconnect the air supply before loading staples.
2. Pull the magazine latch to open the staple magazine.
3. Insert a strip of compatible staples into the magazine with the staple points facing down.
4. Push the magazine latch back until it locks securely, ensuring the staples are properly seated.

בילד: א נאָענטע בילד view of hands loading a strip of staples into the magazine of the VEVOR VT50J Pneumatic Upholstery Stapler. The image highlights the compatible crown (7/16 inch / 10.8 mm), staple length (5/32 - 5/8 inch), and staple type (20 Gauge T50 Staples).

6. אַפּערייטינג ינסטרוקטיאָנס

Once the air supply is connected and staples are loaded, you can begin operation.

1. פאַרבינדן לופט צושטעל: ריקאַנעקט די לופט קישקע צו די דרעטלער.
2. שטעלן די געצייַג: Place the nose of the stapler firmly against the workpiece where you want to drive a staple. The tool features a safety switch that prevents firing unless the nose is depressed against a surface.
3. Fire the Stapler: Squeeze the trigger to drive a staple. The tool operates in a single sequential firing mode, meaning you must release the trigger and re-depress the nose for each staple.
4. אַדזשאַסטירן טיפקייט (אויב אָנווענדלעך): If your model includes a depth adjustment, refer to the tool's specific markings to set the desired staple depth.
5. Swivel Exhaust: The swivel exhaust system directs air away from the user for comfort.

7. וישאַלט

רעגולערע אויפהאלטונג גאראנטירט די לאנגעוויטי און אפטימאלע פאָרשטעלונג פון אייער פּנעוומאַטישן העפטער.

• אָפּשטעקן לופט צושטעל: Always disconnect the air supply before performing any maintenance.
• שמירן: Apply a few drops of pneumatic tool oil (not included) into the air inlet before each use or after prolonged storage. This lubricates internal components.
• רייניקונג: Keep the tool clean and free of dust and debris. Use a clean, dry cloth. Do not use solvents that could damage plastic parts.
• טשעק פֿאַר טראָגן: Periodically inspect the tool for worn or damaged parts. Replace any damaged components immediately.
• לופט פילטער: Ensure your air compressor has a functioning air filter to prevent moisture and debris from entering the tool.

8. טראָובלעשאָאָטינג

דאָ זענען לייזונגען צו געוויינטלעכע פּראָבלעמען וואָס איר קענט באַגעגענען:

9. ספּעסאַפאַקיישאַנז

Technical details for the VEVOR VT50J Pneumatic Upholstery Stapler:

Image: A visual representation of the VEVOR VT50J Pneumatic Upholstery Stapler with its key dimensions and a table listing detailed specifications such as model number, staple type, compatible crown, magazine capacity, operating pressure, air inlet size, material, net weight, product dimensions, and included accessories.

10. וואָראַנטי און שטיצן

פֿאַר וואָראַנטי אינפֿאָרמאַציע אָדער טעכנישע שטיצע, ביטע קאָנטאַקטירן די VEVOR באַאַמטער webזייטל אדער קאנטאקט זייער קאסטומער סערוויס גלייך. האלט אייער קויף קוויטל אלס באווייז פון קויפן.

וועוואָר אפיציעל Webפּלאַץ: www.vevor.com
