הקדמה
This manual provides essential information for the safe and efficient use of your new Whirlpool WOI7A8FPT1SSGA built-in electric oven. Please read all instructions carefully before installation and operation. Keep this manual for future reference.
זיכערקייַט אינפֿאָרמאַציע
Always prioritize safety when using electrical appliances. Failure to follow these instructions may result in fire, electric shock, injury to persons, or damage to the appliance.
- עלעקטריקאַל זיכערקייַט: Ensure the oven is properly grounded. Do not use adapter plugs or extension cords. Disconnect power before servicing.
- קינד זיכערקייַט: Keep children away from the oven during operation and when it is cooling down. The oven surfaces can become very hot.
- סכנה פון ברענען: Use oven mitts when handling hot dishes or oven racks. Do not touch heating elements.
- ברענעוודיק מאַטעריאַלס: Do not store or use flammable materials near the oven.
- געהעריק נוצן: Use the oven only for its intended purpose of cooking food. Do not use it to heat the room.
- ווענטילאַטיאָן: זיכערט זיך אז עס איז דא גענוג ווענטילאציע ארום דעם אפאראט לויט די אינסטאלירונג אינסטרוקציעס.
סעטאַפּ און ינסטאַלירונג
The Whirlpool WOI7A8FPT1SSGA is a built-in oven designed for integration into kitchen cabinetry. Professional installation is recommended.
1. ונפּאַקקינג
Carefully remove all packaging materials and accessories from the oven. Inspect the oven for any damage. Report any damage to your retailer immediately.
2. פּלאַצירונג און דימענסיעס
Ensure the cabinet opening meets the required dimensions for the oven (approximately 56.4 cm depth x 59.5 cm width x 59.7 cm height). The oven weighs approximately 39.9 kg, so ensure the cabinet can support this weight.

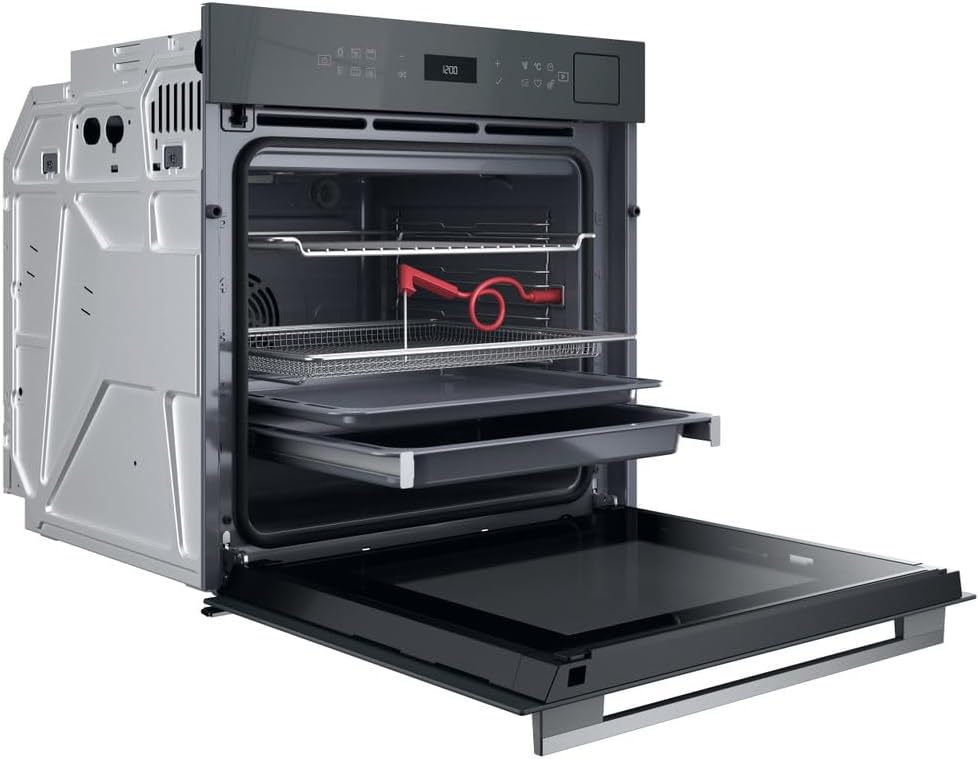

בילד: זייט view of the oven, illustrating its design for built-in installation.
Image: The oven integrated into a kitchen cabinet, showcasing its flush fit.
3. עלעקטריקאַל קאַנעקשאַן
Connect the oven to a properly grounded electrical outlet. Refer to the electrical diagram in the full installation guide for specific wiring requirements. The cable length is 1 meter.
4. ערשט רייניקונג
פארן ערשטן באַנוץ, ווישט אָפּ דעם אינעווייניק פון אויוון מיט אַד.amp cloth and mild detergent. Remove all accessories and wash them in warm soapy water. Dry thoroughly.
5. ערשטער נוצן
Heat the empty oven to its maximum temperature for approximately 30-60 minutes to burn off any manufacturing residues. Ensure the kitchen is well-ventilated during this process.
אַפּערייטינג ינסטראַקשאַנז
Your Whirlpool oven features intuitive touch controls and a digital display for easy operation.
1. קאָנטראָל פּאַנעל איבערview
Image: The touch control panel with its electronic clock and various function icons.
The control panel features a digital electronic clock and touch-sensitive buttons for selecting cooking functions, temperature, and time settings.
2. Basic Cooking Functions
The oven offers a variety of cooking modes:
- קאַנווענשאַנאַל קוקינג: Uses top and bottom heating elements for traditional baking and roasting.
- קאַנוועקשאַן קוקינג: Utilizes a fan to circulate hot air, ensuring even cooking and faster results.
- גריל: Ideal for browning and toasting.
- פּאַרע קוקינג: Incorporates steam for healthier cooking and improved food texture. The oven includes a water reservoir for this function.
Image: The pull-out water reservoir for the steam cooking function.
- דעפראָסט פֿונקציע: אויפֿטויעט פֿאַרפֿרוירענע עסן אויף אַ זאַכטן אופֿן.
- האַלטן וואַרעם פֿונקציע: האַלט עסן ביי סערווינג טעמפּעראַטור.
- פּיצאַ פֿונקציע: Optimized settings for baking pizzas.

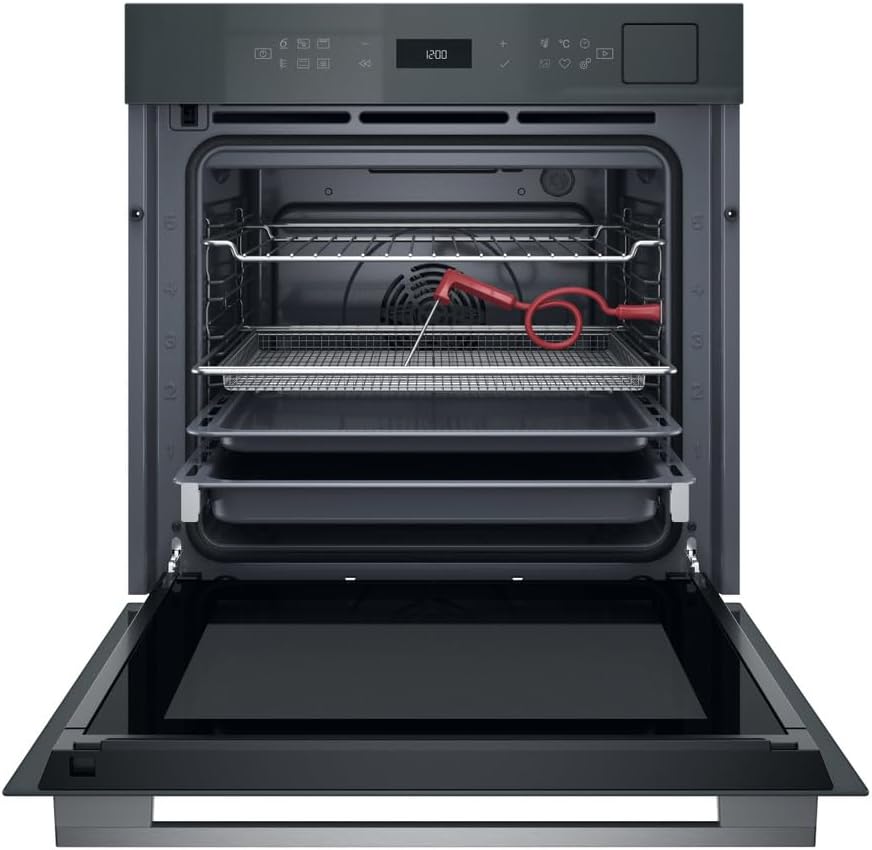

Image: Oven interior with various racks and accessories, including a temperature probe.
3. Setting Temperature and Time
Use the touch controls to select your desired cooking function, then adjust the temperature and cooking duration. The digital timer allows for precise control over your cooking process.
4. ספּעציעלע פֿעיִקייטן
- ווייך-קלאָוז טיר: The oven door features a soft-close mechanism for quiet and gentle closing.
וישאַלט און רייניקונג
רעגולערע רייניקונג און אויפהאלטונג זיכערט די לענג פון לעבן און אָפּטימאַלע פאָרשטעלונג פון אייער אויוון.
1. רייניקן דעם אינעווייניק פון אויוון
Your oven is equipped with two cleaning systems:
- Hydrolytic Cleaning: A steam-assisted cleaning cycle that softens food residues, making them easier to wipe away. Follow the instructions in the full user manual for this cycle.
- פּיראָליטיק רייניקונג: A high-temperature self-cleaning cycle that burns off food residues, turning them into ash that can be easily wiped away. Remove all accessories before starting a pyrolytic cycle.
Image: Close-up of the oven interior, highlighting the fan and heating elements, relevant for cleaning.
2. רייניקונג אַקסעססאָריעס
Oven racks, trays, and other accessories should be cleaned manually with warm soapy water or in a dishwasher, if suitable.
3. Replacing the Oven Lamp
The oven uses a halogen lamp. To replace it, ensure the oven is cool and disconnected from power. Unscrew the protective cover, replace the bulb with one of the same type and wattage, then reattach the cover.
4. אַלגעמיינע קער
ווישן די יקסטיריער סערפאַסיז מיט אַ ווייך, דamp cloth. Avoid abrasive cleaners or scouring pads that could damage the finish.
טראָובלעשאָאָטינג
איידער איר קאָנטאַקטירט קונה סערוויס, באַציט זיך צו די פאלגענדע געוויינטלעכע פּראָבלעמען און לייזונגען:
| פּראָבלעם | מעגלעך סיבה | לייזונג |
|---|---|---|
| ויוון היץ נישט | No power supply; Door not closed properly; Function not selected. | Check power connection; Close door firmly; Select a cooking function and temperature. |
| דיספּליי ווייזט אַ טעות קאָד | אינערלעכער שולד. | Turn off the oven at the main power supply for a few minutes, then turn it back on. If the error persists, contact service. |
| עסן קאָכט נישט גלייך | Incorrect temperature/time; Overcrowding the oven; Improper rack position. | Adjust settings; Avoid overcrowding; Use recommended rack positions. |
| יבעריק רויך בעשאַס קוקינג | Food spills; Excessive fat. | Clean oven interior; Use a deeper roasting pan or remove excess fat from food. |
ספּעסאַפאַקיישאַנז
Detailed technical specifications for the Whirlpool WOI7A8FPT1SSGA oven:
- מאָדעל נומער: WOI7A8FPT1SSGA
- טיפּ: געבויט-אין עלעקטריק ויוון
- גאַנץ קאַפּאַציטעט: 73 ליטער
- קאָנטראָל טיפּ: ריר
- ווייַז: דיגיטאַל עלעקטראָניש זייגער
- רייניקונג טיפּ: Hydrolytic + Pyrolytic
- קוקינג פאַנגקשאַנז: Conventional, Convection, Grill, Steam, Defrost, Keep Warm, Pizza
- טיר פֿעיִקייטן: Soft-close, Bottom-hinged
- Internal Material: ענאַמעלעד
- Lamp טיפּ: האַלאָגען
- דימענשאַנז (H x W x D): 59.7 סענטימעטער X 59.5 סענטימעטער X 56.4 סענטימעטער
- וואָג: 39.9 קג
- ענערגיע עפעקטיווקייַט קלאַס: A+
- Conventional Energy Consumption: 0.87 קוו
- Forced Convection Energy Consumption: 0.64 קוו
Image: Energy efficiency rating label, showing A+.
וואָראַנטי אינפֿאָרמאַציע
Your Whirlpool WOI7A8FPT1SSGA oven is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms, conditions, and duration. Keep your proof of purchase for any warranty claims.
קונה שטיצן
For technical assistance, spare parts, or service requests, please contact Whirlpool customer support. Have your oven's model number (WOI7A8FPT1SSGA) and serial number ready when you call.
You can find contact information on the official Whirlpool webוועבזייטל אדער אין דער דאקומענטאציע וואס איז צוגעשטעלט געווארן מיט אייער אפאראט.
