Callez Wired Computer Headset User Manual

הקדמה

Thank you for choosing the Callez Wired Computer Headset. This manual provides comprehensive instructions to help you set up, operate, and maintain your headset for optimal performance. Designed for clear communication, this headset features a noise-cancelling microphone and versatile connectivity options, making it ideal for call centers, home offices, online meetings, and various other communication needs.

פּעקל אינהאַלט

ביטע באַשטעטיקן אַז אַלע זאכן זענען פאַראַן אין דיין פּעקל:

• Callez Wired Computer Headset with 3.5mm Jack
• USB Type-C to 3.5mm Headset Jack Adapter

פּראָדוקט איבערview

The Callez C502EC1 headset is engineered for comfort and clarity. Familiarize yourself with its key components:

• אַדזשאַסטאַבאַל כעדבאַנד: For a customized and comfortable fit.
• Soft Breathable Leather Ear Cushions: Designed for all-day comfort during extended use.
• ראַש-קאַנסאַלינג מיקראָפאָן: Reduces background noise for crystal-clear conversations. The microphone arm is 330° rotatable, allowing placement on either the left or right side.
• אין-ליניע קאָנטראָלס: Conveniently located on the cable for easy access to volume adjustment and call management.
• 3.5 מם אַודיאָ דזשאַק: Primary connection for a wide range of devices.
• USB Type-C Adapter: Extends compatibility to devices with USB-C ports.

Image: The Callez Wired Computer Headset showing its main components including the headset, 3.5mm jack, USB-C adapter, and in-line control unit.

בילד: דעטאַלירט view highlighting the 330° flexible microphone, soft ear cushions, and adjustable headband for ergonomic comfort.

סעטאַפּ

Follow these steps to connect your Callez headset to your device:

1. אידענטיפיצירן דיין דעווייס'ס פּאָרט: Determine if your device (PC, laptop, tablet, smartphone) has a 3.5mm audio jack or a USB-C port.
2. For 3.5mm Jack Connection: Directly plug the 3.5mm audio jack of the headset into your device's 3.5mm port.
3. For USB-C Port Connection: Connect the 3.5mm audio jack of the headset into the provided USB Type-C to 3.5mm Headset Jack Adapter. Then, plug the USB-C end of the adapter into your device's USB-C port.
4. For iPhone Users (iPhone 7/8/X/XS/XR/11/12/13/14): An Apple Original Lightning to 3.5mm Adapter is required and must be supplied by Apple. This adapter is not included with the headset. Connect the headset's 3.5mm jack to the Apple adapter, then plug the adapter into your iPhone's Lightning port.
5. סיסטעם דערקענונג: Your device should automatically recognize the headset. You may need to select the headset as the default audio input and output device in your system's sound settings.

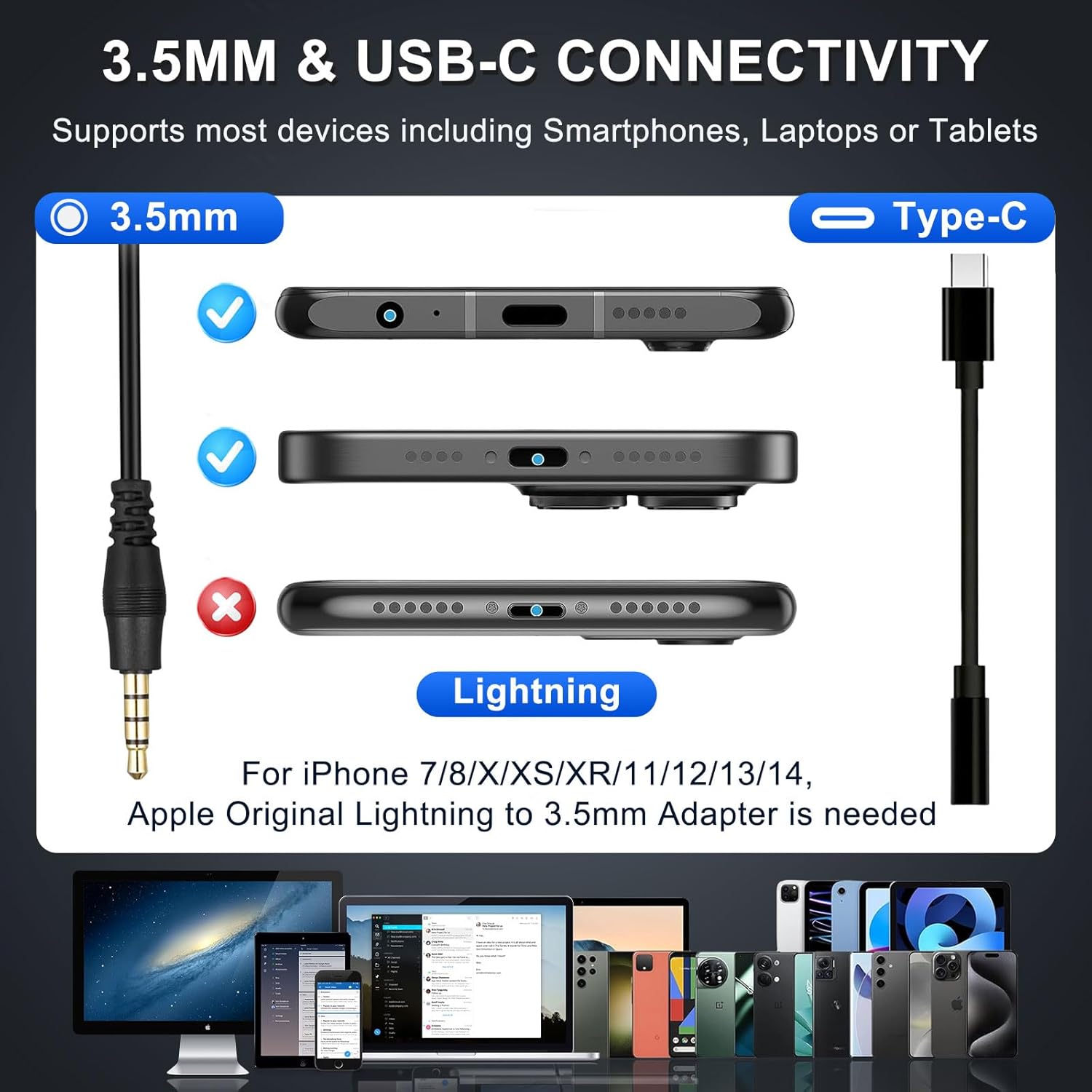

Image: Visual guide illustrating the 3.5mm and USB-C connection methods, along with a reminder that an Apple Lightning adapter is needed for certain iPhone models.

Image: A close-up demonstrating the proper connection of the 3.5mm jack into the USB-C adapter, highlighting a secure fit.

אַפּערייטינג ינסטראַקשאַנז

Maximize your headset's performance with these operational guidelines:

ווערינג די העאַדסעט

• Adjust the headband to ensure the ear cushions sit comfortably over your ears.
• Position the microphone arm so the microphone is approximately 1-2 inches from your mouth for optimal voice pickup. The 330° rotatable mic allows you to wear it on either side.

Using In-line Controls

The in-line control unit provides convenient access to essential functions:

• באַנד קאָנטראָל: Use the volume +/- buttons to adjust the listening volume.
• רופן קנעפּל: Press to answer or end a call. This button may also function as a play/pause button for media playback on some devices.

Image: A user demonstrating the headset in use, with a close-up of the in-line controls for managing calls and volume.

ראַש-קאַנסילינג מיקראָפאָן

The integrated noise-cancelling microphone is designed to filter out most background noise, ensuring your voice is heard clearly during calls. This feature is particularly beneficial in busy environments like call centers or home offices.

Image: A visual representation of how the noise-cancelling microphone works, demonstrating the reduction of ambient noise for clearer communication.

ברייט קאַמפּאַטאַבילאַטי

The headset is compatible with a broad range of devices and communication platforms, including PC, Mac, laptops, iPhone, Android cell phones, and applications like Zoom, Teams, Skype, and more.

Image: The headset positioned among logos of popular communication software (Zoom, Teams, Skype) and operating systems (Android, Apple, Windows), illustrating its broad compatibility.

וישאַלט

To ensure the longevity and optimal performance of your Callez headset, follow these maintenance tips:

• רייניקונג: Gently wipe the ear cushions and headset surfaces with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials.
• סטאָרידזש: האַלט די כעדסעט אין אַ ריינעם, טרוקענעם אָרט אַוועק פון עקסטרעמע טעמפּעראַטורן און דירעקטער זון.
• קאַבלע זאָרגן: פֿאַרמײַדט שאַרפֿע בייגן אָדער איבערגעטריבענע ציען אויף דעם קאַבל צו פֿאַרמײַדן אינערלעכע שאָדן.
• מיקראָפאָן שוץ: Keep the microphone foam cover clean and free from debris.

טראָובלעשאָאָטינג

If you encounter issues with your headset, try these common solutions:

קיין קלאַנג פֿון כעדסעט

• קוק די קשר: Ensure the 3.5mm jack or USB-C adapter is fully and securely plugged into your device.
• באַנד לעוועלס: Verify that the volume on the in-line control unit is turned up, and your device's system volume is not muted or too low.
• פעליקייַט מיטל: In your device's sound settings, ensure the headset is selected as the default playback device.
• פּרובירן אויף אן אנדער מיטל: Try connecting the headset to a different device to determine if the issue is with the headset or the original device.

מיקראָפאָן איז נישט ארבעטן

• מיקראָפאָן שטעלע: Ensure the microphone arm is positioned correctly near your mouth.
• שטום סטאַטוס: Check if the microphone is muted in your device's settings or within the application you are using (e.g., Zoom, Teams).
• Default Recording Device: In your device's sound settings, ensure the headset is selected as the default recording device.
• אַפּליקאַציע פּערמישאַנז: For certain applications, ensure microphone access is granted in your device's privacy settings.

Intermittent Connection/Static

• זיכער קשר: Re-plug the 3.5mm jack or USB-C adapter to ensure a firm connection.
• פּאָרט ריינקייַט: Check the device's audio port for any dust or debris that might obstruct the connection.
• קאַבלע אָרנטלעכקייַט: Inspect the headset cable for any visible damage or kinks.

ספּעסאַפאַקיישאַנז

וואָראַנטי & שטיצן

Callez is committed to providing high-quality products and customer satisfaction.

• 2 יאָר וואָראַנטי: Your Callez headset is covered by a 2-year warranty from the date of purchase, protecting against manufacturing defects.
• 45-טאָג געלט-צוריק גאַראַנטירן: We offer a 45-day money-back guarantee for your peace of mind.
• קונה שטיצן: For any questions, technical assistance, or warranty claims, please contact Callez customer support through the retailer's platform or visit the official Callez store page.
