ETEK WiFi Smart RCBO קרייַז ברעאַקער EKR3L באַניצער מאַנואַל

1. הקדמה

This manual provides essential information for the safe and effective installation, operation, and maintenance of your ETEK WiFi Smart Residual Current Circuit Breaker with Overcurrent Protection (RCBO) EKR3L. Please read this manual thoroughly before installation and retain it for future reference.

1.1. זיכערקייַט אינפֿאָרמאַציע

• Installation and maintenance must be performed by qualified electricians only.
• זיכער מאַכן אַז די הויפּט מאַכט צושטעל איז דיסקאַנעקטיד איידער קיין ינסטאַלירונג אָדער וויירינג אַרבעט.
• ניצט נישט דעם אפאראט אויב עס זעט אויס צעבראכן.
• Adhere to all local electrical codes and regulations.
• The "Test Monthly" button should be pressed regularly to ensure proper functioning of the residual current protection.

2. פּראָדוקט פֿעיִקייטן

• WiFi קאַנעקטיוויטי: Remote control and monitoring via a smartphone application.
• Auto Reclosing Function: Automatically resets the circuit breaker after a temporary fault, minimizing downtime.
• Residual Current Protection (RCBO): Protects against earth leakage faults (30mA sensitivity).
• אָווערקוררענט שוץ: Safeguards against short circuits and overloads (e.g., 16A rating for this variant).
• הויך-קוואַליטעט קאַנסטראַקשאַן: Made with insulating, flame-retardant, and UV-resistant materials for durability.
• זיכער קאַנעקשאַנז: Screw-type terminals ensure stable electrical connections.
• ווערסאַטאַל אַפּלאַקיישאַן: Suitable for solar inverters, charge controllers, and battery banks.

3. פּראָדוקט איבערview און קאַמפּאָונאַנץ

Familiarize yourself with the components of the ETEK WiFi Smart RCBO EKR3L:

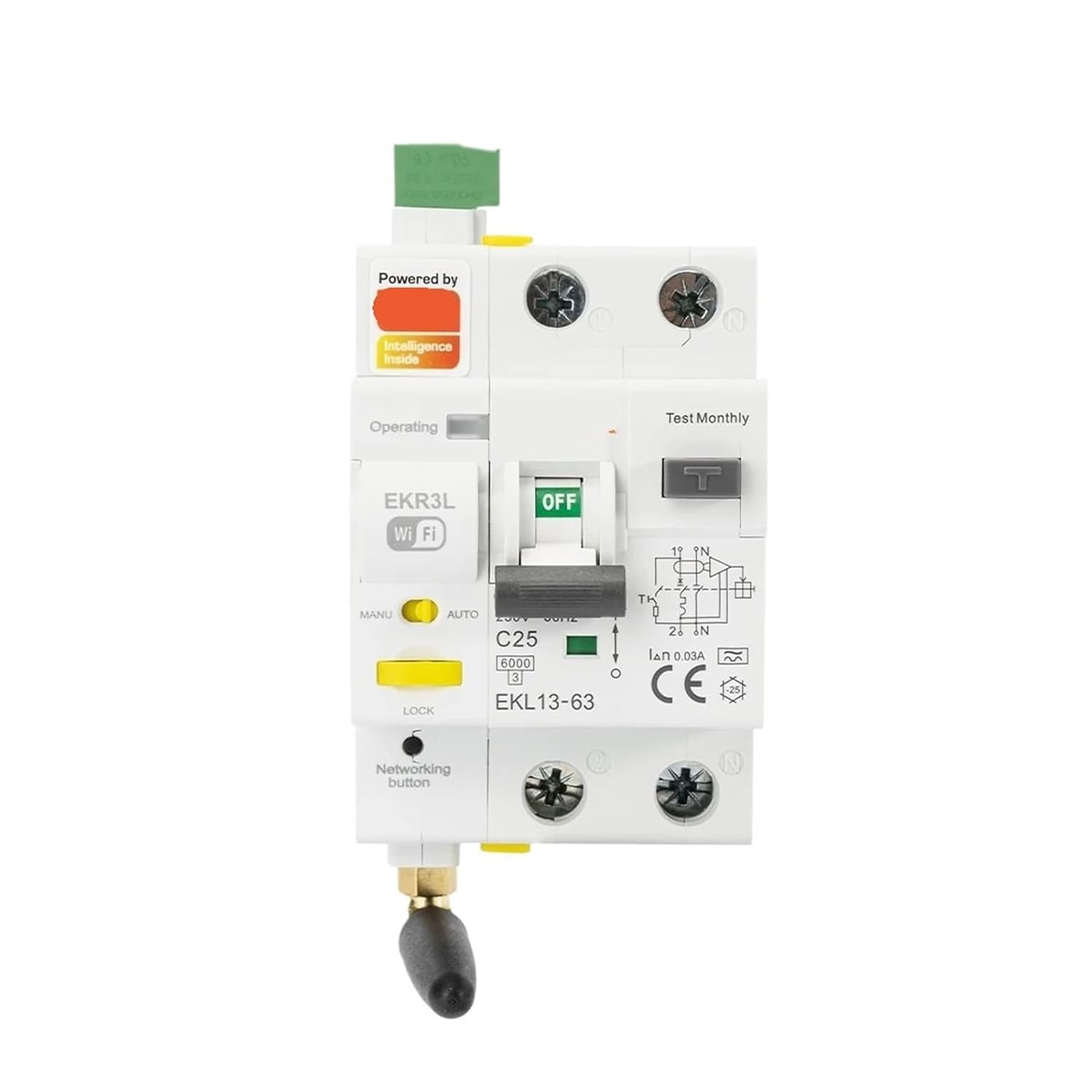

פיגורע 1: פראָנט view of the ETEK WiFi Smart RCBO EKR3L Circuit Breaker. Key components include the main switch (OFF/ON), Test Monthly button, MANU/AUTO selector, Networking button, and WiFi indicator.

1. Main Switch (OFF/ON): Manually disconnects or connects the circuit.
2. Test Monthly Button: Initiates a self-test for the residual current protection function.
3. MANU/AUTO Selector: Switches between manual operation and automatic reclosing mode.
4. Networking Button: Used for pairing the device with the WiFi network.
5. WiFi ינדיקאַטאָר: ווײַזט דעם סטאַטוס פֿון דער WiFi פֿאַרבינדונג.
6. אַפּערייטינג אינדיקאַטאָר: דיספּלייז די אַפּעריישאַנאַל סטאַטוס פון די מיטל.
7. לאַק ינדיקאַטאָר: Indicates if the device is in a locked state.
8. Specifications Label: Displays electrical ratings such as C25 (25A rated current, though this variant is 16A, the image shows C25), 6000 (breaking capacity), IΔn 0.03A (residual operating current), and CE certification.

4. סעטאַפּ און ייַנמאָנטירונג

4.1. וויירינג ינסטרוקטיאָנס

Refer to the wiring diagram on the device and follow these steps:

• Ensure all power is OFF at the main distribution board.
• Connect the incoming live (L) and neutral (N) wires to the top terminals (1 and N) of the RCBO.
• Connect the outgoing live (L) and neutral (N) wires to the bottom terminals (2 and N) of the RCBO, leading to the protected circuit.
• Tighten all screw terminals securely to prevent loose connections and overheating.

4.2. WiFi Pairing

To enable remote control and monitoring:

1. Download the compatible smartphone application (refer to product packaging or manufacturer's website for app details).
2. Ensure the RCBO is powered ON.
3. Press and hold the "Networking button" until the WiFi indicator starts flashing, indicating pairing mode.
4. Follow the in-app instructions to connect the device to your 2.4GHz WiFi network.
5. Once successfully paired, the WiFi indicator will remain steadily lit.

5. אַפּערייטינג ינסטרוקטיאָנס

5.1. מאַנואַל אָפּעראַציע

• To turn the circuit ON, push the main switch lever upwards.
• To turn the circuit OFF, push the main switch lever downwards.

5.2. Auto Reclosing Function

• Set the MANU/AUTO selector to "AUTO" for automatic reclosing functionality.
• In AUTO mode, if the RCBO trips due to a temporary fault, it will attempt to reclose the circuit after a short delay.
• If the fault persists, the device will remain tripped for safety.
• Set the selector to "MANU" to disable auto-reclosing and operate the device manually.

5.3. ווײַטקאָנטראָל דורך אַפּ

• Open the paired smartphone application.
• From the app interface, you can remotely switch the RCBO ON or OFF.
• The app may also provide status updates and fault notifications.

6. וישאַלט

6.1. Monthly Test

It is crucial to test the residual current protection function monthly:

• Ensure the RCBO is in the ON position.
• Press the "Test Monthly" button. The RCBO should immediately trip to the OFF position.
• If the RCBO does not trip, it indicates a malfunction, and the device should be replaced immediately.
• Reset the RCBO by pushing the main switch lever upwards after the test.

6.2. רייניקונג

Clean the exterior of the device with a dry, soft cloth. Do not use abrasive cleaners or solvents.

7. טראָובלעשאָאָטינג

8. ספּעסאַפאַקיישאַנז

9. וואָראַנטי און שטיצן

For warranty information and technical support, please refer to the product packaging or contact your retailer. Keep your purchase receipt as proof of purchase.
