הקדמה
This manual provides detailed instructions for the safe and effective use of your mollie Dog Grooming Vacuum and Dryer. This 3-in-1 device combines a pet blower, a vacuum cleaner for loose hair, and a precision trimming tool, offering a comprehensive grooming solution for your pets. Please read this manual thoroughly before operation and retain it for future reference.
Image: The mollie Dog Grooming Vacuum and Dryer unit with its accompanying grooming tools, including brushes, clippers, and nozzles.
זיכערקייַט אינסטרוקציעס
- Always ensure the device is unplugged before cleaning or performing maintenance.
- דו זאלסט נישט ייַנטונקען די הויפּט אַפּאַראַט אין וואַסער אָדער אנדערע ליקווידס.
- Keep the device out of reach of children and pets when not in use.
- Do not operate the device with a damaged cord or plug. Contact customer support for assistance.
- Use only the attachments provided by the manufacturer.
- Avoid blocking air vents during operation to prevent overheating.
- Ensure your pet is calm and comfortable before beginning grooming.
פּעקל אינהאַלט
באַשטעטיקן אַז אַלע זאכן זענען פאַראַן אין דיין פּעקל:
- mollie Main Unit (Vacuum/Blower)
- Flexible Long Hose (approx. 53 inches)
- עלעקטריק טרימער
- גראָאָמינג באַרשט
- דעשעדינג באַרשט
- Massage Dryer Nozzle
- Crevice Nozzle (Blowing & Vacuuming)
- רייניקונג באַרשט
- 4 Clipper Guards (6mm, 12mm, 18mm, 24mm)
בילד: אן עקספלאדירטע view showing the main mollie unit and all five included grooming tools and clipper guards.
פּראָדוקט איבערview
The mollie grooming system features a compact main unit with intuitive controls and a variety of interchangeable tools for different grooming tasks.
הויפּט אַפּאַראַט קאָנטראָלס
- אויף / אַוועק קנעפּל: מאַכט אָן אָדער אויס דעם אַפּאַראַט.
- מאָדע אינדיקאַטאָר ליכט: Displays the current operating mode (vacuum or blow).
- Gear Shift Button: Adjusts the suction/blowing power level.
בילד: א דעטאַלירטע view of the mollie unit's top panel, highlighting the On/Off button, mode indicator lights, and gear shift button.
סעטאַפּ
- אַנפּאַק: קערפאַלי באַזייַטיקן אַלע קאַמפּאָונאַנץ פון די פּאַקקאַגינג.
- קאָננעקט קישקע: Attach the flexible hose to the main unit's port. Ensure it clicks securely into place.
- אויסקלייבן געצייג: Choose the desired grooming tool and attach it to the other end of the flexible hose.
- מאַכט קשר: צאַפּן די מאַכט שנור אין אַ פּאַסיק עלעקטריקאַל ווענטיל.
Image: The mollie main unit with the flexible, high-temperature resistant hose attached, demonstrating its length and flexibility.
אַפּערייטינג ינסטראַקשאַנז
אַלגעמיינע אָפּעראַציע
- מאַכט אויף: דרוק דעם אויף / אַוועק קנעפּל צו אָנהייבן דעם מיטל.
- אויסקלייַבן מאָדע: Rotate the dial on the main unit to switch between 'VACUUM' and 'BLOW' modes. The mode indicator light will confirm your selection.
- אַדזשאַסטירן מאַכט: Use the Gear Shift button to cycle through different power levels for suction or blowing.
- מאַכט אַוועק: Press the On/Off button again to turn off the device.
Image: A close-up of the mollie unit's dial, illustrating how to switch between vacuum and blow dryer functions.
Using Grooming Tools
- Grooming Brush / Deshedding Brush: Use these brushes in vacuum mode to remove loose hair and undercoat. The vacuum collects the hair directly, minimizing mess. The grooming brush features rounded bristles for a gentle massage.
- Electric Trimmer: Attach the trimmer to the hose for precise hair cutting. Select one of the four clipper guards (6mm, 12mm, 18mm, 24mm) based on the desired hair length. The integrated vacuum collects trimmed hair as you work.
- Massage Dryer Nozzle: Use this nozzle in blow mode to dry your pet's fur after bathing. It provides a gentle, constant temperature airflow for comfort.
- שפּאַלטן נעזל: This versatile nozzle can be used in both blow and vacuum modes. In blow mode, it concentrates airflow for targeted drying. In vacuum mode, it can clean pet hair from hard-to-reach areas like furniture crevices.
- רייניקונג באַרשט: Use this brush to clean the device itself or other surfaces. It helps neutralize static electricity, making hair easier to capture.
בילד: א דעטאַלירטע view of the grooming brush head, showing the rounded bristles designed for gentle pet massage and effective hair collection.
Image: A pet's fur being trimmed by the electric trimmer, with the vacuum function actively collecting the cut hair.
Image: An illustration of the four different clipper guard sizes (6mm, 12mm, 18mm, 24mm) and their corresponding effect on pet fur length.
Image: A close-up of the massage dryer nozzle, designed to simulate fingertip massage while drying with constant temperature airflow.

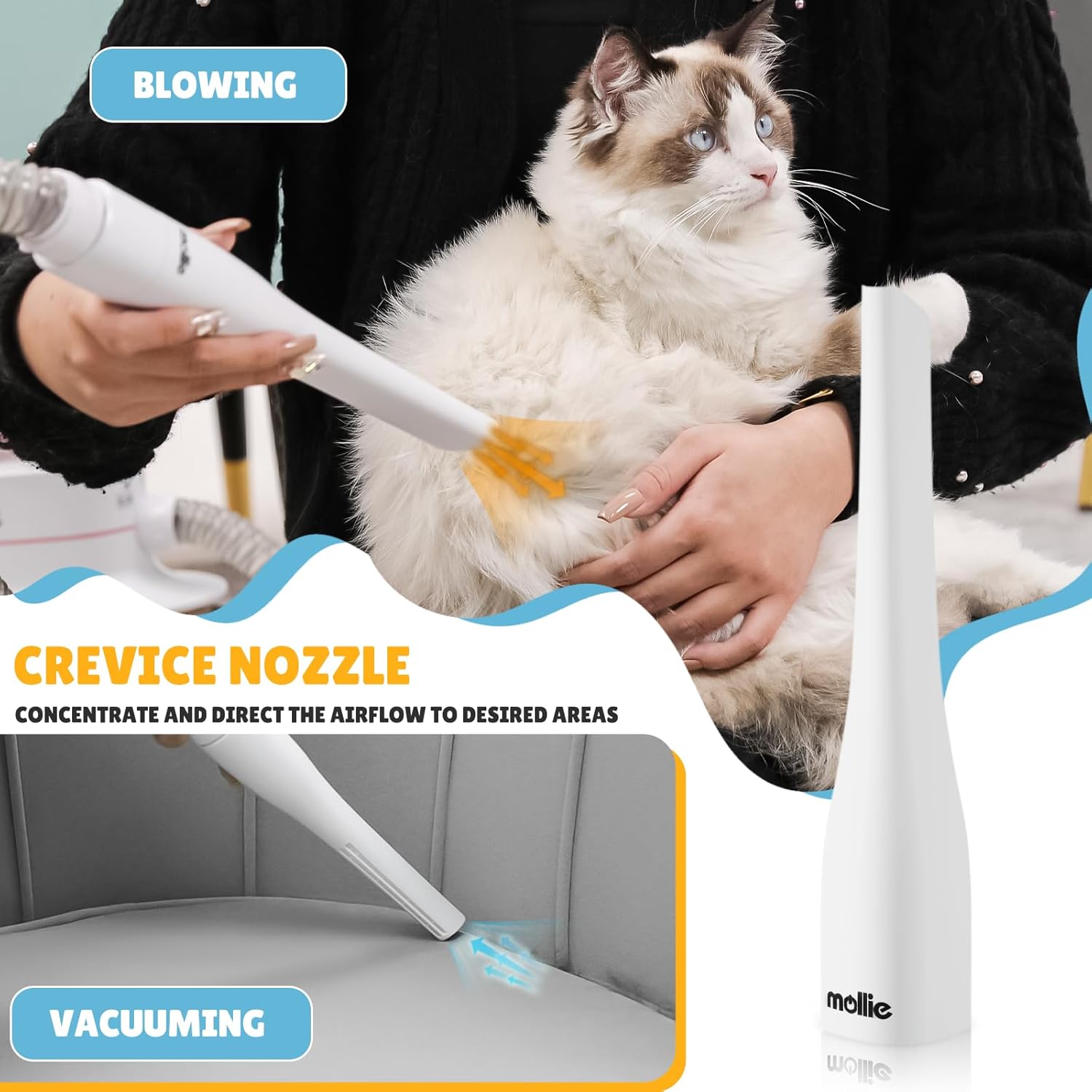

Image: The crevice nozzle in use, demonstrating its ability to concentrate airflow for blowing and effectively vacuum pet hair from surfaces.
Image: The cleaning brush being used to collect pet hair, illustrating its static-neutralizing feature for efficient hair capture.
וישאַלט
עמפּטיינג די שטויב קאַפּ
The mollie grooming vacuum features a 4-liter large-capacity dust cup, reducing the frequency of emptying. To empty:
- זייט זיכער אז די דעווייס איז אויסגעלאשן און נישט אריינגעשטעקט פון די פלאג.
- Locate the 'PUSH' button on the side of the dust cup.
- Press the button to release the dust cup from the main unit.
- Carefully empty the collected hair and debris into a waste bin.
- Reattach the dust cup, ensuring it clicks securely into place.

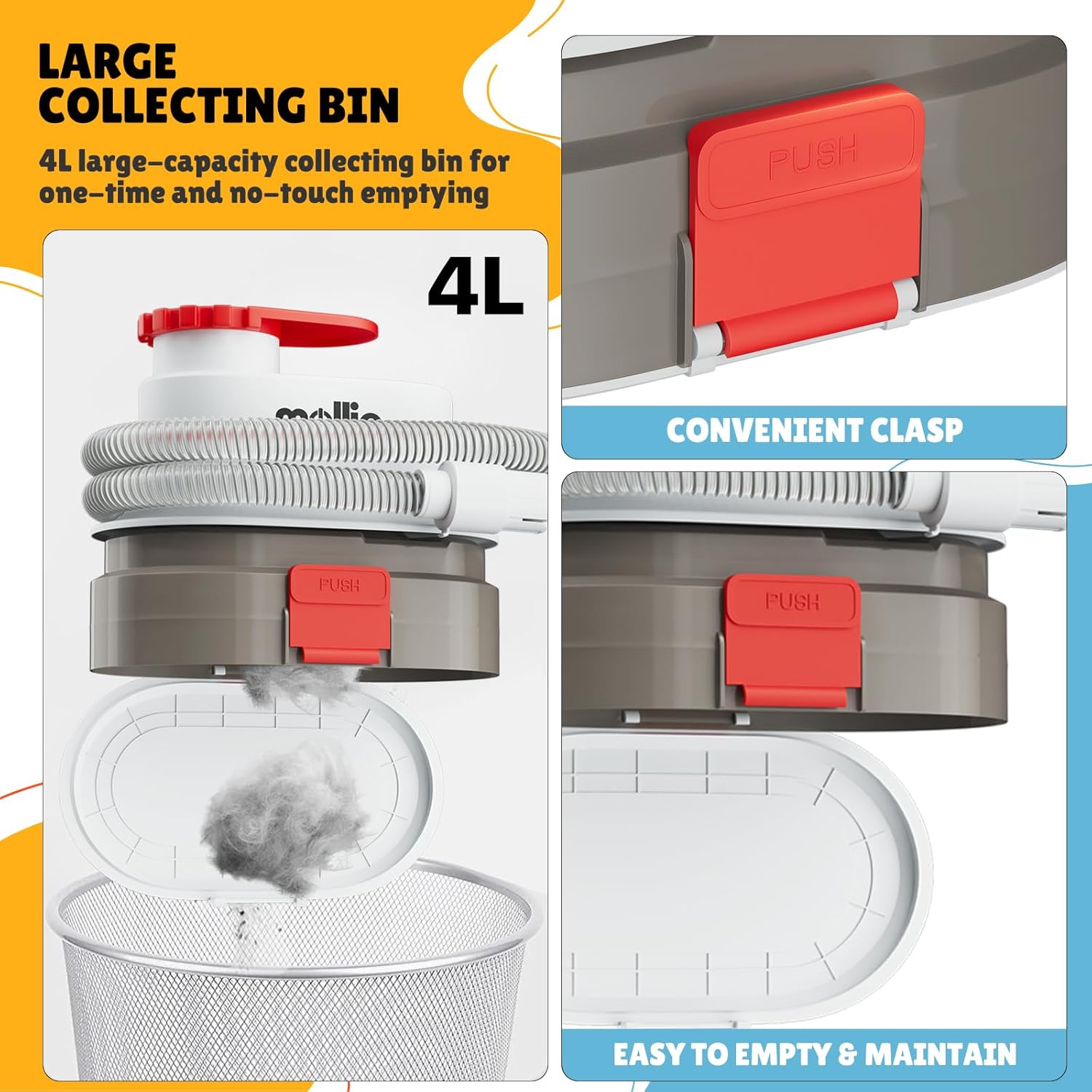

Image: A visual guide demonstrating how to detach and empty the 4-liter large-capacity dust collecting bin from the mollie unit.
Cleaning Tools and Hose
- After each use, remove any hair or debris from the grooming tools.
- Wipe down tools with a damp שטאָף. דו זאלסט נישט נוצן האַרב קעמיקאַלז.
- Periodically check the hose for blockages and clear them if necessary.
אַלגעמיינע קער
- Store the device and its accessories in a clean, dry place.
- ויסמיידן יקספּאָוזינג די מיטל צו עקסטרעם טעמפּעראַטורעס.
טראָובלעשאָאָטינג
| פּראָבלעם | מעגלעך סיבה | לייזונג |
|---|---|---|
| די מיטל איז נישט קער אויף | Not plugged in; Power outlet issue; Damaged cord | Check power connection; Try a different outlet; Contact customer support |
| Weak suction/blowing power | Dust cup full; Hose/tool blockage; Incorrect power setting | Empty dust cup; Clear blockages; Adjust power level with Gear Shift button |
| יבעריק ראַש | Blockage in hose/unit; Loose component | Check for and clear blockages; Ensure all parts are securely attached |
| טרימער שניידט נישט עפעקטיוו | Blades dull; Hair tangled in blades | Clean trimmer blades; Ensure blades are free of tangled hair |
If problems persist, please contact mollie customer support.
ספּעסאַפאַקיישאַנז
- מאָדעל נומער: A03-PGV-001-RD-DUP1
- פּראָדוקט דימענשאַנז: 11 X 6 X 9.5 אינטשעס
- שטויב קאַפּ קאַפּאַציטעט: 4 ליטער
- מאַכט מקור: קאָרדעד עלעקטריק
- מאַטעריאַל: פּלאַסטיק, ומבאַפלעקט שטאָל
- ראַש מדרגה: בעערעך 65 דב
Image: A diagram illustrating the dimensions of the mollie Dog Grooming Vacuum and Dryer: 11 inches long, 6 inches wide, and 9.5 inches high.
Image: An illustration highlighting the quiet operation of the mollie grooming vacuum, indicating a noise level of approximately 65 dB.
וואָראַנטי און שטיצן
For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official mollie webזייטל. האַלט דיין קויפן באַווייַז פֿאַר וואָראַנטי קליימז.
