Hart 40V 10-inch Cordless Pruner Chainsaw HLC503 User Manual

הקדמה

This manual provides essential instructions for the safe operation, maintenance, and troubleshooting of your Hart 40V 10-inch Cordless Pruner Chainsaw, model HLC503. Please read this manual thoroughly before using the tool to ensure proper function and to prevent injury.

The Hart 40V 10-inch Cordless Pruner Chainsaw is designed for cutting small branches and pruning bushes. It operates on a 40V battery system (battery and charger sold separately).

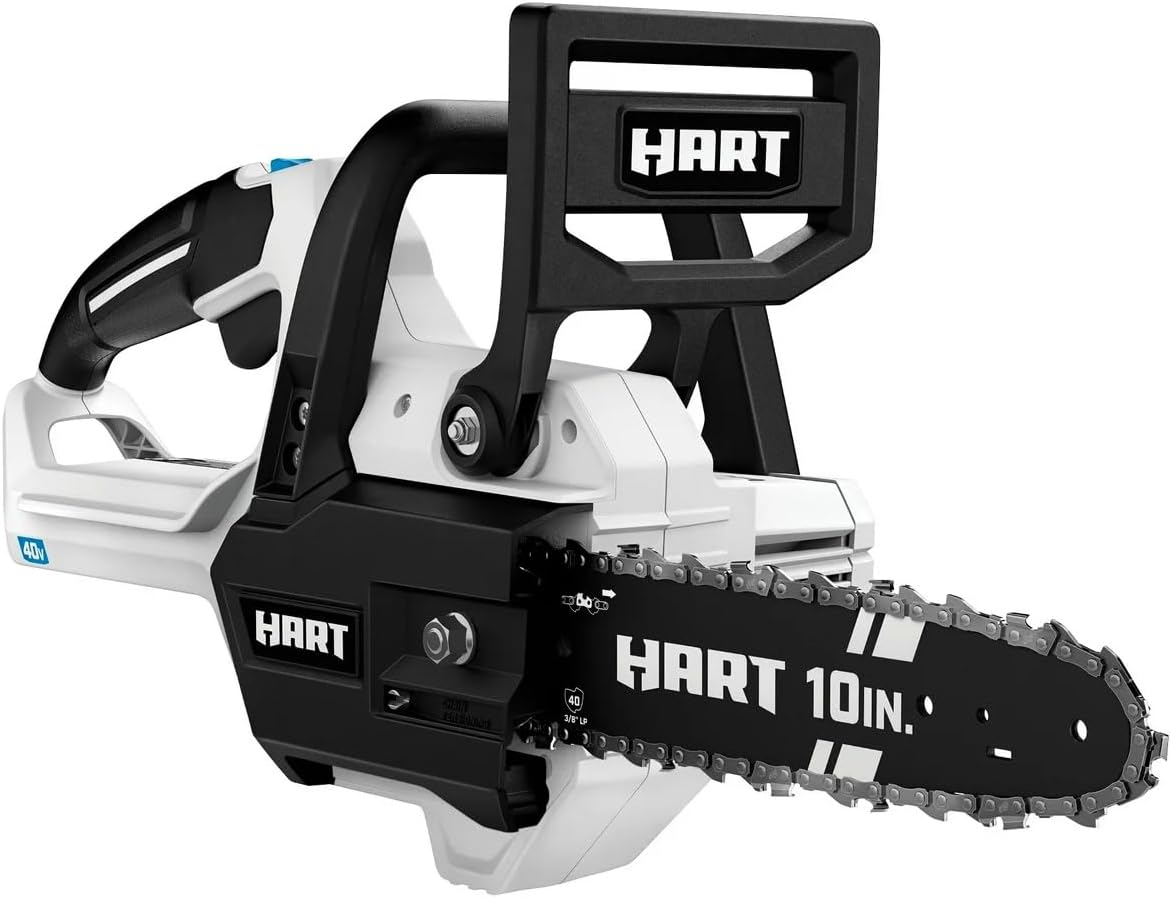

פיגורע 1: Hart 40V 10-inch Cordless Pruner Chainsaw HLC503. This image displays the complete chainsaw unit, highlighting its compact design, the 10-inch bar and chain, the front handle, and the rear comfort grip. The Hart logo is visible on the motor housing and the front handle.

אַלגעמיינע סאַפעטי אינפֿאָרמאַציע

שטענדיק אָבסערווירן גרונטלעכע זיכערהייט מיטלען צו רעדוצירן דעם ריזיקאָ פון פייער, עלעקטרישן קלאַפּ און פערזענלעכע שאָדן ווען איר אַרבעט מיט עלעקטרישע מכשירים. האַלט דעם מאַנואַל פֿאַר צוקונפֿטיקע רעפֿערענץ.

פערזענלעכע סאַפעטי

• טראָגט פּאַסיקע פּערזענלעכע שוץ-עקוויפּמענט (PPE): Always wear safety glasses or goggles, hearing protection, gloves, and sturdy footwear.
• קלייד רעכט: טראָגט נישט קיין לויזע קליידער אָדער צירונג וואָס קענען זיך פֿאַרהאַנגען אין באַוועגלעכע טיילן. האַלט האָר, קליידער און הענטשקעס אַוועק פֿון באַוועגלעכע טיילן.
• בלייבן פלינק: ארבעט נישט מיט דער קייט-זעג ווען איר זענט מיד, אונטערן איינפלוס פון דראגס, אלקאהאל, אדער מעדיקאציע.
• האַלטן געהעריק פוס און וואָג: Ensure a stable stance before and during operation.

אַרבעט שטח זיכערקייַט

• האַלטן די אַרבעט געגנט ריין און געזונט-ליט: קלאַטערד אָדער טונקל געביטן פאַרבעטן אַקסאַדאַנץ.
• האַלט פֿאַרבייגייער אַוועק: Do not allow children or untrained persons to operate or be near the chainsaw.
• ויסמיידן געפערלעך ינווייראַנמאַנץ: Do not use the chainsaw in damp or wet locations, or expose it to rain.

קייט-זעג ספּעציפישע זיכערהייט

• Understand kickback: Be aware of the potential for kickback, which can occur when the moving chain contacts an object at the upper quadrant of the guide bar nose.
• Use both hands: האַלט שטענדיק די קייט-זעג פעסט מיט ביידע הענט ווען איר אַרבעט.
• קאָנטראָלירן איידער נוצן: Check for damaged parts, loose fasteners, and proper chain tension before each use.
• Never modify the chainsaw: Unauthorized modifications can impair safety and performance.

פּעקל אינהאַלט

Ensure all items listed below are present in your package. If any parts are missing or damaged, do not operate the tool and contact customer service.

• Hart 40V 10-inch Cordless Pruner Chainsaw (HLC503)
• גייד בר
• סאָ טשאַין
• Scabbard (Bar Cover)
• Wrench with Onboard Storage
• אָפּעראַטאָר'ס מאַנואַל (דאָס דאָקומענט)

באַמערקונג: Battery and charger are נישט included with this tool and must be purchased separately. This chainsaw is compatible with all Hart 40V batteries and chargers.

סעטאַפּ

1. באַטערי ייַנמאָנטירונג און באַזייַטיקונג

1. צו ינסטאַלירן: Align the ribs on the battery with the grooves in the chainsaw's battery port. Slide the battery into the port until it clicks securely into place.
2. צו באַזייַטיקן: Press the battery release button (usually located on the battery itself) and slide the battery out of the port.

Ensure the battery is fully charged before use. Refer to your battery and charger manual for charging instructions.

2. גייד באַר און זעג קייט ינסטאַלירונג

Always ensure the battery is removed before performing any assembly or maintenance.

1. Remove Side Cover: Use the onboard wrench to loosen the nuts securing the side access cover. Remove the cover.
2. Install Guide Bar: Place the guide bar onto the studs, ensuring the chain tensioning pin fits into the hole on the guide bar.
3. Install Saw Chain: Carefully loop the saw chain around the drive sprocket and into the groove of the guide bar. Ensure the cutting edges of the chain are facing the correct direction (refer to markings on the chain or bar).
4. פאַרבייַטן זייַט דעקל: Reinstall the side cover and hand-tighten the nuts. Do not fully tighten yet.
5. אַדזשאַסטירן קייט שפּאַנונג: Use the chain tensioning screw (typically located on the side cover) to adjust the chain tension. The chain should be snug against the guide bar but still able to be pulled freely by hand. There should be no slack on the underside of the bar, and the chain should not bind.
6. צוציען די ניסלעך: Once tension is correct, fully tighten the side cover nuts with the wrench.

3. אָנפֿילן דעם קייט־אויל־רעזערוואַר

The chainsaw features an automatic oiler. It is crucial to keep the oil reservoir filled with appropriate bar and chain oil to ensure smooth operation and extend the life of the chain and bar.

1. שטעלן די טשאַינסעג אויף אַ פלאַך, סטאַביל ייבערפלאַך.
2. Unscrew the oil cap (usually located on the top or side of the motor housing).
3. Fill the reservoir with quality bar and chain oil. Do not use waste oil or thin oils like motor oil, as this can damage the pump and chain.
4. לייגט צוריק דעם אויל דעקל זיכער.
5. Check the oil level frequently during operation and refill as needed.

אַפּערייטינג ינסטראַקשאַנז

Before starting, ensure all safety precautions are followed, the battery is charged, and the oil reservoir is full.

1. סטאַרטינג די טשאַינסאַוו

1. Insert a fully charged 40V battery into the chainsaw.
2. Grip the chainsaw firmly with both hands: one hand on the front handle and the other on the rear comfort grip.
3. To start, depress the safety lock-out button (if present) and then squeeze the trigger switch. The chain will begin to move.

2. קאַטינג טעקניקס

• שניידן צווייגן: When cutting branches, support the branch if possible to prevent it from pinching the chain. Make relief cuts if the branch is large to avoid tearing the bark.
• פֿאַרמייַדן קיקבעק: Always be aware of the guide bar tip. Avoid contact with any object, especially when cutting with the upper quadrant of the tip, as this can cause sudden upward and backward movement (kickback).
• האַלטן קאָנטראָל: Let the chainsaw do the work. Do not force the saw through the cut. Apply steady, light pressure.
• קלאָר דעבריס: Stop the chainsaw and remove the battery before clearing any jammed debris from the chain or bar.

3. אפשטעלן די קייט-זעג

Release the trigger switch. The chain will stop moving. Always remove the battery when the chainsaw is not in use or before performing any adjustments or maintenance.

וישאַלט

רעגולערע אויפהאלטונג זיכערט די לענג פון לעבן און זיכערע אפעראציע פון ​​אייער קייט-זעג. שטענדיג ארויסנעמען די באטעריע איידער איר טוט יעדע אויפהאלטונג.

1. קייט שאַרפּנינג און פאַרבייַט

• שאַרפּנינג: A dull chain will cut slowly and require more force. Sharpen the chain regularly using a round file of the correct diameter (refer to chain specifications, typically 3/8" LP for this model). Maintain the correct filing angles.
• פאַרבייַט: Replace the chain when it is severely dull, damaged, or stretched beyond adjustment limits. Follow the installation steps in the "Setup" section.

2. פירער באַר וישאַלט

• Clean Groove: Periodically clean the guide bar groove to remove sawdust and debris that can impede chain movement and oil flow.
• Flip Bar: To ensure even wear, flip the guide bar over periodically (e.g., after every 8-10 hours of use).
• Check for Burrs: Remove any burrs that form on the guide bar rails using a flat file.

3. רייניקונג און סטאָרידזש

• רייניקונג: After each use, clean the chainsaw exterior with a damp cloth. Remove sawdust and debris from the motor housing vents and around the chain and bar area.
• סטאָרידזש: Store the chainsaw in a dry, secure location, out of reach of children. Always install the scabbard (bar cover) over the guide bar and chain before storage. Remove the battery before storing for extended periods.

טראָובלעשאָאָטינג

This section addresses common issues you might encounter with your Hart 40V 10-inch Cordless Pruner Chainsaw. If you experience a problem not listed here, or if the suggested solution does not resolve the issue, contact customer support.

ספּעסאַפאַקיישאַנז

וואָראַנטי און שטיצן

For specific warranty information, please refer to the warranty card included with your product or visit the official Hart Tools webזייטל. האַלט אייער קויף קוויטל ווי אַ באַווייַז פון קויפן פֿאַר וואָראַנטי קליימז.

For technical support, replacement parts, or service inquiries, please contact Hart customer service. Contact details can typically be found on the product packaging or the official brand webפּלאַץ.
