ראָוד ווירעלעס פּראָ אינסטרוקציע מאַנואַל

הקדמה

The Rode Wireless PRO is a premium two-person wireless microphone system designed for content creators, filmmakers, and professionals who demand high-quality, reliable audio. This manual provides essential information for setting up, operating, and maintaining your Wireless PRO system to ensure optimal performance.

וואָס איז אין די קעסטל

באַשטעטיקן אַז אַלע קאָמפּאָנענטן זענען פאַראַן אין דיין פּעקל:

• RODE Wireless PRO 2-Person Clip-On Wireless Microphone System/Recorder with Lavaliers (2.4 GHz)
• צווייענדיק-טשאַננעל ווירעלעסס ופנעמער
• 2 x Clip-On Transmitter
• 2 x RODE Lavalier II Omnidirectional Lavalier Microphone
• RODE SC2 Right-Angle 3.5mm TRS Coiled Patch Cable
• RODE SC21 Lightning to USB-C Cable
• RODE SC22 USB-C to USB-C Cable
• USB-C to USB-C Superspeed Cable
• 2 x RODE MagClip GO Magnet Clip for the Wireless GO Transmitter
• 3 רענטגענ פערי ווינדשיעלד
• Charging Case PRO
• אַקסעסערי קאַסע
• אָביעקטיוו שטאָף
• RODE VXLR 3.5mm TRS Female to XLR Male Adapter
• Goby Labs Headphone Cleaner 4 fl oz
• דעלוקסע רייניקונג קיט

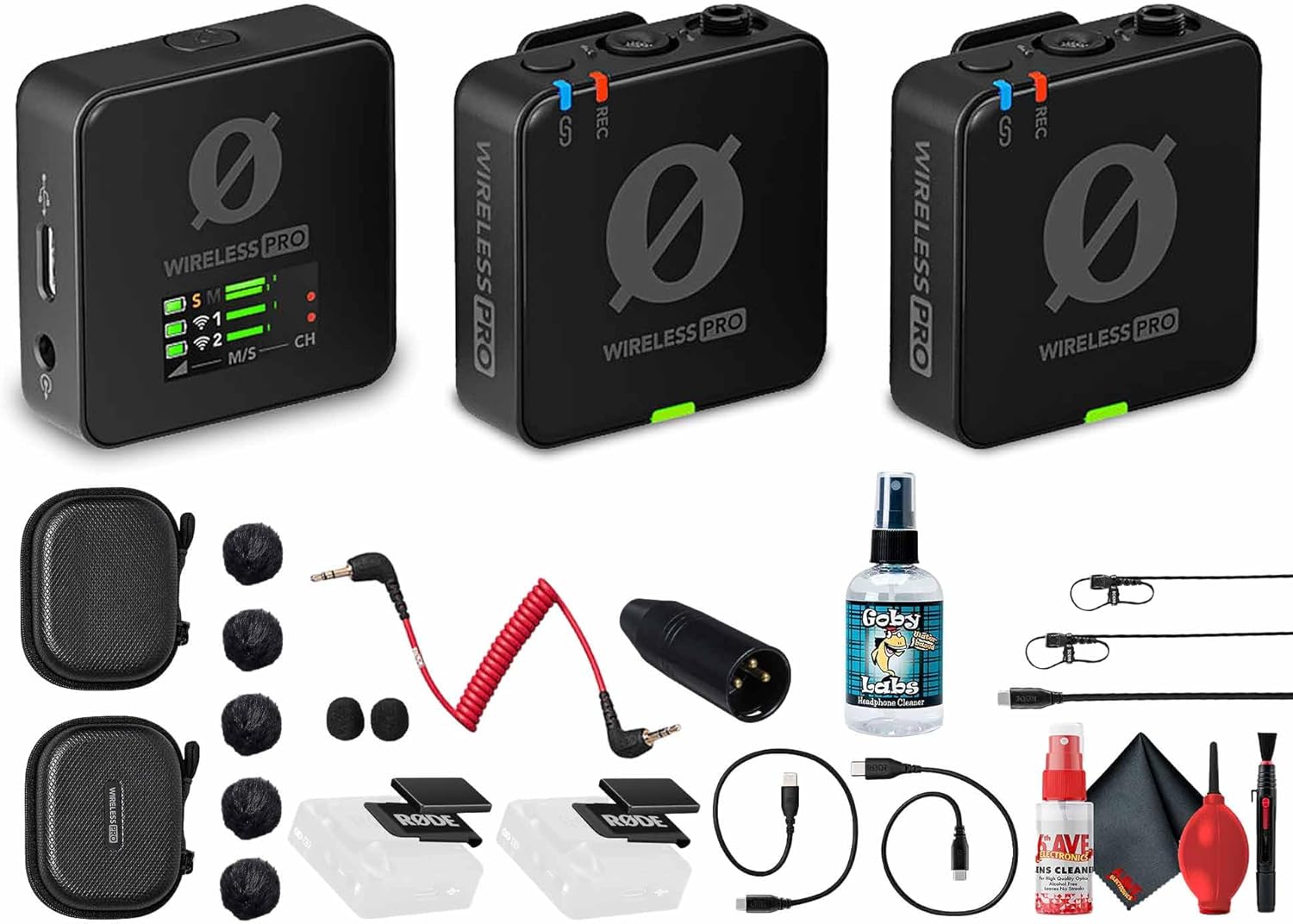

Figure 1: All components of the Rode Wireless PRO system, including transmitters, receiver, lavalier microphones, cables, and cases.

סעטאַפּ

1. טשאַרדזשינג די סיסטעם:

   Before first use, fully charge all components. The transmitters and receiver can be charged individually via USB-C. For convenience, use the included Charging Case PRO, which can recharge the entire system up to two full times, extending total runtime to 21 hours. A green light on the charging case indicates charging status.



   Figure 2: The Charging Case PRO with the Wireless PRO units inserted for charging.
2. מאַכט אויף / אַוועק:

   Press and hold the power button on each transmitter and the receiver until the display illuminates. To power off, press and hold the power button again.



   Figure 3: The Rode Wireless PRO receiver (left) and two transmitters (right), showing their compact design.

3. פּאָרינג:

   The units are pre-paired from the factory. If re-pairing is needed, refer to the Rode Connect software for instructions. The system supports direct wireless connection to compatible Rode devices like the Rodecaster Pro II or Duo.
4. קאַנעקטינג צו דיווייסאַז:

   The compact dual-channel receiver integrates with cameras, smartphones, and computers via 3.5mm, USB-C, and Lightning connections. Use the appropriate cable (SC2, SC21, SC22, or USB-C Superspeed) for your device.

אַפּערייטינג ינסטראַקשאַנז

1. רעקאָרדינג:

   Each transmitter features 32-bit float recording and 32GB of onboard storage, providing up to 40 hours of uncompressed backup audio. This prevents digital clipping and ensures audio safety even in unpredictable sound environments.
2. מיקראָפאָן באַניץ:

   Use the built-in omnidirectional microphones on the transmitters by clipping them directly to clothing. For discreet placement or enhanced audio quality, connect the included RODE Lavalier II Omnidirectional Lavalier Microphones to the 3.5mm input on the transmitters.



   פיגורע 4: שפּיץ view of the Wireless PRO units, highlighting the microphone input and controls.

3. געווינען קאָנטראָל:

   The system offers both manual gain adjustment and Rode's intelligent GainAssist technology. GainAssist automatically optimizes audio levels for consistent sound without manual adjustments. Monitor audio levels on the receiver's bright LCD display.
4. ווירעלעסס טראַנסמיסיע:

   Rode’s Series IV wireless technology ensures stable transmission with 128-bit encryption and a range of up to 853 feet (260 meters) in optimal conditions.

5. Timecode Support:

   Built-in timecode capabilities simplify post-production by allowing perfect audio-video alignment across multiple cameras and recorders. The Wireless PRO generates timecode directly, ensuring frame-accurate synchronization.

וישאַלט

• רייניקונג: Use the provided Lens Cloth and Deluxe Cleaning Kit to gently clean the surfaces of the transmitters, receiver, and lavalier microphones. Avoid using harsh chemicals or abrasive materials.
• סטאָרידזש: Store the Wireless PRO system in its Charging Case PRO or Accessory Case when not in use to protect it from dust and physical damage.
• באַטערי זאָרגן: For optimal battery longevity, avoid fully discharging the units frequently. Recharge them regularly, especially if storing for extended periods.

טראָובלעשאָאָטינג

If you encounter issues with your Rode Wireless PRO system, consider the following common solutions:

• קיין אודיאָ/אינטערמיטענט אודיאָ:
  • Ensure all units are fully charged and powered on.
  • Verify that transmitters and receiver are properly paired.
  • Check all cable connections (3.5mm, USB-C, Lightning) are secure.
  • Confirm the receiver is correctly connected to your recording device's input.
  • Adjust gain levels on the receiver or enable GainAssist.
  • Ensure you are within the specified operating range (853 feet / 260 meters).
• פאַרקרימט אַודיאָ:
  • Check gain settings; if too high, reduce them.
  • Ensure 32-bit float recording is enabled for maximum dynamic range.
  • Verify microphone placement to avoid clipping.
• איינהייטן לאָדן זיך נישט:
  • Ensure the charging case is charged or connect units directly via USB-C.
  • Check USB-C cables and power adapters for damage.

For further assistance, please refer to the official Rode support resources.

ספּעסאַפאַקיישאַנז

וואָראַנטי און שטיצן

For information regarding product warranty, technical support, and service, please visit the official Rode webזייטל אדער קאנטאקט זייער קאסטומער סערוויס. האלט אייער באווייז פון קויפן פאר גאראנטיע טענות.

• פאַבריקאַנט: ראָוד
• שוץ פלענער: Additional protection plans may be available for purchase. Please refer to your retailer for details on 3-Year and 4-Year protection plans.
• צוריקקער פּאָליטיק: Standard return policy is 30 days (refund/replacement).
