1. הקדמה
Thank you for choosing the FirstPower Pro 36V 18A Golf Cart Battery Charger. This charger is specifically designed for 36V lead-acid battery systems in EZGO TXT electric golf carts. It features an upgraded extended D-style plug for secure connection, an IP67 waterproof rating for durability, and intelligent charging capabilities including automatic maintenance mode. This manual provides essential information for the safe and efficient operation of your charger.
2. זיכערקייַט אינפֿאָרמאַציע
Please read and understand all safety instructions before using the charger. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Use this charger only for 36V lead-acid batteries in EZGO TXT golf carts. Using it with other battery types or voltages may cause damage or injury.
- Ensure the charger is connected to a properly grounded 120V AC power outlet.
- Do not operate the charger if it has been damaged in any way. Inspect the charger, cables, and plug for damage before each use.
- Avoid charging in direct sunlight or extremely hot environments. The charger features thermal compensation, but extreme conditions should be avoided.
- האַלט דעם טשאַרדזשער אַוועק פון ברענענדיקע מאַטעריאַלן, פליסיקייטן און גאַזן.
- צענעמט נישט דעם טשאַרדזשער. לאָזט איבער אַלע סערוויסעס צו קוואַליפֿיצירטע פּערסאָנאַל.
- Always disconnect the charger from the AC power outlet before disconnecting it from the golf cart battery.
- Wear eye protection and gloves when working with batteries. Batteries contain corrosive acid.
- זיכערט זיך מיט גענוג ווענטילאציע בעתן אויפלאדן כדי צו פארמיידן די אקומולאציע פון עקספלאזיווע גאזן.
3. פּעקל אינהאַלט
באַשטעטיקן אַז אַלע זאכן זענען פאַראַן אין פּעקל:
- 1 x FirstPower Pro 36V 18A Golf Cart Battery Charger
- 2 x OBC (On-Board Computer) bypass cables
- 1 x אינסטרוקציע מאַנואַל (דאָס דאָקומענט)
4. פּראָדוקט איבערview און פֿעיִקייטן
The FirstPower Pro 36V 18A charger is designed for optimal performance and user convenience. Key features include:
- Efficient & Lightweight: Delivers 800 watts of power for fast charging, weighing only 5.2 lbs for easy portability.
- עקסטענדעד מאַכט קאַבלע: Features a 16-foot power cable for flexible placement during charging.
- Hassle-Free Maintenance Mode: Automatically switches to a trickle charge mode once batteries are fully charged to prevent overcharging and maintain optimal battery health.
- Robust Waterproof Protection: IP67 rated with internal coating, ensuring protection against dust and water ingress.
- Smart Protection Features: Includes safeguards against low-voltagE, איבער-וואָלtage, overheat, empty-load, short-circuit, and reverse polarity.
- באַניצער-פרייַנדלעך פּלאַן: Equipped with a charging indicator for real-time status updates and a convenient handle.

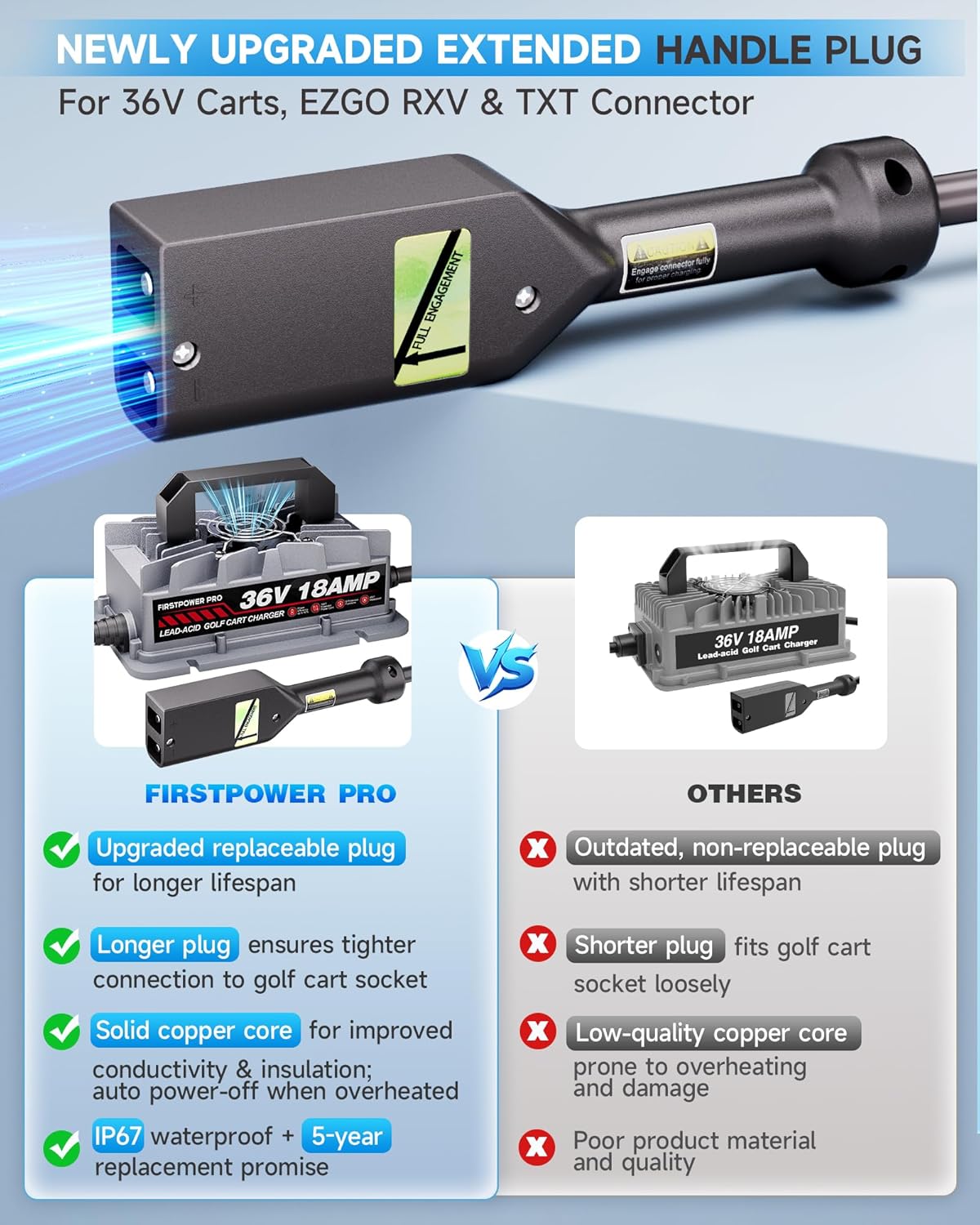

- Upgraded Extended D-Style Plug: Ensures a tighter and more reliable connection to the golf cart socket, featuring a solid copper core for improved conductivity.
פּראָדוקט קאַמפּאָונאַנץ
5. סעטאַפּ אינסטרוקציעס
Follow these steps to set up your charger for the first time:
- דורכקוקן די טשאַרדזשער: Before each use, visually inspect the charger, AC power cord, and the D-style plug for any signs of damage, fraying, or corrosion. Do not use if damaged.
- צוגרייטן דעם גאָלף קאַרט: Ensure your EZGO TXT golf cart is turned off and the key is removed. Park the golf cart on a level, dry surface.
- Connect to Golf Cart: Insert the D-style plug of the charger firmly into the charging port of your EZGO TXT golf cart. Ensure a secure and tight connection.
- פאַרבינדן צו מאַכט אָוטלעט: Plug the AC power cord into a standard 120V AC grounded wall outlet.
- OBC Bypass (If Necessary): Some older EZGO TXT models with an On-Board Computer (OBC) may require bypassing the OBC for proper charging with aftermarket chargers. If your golf cart does not begin charging or exhibits unusual behavior, consult your golf cart's manual or a qualified technician regarding OBC bypass procedures. The included OBC bypass cables may be used for this purpose. Ensure the bypass wire is appropriately sized for the current draw (e.g., 15 amps) צו פאַרמייַדן אָוווערכיטינג.
6. אַפּערייטינג ינסטרוקטיאָנס
Once properly connected, the charger will automatically begin the charging process.
טשאַרדזשינג פּראָצעס
- After connecting the charger to both the golf cart and the AC power outlet, the charger's indicator light will illuminate.
- The charging process typically takes 4-6 hours for a full charge, depending on the battery's discharge level.
- The charger employs a smart charging algorithm that includes a trickle charge mode. As the battery approaches full charge, the charger automatically reduces the charging current and voltage צו פאַרמייַדן איבערטשאַרדזשינג.
- Once the batteries are fully charged, the charger will automatically switch to a maintenance (trickle charge) mode, keeping the batteries in optimal condition without overcharging.
טשאַרדזשינג סטאַטוס ינדיקאַטאָרס
Refer to the LED indicator on the charger for real-time status updates:
- LED (רויט): Charger is in standby mode or not connected properly.
- LED (Green, Solid): Battery is charging and is between 80% and 100% charged.
- LED (Green, Flashing): Battery is fully charged, and the charger is in maintenance mode.
7. וישאַלט
געהעריקע אויפהאלטונג גאראנטירט די לאנגעוויטי און אפטימאלע פאָרשטעלונג פון אייער טשאַרדזשער.
- רייניקונג: Periodically wipe the charger's exterior with a dry, soft cloth. Do not use harsh chemicals or abrasive cleaners. Ensure the cooling fan vents are clear of dust and debris.
- קאַבלע דורכקוק: Regularly check the AC power cord and the D-style plug cable for any signs of wear, cuts, or damage. Replace damaged cables immediately.
- סטאָרידזש: ווען נישט אין באַנוץ, האַלט דעם טשאַרדזשער אין אַ קיל, טרוקן אָרט, אַוועק פון דירעקט זונשייַן און עקסטרעמע טעמפּעראַטורן.
- וואָטערפּרוף שאַץ: While the charger is IP67 waterproof, it is recommended to avoid prolonged submersion or exposure to heavy rain when possible to maximize its lifespan.
8. טראָובלעשאָאָטינג
אויב איר טרעפט פּראָבלעמען מיט אייער טשאַרדזשער, זעט די פאלגענדע געוויינטלעכע פּראָבלעמען און לייזונגען:
| פּראָבלעם | מעגלעך סיבה | לייזונג |
|---|---|---|
| Charger not turning on / No indicator light |
|
|
| Charger connected but not charging (Red LED remains on) |
|
|
| Slow charging or not reaching full charge |
|
|
| טשאַרדזשער ווערט צו הייס |
|
|
9. ספּעסאַפאַקיישאַנז
| שטריך | באַשרייַבונג |
|---|---|
| מאָדעל נומער | For 36V Lead Acid EZGO TXT |
| אַרייַנשרייַב וואָלtage | 120 וואלטס אַק |
| רעזולטאַט חלקtage | 36 וואלטס דק |
| רעזולטאַט קראַנט | 18 Amps |
| מאַכט רעזולטאַט | 800 וואטס |
| טשאַרדזשינג צייט | 4-6 hours (for full charge) |
| וואָטערפּרוף רייטינג | IP67 |
| פּראָדוקט דימענשאַנז (L x W x H) | 7.64 X 4.08 X 4.84 אינטשעס |
| פּונקט וואָג | 5.2 לבס (בעערעך 5.48 פונט) |
| קאַבלע לענג | 16 feet (AC power cord + D-style plug cable) |
10. וואָראַנטי און שטיצן
FirstPower Pro is committed to providing high-quality products and customer satisfaction.
- וואָראַנטי: This product is backed by a 3-Year Replacement Promise. Please retain your proof of purchase for warranty claims.
- קונה שטיצן: For any questions, technical assistance, or warranty claims, please contact FirstPower Pro customer service. We offer 12-hour rapid response and professional technician guidance.
- קאָנטאַקט אינפֿאָרמאַציע: Refer to the product packaging or the official FirstPower Pro webזייטל פֿאַר די מערסט אַקטועלע קאָנטאַקט דעטאַלן.
11. ינווייראַנמענאַל קאַנסידעריישאַנז
Please dispose of this product responsibly at the end of its life cycle. Do not dispose of electrical appliances as unsorted municipal waste. Use separate collection facilities. Contact your local government for information regarding available collection systems.
