Vetroo 850W 80 Plus Gold Full Modular ATX 3.1 Power Supply User Manual

1. הקדמה

This manual provides essential information for the installation, operation, and maintenance of your new Vetroo 850W 80 Plus Gold Full Modular ATX 3.1 Power Supply. Please read this manual thoroughly before installation and keep it for future reference.

Figure 1: Vetroo 850W Power Supply (White)

2. פּראָדוקט פֿעיִקייטן

• PCIe Gen 5.1 Ready: Meets the latest PCIE 5.1 standards for improved performance and efficiency. Backward compatible with both PCIE 4.0 and 3.0.
• Fully ATX 3.1 Compliant: Designed to meet the newest, most advanced power supply standards.
• Premium 105°C Capacitors: High-quality materials and construction ensure stable, low-temperature operation.
• 80 Plus Gold Certified: Meets high standards for quality and efficiency, ensuring reliable performance and energy savings.
• גאָר מאָדולאַר פּלאַן: Allows for easy cable management and customization, reducing cable clutter by only installing necessary cables.
• שטיל אָפּעראַציע: Features a 120mm FDB (Fluid Dynamic Bearing) fan for quiet cooling.

פיגורע 2: איבערview of Vetroo 850W Power Supply features

3. פּעקל אינהאַלט

באַשטעטיקן אַז אַלע קאָמפּאָנענטן זענען פאַראַן אין דער פּאַקעט:

• Vetroo 850W Power Supply Unit
• Modular Cable Set (including 24-pin ATX, CPU, PCIe, SATA, Molex, FDD connectors)
• אַק מאַכט שנור
• מאַונטינג סקרוז
• קאַבלע מאַנאַגעמענט טייז
• Storage Bag for Unused Cables

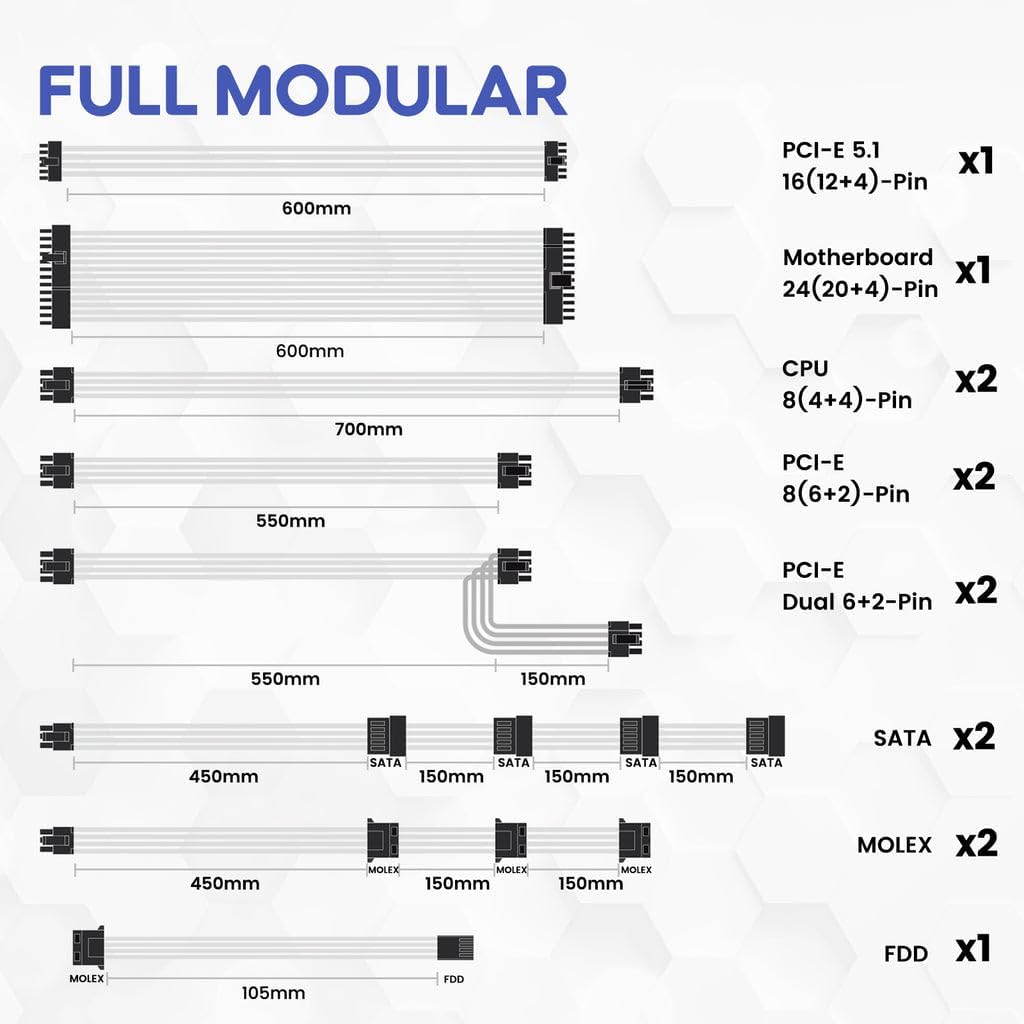

Figure 3: Included Modular Cables

4. זיכערקייַט אינפֿאָרמאַציע

WARNING: Improper installation or use can result in serious injury or damage to your system.

• Always disconnect the AC power cord from the wall outlet before installing or removing the power supply.
• עפֿנט נישט די מאַכט-צושטעל אַפּאַראַט. הויך וואָלומעןtages are present inside, even when disconnected.
• Ensure all cables are securely plugged into their respective ports. Loose connections can cause damage.
• Use only the modular cables provided with this power supply. Third-party cables may not be compatible and could cause serious damage.
• Install the power supply in a well-ventilated area, away from high humidity and extreme temperatures.

5. סעטאַפּ און ייַנמאָנטירונג

Follow these general steps for installing your power supply. Refer to your PC case and motherboard manuals for specific instructions.

1. צוגרייטן אייער סיסטעם: זייט זיכער אז אייער קאמפיוטער איז אויסגעלאשן און נישט אריינגעשטעקט פון דער וואנט-אויסגאבע.
2. מאָנטירן די מאַכט צושטעלן: Secure the power supply unit into the designated bay in your PC case using the provided mounting screws.
3. Connect Main Power Cables: פֿאַרבינדט דעם 24-פּין ATX קאַבל צו אייער מאַדערבאָרד.
4. Connect CPU Power Cables: Connect the 8-pin (4+4) CPU power cable(s) to your motherboard.
5. Connect PCIe Power Cables: Connect the necessary PCIe power cables (e.g., 12V-2x6 for PCIe 5.1 GPUs, or 8-pin (6+2) for older GPUs) to your graphics card(s).


   Figure 4: Dual PCIe 5.1 Connectors

6. Connect Peripheral Cables: Connect SATA, Molex, and FDD cables to your storage drives and other peripherals as needed.
7. קאַבלע פאַרוואַלטונג: Utilize the fully modular design and included cable ties to route cables neatly, improving airflow and aesthetics.
8. לעצט טשעק: Double-check all connections to ensure they are secure before closing your PC case.

6. אַפּערייטינג ינסטרוקטיאָנס

After successful installation, you can power on your system.

• מאַכט אויף: Connect the AC power cord to the power supply and a wall outlet. Flip the main power switch on the power supply to the 'ON' position.
• עקאָ מאָדע: The power supply features an ECO mode switch. When 'ON', the fan will stop spinning unless the load is above approximately 50% of the rated capacity, ensuring silent operation at low loads. When 'OFF', the fan will spin continuously.

Figure 5: Power Switch and ECO Mode

7. וישאַלט

Proper maintenance ensures the longevity and optimal performance of your power supply.

• רייניקונג: Periodically clean the exterior of the power supply and the fan grille to prevent dust buildup, which can impede airflow and cooling. Use compressed air or a soft brush. Ensure the power supply is off and unplugged before cleaning.
• פאָכער אָפּעראַציע: The 120mm Fluid Dynamic Bearing fan is designed for durability and quiet operation. In ECO mode, the fan may not spin at low loads; this is normal.

8. טראָובלעשאָאָטינג

If you encounter issues with your power supply, consider the following:

• קיין מאַכט: Ensure the AC power cord is securely connected to both the power supply and the wall outlet. Verify the main power switch on the power supply is in the 'ON' position. Check your wall outlet with another device.
• System Instability/Shutdowns: This power supply includes multiple protection features (OVP, OCP, OPP, SCP, UVP, OTP) to safeguard your components. If your system is unstable or shuts down unexpectedly, it could indicate an issue with power delivery or another component. Ensure all power connections are firm.
• פען דרייט זיך נישט: If the ECO mode is enabled, the fan will not spin until the power supply reaches approximately 50% load. This is normal operation for quiet performance. If the fan does not spin under heavy load, contact support.
• ומגעוויינטלעך נויזיז: If you hear unusual noises (e.g., coil whine, grinding), power down your system immediately and contact support.

9. ספּעסאַפאַקיישאַנז

10. וואָראַנטי און שטיצן

The Vetroo 850W Power Supply comes with a 10-יאָר וואָראַנטי, ensuring long-term reliability and peace of mind. For technical support, warranty claims, or any questions regarding your product, please visit the official Vetroo webפּלאַץ אָדער קאָנטאַקט זייער קונה סערוויס אָפּטיילונג.
