Vetroo 850W Power Supply User Manual

1. פּראָדוקט איבערview

The Vetroo 850W Power Supply is a high-performance, fully modular unit designed for modern personal computers. It meets the latest ATX 3.1 and PCIe 5.1 standards, ensuring compatibility with current and future hardware. Featuring 80 Plus Gold certification, it provides high efficiency and reliable power delivery. Its quiet operation is maintained by a 120mm FDB fan, and premium 105°C capacitors contribute to stable, long-term performance.

Image: The Vetroo 850W Power Supply unit shown alongside its retail packaging, highlighting its compact design and the 850W rating.

שליסל פֿעיִקייטן:

• PCIe Gen 5.1 Ready: Supports the latest PCIe 5.1 standards, backward compatible with PCIe 4.0 and 3.0.
• Fully ATX 3.1 Compliant: Designed for optimal performance with the newest ATX 3.1 specifications.
• Premium 105°C Capacitors: Ensures stable and low-temperature operation for high-end systems.
• 80 Plus Gold Certified: Guarantees high efficiency and energy savings.
• גאָר מאָדולאַר פּלאַן: Allows for easy cable management and reduced clutter by only installing necessary cables.
• שטיל אָפּעראַציע: Equipped with a 120mm Fluid Dynamic Bearing (FDB) fan for minimal noise.
• 10 יאָר וואָראַנטי: Provides long-term assurance of product quality and durability.

2. וואָס איז אין דער קעסטל

ווען איר עפֿענען דעם פּעקל, איר וועט געפֿינען די פאלגענדע קאַמפּאָונאַנץ:

• Vetroo 850W Power Supply Unit
• Modular Cable Set (detailed below)
• אַק מאַכט שנור
• Cable Ties / Velcro Straps
• מאַונטינג סקרוז
• באַניצער מאַנואַל (דעם דאָקומענט)

Image: A visual representation of all included modular cables and their lengths, demonstrating the full modular design.

Included Modular Cables:

3. סעטאַפּ און ייַנמאָנטירונג

This section provides general guidance for installing your Vetroo 850W Power Supply. For detailed, step-by-step instructions, please refer to the official אינסטאַלאַציע מאַנואַל (PDF).

3.1 גשמיות ינסטאַלירונג

1. Prepare Your PC Case: Ensure your PC case has adequate space for the power supply unit. The Vetroo 850W PSU has dimensions of approximately 5.9 x 5.5 x 3.4 inches.
2. מאָנטירן די PSU: Carefully slide the power supply into its designated bay in your PC case. Secure it using the provided mounting screws.
3. פֿאַרבינדן וויכטיקע קאַבלען:
   • פֿאַרבינדט דעם 24-פּין ATX קאַבל צו אייער מאַדערבאָרד.
   • Connect the 8-pin (4+4) CPU power cable(s) to your motherboard.
   • For graphics cards, connect the appropriate PCIe 8-pin (6+2) or the new PCIe 5.1 16 (12+4)-pin cable. Ensure your GPU is compatible with the connected cable type.
4. Connect Peripheral Cables: Attach SATA cables for SSDs, HDDs, and optical drives, and Molex cables for other peripherals as needed. The fully modular design allows you to connect only the cables required, reducing cable clutter and improving airflow.
5. קאַבלע פאַרוואַלטונג: Route cables neatly behind the motherboard tray or in designated cable management areas to optimize airflow and aesthetics. Use the included cable ties or Velcro straps.
6. קאָננעקט AC מאַכט: Once all internal connections are secure, connect the AC power cord to the power supply and then to a wall outlet or surge protector.

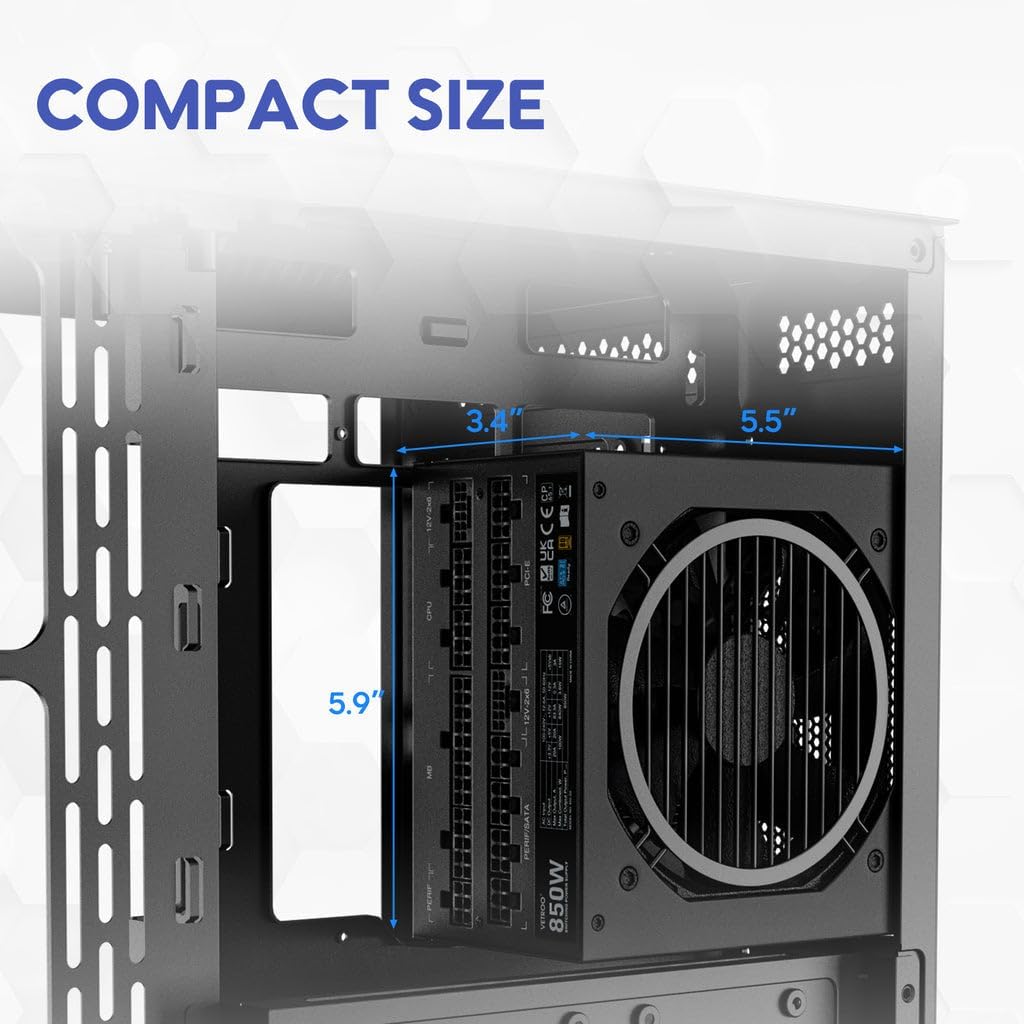

Image: The compact dimensions of the Vetroo 850W Power Supply, illustrating how it fits into a standard PC case.

בילד: א דעטאַלירטע view of the power supply's modular cable ports, emphasizing the dual PCIe 5.1 connectors for modern GPUs.

Image: An illustration detailing the GPU support capabilities, including compatibility with NVIDIA RTX 50 series graphics cards via PCIe 5.1 and 8-pin connectors.

4. אַפּערייטינג ינסטרוקטיאָנס

The Vetroo 850W Power Supply is designed for straightforward operation. After successful installation, follow these steps:

1. מאַכט סוויטש: Locate the main power switch on the back of the power supply unit. Ensure it is in the 'ON' (I) position before powering on your computer.
2. ECO מאָדע באַשטימען: The power supply features an ECO mode switch.
   • ECO ON: In this mode, the fan will stop spinning under low load conditions (typically below 50% load) to provide silent operation. The fan will automatically activate when the load increases.
   • ECO OFF: In this mode, the fan will spin continuously regardless of the load, providing constant cooling.
   Choose the ECO mode setting that best suits your preference for noise level and cooling.
3. System Power On: Once the power supply is connected and switched on, you can power on your computer system using the case's power button.

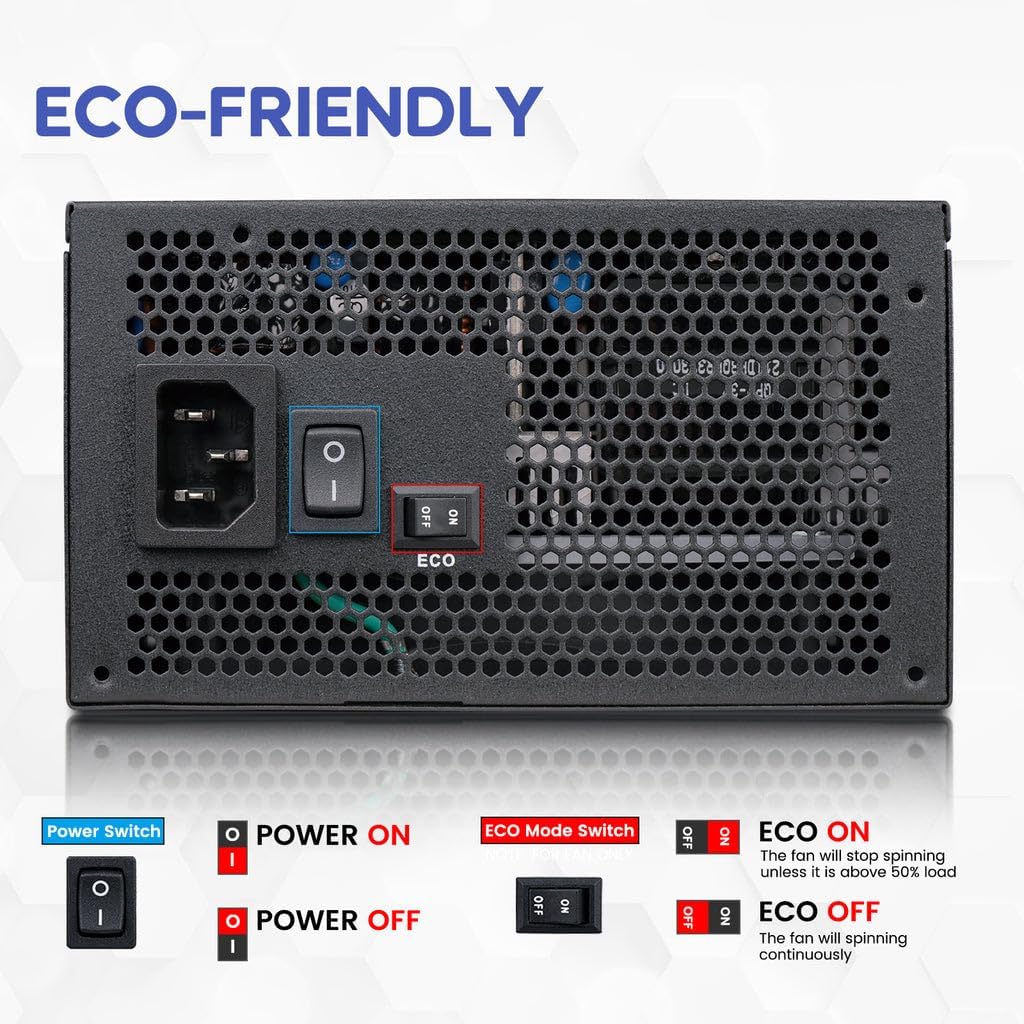

Image: The rear panel of the power supply, clearly showing the main power switch and the ECO mode switch with its 'ON' and 'OFF' positions.

5. וישאַלט

Proper maintenance ensures the longevity and optimal performance of your Vetroo 850W Power Supply.

• באַזייַטיקונג פון שטויב: Periodically clean the power supply's fan and ventilation grilles to prevent dust buildup, which can impede airflow and lead to overheating. Use compressed air to gently blow dust out of the unit. Ensure the power supply is disconnected from the wall outlet before cleaning.
• פאָכער דורכקוק: The 120mm FDB fan is designed for quiet and efficient cooling. If you notice unusual noises or reduced fan performance, ensure there are no obstructions.
• קאַבלע קאַנעקשאַנז: Occasionally check all modular cable connections to ensure they are securely seated. Loose connections can lead to instability or component damage.
• אַפּערייטינג סוויווע: Ensure the power supply operates in a well-ventilated area, free from excessive heat, humidity, and direct sunlight.

בילד: א נאָענטע בילד view of the power supply's internal components, emphasizing the premium capacitors that contribute to its reliability and stable performance.

6. טראָובלעשאָאָטינג

If you encounter issues with your Vetroo 850W Power Supply, refer to the following common troubleshooting steps:

• קיין מאַכט צו סיסטעם:
  • זיכער מאַכן אַז די AC מאַכט שנור איז זיכער פארבונדן צו ביידע די מאַכט צושטעל און די וואַנט ווענטיל.
  • Verify the main power switch on the PSU is in the 'ON' (I) position.
  • Check all modular cables are firmly connected to both the power supply and the respective components (motherboard, CPU, GPU).
  • פּרובירט די וואַנט אַוטלעט מיט אַן אַנדער דעווייס צו זיכער מאַכן אַז עס האָט שטראָם.
• Fan Not Spinning (in ECO Mode):
  • This is normal behavior if the ECO mode is enabled and the system load is low. The fan will activate automatically when the load increases.
  • If you prefer continuous fan operation, switch the ECO mode to 'OFF'.
• סיסטעם אינסטאביליטעט אדער קראַשיז:
  • זייט זיכער אז אייער סיסטעם'ס מאַכט רעקווייערמענץ טאָן נישט יקסיד די 850 וואט קאַפּאַציטעט פון די PSU.
  • קוק פֿאַר פרייַ קאַבלע קאַנעקשאַנז.
  • The power supply includes multiple protection features (OVP, OCP, OPP, SCP, UVP, OTP) to prevent damage. If the PSU shuts down unexpectedly, it might be due to one of these protections being triggered. Disconnect power, wait a few minutes, and re-attempt. If the issue persists, consult a professional.
• ומגעוויינטלעך נויזיז:
  • Ensure no cables or foreign objects are obstructing the fan.
  • If the noise persists and is not related to normal fan operation, contact customer support.

Image: A graphic detailing the comprehensive protection features of the power supply, including Over Voltage Protection (OVP), Over Current Protection (OCP), Over Power Protection (OPP), Short Circuit Protection (SCP), Under Voltage Protection (UVP), and Over Temperature Protection (OTP).

7. ספּעסאַפאַקיישאַנז

Detailed technical specifications for the Vetroo 850W Power Supply (Model: 850 G5).

Image: The 80 Plus Gold certification badge prominently displayed on the power supply, indicating its high energy efficiency.

Image: The power supply unit featuring the ATX 3.1 Ready badge, signifying its enhanced performance capabilities for modern systems.

8. וואָראַנטי און שטיצן

Vetroo stands behind the quality of its products. Your Vetroo 850W Power Supply comes with a comprehensive warranty and dedicated support.

8.1 וואָראַנטי אינפֿאָרמאַציע

This power supply is covered by a 10-יאָר וואָראַנטי פֿון דעם קויפֿדאַטום. די וואָראַנטי דעקט חסרונות אין מאַטעריאַלן און אַרבעט אונטער נאָרמאַלן באַנוץ. ביטע באַהאַלטן אייער קויפֿבאַווייַז פֿאַר וואָראַנטי קלאַגעס.

8.2 צוריקקומען פּאָליטיק

Products purchased are typically eligible for a 30-day return policy for refund or replacement, subject to the retailer's terms and conditions.

8.3 קונה שטיצן

For further assistance, technical support, or warranty claims, please visit the official Vetroo store or contact their customer service:

• Vetroo Store: Visit the Vetroo Store on Amazon
• ינסטאַלירונג מאַנואַל: For detailed installation steps, download the אינסטאַלאַציע מאַנואַל (PDF).
