ATN BlazeHunter טערמאַל ימאַגינג מאָנאָקולאַר באַניצער מאַנואַל

1. הקדמה און איבערview

The ATN BlazeHunter Thermal Imaging Monocular is a high-performance device designed for outdoor enthusiasts, hunters, and professionals requiring advanced thermal detection capabilities. It features a professional-grade, sub 18mK NETD uncooled focal plane detector, ensuring exceptional sensitivity and clear thermal imagery in various environmental conditions. This monocular integrates a built-in laser rangefinder for precise distance measurements, enhancing accuracy in the field. With its robust design, long battery life, and versatile viewing modes, the BlazeHunter is an essential tool for observation and tracking.

Image: The ATN BlazeHunter Thermal Imaging Monocular, showcasinג זײַן קאָמפּאַקטן און ערגאָנאָמישן פּלאַן.

2. וואָס איז אין דער קעסטל

Upon unboxing your ATN BlazeHunter, please verify that all components are present:

• ATN BlazeHunter Thermal Imaging Monocular Unit
• צוויי (2) ריטשאַרדזשאַבאַל באַטעריעס
• באַטערי טשאַרדזשער
• וסב- C קאַבלע
• פּראַטעקטיוו קעריינג קאַסע
• לענס קלינינג שטאָף
• שנעל אָנהייב גייד

3. פּראָדוקט פֿעיִקייטן

The BlazeHunter is equipped with advanced features to optimize your thermal observation experience:

• 3.1. Pro-Grade Image Sensor

  Equipped with a vanadium oxide uncooled focal plane detector with NETD <18mK for exceptional thermal imaging and detection of even the smallest temperature differences, providing enhanced clarity and precision in all conditions.



  Image: Visual representation of the pro-grade image sensor's capability to detect subtle thermal variations, showing a clear thermal signature of an animal.

• 3.2. Multiple Viewאין מאָדעס

  קאַסטאַמייז דיין view with six distinct color palettes: White Hot, Black Hot, High Red, Iron Red, Green Hot, and Sepia. These modes are tailored to your preferences for enhanced target detection and optimal visibility in any environment.



  Image: A quad-panel display showing different thermal color palettes (White Hot, Black Hot, High Red, Iron Red) applied to a scene, demonstrating the variety of viewאָפּציעס.

• 3.3. Video Record Functionality

  Record and relive your thermal observations with high-quality video capture, perfect for enhancing your hunting and scouting trips. The device supports video recording at 60 frames per second (fps).

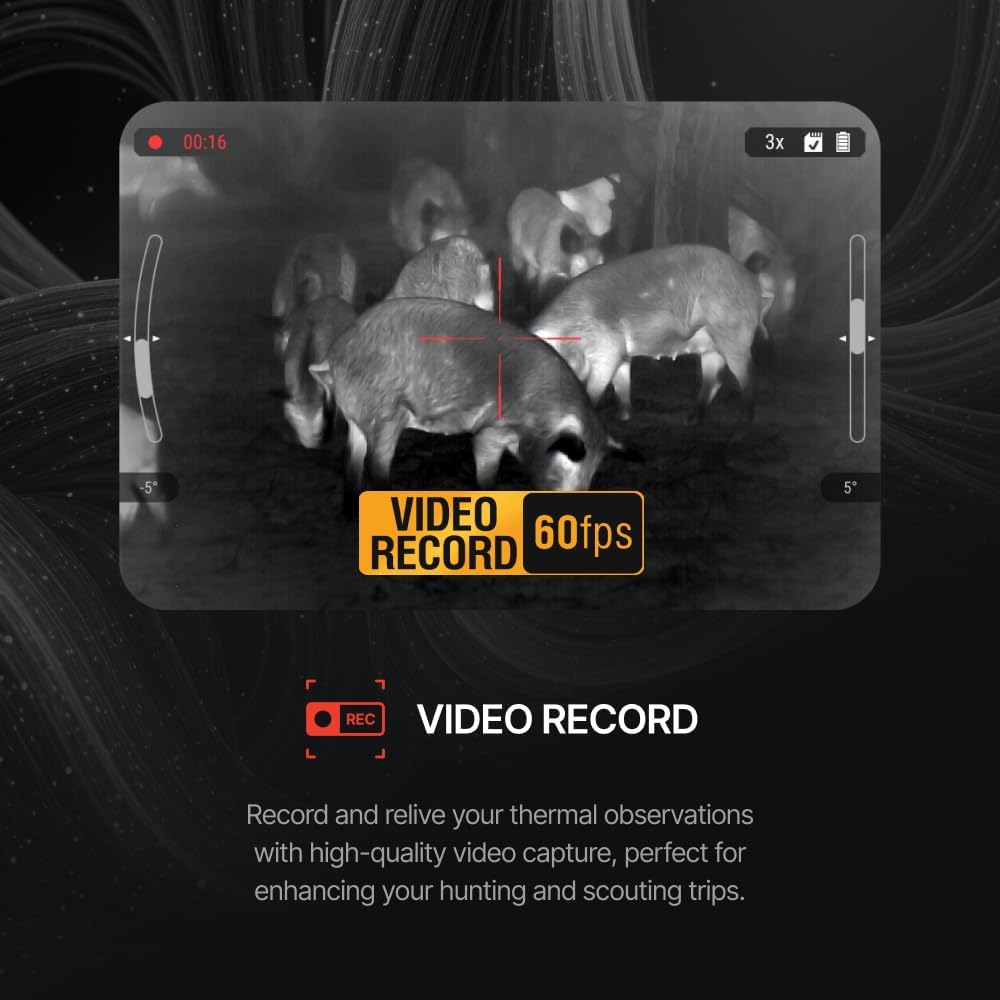

  Image: A thermal view of multiple animals, with an overlay indicating video recording is active at 60fps, highlighting the device's video capture capability.

• 3.4. Built-in Laser Rangefinder (LRF)

  The BlazeHunter thermal monocular includes a built-in Laser Range Finder for fast and precise distance measurement. This feature simplifies rangefinding, providing essential data without the need for additional devices, whether tracking wildlife or navigating rugged terrain.



  Image: A thermal image of an animal with a red overlay indicating the laser rangefinder's beam, showing a distance measurement of 1000 yards, illustrating the integrated LRF function.

• 3.5. Large Full-Color High Definition OLED Display

  Featuring a large 0.41-inch OLED display with a 1440x1080 resolution, the BlazeHunter delivers twice the pixel density of other viewers, ensuring every detail is sharp and crystal clear, giving you a significant advantage in any situation.



  Image: A thermal image of an animal within a frame, with arrows pointing outwards and text indicating "LARGER DIMENSIONS" and "BETTER RESOLUTION," emphasizing the superior display quality.

• 3.6. Long-Lasting Battery Life

  BlazeHunter's replaceable battery design, complete with two rechargeable batteries and a charger, provides users with up to 14 hours of uninterrupted operation. This extended battery life is ideal for prolonged adventures or long hunting sessions.



  Image: An icon depicting two batteries with a central circle showing "14h," symbolizing the extended 14-hour battery life provided by the dual rechargeable battery system.

• 3.7. Lightweight and Compact Design

  Compact and lightweight—under 0.8 lbs (320 grams)—the BlazeHunter fits comfortably in your hand and is effortless to carry, making it perfect for extended use without fatigue.



  Image: The BlazeHunter monocular resting on a metallic disc, with a feather icon and text "LIGHTWEIGHT," visually representing its light and portable nature.

• 3.8. Built-in Wi-Fi for Easy Sharing

  Share the experience in real-time with up to 4 people simultaneously via the app, allowing you to instantly connect and share your view or photos, no matter where you are.



  Image: A graphic showing the monocular transmitting a signal to multiple devices (phone, PC, TV, tablet PC), with text "4 viewers live via Wi-Fi," illustrating its real-time sharing capability.

4. סעטאַפּ

1. טשאַרדזשינג באַטעריז: Before first use, fully charge both rechargeable batteries using the provided charger. Insert the batteries into the charger and connect the charger to a power source. The indicator light will show charging status.
2. ינסטאַלירן באַטערי: Open the battery compartment on the BlazeHunter unit. Insert one charged battery, ensuring correct polarity. Close the compartment securely.
3. מאַכט אויף: Press and hold the Power button (refer to the Quick Start Guide for button layout) for a few seconds until the display illuminates.
4. ערשטע פאָקוס אַדזשאַסטמענט: Point the monocular at an object approximately 10-20 meters away. Rotate the diopter adjustment ring (near the eyepiece) until the on-screen display and image appear sharp and clear to your eye.

5. אַפּערייטינג ינסטרוקטיאָנס

5.1. יקערדיק אָפּעראַציע

• מאַכט אויף / אַוועק: דריקן און האַלטן די מאַכט קנעפּל.
• סטאַנדביי מאָדע: A short press of the Power button will put the device into standby mode to conserve battery. Press again to wake up.
• פארגרעסער: Use the designated zoom buttons (typically + and -) to adjust the digital magnification.

5.2. טשאַנגינג Viewing Modes (Color Palettes)

The BlazeHunter offers six color palettes. To cycle through them, locate the dedicated palette button (refer to your Quick Start Guide for exact button location) and press it repeatedly until your desired mode (White Hot, Black Hot, High Red, Iron Red, Green Hot, Sepia) is active.

5.3. Using the Laser Rangefinder (LRF)

To activate the LRF, aim the monocular at your target. Press the LRF button (usually distinct from other controls). A reticle will appear on screen, and the distance to the target will be displayed. Ensure the target is within the LRF's effective range for accurate readings.

5.4. Recording Videos and Taking Photos

• ווידעא רעקאָרדינג: Press the Video Record button once to start recording. Press it again to stop. A recording indicator will typically appear on the display.
• פאָטאָ כאַפּן: Press the Photo Capture button (often a quick press of the Video Record button or a separate button) to take a still image.
• צוטריט צו מעדיע: Connect the device to a computer via USB-C cable or use the Wi-Fi app to access recorded videos and photos.

5.5. Wi-Fi קאָנעקטיוויטי און אַפּ באַניץ

The BlazeHunter features built-in Wi-Fi for real-time streaming and media management. Download the official ATN app on your smartphone or tablet. Enable Wi-Fi on the monocular (refer to settings menu). Connect your smart device to the monocular's Wi-Fi network. Once connected, you can view live feed, control settings, and download media.

6. וישאַלט

• רייניקונג לענסעס: Use the provided lens cleaning cloth or a soft, lint-free cloth specifically designed for optics. Gently wipe the lens surfaces. For stubborn smudges, use a small amount of lens cleaning solution applied to the cloth, not directly to the lens.
• גוף רייניקונג: Wipe the monocular's body with a soft, damp שטאָף. פֿאַרמײַדט שאַרפֿע כעמיקאַלן אָדער אַברייסיוו מאַטעריאַלן.
• באַטערי זאָרגן: Store batteries in a cool, dry place. If storing the device for extended periods, remove the battery.
• סטאָרידזש: Store the monocular in its protective carrying case when not in use to prevent dust and physical damage. Avoid extreme temperatures and high humidity.

7. טראָובלעשאָאָטינג

8. ספּעסאַפאַקיישאַנז

9. וואָראַנטי און שטיצע אינפֿאָרמאַציע

For specific warranty details, including coverage period and terms, please refer to the warranty card included with your product packaging or visit the official ATN webזייטל. האַלט דיין קויפן באַווייַז פֿאַר וואָראַנטי קליימז.

For technical support, troubleshooting assistance beyond this manual, or service inquiries, please contact ATN customer support through their official website or the contact information provided in your product documentation. Always provide your product model and serial number when seeking support.
