Stealth Cam 40MP Deceptor Max Cellular Trail Camera User Manual

1. הקדמה

Thank you for choosing the Stealth Cam 40MP Deceptor Max Cellular Trail Camera. This advanced cellular trail camera is designed to capture high-quality photos and videos of wildlife with exceptional clarity and speed. Featuring 40-megapixel image resolution, a rapid 0.4-second trigger speed, and reliable cellular connectivity, the Deceptor Max ensures you stay connected to your scouting efforts. This manual provides detailed instructions for setting up, operating, and maintaining your camera to ensure optimal performance.

2. פּעקל אינהאַלט

ביטע באַשטעטיקן אַז אַלע זאכן וואָס זענען ליסטעד אונטן זענען אַרייַנגערעכנט אין דיין פּעקל:

• 2 x Stealth Cam 40MP Deceptor Max Cellular Trail Camera
• 4 x SanDisk 32GB Ultra SDHC UHS-I Memory Card (100MB/s)
• 1 x Vidpro 4-in-1 USB 2.0 Card Reader

Figure 2.1: Included items in the Stealth Cam Deceptor Max bundle.

3. פּראָדוקט איבערview

The Deceptor Max camera is equipped with advanced features for reliable outdoor surveillance:

• 40 מעגאַפּיקסעל רעזאָלוציע: Captures highly detailed images.
• 0.4-סעקונדע טריגער גיכקייט: זיכערט שנעלע כאַפּונג פון באַוועגלעכע סוביעקטן.
• סעליאַלער קאַנעקטיוויטי: Dual pre-installed SIM cards for automatic connection to the strongest AT&T or Verizon network.
• 940nm No-Glo LED Array: Provides invisible detection and flash up to 80 feet for discreet operation.
• פארברייטערטע באַטעריע קאַפּאַציטעט: Designed to hold 16 AA batteries for extended field use.
• וועטערפּרוף האָוסינג: Durable construction with an integrated lock latch.

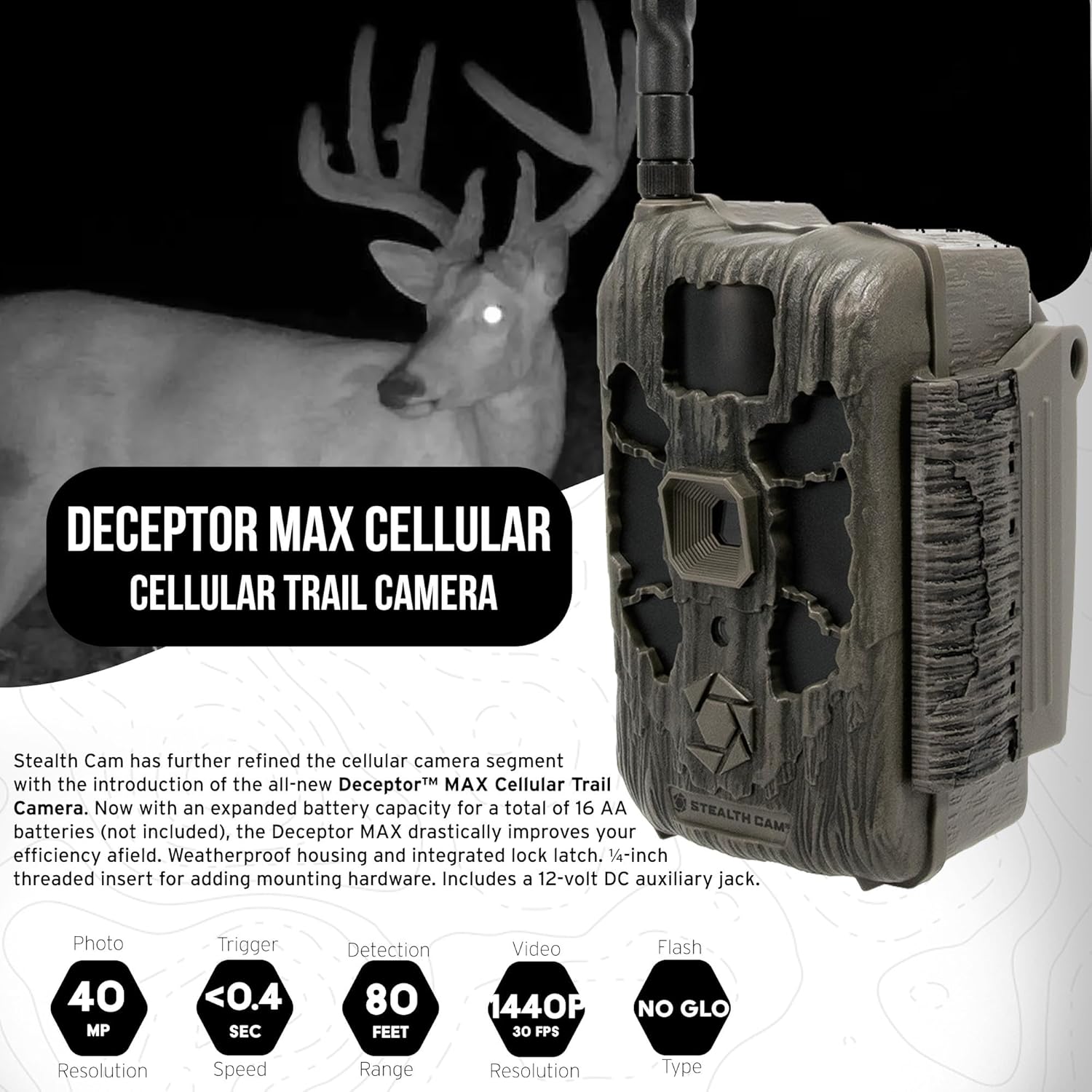

פיגורע 3.1: פראָנט view of the Deceptor Max camera, showing key components.

פיגורע 3.2: עקסample image captured by the Deceptor Max, showcasing image clarity.

4. סעטאַפּ

4.1. באַטאַרייע ייַנמאָנטירונג

The Deceptor Max requires 16 AA batteries (not included) for operation. For best performance and extended battery life, use high-quality alkaline or lithium batteries. Ensure correct polarity when inserting batteries.

1. עפֿנט די קאַמעראַ'ס באַטאַרייע אָפּטייל לאַטש.
2. Insert 16 AA batteries, matching the positive (+) and negative (-) indicators inside the compartment.
3. Securely close the battery compartment latch.

Figure 4.1: Proper battery installation in the Deceptor Max camera.

4.2. זכּרון קאַרטל ינסטאַלירונג

The camera supports SDHC memory cards. A 32GB SDHC card is included in your bundle.

1. געפינט דעם SD קאַרטל שפּאַלט, טיפּיש לעבן דעם באַטאַרייע אָפּטייל.
2. Insert the 32GB SDHC memory card with the label facing up until it clicks into place.
3. צו אַרויסנעמען, שטופּ די קאַרטל לײַכט אַרײַן ביז זי שפּרינגט אַרויס.

4.3. מאָונטינג די קאַמעראַ

The Deceptor Max features a weatherproof housing and a 1/4-inch threaded insert for various mounting options.

1. אויסקלייבן אַ פּאַסיק אָרט, ווי אַ בוים אָדער פּאָסטן, וואָס גיט אַ קלאָרע view פון דער געוואלט געגנט.
2. Use the included mounting strap to secure the camera firmly. Thread the strap through the slots on the back of the camera and around the mounting surface.
3. Alternatively, utilize the 1/4-inch threaded insert at the bottom of the camera to attach it to compatible mounting hardware (sold separately).
4. Adjust the camera's angle to cover the target area effectively.

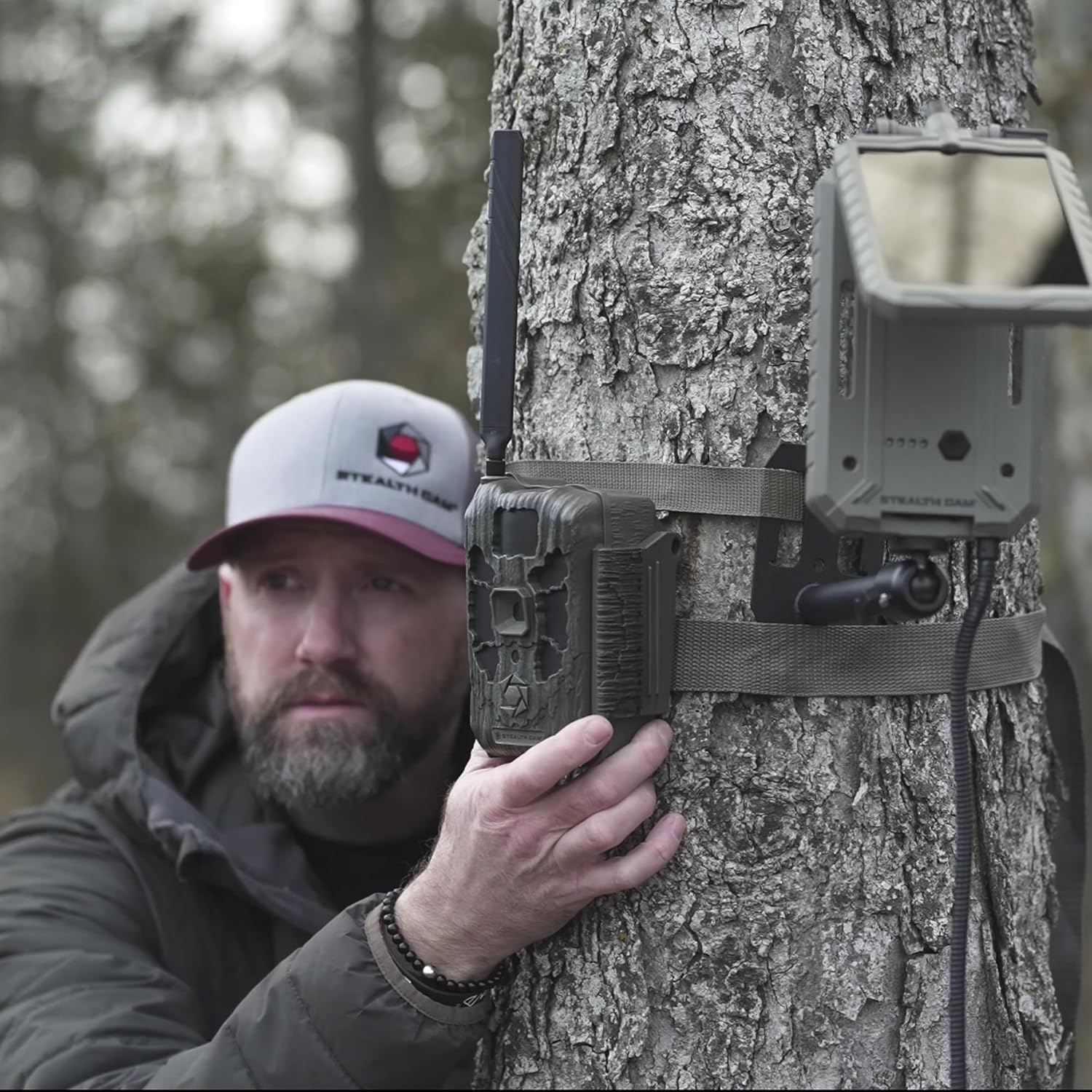

פיגורע 4.2: עקסample of mounting the Deceptor Max camera to a tree.

5. אַפּערייטינג די קאַמעראַ

5.1. פּאָווערינג אויף / אויסגעלאשן

Locate the power switch inside the camera's housing. Toggle it to the 'ON' position to power up the camera. To power off, toggle the switch to 'OFF'.

5.2. Cellular Connectivity and Command Pro App

The Deceptor Max utilizes two pre-installed SIM cards and an Automatic Network Coverage feature to connect to the strongest available AT&T or Verizon network. Manage your camera remotely using the Command Pro app.

1. Download the Command Pro app from your smartphone's app store.
2. Create an account and register your Deceptor Max camera following the in-app instructions.
3. Through the app, you can remotely control camera settings, request on-demand photos and videos, and view captured media in real-time.
4. The app also allows for sharing images and integrating with HuntStand for enhanced scouting.

Figure 5.1: Command Pro app interface for remote camera management.

5.3. פאָטאָ און ווידעאָ כאַפּן

The camera is designed for high-performance image and video capture:

• בילד רעזאלוציע: Up to 40 Megapixels.
• טריגער גיכקייַט: Ultra-fast 0.4 seconds.
• פּלאַצן מאָדע: Captures up to nine photos per burst.
• בליץ קייט: 80 feet with 940nm No-Glo LED array.
• ווידעא: Records videos with audio.

6. וישאַלט

Proper maintenance ensures the longevity and optimal performance of your trail camera:

• רייניקונג: ווישט אָפּ די קאַמעראַ לינז און די קעסטל מיט אַ ווייכן, דamp שטאָף. ויסמיידן אַברייסיוו קלינערז.
• באַטערי פאַרבייַט: Replace all 16 AA batteries when the low battery indicator appears or when performance degrades.
• זכּרון קאָרט פאַרוואַלטונג: Regularly format your SD card using the camera's menu (if available) or a computer to prevent data corruption and ensure maximum storage.
• Firmware דערהייַנטיקונגען: Check the Stealth Cam website periodically for firmware updates to ensure your camera has the latest features and bug fixes.
• סטאָרידזש: ווען נישט אין באַנוץ פֿאַר לענגערע פּעריאָדן, אַרויסנעמען די באַטעריעס און האַלטן די קאַמעראַ אין אַ קיל, טרוקן אָרט.

7. טראָובלעשאָאָטינג

If you encounter issues with your Deceptor Max camera, refer to the following common solutions:

• די אַפּאַראַט איז נישט פּאַוערינג: Ensure batteries are inserted correctly with proper polarity and are fully charged. Check that the power switch is in the 'ON' position.
• קיין בילדער/ווידעאס נישט אויפגעכאפט: Verify the SD card is properly inserted and has sufficient free space. Check camera settings for trigger delay and detection sensitivity. Ensure the camera is armed.
• שלעכטע בילד/ווידעא קוואַליטעט: Clean the camera lens. Ensure the camera is mounted securely to prevent movement. Check for obstructions in front of the lens or flash.
• No Cellular Connection: Confirm you have an active data plan for your camera. Check the signal strength indicator in the Command Pro app. Relocate the camera to an area with better cellular coverage.
• אַפּ קאַנעקטיוויטי ישוז: Ensure your smartphone has a stable internet connection. Update the Command Pro app to the latest version. Restart both your phone and the camera.
• קורץ באַטאַרייע לעבן: Use high-quality alkaline or lithium batteries. Reduce the frequency of image/video capture or cellular transmissions if possible.

8. ספּעסאַפאַקיישאַנז

9. וואָראַנטי אינפֿאָרמאַציע

For detailed warranty information regarding your Stealth Cam Deceptor Max Cellular Trail Camera, please refer to the official Stealth Cam website or the warranty card included with your product packaging. Warranty terms and conditions may vary.

10. קונה שטיצן

If you require further assistance or have questions not covered in this manual, please contact Stealth Cam customer support. You can find contact information and additional resources on the official Stealth Cam webפּלאַץ:
