KLIM K7 Portable Cassette Player and MP3 Converter User Manual

1. הקדמה

The KLIM K7 is a versatile portable cassette player designed to bring your analog audio into the digital age. It allows you to play your cherished cassette tapes, convert them directly to MP3 files on an SD card, and record new audio using its built-in microphone. With its compact design, integrated speaker, and rechargeable battery, the KLIM K7 offers a convenient solution for enjoying and preserving your audio collection.

2. וואָס איז אַרייַנגערעכנט

ווען איר עפֿענען דעם פּעקל, איר זאָל געפֿינען די פאלגענדע זאכן:

• KLIM K7 Portable Cassette Player and MP3 Converter Unit
• באַניצער מאַנואַל
• 16 גיגאבייט מיקראָ סד קאָרט
• סד קאָרט לייענער
• טיפּ-C וסב טשאַרדזשינג קאַבלע
• KLIM Fusion ירפאָונז

Image: The KLIM K7 unit displayed with its accompanying accessories, including earphones, a 16GB Micro SD card, a card reader, and a Type-C USB cable.

3. פּראָדוקט איבערview (קאָנטראָלן און פּאָרטן)

Familiarize yourself with the various controls and ports on your KLIM K7 device:

פראָנט פּאַנעל

• רעדנער: ינטעגראַטעד רעדנער פֿאַר אַודיאָ פּלייבאַק.
• LCD ווייַז: Shows track information, recording status, and battery level.
• פּלייבאַק קאָנטראָלס: Buttons for Play/Pause, Next Track, Previous Track, Record, Mode, and Loop.

Top Panel

• Tape Controls: Buttons for STOP, Fast Forward (F.FWD), Rewind (F.REW), and PLAY for cassette operation.
• באַנד רעדל: אַדזשאַסץ די אַודיאָ רעזולטאַט מדרגה.

זייַט פּאַנעל

• אויף/אַוועק באַשטימען: מאַכט אָן אָדער אויס דעם אַפּאַראַט.
• 3.5 מם כעדפאָון דזשאַק: For connecting earphones or external audio devices.
• SD Card Slot: Insert the Micro SD card for storage.
• טיפ-C USB פּאָרט: פֿאַר טשאַרדזשינג די מיטל.

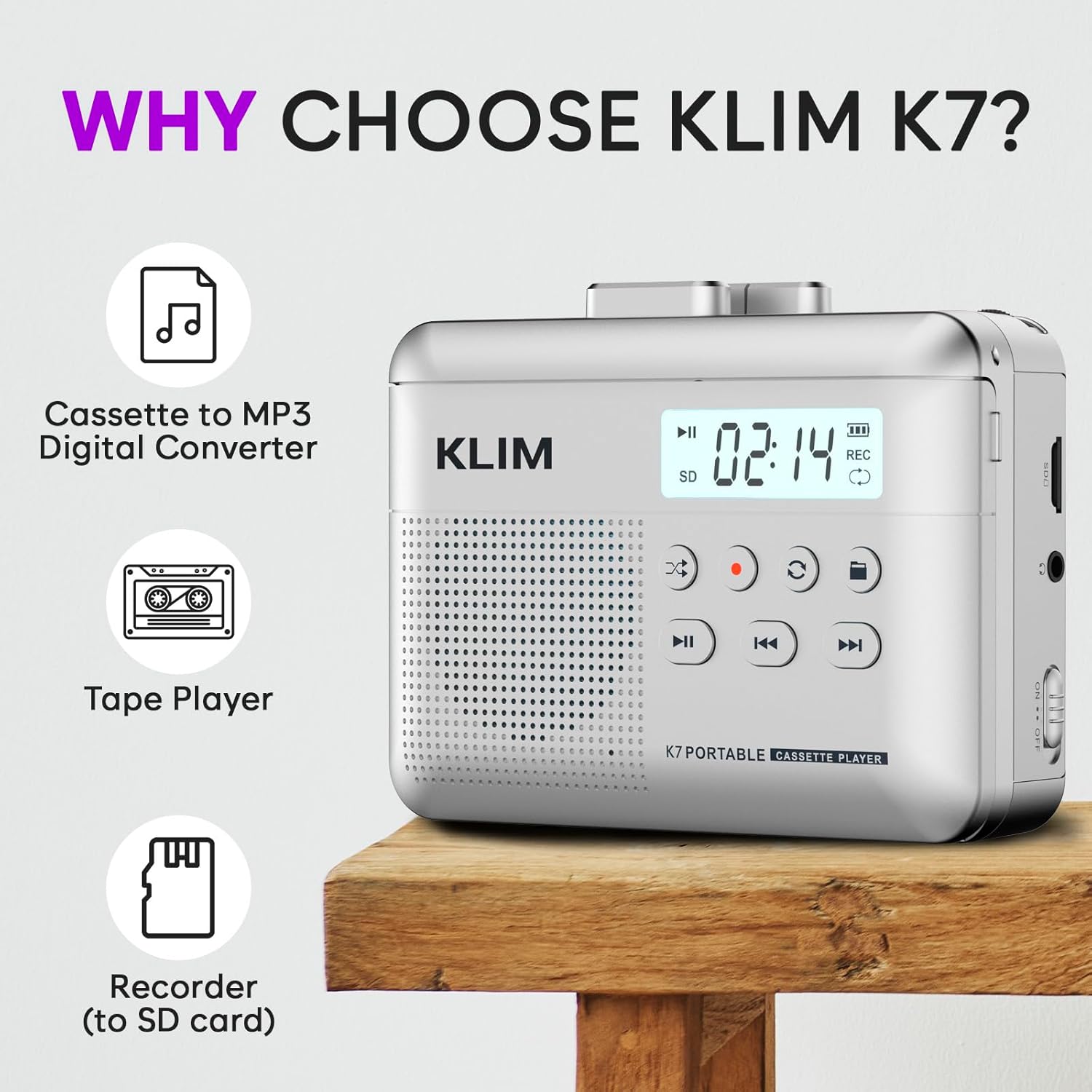

בילד: פראָנט view of the KLIM K7, highlighting the speaker grille, digital display, and various control buttons for playback and recording.

בילד: זייט view of the KLIM K7, illustrating the SD card slot with a Micro SD card being inserted, along with the ON/OFF switch and headphone jack.

4. סעטאַפּ

4.1. טשאַרדזשינג די מיטל

The KLIM K7 is equipped with a 1000mAh rechargeable battery. Before first use, or when the battery indicator on the LCD display is low, charge the device:

1. Connect the provided Type-C USB cable to the USB port on the side of the KLIM K7.
2. Connect the other end of the USB cable to a compatible USB power source (e.g., a computer USB port, a USB wall adapter).
3. The device typically requires approximately 2 hours for a full charge. The LCD display will indicate charging status.

Image: The KLIM K7 unit shown with its Type-C USB charging cable, emphasizing its 1000mAh rechargeable battery.

4.2. אריינשטעלן די SD קארטל

The included 16GB Micro SD card is essential for converting tapes to MP3 and recording audio. To insert it:

1. Locate the SD card slot on the side of the KLIM K7.
2. Gently push the Micro SD card into the slot until it clicks into place. Ensure the card is oriented correctly.
3. צו אַרויסנעמען, שטופּ די קאַרטל ווידער אַרײַן ביז זי שפּרינגט אַרויס.

Image: The KLIM K7 with its cassette compartment open, illustrating the insertion of a 16GB Micro SD card for MP3 conversion.

4.3. אריינלייגן א קאסעטע טייפ

To play or convert a cassette tape:

1. Locate the cassette compartment door on the front of the device.
2. Press the 'OPEN' button or slide the latch to open the compartment.
3. Insert your cassette tape with the open side facing upwards and the tape reels aligned with the player's mechanisms.
4. Close the compartment door firmly until it clicks.

5. אַפּערייטינג ינסטרוקטיאָנס

5.1. שפּילן אַ קאַסעטע טייפּ

After inserting a cassette tape:

1. Ensure the device is powered ON using the side switch.
2. Press the 'PLAY' button on the top panel to start playback.
3. Use the 'F.FWD' and 'F.REW' buttons for fast forwarding and rewinding.
4. דריק דעם 'STOP' קנעפל צו אפשטעלן די ווידערשפילן.
5. Adjust the volume using the 'VOL' dial on the top panel.

5.2. Converting Cassette to MP3

The KLIM K7 allows direct conversion of cassette audio to MP3 files on the inserted SD card, without needing a computer:

1. Insert your cassette tape and the Micro SD card as described in Section 4.
2. Start playing the cassette tape by pressing the 'PLAY' button on the top panel.
3. To begin recording, long-press the 'Record' button (red circle icon) on the front panel. The display will show a recording indicator.
4. To stop recording, press the 'Record' button again. The recorded audio will be saved as an MP3 file אויף די סד קאָרט.

Image: A visual guide detailing the five steps for converting cassette audio to MP3 files directly onto the Micro SD card using the KLIM K7.

5.3. Recording with Built-in Microphone

The KLIM K7 features a built-in microphone for recording voice or ambient sounds directly to the SD card:

1. Ensure a Micro SD card is inserted into the device.
2. Press the 'Record' button (red circle icon) on the front panel to start recording. The device will capture audio through its built-in microphone.
3. Press the 'Record' button again to stop recording. The audio will be saved as an MP3 file אויף די סד קאָרט.

Note: The KLIM K7 does not support recording onto cassette tapes. All recordings are saved digitally to the SD card.

Image: A visual representation of the KLIM K7's built-in microphone recording function, capable of capturing high-quality sound directly to the SD card.

5.4. Playing Music from SD Card

The KLIM K7 can also function as an SD card music player:

1. Ensure a Micro SD card containing MP3 fileס ווערט אריינגעשטעלט.
2. Press the 'Mode' button (often labeled with an 'M' or similar icon) to switch to SD card playback mode.
3. Use the 'Play/Pause', 'Next Track', and 'Previous Track' buttons to navigate and control your music.

5.5. Using Earphones

For private listening, connect the included KLIM Fusion earphones or your own 3.5mm headphones:

1. Plug the 3.5mm jack of your earphones into the headphone port on the side of the KLIM K7.
2. Adjust the volume using the 'VOL' dial to a comfortable listening level.

Image: A user enjoying music with the KLIM K7 and its included earphones, highlighting the universal 3.5mm jack port for listening anywhere.

6. וישאַלט

To ensure the longevity and optimal performance of your KLIM K7:

• רייניקונג: ניצט אַ ווייכע, טרוקענע שטאָף צו רייניקן די אויסערלעכע זייט פון דעם אַפּאַראַט. פֿאַרמייַדט ניצן פֿליסיקע רייניקונגס־מיטלען אָדער אַברייסיוו מאַטעריאַלן.
• Tape Head Cleaning: Periodically clean the cassette tape heads with a specialized tape head cleaning solution and cotton swab to maintain audio quality.
• סטאָרידזש: Store the device in a cool, dry place away from direct sunlight and extreme temperatures. Remove cassette tapes when not in use.
• באַטערי זאָרגן: For long-term storage, ensure the battery is partially charged (around 50%) to prevent degradation.

7. טראָובלעשאָאָטינג

If you encounter issues with your KLIM K7, refer to the following common solutions:

• Poor Audio Quality During Conversion: The quality of the converted MP3 file is highly dependent on the original cassette tape's condition. Very worn or degraded tapes may produce noise or hiss. Ensure your tapes are in good condition for best results.
• SD Card Read/Write Errors: If the device struggles to read or write to the SD card, try reinserting the card. If the problem persists, test with a different SD card, as some cards may become corrupted or incompatible over time.
• קיין געזונט פֿון כעדפאָונז: Ensure your 3.5mm headphones are fully plugged into the jack. Some headphones with built-in microphones may not function correctly with the device's audio output; try using standard headphones without a microphone.
• מיטל נישט פּאַוערינג אויף: Check if the battery is charged. Connect the device to a power source using the Type-C USB cable and allow it to charge for at least 30 minutes before attempting to power it on again.

8. ספּעסאַפאַקיישאַנז

Image: The KLIM K7 unit with its compact dimensions and light weight indicated, showcasinג זײַן פּאָרטאַביליטי.

9. וואָראַנטי און שטיצן

KLIM is committed to producing quality electronics built to last. The KLIM K7 comes with a 5-year assurance. If you encounter any problems with your device, please refer to the troubleshooting section of this manual or contact KLIM customer support for assistance. Detailed support information can typically be found on the KLIM official website or through the contact details provided in your product packaging.
