Joyroom JR-TCG08

Joyroom JR-TCG08 PD 20W USB Fast Charger Instruction Manual

Model: JR-TCG08

הקדמה

The Joyroom JR-TCG08 PD GaN 20W charger is designed to provide fast and efficient charging for compatible USB-C devices, including smartphones and tablets. Utilizing advanced GaN technology, this charger offers improved power efficiency and reduced heat generation within a compact design. Its small size makes it suitable for travel and daily use. The charger features a standard European plug for convenient compatibility and includes built-in protection features for safety and durability.

וויכטיק סאַפעטי אינפֿאָרמאַציע

ביטע ליינט אלע זיכערהייט אינסטרוקציעס איידער איר ניצט דעם פראדוקט. נישט נאכפאלגן די אינסטרוקציעס קען רעזולטירן אין עלעקטרישע שאק, פייער, אדער אנדערע געפארן.

פּעקל אינהאַלט

באַשטעטיקן אַז אַלע זאכן זענען פאַראַן אין דיין פּעקל:

פּראָדוקט איבערview

The Joyroom JR-TCG08 charger features a compact design with a single USB-C output port. It is designed for portability and efficient power delivery.

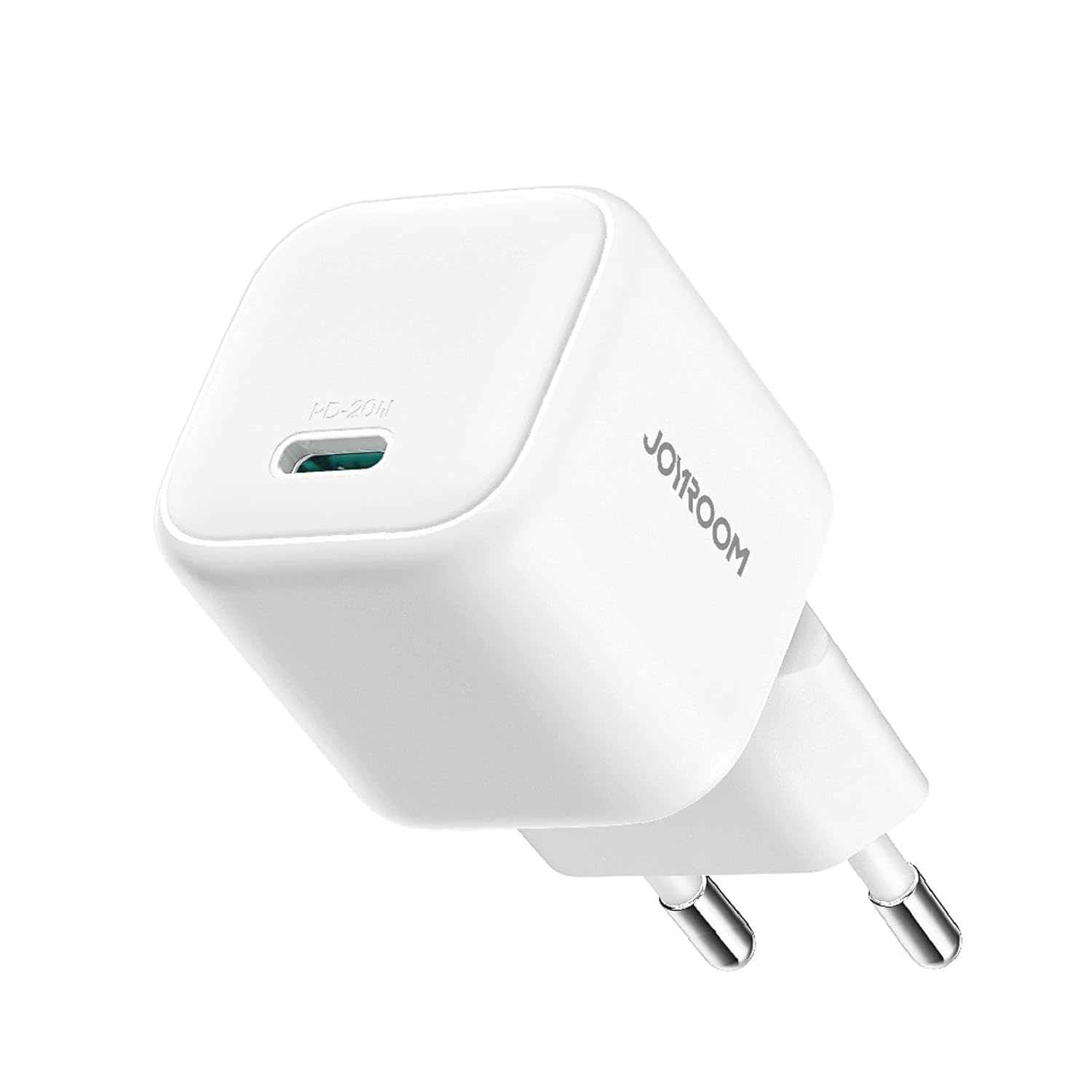

Joyroom JR-TCG08 PD 20W USB Fast Charger
בילד: פראָנט view of the Joyroom JR-TCG08 PD 20W USB Fast Charger, showing the USB-C port and brand logo.

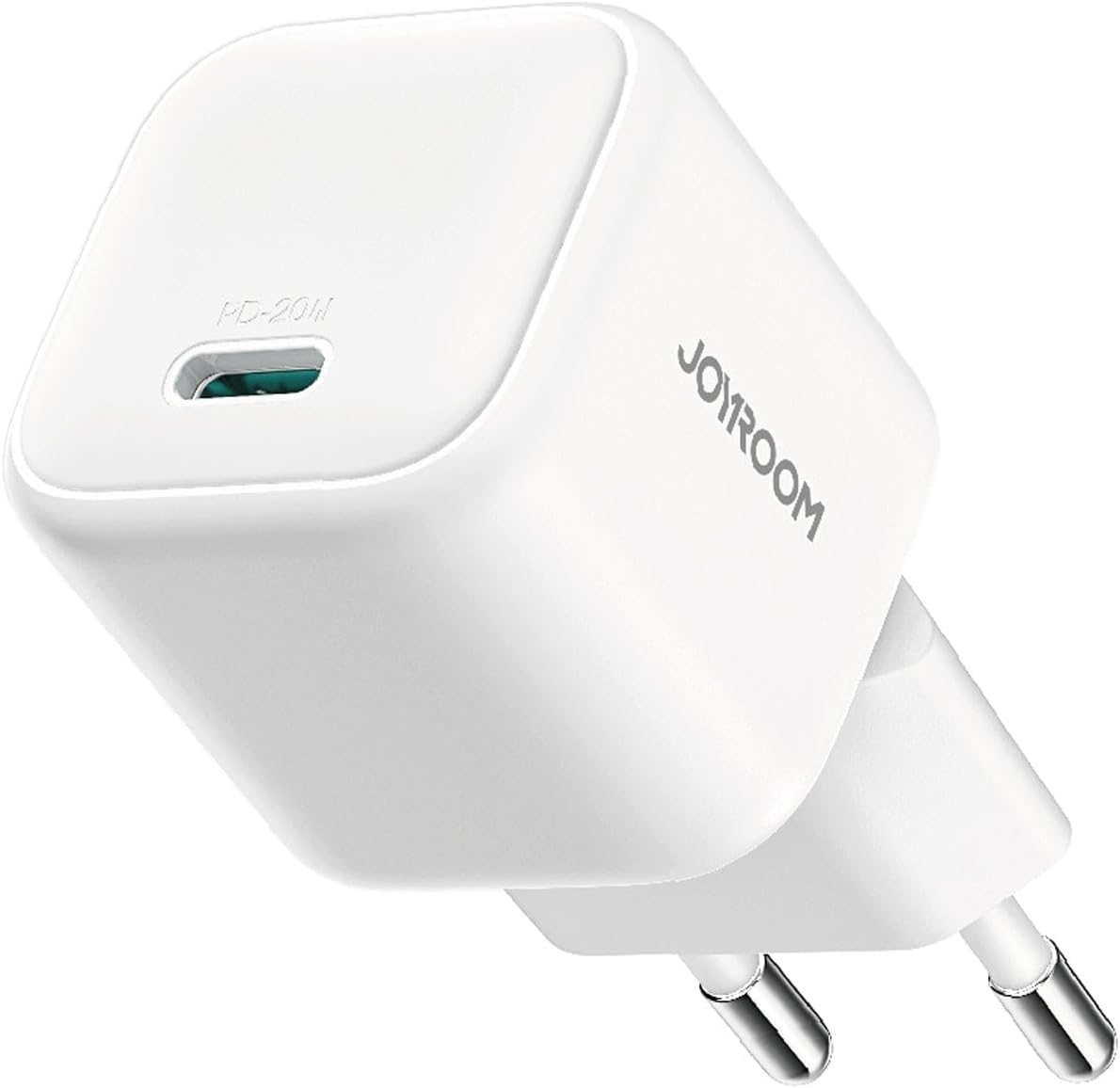

Joyroom JR-TCG08 PD 20W USB Fast Charger with European plug
בילד: ווינקלדיק view of the Joyroom JR-TCG08 charger, highlighting its compact size and European plug.

סעטאַפּ

Setting up your Joyroom JR-TCG08 charger is straightforward:

  1. ופשליסן די טשאַרדזשער: נעמט פֿאָרזיכטיק אַרויס דעם טשאַרדזשער פֿון זײַן פּאַקעט.
  2. דורכקוקן פֿאַר שעדיקן: Before use, check the charger for any visible damage. Do not use if damaged.
  3. פאַרבינדן צו מאַכט אָוטלעט: Plug the charger into a standard European wall power outlet.
  4. Prepare Charging Cable: Obtain a compatible USB-C to USB-C or USB-C to Lightning charging cable (not included).

אַפּערייטינג ינסטראַקשאַנז

גיי די סטעפּס צו באַשולדיקן דיין מיטל:

  1. Connect Cable to Charger: Insert one end of your USB-C charging cable into the USB-C port on the Joyroom JR-TCG08 charger.
  2. Connect Cable to Device: Insert the other end of the charging cable into your compatible smartphone, tablet, or other USB-C powered device.
  3. אָנהייבן טשאַרדזשינג: The device should automatically begin charging. A charging indicator (if present on your device) will typically illuminate.
  4. דיסקאַנעקט נאָך טשאַרדזשינג: אזוי שנעל ווי אייער דעווייס איז פולשטענדיג אויפגעלאדן, דיסקאנטירט דעם קאבל פון אייער דעווייס, און דערנאך ציט ארויס דעם טשאַרדזשער פון דער וואנט ווענטיל.

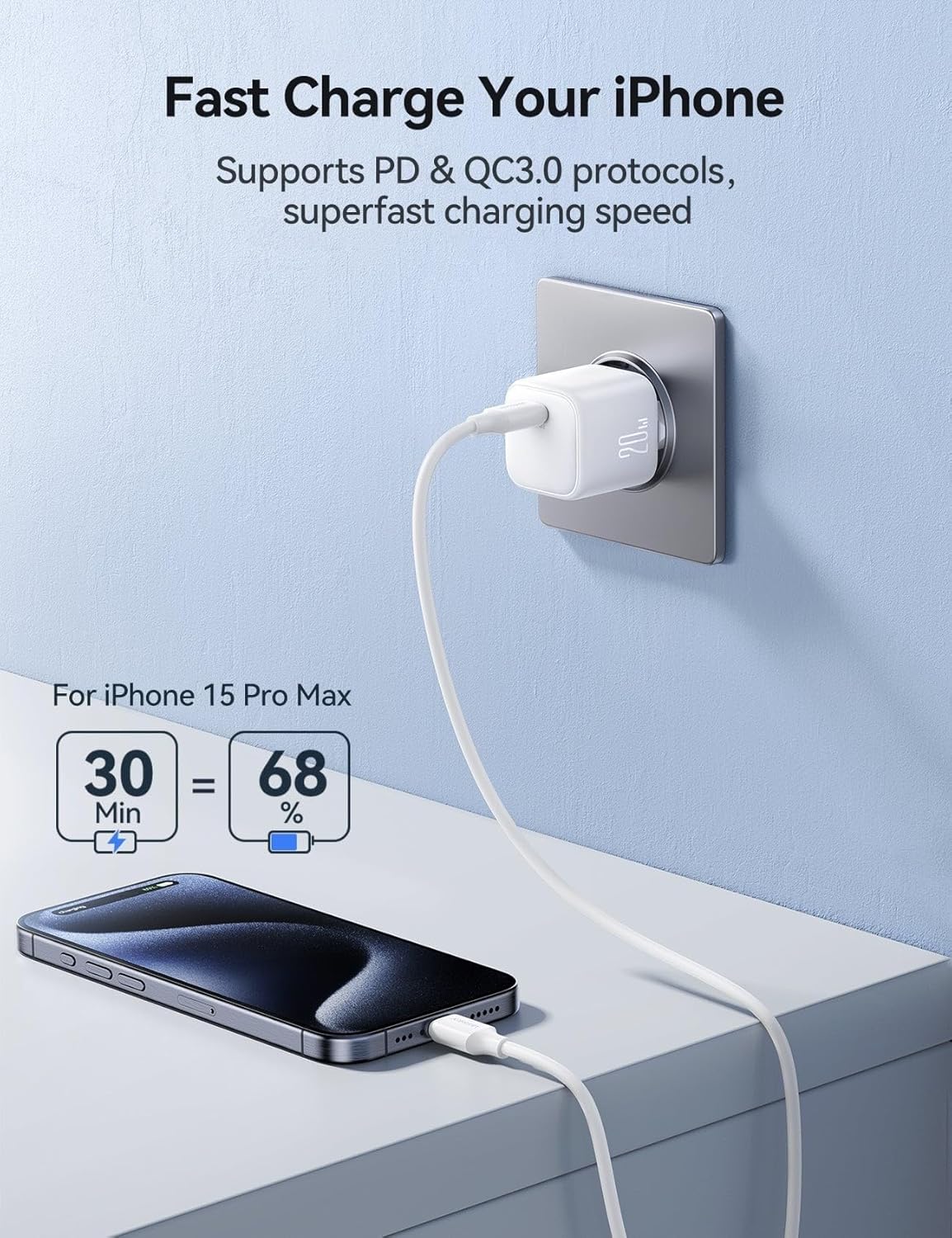

Joyroom JR-TCG08 charger connected to an iPhone 15 Pro Max
Image: The Joyroom JR-TCG08 charger plugged into a wall socket, charging an iPhone 15 Pro Max via a USB-C to Lightning cable.

This charger supports Power Delivery (PD) and Quick Charge 3.0 protocols for rapid charging. For example, it can charge compatible iPhones up to 68% in approximately 30 minutes.

Diagram illustrating GaN chip technology in Joyroom charger
Image: A diagram showing the internal GaN chip technology, indicating lower consumption, higher efficiency, faster charging, and smaller size.

זאָרגן און וישאַלט

To ensure the longevity and optimal performance of your charger, follow these maintenance guidelines:

Joyroom JR-TCG08 charger being held, demonstrating its small size
Image: A hand holding the compact Joyroom JR-TCG08 charger, illustrating its small, space-saving design.
Joyroom JR-TCG08 charger plugged into a wall socket, charging an iPhone
Image: The Joyroom JR-TCG08 charger in use, showing its compact form factor when plugged into a wall outlet.

טראָובלעשאָאָטינג

If you encounter issues with your Joyroom JR-TCG08 charger, refer to the following common problems and solutions:

פּראָבלעםמעגלעך סיבהלייזונג
מיטל ניט טשאַרדזשינג.טשאַרדזשער נישט ריכטיק אריינגעשטעקט.
פאָלטי טשאַרדזשינג קאַבלע.
אַפּאַראַט אינקאָמפּאַטאַביליטי.
זייט זיכער אז דער טשאַרדזשער איז זיכער אריינגעשטעקט אין א לעבעדיקן עלעקטרישן ווענטיל.
פרובירט אן אנדער טשאַרדזשינג קאַבל.
Verify your device supports USB-C Power Delivery or Quick Charge 3.0.
פּאַמעלעך טשאַרדזשינג.Non-fast charging cable.
Device not supporting fast charge protocols.
High background usage on device.
ניצט אַ הויך-קוואַליטעט USB-C קאַבל וואָס איז דיזיינד פֿאַר שנעל טשאַרדזשינג.
Confirm your device supports PD or QC 3.0.
Close unnecessary applications on your device.
דער טשאַרדזשער פילט זיך וואַרעם.נאָרמאַלע אָפּעראַציע בעת שנעלע טשאַרדזשינג.
איבערלאַסט אָדער שלעכטע ווענטילאַציע.
A slight warmth is normal. If it becomes excessively hot, disconnect immediately. Ensure adequate ventilation around the charger.
Joyroom JR-TCG08 charger surrounded by ice cubes, symbolizing cool and safe charging
Image: The Joyroom JR-TCG08 charger depicted with ice cubes, illustrating its low heat generation during operation.

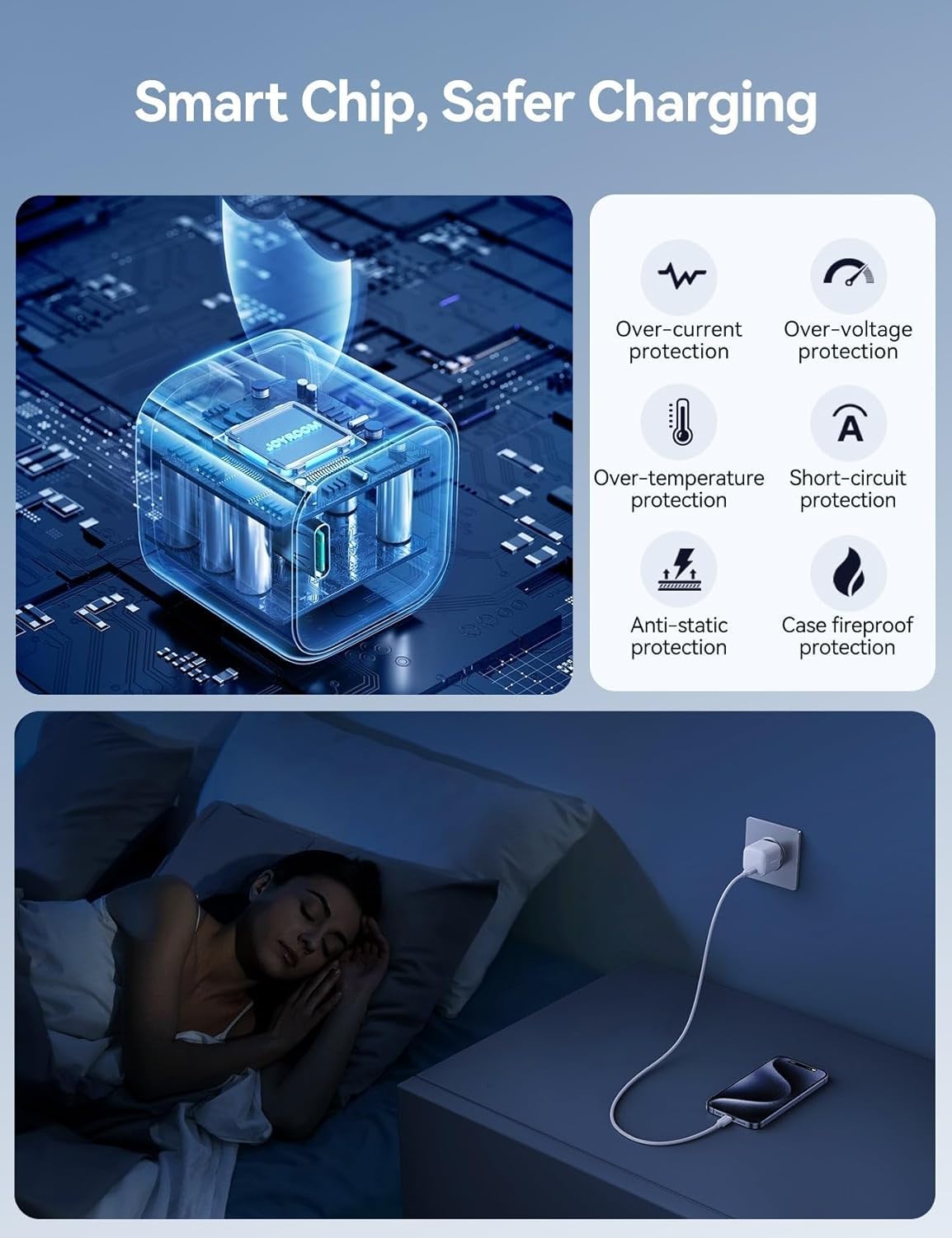

Diagram of Joyroom charger's smart chip and safety protections
Image: A visual representation of the charger's smart chip and its six safety protections: over-current, over-voltage, over-temperature, short-circuit, anti-static, and fireproof protection.

ספּעסאַפאַקיישאַנז

שטריךדעטאַל
סאָרטJoyroom
מאָדעל נומערJR-TCG08
קאַנעקטיוויטי טעכנאָלאָגיעוסב
קאַנעקטער טיפּUSB 3.0 (USB-C port)
קאַמפּאַטאַבאַל דעוויסעסTablets, Smartphones (e.g., Apple iPhone 11 Pro Max, iPhone 12, iPhone 13, iPhone 7, iPhone 7 Plus, iPhone 8, iPhone X, iPhone XR, iPhone XS, iPhone XS Max)
ספּעציעלע פֿעיִקייטןFast Charging (PD & QC 3.0 support), GaN Technology, 6-point Safety Protection
קאָלירווייַס
אַרייַנשרייַב וואָלtage240 וואלטס
גאַנץ וסב פּאָרץ1 (וסב-C)
מאַכט רעזולטאַט20 וואטס
רעזולטאַט קראַנט2.5 Amps (מאקס)
רעזולטאַט חלקtage5 Volts (Variable with PD/QC)
מאַכט מקורקאָרדעד עלעקטריק
קראַנט רייטינג3 Amps
הויפּט מאַכט קאַנעקטער טיפּ2 Pin (European Standard)
פּאָרטאַטיוויא
מאַטעריאַלספּאָליקאַרבאָנאַטע
פּונקט וואָג44.8 גראַמז
סערטיפיקאַטיאָנסBIS Compliant

וואָראַנטי און שטיצן

וואָראַנטי אינפֿאָרמאַציע:

This Joyroom product comes with a standard 12-month warranty from the date of purchase. This warranty covers manufacturing defects and material faults under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or natural disasters.

קונה שטיצן:

For technical support, warranty claims, or general inquiries, please contact Joyroom customer service through their official website or the retailer where the product was purchased. Please have your model number (JR-TCG08) and proof of purchase ready when contacting support.

You can visit the Joyroom store for more information: דזשוירום אפיציעלע קראָם
