Xtreme Smart Wi-Fi Window & Door Sensor User Manual

הקדמה

This manual provides instructions for the installation, operation, and maintenance of your Xtreme Smart Wi-Fi Window & Door Sensor. This device is designed to enhance home security by detecting the opening and closing of windows and doors, sending instant notifications to your smartphone.

זיכערקייַט אינפֿאָרמאַציע

• שטעלט נישט אויס דעם אפאראט צו עקסטרעמע טעמפעראטורן, דירעקטע זונשייַן, אדער פייכטקייט.
• פרובירט נישט צו צענעמען אדער פאררעכטן דאס אפאראט אליין. דאס וועט בטל מאכן די גאראנטיע.
• האַלטן באַטעריז אויס פון דערגרייכן פון קינדער. אויב סוואַלאָוד, זוכן באַלדיק מעדיציניש ופמערקזאַמקייַט.
• Dispose of batteries according to local regulations. Do not mix old and new batteries.
• Ensure the installation surface is clean and dry for proper adhesive attachment.

פּעקל אינהאַלט

באַשטעטיקן אַז אַלע זאכן זענען פאַראַן אין דיין פּעקל:

• Xtreme Smart Wi-Fi Window & Door Sensor (Main Unit)
• Xtreme Smart Wi-Fi Window & Door Sensor (Magnetic Contact)
• באַניצער מאַנואַל (דעם דאָקומענט)

Image: The main sensor unit and the smaller magnetic contact unit.

סעטאַפּ גייד

1. באַטאַרייע ייַנמאָנטירונג

1. Gently slide open the battery cover on the main sensor unit.
2. Insert two AAA batteries (not included) into the compartment, ensuring correct polarity (+/-).
3. פאַרמאַכן די באַטאַרייע דעקן סיקיורלי.

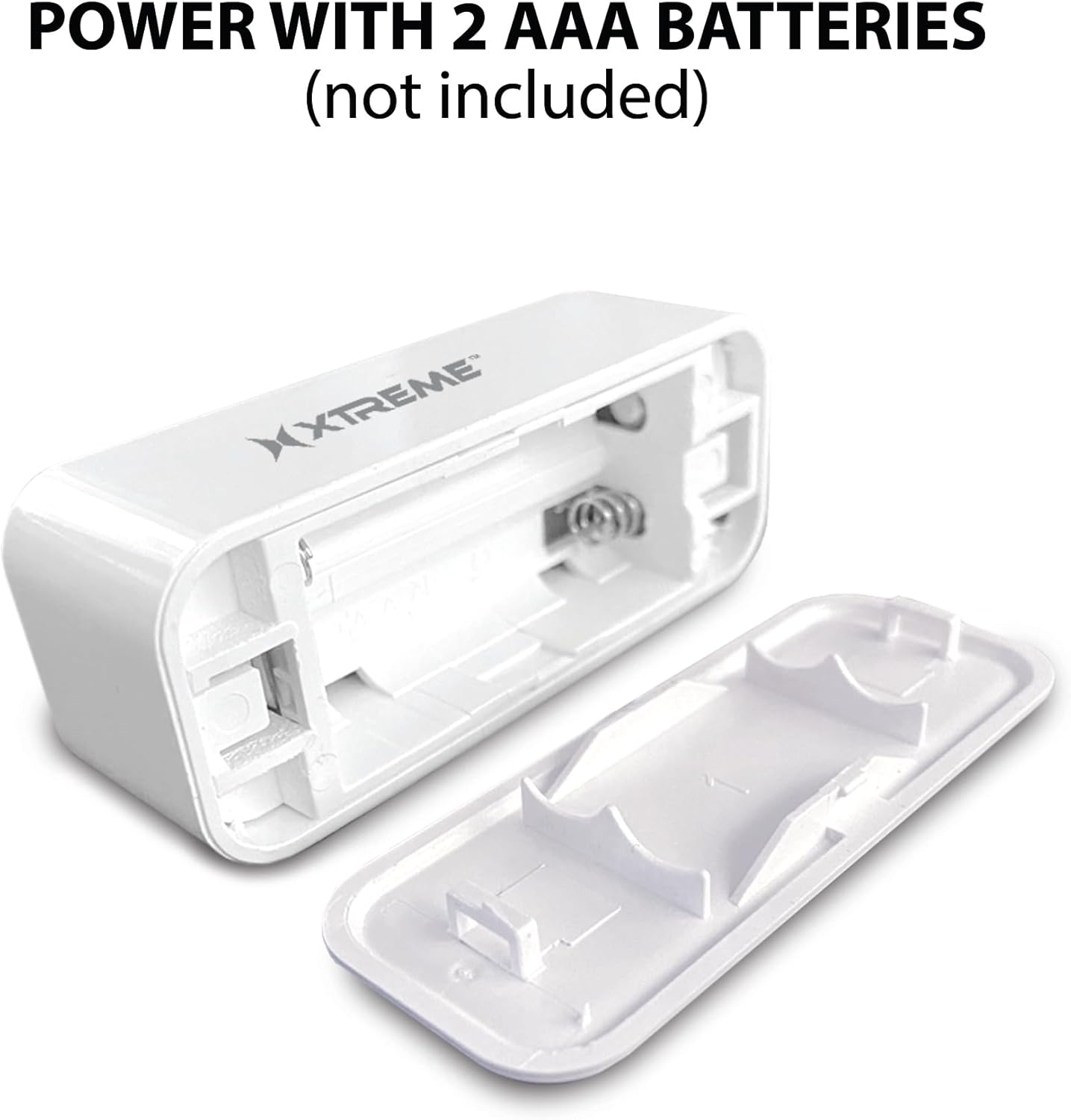

Image: The main sensor unit with its battery compartment open, showing where to insert two AAA batteries.

2. אַפּ דאַונלאָודינג און אַקאַונט שאַפונג

1. אָפּלאָדירן די Xtreme Connect Home App from the Apple App Store (for iOS 11 or higher) or Google Play Store (for Android 7.0 or higher).
2. עפֿנט די אַפּ און פֿאָלגט די אינסטרוקציעס אויף דעם עקראַן צו שאַפֿן אַ נײַעם חשבון אָדער לאָגט זיך אײַן אויב איר האָט שוין אײנס.

Image: The product box illustrating the Xtreme Connect Home App download options for both iOS and Android devices.

3. דיווייס פּערינג

1. Ensure your smartphone is connected to a 2.4GHz Wi-Fi network. The sensor does not support 5GHz networks.
2. In the Xtreme Connect Home App, tap the "+" icon to add a new device.
3. Select "Sensor" or "Door/Window Sensor" from the device list.
4. Follow the app's instructions to put the sensor into pairing mode (usually involves pressing and holding a button on the sensor until an indicator light flashes).
5. Confirm the Wi-Fi network and enter the password in the app. The sensor will then connect to your home network.
6. Once successfully paired, you can name your sensor within the app (e.g., "Front Door," "Bedroom Window").

4. גשמיות ייַנמאָנטירונג

The sensor consists of two parts: a main unit and a smaller magnetic contact. These two parts must be installed close to each other (within 1 cm) on a door or window frame.

1. Choose a clean, dry, and flat surface on your door or window frame.
2. Peel off the protective backing from the adhesive on both the main unit and the magnetic contact.
3. באַפעסטיקט די הויפּט איינהייט צו דעם פעסטן טייל פון דער טיר/פֿענצטער ראַם.
4. Attach the magnetic contact to the moving part of the door/window (the door or window itself), aligning it with the main unit so they are no more than 1 cm apart when the door/window is closed.
5. Test the installation by opening and closing the door/window. The app should register the change in status.

Image: Left: The sensor installed on a window sill with the window closed. Right: The sensor detecting an open window, with the magnetic contact separated from the main unit.

אָפּעראַציע

Monitoring Door/Window Status

Once installed and paired, the Xtreme Smart Wi-Fi Window & Door Sensor will continuously monitor the open/closed status of your designated entry point. When the magnetic contact separates from the main unit (door/window opens), the sensor will detect this change.

רעגע נאָוטאַפאַקיישאַנז

Upon detecting an open or close event, the sensor will send an instant notification to your smartphone via the Xtreme Connect Home App. Ensure app notifications are enabled in your phone's settings to receive these alerts.

ווייַט אַקסעס

איר קענען view the current status of your sensor (open or closed) and review event history from anywhere using the Xtreme Connect Home App, provided your smartphone has an internet connection.

Smart Scenes Integration

The Xtreme Connect Home App allows you to create "Smart Scenes" to automate actions based on sensor activity. For exampלאַ:

• "If door opens, then turn on living room lights."
• "If window opens after 10 PM, then send an alert to family members."

Explore the "Smart Scenes" section within the app to customize your home automation.

וישאַלט

באַטערי פאַרבייַט

The sensor is powered by two AAA batteries. When the battery level is low, you may receive a notification via the Xtreme Connect Home App. To replace batteries:

1. Gently slide open the battery cover on the main sensor unit.
2. אַראָפּנעמען די אַלט באַטעריז.
3. Insert two new AAA alkaline batteries, ensuring correct polarity (+/-).
4. פאַרמאַכן די באַטאַרייע דעקן סיקיורלי.

Note: The sensor is designed for up to four months of battery life under normal usage conditions.

רייניקונג

Wipe the sensor with a soft, dry cloth. Do not use liquid cleaners or abrasive materials, as these can damage the device.

טראָובלעשאָאָטינג

ספּעסאַפאַקיישאַנז

וואָראַנטי און שטיצן

For warranty information and technical support, please refer to the documentation included with your purchase or visit the official Xtreme Digital Lifestyle Accessories website. Do not attempt to return the product to the retailer without first contacting customer support, as per manufacturer guidelines.

פאַבריקאַנט: Xtreme

סאָרט: עקסטרעם דיגיטאַל לייפסטייל אַקסעסאָריעס
