1. הקדמה
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Goodman GLZS4BA6010 5 Ton 14.4 SEER2 R32 Heat Pump Condenser. A heat pump is an appliance that uses electricity to move heat from one place to another, providing both heating and cooling for a building. In winter, it extracts heat from outside and moves it inside. In summer, it moves heat from indoors to the outside. Please read this manual thoroughly before attempting any procedures.
Video 1: Heat Pumps in Focus. דאס ווידעא גיט אן אלגעמיינע איבערבליקview of how heat pumps operate, explaining their function in both heating and cooling modes.
2. שליסל פֿעיִקייטן
- Energy-efficient compressor for reduced power consumption.
- Factory-installed filter drier to absorb moisture and filter contaminants.
- Copper tube/aluminum fin coil for efficient heat transfer.
- Service valves with sweat connections and easy-access gauge ports for convenient servicing.
- Contactor with lug connection for secure wiring.
- Ground lug connection for safety.
- AHRI Certified; ETL Listed, ensuring performance and safety standards.

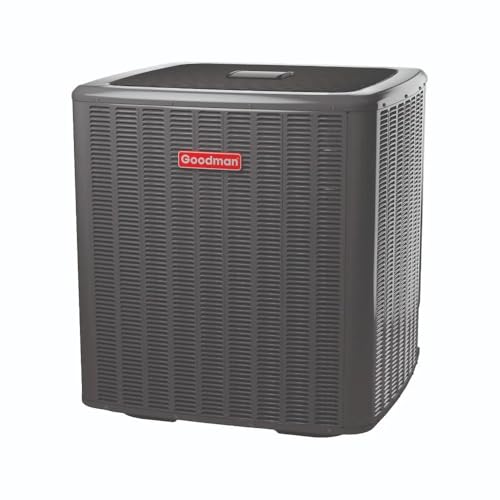

Image 1: Goodman GLZS4BA6010 Heat Pump Condenser. This image displays the outdoor unit of the heat pump system, highlighting its compact design and louvered coil guards.
3. ספּעסאַפאַקיישאַנז
| באַשרייַבונג | ווערט |
|---|---|
| מאָדעל נאָמען | GLZS4BA6010 |
| סאָרט | גוטמאַן |
| קאַפּאַציטעט | 5 טאָנס |
| סעזאָנאַל ענערגיע עפעקטיווקייט פאַרהעלטעניש (SEER) | 14.4 SEER2 |
| ריפרידזשעראַנט | ר-32 |
| פּראָדוקט דימענשאַנז | 35.5"ד רענטגענ 35.5"וו רענטגענ 41.75"ה |
| ייַנמאָנטירונג טיפּ | שפּאַלטן סיסטעם |
| פאָרם פאַקטאָר | מיני-ספּליט |
| מאַכט מקור | קאָרדעד עלעקטריק |
| מאַטעריאַל טיפּ | ABS |
| Certification | ענערגיע שטערן |
4. Refrigerant Information: R-32
The Goodman GLZS4BA6010 utilizes R-32 refrigerant, a modern and environmentally conscious choice for air conditioning systems. R-32 is known for its higher energy efficiency compared to older refrigerants like R-410A, potentially leading to lower electricity bills. Furthermore, R-32 has a significantly lower Global Warming Potential (GWP) of 675, compared to R-410A's GWP of 2,088. This makes R-32 a greener option, aligning with global initiatives to protect the ozone layer and reduce climate change. Choosing an R-32 system contributes to a more sustainable future.
Video 2: Why R-32 Refrigerant is the Future of Air Conditioning? This video explains the environmental and efficiency benefits of R-32 refrigerant, highlighting its role in modern HVAC systems.
5. סעטאַפּ און ייַנמאָנטירונג
Installation of the Goodman GLZS4BA6010 heat pump condenser must be performed by a qualified HVAC technician. Improper installation can lead to inefficient operation, system damage, and safety hazards. Ensure the unit is placed on a level surface with adequate clearance for airflow and maintenance. All electrical and refrigerant line connections must comply with local codes and manufacturer specifications.
- פּלאַץ סעלעקציע: Choose a location that allows for proper airflow, drainage, and accessibility for service. Avoid areas prone to excessive debris or direct sunlight.
- מאָונטינג: Securely mount the outdoor unit on a stable, level pad to minimize vibration and noise.
- עלעקטריקאַל קאַנעקשאַנז: All wiring must be done by a licensed electrician, adhering to the unit's electrical requirements and local codes.
- ריפרידזשעראַנט שורות: Connect the refrigerant lines carefully, ensuring proper sizing and insulation to prevent leaks and maximize efficiency.
- סיסטעם אָנהייב: A professional technician will perform a vacuum test, charge the system with R-32 refrigerant, and conduct a test run to ensure correct operation.
6. אַפּערייטינג ינסטרוקטיאָנס
Once installed by a professional, your Goodman heat pump condenser operates automatically based on your thermostat settings. Familiarize yourself with your thermostat to control heating, cooling, and fan modes effectively.
- מאָדע סעלעקציע: Use your thermostat to switch between heating, cooling, and fan-only modes.
- טעמפּעראַטור באַשטעטיקן: Set your desired temperature. The system will work to maintain this temperature.
- פאָכער אָפּעראַציע: Choose between "Auto" (fan runs only when heating/cooling) or "On" (fan runs continuously).
- דעפראָסט ציקל: The unit features SmartShift® technology for quiet and reliable defrosting during colder temperatures. This is an automatic process.
7. וישאַלט
Regular maintenance is crucial for the longevity and efficiency of your heat pump. While some tasks can be performed by the homeowner, annual professional servicing is highly recommended.
7.1. Homeowner Maintenance
- רייניקן דרויסנדיקן אַפּאַראַט: Keep the area around the outdoor condenser unit clear of debris, leaves, and vegetation to ensure proper airflow.
- ריין קוילז: Periodically rinse the outdoor coil with a garden hose to remove dirt and grime.
- Check Air Filters: Regularly inspect and replace or clean your indoor unit's air filters as recommended by the manufacturer (typically every 1-3 months).
7.2. Professional Maintenance (Annual)
- Thorough cleaning of coils, fan blades, and internal components.
- Inspection of electrical connections and components.
- Checking refrigerant levels and pressure.
- Lubrication of moving parts.
- Verification of thermostat accuracy and system operation.
8. טראָובלעשאָאָטינג
Before calling for service, check these common issues:
| פּראָבלעם | מעגלעך סיבה | לייזונג |
|---|---|---|
| אַפּאַראַט איז נישט אויסגעדרייט | מאַכט אירtage, tripped breaker, thermostat off/incorrect setting. | Check circuit breaker, ensure thermostat is set to desired mode and temperature. |
| נישט גענוג הייצונג/קילונג | שמוציגע לופט פילטער, פארשטאפטע דרויסנדיגע איינהייט, נידריגע קילשטאָף. | Replace/clean air filter, clear debris from outdoor unit, contact technician for refrigerant check. |
| ומגעוויינטלעך נויזיז | Loose parts, debris in fan, compressor issues. | Turn off unit and inspect for loose debris. If noise persists, contact a technician. |
| Unit constantly running | Thermostat setting too low/high, undersized unit, refrigerant leak. | Adjust thermostat, ensure proper insulation, contact technician for inspection. |
For any issues not resolved by these steps, or for complex problems, contact a certified HVAC technician.
9. וואָראַנטי און שטיצן
The Goodman GLZS4BA6010 Heat Pump Condenser is backed by a 10 Year Parts Limited Warranty. For specific warranty details, including terms and conditions, please refer to the warranty documentation provided with your unit or contact Goodman customer support. This unit is also AHRI Certified and ETL Listed, ensuring it meets industry performance and safety standards.
For technical support, service inquiries, or warranty claims, please contact your authorized Goodman dealer or visit the official Goodman webפּלאַץ.
