Golden Ally GP303 Power Wheelchair User Manual

1. הקדמה

Welcome to the Golden Ally GP303 Power Wheelchair User Manual. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new Golden Ally power wheelchair. Please read this manual thoroughly before operating the device to ensure proper use and to maximize your experience.

The Golden Ally GP303 is designed to offer the strength and stability of a traditional power chair while maintaining a lightweight and portable form factor, making it an ideal travel companion. Its maneuverability is excellent for indoor use, and its robust design with pneumatic rear drive wheels ensures a comfortable outdoor experience.

2. זיכערקייַט אינפֿאָרמאַציע

2.1 אַלגעמיינע זיכערקייַט פּריקאָשאַנז

• Always ensure the power wheelchair is fully charged before extended use.
• Do not operate the wheelchair under the influence of alcohol or medication that impairs judgment.
• Always use seatbelts if equipped and recommended.
• Avoid operating on steep inclines or uneven terrain that exceeds the wheelchair's capabilities.
• האַלטן הענט און קליידער קלאָר פון מאָווינג טיילן.
• Consult a healthcare professional for proper seating and positioning.

2.2 באַטערי זיכערקייַט

• Use only the charger provided by Golden Technologies.
• דו זאלסט נישט ויסשטעלן די באַטאַרייע צו עקסטרעם טעמפּעראַטורעס אָדער דירעקט זונשייַן.
• דו זאלסט נישט פּאַנגקשער, דיסאַסעמבאַל אָדער קורץ-קרייַז די באַטאַרייע.
• If the battery shows signs of damage or overheating, discontinue use immediately and contact customer support.
• The lithium-ion battery is removable and weighs 5 lbs.

2.3 אַפּערייטינג סוויווע

• Be aware of your surroundings, especially in crowded areas.
• Exercise caution when navigating ramps, thresholds, and uneven surfaces.
• The wheelchair is equipped with standard built-in head and rear marker lights for visibility.

3. פּראָדוקט איבערview

The Golden Ally GP303 is designed for comfort, portability, and ease of use. Below are key features and components.

3.1 שליסל פֿעיִקייטן

• פּשוט פאָלדינג מעקאַניזאַם: Manual folds with ease for travel, including airline and cruise ship compatibility.
• Smart Control Mobile App: Control the Golden Ally with a dedicated mobile application.
• גרינג מאַנווועראַביליטי: A tight turning radius of only 28.5 inches makes it perfect for indoor use.
• באַקוועמע זיצן: Equipped with memory foam seating for enhanced comfort during use.
• ערגאָנאָמיקאַללי דיזיינד: Specially designed seating and foot positions ensure proper posture.
• אולטרא לייכט: The lithium-ion battery weighs 5 lbs. The scooter weighs only 49.5 lbs after battery removal.
• Charge On The Go: Features USB ports on the armrest for convenient device charging.
• Stay Visible: Standard built-in head and rear marker lights enhance safety.
• Easy To Store: Designed to fit in the trunk of most vehicles.

3.2 קאַמפּאָונאַנץ

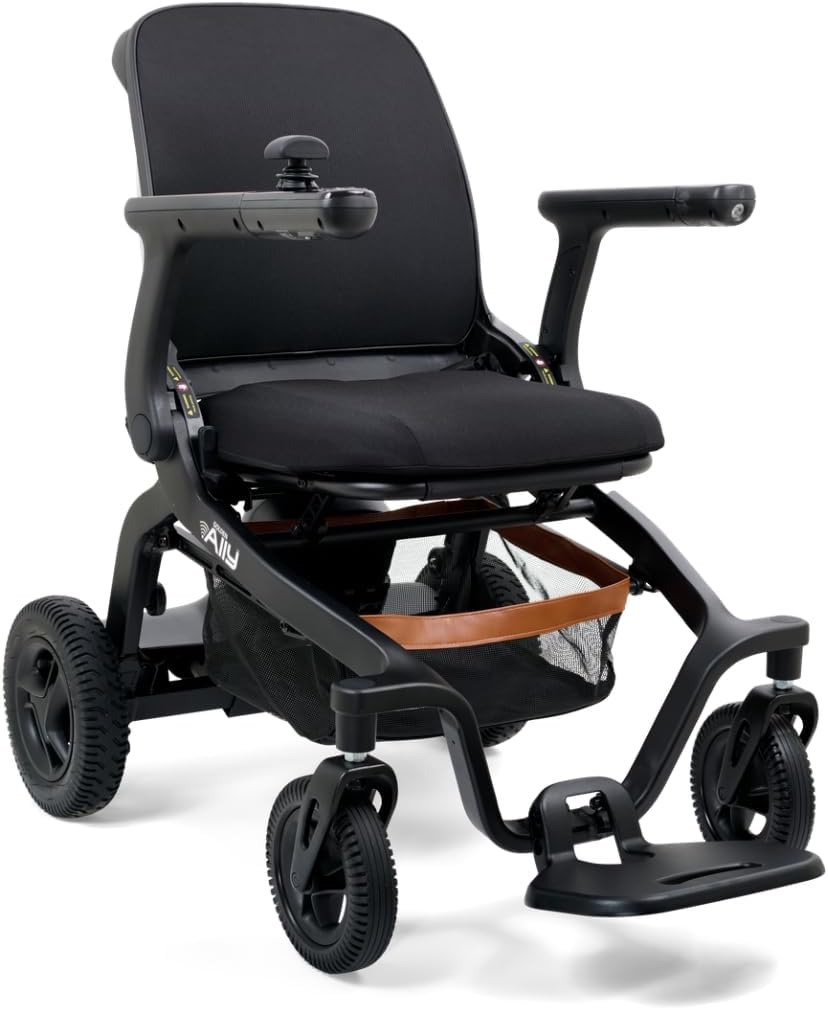

Figure 3.2.1: Golden Ally GP303 Power Wheelchair (Black model). This image shows the overall design of the wheelchair, highlighting its compact and modern appearance with the joystick control on the armrest and a storage basket underneath the seat.

פיגורע 3.2.2: זייַט view of the Golden Ally GP303 Power Wheelchair (Teal model). This perspective illustrates the ergonomic design, the position of the footrest, and the large rear drive wheels, emphasizing its stability and comfort.

Figure 3.2.3: Close-up of the Golden Ally GP303 joystick controller. The display shows battery percentage (83%), current speed (0.0 MPH), and speed settings (1-5). Buttons for power, SOS, function, and horn are visible.

פיגורע 3.2.4: דעטאַילעד view of the Golden Ally GP303's memory foam seat. This image highlights the comfortable cushioning and the durable fabric, emphasizing the ergonomic design for user comfort.

4. סעטאַפּ

4.1 Unfolding the Wheelchair

1. שטעלט דעם צוזאמענגעפאלטענעם ראָלשטול אויף א גלאַטער, סטאַבילער ייבערפלאַך.
2. Grasp the frame and gently pull the two halves apart until the chair fully extends and locks into place. Ensure all locking mechanisms are engaged.
3. Lower the seat and footrest into their operational positions.

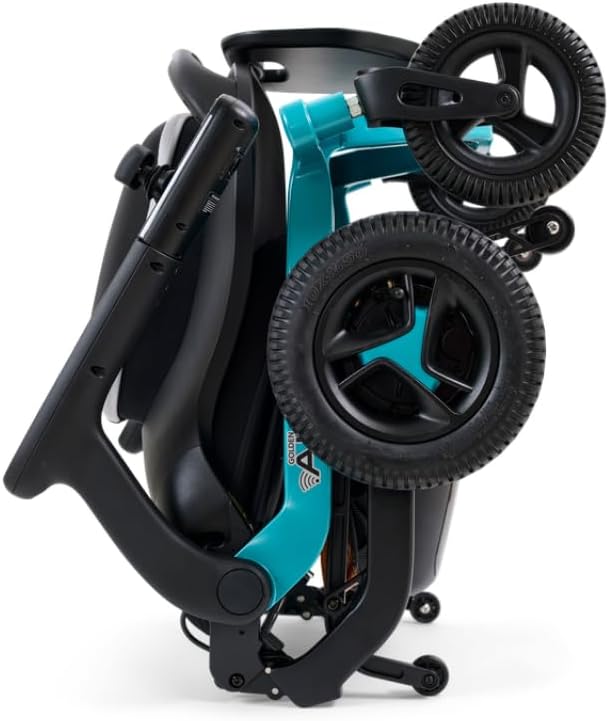

Figure 4.1.1: The Golden Ally GP303 in its folded state, demonstrating its compact design for easy storage and transport. The image shows the wheels and frame neatly tucked together.

4.2 באַטעריע אינסטאַלאַציע און טשאַרדזשינג

1. Locate the battery compartment, typically under the seat or at the rear of the frame.
2. Insert the lithium-ion battery (5 lbs) into the compartment, ensuring it clicks securely into place.
3. Connect the off-board charger to the charging port on the wheelchair and then to a standard electrical outlet.
4. Allow the battery to fully charge before first use. The charging indicator on the controller or charger will show charging status.

Figure 4.2.1: A hand demonstrating the installation or removal of the removable lithium battery from the Golden Ally GP303. The battery slides into a designated slot on the wheelchair frame.

5. אַפּערייטינג ינסטרוקטיאָנס

5.1 פּאַוערינג אויף / אַוועק

• To power on, press the power button on the joystick controller. The display will illuminate.
• צו מאַכט אַוועק, דריקן און האַלטן די מאַכט קנעפּל ביז די אַרויסווייַזן טורנס אַוועק.

5.2 Driving the Wheelchair

• Use the joystick to control direction and speed. Push forward to move forward, pull back to move backward, and push left/right to turn.
• The maximum speed is 5 mph. Adjust speed settings using the speed control buttons on the joystick (typically indicated by arrows or numbers 1-5).
• The wheelchair has a tight turning radius of 28.5 inches, ideal for indoor navigation.
• Electro-mechanical brakes engage automatically when the joystick is released.

5.3 Smart Control Mobile App

The Golden Ally can be controlled via a dedicated mobile application. Refer to the app's instructions for pairing and usage. The app allows for remote control and potentially access to additional features and diagnostics.

5.4 וסב טשאַרדזשינג פּאָרט

A USB port is conveniently located on the armrest, allowing you to charge your personal electronic devices while using the wheelchair.

6. וישאַלט

6.1 רייניקונג

• ווישט אַראָפּ דעם ראַם און זיץ מיט אַדamp שטאָף און מילד וואַשפּולווער. ויסמיידן האַרב קעמיקאַלז.
• Do not spray water directly onto electrical components.

6.2 באַטערי קער

• Charge the battery regularly, even if the wheelchair is not in frequent use, to prolong its lifespan.
• סטאָר די באַטאַרייע אין אַ קיל, טרוקן אָרט ווען ניט אין נוצן.

6.3 Tire and Wheel Inspection

• Regularly check the pneumatic drive wheels (10”) for proper inflation and wear.
• Inspect the solid casters (6”) and anti-tip wheels (2”) for any damage or debris.
• Ensure all wheels spin freely and are securely attached.

7. טראָובלעשאָאָטינג

8. ספּעסאַפאַקיישאַנז

Figure 8.1: Golden Ally GP303 product brochure page, detailing standard colors (White, Teal, Black) and key features such as simple folding, remote driving, memory foam seating, and USB ports.

9. וואָראַנטי און שטיצן

9.1 וואָראַנטי אינפֿאָרמאַציע

Golden Technologies provides the following limited warranty for the Golden Ally GP303:

• ראַם: 5 יאר
• פאָר באַן: 13 חדשים
• עלעקטראָניקס: 13 חדשים
• באַטעריז: 12 חדשים

Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects under normal use. It does not cover damage due to misuse, accidents, or unauthorized modifications.

9.2 קונה שטיצן

For technical assistance, parts, or warranty inquiries, please contact Golden Technologies customer support.

• פאַבריקאַנט: גאָלדען טעטשנאָלאָגיעס
• Webפּלאַץ: www.goldentech.com
• טעלעפֿאָן: Refer to Golden Technologies official webזייטל פֿאַר איצטיקע קאָנטאַקט נומערן.
