LEONLITE Filigree Solid Cast Brass Pathway Lights Instruction Manual

1. פּראָדוקט איבערview

The LEONLITE Filigree Solid Cast Brass Pathway Lights are designed for outdoor landscape illumination, providing both functional lighting and aesthetic appeal. These 12V low voltage lights are constructed from durable solid brass with a textured bronze finish, ensuring longevity and resistance to corrosion. The unique filigree cutout design on the shade creates captivating light and shadow patterns, enhancing your walkway or garden.

Key features include a replaceable G4 bulb socket (bulbs not included), an IP65 waterproof rating for reliable outdoor performance, and an ABS ground stake for secure installation. These lights are suitable for various outdoor environments, operating within a wide temperature range and compatible with 9-24V AC/DC low voltagE סיסטעמען.

Image 1.1: Two LEONLITE Filigree Solid Cast Brass Pathway Lights and their ground stakes. These lights feature a bronze finish and a decorative filigree shade.

2. זיכערקייַט אינפֿאָרמאַציע

• עלעקטריקאַל זיכערקייַט: Always disconnect power to the low voltage lighting system before installing, maintaining, or replacing bulbs.
• נידעריק וואָלtagסיסטעם: These lights are designed for 12V low voltage landscape lighting systems. Do not connect directly to high voltage (e.g., 120V) power without a compatible low voltage transformer. (Transformer not included).
• בלויז דרויסנדיק נוצן: This product is intended for outdoor use in gardens, walkways, and driveways. Do not use indoors.
• ציבעלע קאַמפּאַטאַבילאַטי: Use only G4 LED or halogen bulbs compatible with 9-24V AC/DC systems, with a maximum wattagE פון 20W.
• וואַסער קעגנשטעל: The lights have an IP65 waterproof rating, protecting against dust and low-pressure water jets. Ensure all connections are secure and properly sealed to maintain water resistance.
• ייַנמאָנטירונג: Follow all local electrical codes and regulations during installation. If unsure, consult a qualified electrician.

3. פּעקל אינהאַלט

ביטע באַשטעטיקן אַז אַלע קאָמפּאָנענטן זענען פאַראַן איידער איר הייבט אָן די אינסטאַלאַציע:

• LEONLITE Filigree Solid Cast Brass Pathway Light Fixtures (2 units)
• ABS Ground Stakes (2 units)
• Pre-connected lead wires with connectors

Note: G4 bulbs and low voltage transformer are NOT included and must be purchased separately.

4. סעטאַפּ און ייַנמאָנטירונג

Follow these steps for proper installation of your LEONLITE pathway lights:

1. צוגרייטן די שטח: Choose the desired location for your pathway lights. Ensure the ground is soft enough to insert the ground stakes securely.
2. ינסטאַלירן די באַלב:
   • Carefully unscrew the top cap of the light fixture to access the G4 ceramic socket.
   • Insert a compatible G4 LED or halogen bulb (not included) into the socket. Ensure the bulb is seated firmly.
   • Replace the top cap and tighten it to ensure a secure, waterproof seal.


   Image 4.1: Illustration of G4 bulb installation. Ensure the bulb is properly seated in the ceramic socket.

3. צוטשעפּען ערד שטעקן: Screw the ABS ground stake onto the bottom of the light fixture pole until it is firmly attached.
4. שטעלן די ליכט: Insert the assembled light fixture with the ground stake into the desired location in the ground. Ensure it is stable and upright.
5. Connect to Low Voltagסיסטעם:
   • פאַרזיכערן די נידעריק וואָלtage transformer (not included) is disconnected from power.
   • Connect the pre-connected lead wires from the pathway light to the main low voltage cable using appropriate landscape lighting connectors (not included). Ensure a secure and waterproof connection.
   • Repeat for all pathway lights you are installing.

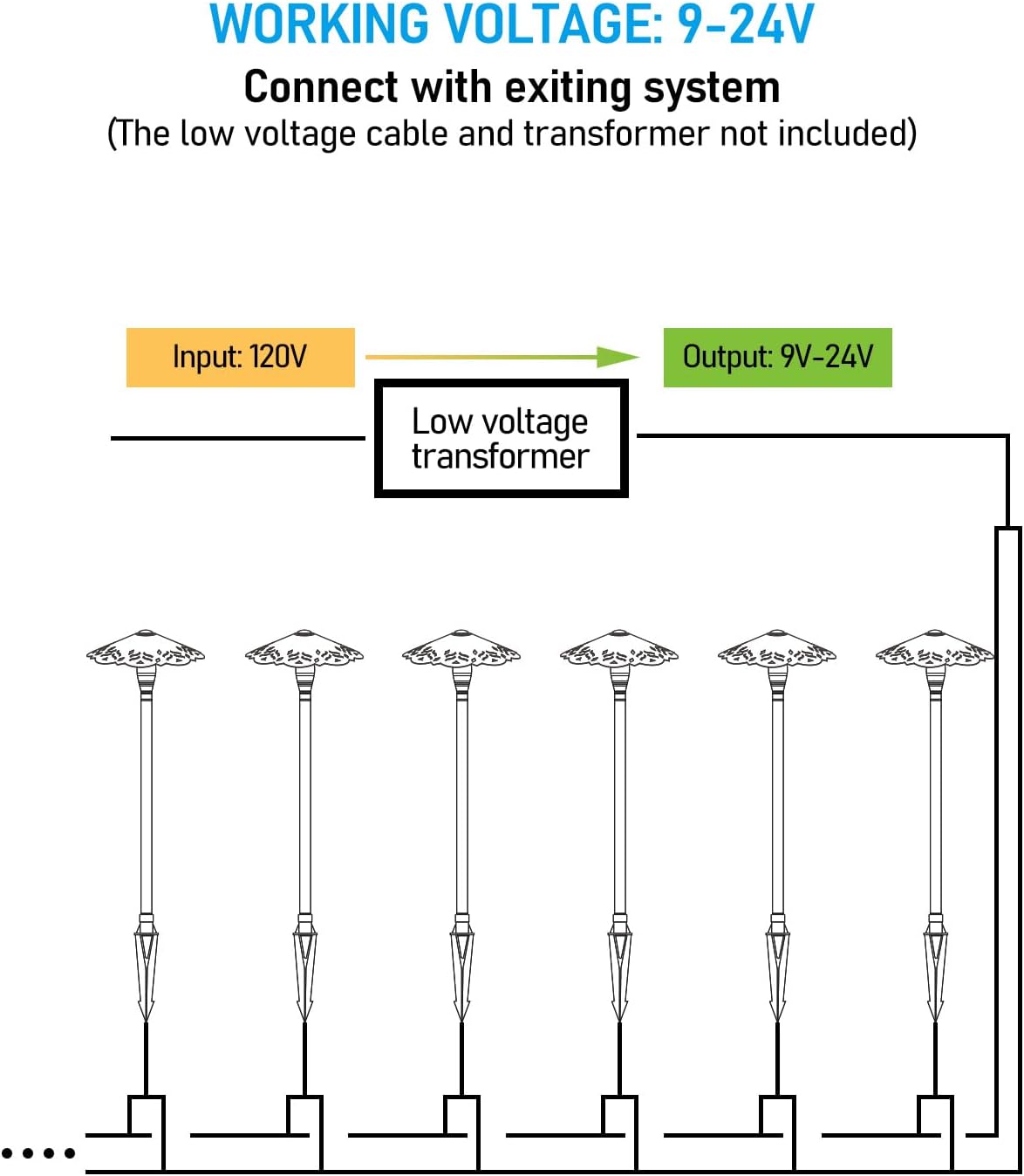

   Image 4.2: Wiring diagram for connecting multiple pathway lights to a low voltage transformer (9-24V output).
6. פּרובירן די סיסטעם: Once all lights are connected, plug in your low voltage transformer to a power outlet to test the system.

5. אַפּערייטינג ינסטרוקטיאָנס

Operation of the LEONLITE pathway lights is straightforward once installed:

• פאַרזיכערן די נידעריק וואָלtage transformer is connected to a power source.
• If your transformer has a timer or photocell, set it according to your desired operating schedule.
• The lights will illuminate when power is supplied to the low voltage קרייַז.

6. וישאַלט

Regular maintenance will help ensure the longevity and optimal performance of your pathway lights:

• רייניקונג: Periodically wipe down the light fixtures with a soft, damp cloth to remove dirt, dust, and debris. Avoid abrasive cleaners or solvents that could damage the finish.
• באַלב פאַרבייַט: If a bulb burns out, disconnect power to the system before replacing it. Unscrew the top cap, carefully remove the old G4 bulb, and insert a new compatible G4 LED or halogen bulb. Ensure the new bulb is securely seated and the cap is tightened to maintain the IP65 rating.
• דורכקוקן די וויירינג: Annually inspect all wiring and connections for any signs of wear, damage, or corrosion. Repair or replace any damaged components immediately.
• Ground Stake Stability: Periodically check that the ground stakes are firmly seated in the ground and the lights are stable. Re-secure if necessary.

7. טראָובלעשאָאָטינג

8. ספּעסאַפאַקיישאַנז

Image 8.1: Dimensional specifications of the LEONLITE pathway light.

Image 8.2: Key technical specifications including voltage, waterproof rating, and operating temperature.

9. וואָראַנטי און שטיצן

LEONLITE products are manufactured with quality and durability in mind. For specific warranty details, please refer to the warranty information provided with your purchase or visit the official LEONLITE webפּלאַץ.

For technical support, troubleshooting assistance, or inquiries regarding replacement parts, please contact LEONLITE customer service. Contact information can typically be found on the product packaging or the official LEONLITE webפּלאַץ.

אָנליין רעסורסן: איר קענט געפֿינען נאָך שטיצע און פּראָדוקט אינפֿאָרמאַציע דורך באַזוכן די LEONLITE Store on Amazon.
