1. הקדמה
The Belkin BoostCharge 10,000mAh Portable Power Bank (Model BPB011) is designed to provide reliable and fast charging for your smartphones, tablets, and other USB-C enabled devices. With its compact design and multiple charging ports, it ensures your devices stay powered throughout your day, whether you're traveling, working, or enjoying leisure activities. This manual provides essential information for the safe and efficient use of your power bank.
2. וואָס איז אין דער קעסטל
- 1 x Belkin BoostCharge 10,000mAh Portable Power Bank
- 1 x 6-inch USB-A to USB-C Cable
3. פּראָדוקט איבערview
The Belkin BoostCharge Power Bank features a sleek design with multiple ports for versatile charging. It includes an LED indicator to show the remaining battery level.
פיגורע 1: פראָנט view of the Belkin BoostCharge 10K Power Bank with its USB-C and dual USB-A ports.
The power bank is equipped with:
- 1x USB-C Port: Functions as both an input for charging the power bank and an output for charging devices (up to 15W).
- 2x USB-A פּאָרטן: Output ports for charging devices (up to 12W each, 15W total shared output).
- LED ינדיקאַטאָר לייץ: Four small LED lights on the side indicate the power bank's remaining charge level.
- מאַכט קנעפּל: A small button on the side to check the battery status or initiate charging.
פיגורע 2: זייַט view of the power bank showing the LED battery indicator lights.
4. אויפשטעלן: אויפלאָדן די פּאַוער באַנק
Before first use, or when the power bank's charge is low, recharge it using the included USB-A to USB-C cable and a compatible USB wall charger (not included).
- Connect the USB-C end of the included cable to the USB-C port on the power bank.
- Connect the USB-A end of the cable to a USB wall charger.
- Plug the wall charger into a power outlet. The LED indicator lights will illuminate to show charging progress. All four lights will be solid when fully charged.
Figure 3: The power bank being recharged using the provided USB-A to USB-C cable.
5. אפערירן: אויפלאָדן אייערע דעווייסעס
The power bank comes pre-charged and ready for immediate use. It can charge up to three devices simultaneously.
- פֿאַרבינדט דעם טשאַרדזשינג קאַבל פֿון אייער דעווייס צו איינעם פֿון די פֿאַראַן USB-A אָדער USB-C אַרויסגאַנג פּאָרץ אויף דער פּאַוער באַנק.
- פאַרבינדן די אנדערע סוף פון די קאַבלע צו דיין מיטל.
- The power bank will automatically begin charging your device. If it does not, press the power button on the side to activate charging.
Figure 4: The power bank charging multiple devices concurrently.
Video: Belkin Brand Overview
ווידעא 1: אן איבערview of the Belkin brand and its commitment to technology solutions.
6. פֿעיִקייטן
- הויך קאַפּאַציטעט: 10,000mAh provides up to 40 hours of additional battery life for your smartphone.
- שנעל טשאַרדזשינג: Delivers up to 15W total shared output for quick charging of compatible devices.
- Air Travel Compliant: Meets TSA airline safety standards for carry-on luggage.
- עקאָ-פרייַנדלעך פּלאַן: Made with post-consumer recycled materials and comes in 100% plastic-free packaging.
Figure 5: Visual representation of the power bank's 10,000mAh capacity providing extended battery life.

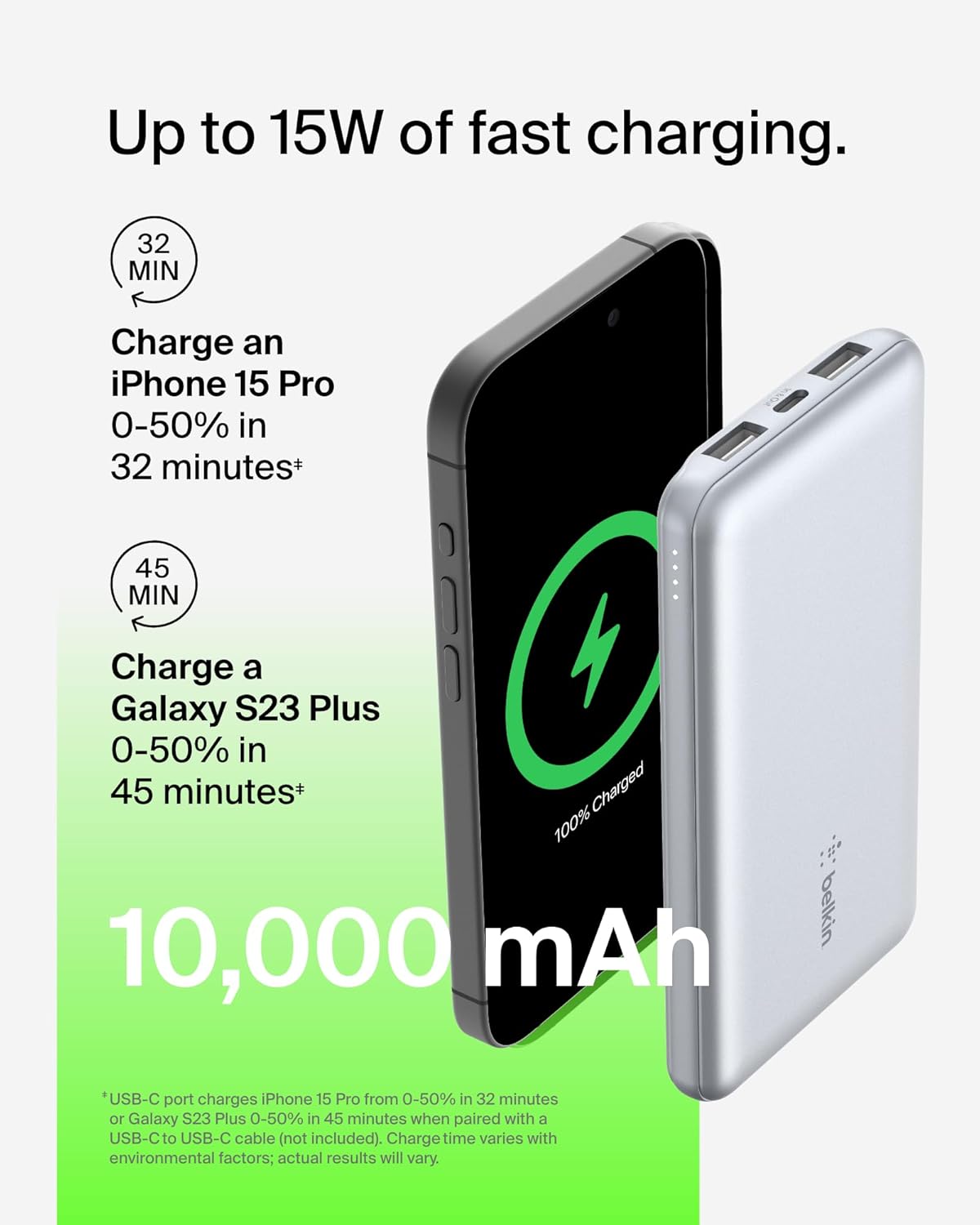

פיגורע 6: עקסamples of fast charging capabilities for various devices.
Figure 7: Illustration highlighting the power bank's compliance with air travel safety standards.
7. ספּעסאַפאַקיישאַנז
| שטריך | דעטאַל |
|---|---|
| מאָדעל נומער | BPB011 |
| קאַפּאַציטעט | 10,000 מאַה |
| וסב-C אַרייַנשרייַב / רעזולטאַט | 15W (5V/3A) max |
| USB-A רעזולטאַט (2 פּאָרץ) | 12W (5V/2.4A) max per port |
| Total Shared Output | 15 וו (5 וו/3 אַ) |
| דימענסיעס (L X W X H) | 5.19 X 2.69 X 0.55 אינטשעס (68.3 מם X 131.8 מם X 15.75 מם) |
| פּונקט וואָג | 7.4 אונסעס |
| באַטערי טיפּ | ליטהיום יאָן |
| מאַטעריאַלס | Eco-friendly Post-Consumer-Recycled Materials |
8. זיכערקייַט אינפֿאָרמאַציע
Your Belkin BoostCharge Power Bank is designed with safety in mind, incorporating rigorous testing and built-in protection features.
- אָווערטשאַרדזש שוץ: Prevents damage to your devices and the power bank from excessive charging.
- טערמאַל קאָנטראָל: Manages internal temperature to ensure safe operation.
- Avoid exposing the power bank to extreme temperatures, direct sunlight, or liquids.
- נישט צענעמען, צוקוועטשן אדער דורכשטעכן די פּאַוער באַנק.
- האַלטן אויס פון דערגרייכן פון קינדער.
Figure 8: Advanced safety testing ensures the power bank's reliability and protection features.
9. וישאַלט
- רייניקט די פּאַוער באַנק מיט אַ ווייכן, טרוקענעם שטאָף. ניצט נישט קיין שאַרפע כעמיקאַלן אָדער אַברייסיוו מאַטעריאַלן.
- סטאָר די מאַכט באַנק אין אַ קיל, טרוקן אָרט ווען ניט אין נוצן.
- For optimal battery life, fully charge the power bank at least once every three months.
10. טראָובלעשאָאָטינג
- מיטל ניט טשאַרדזשינג: Ensure the power bank is charged. Press the power button to activate. Check that cables are securely connected to both the power bank and your device. Try a different cable or port.
- פּאַוער באַנק לאָדט זיך נישט אויף: Ensure the charging cable is securely connected to the power bank and a working wall adapter/outlet. Try a different cable or wall adapter.
- פּאַמעלעך טשאַרדזשינג: Ensure your device and cable support fast charging. Some devices may charge slower if multiple devices are connected simultaneously.
11. וואָראַנטי און שטיצן
The Belkin BoostCharge 10,000mAh Portable Power Bank comes with a 2-year warranty. Additionally, it includes a $2,500 Connected Equipment Warranty (CEW), providing peace of mind for your connected devices.
Figure 9: Details on Belkin's Connected Equipment Coverage and warranty.
For detailed terms and conditions, or to register your product, please visit the official Belkin webפּלאַץ: www.belkin.com
