מאַרס גיימינג MC-iPRO פּראָפעסיאָנעל ATX פּיסי קעסטל באַניצער מאַנואַל

1. הקדמה

The Mars Gaming MC-iPRO is a professional semi-tower ATX PC case designed for optimal performance and aesthetics. It features a robust structure, efficient cooling capabilities, and a clear tempered glass side panel to showcase your components. This manual provides essential information for the proper installation, operation, and maintenance of your MC-iPRO PC case.

שליסל פֿעיִקייטן אַרייַננעמען:

• טעמפּערד גלאז זייט פּאַנעל: אָפערט אַ קלאָרע view פון אינערלעכע קאמפאנענטן.
• Three-Dimensional Mesh Front Grille: Designed for superior airflow and a distinctive appearance.
• Optimized Internal Capacity: Supports ATX, MicroATX, and Mini-ITX motherboards, with ample space for storage drives and expansion cards.
• אַוואַנסירטע קאָאָלינג שטיצע: Accommodates liquid cooling systems and multiple fans for efficient thermal management.
• Total Connectivity: Conveniently located front panel ports for easy access.

Figure 1.1: Mars Gaming MC-iPRO PC Case, showcasing its overall design with the mesh front and tempered glass side panel.

2. קאָמפּאָנענט איבערview

Familiarize yourself with the main components and features of your MC-iPRO case.

Figure 2.1: The tempered glass side window provides a clear view of the internal components, allowing for aesthetic display of your build.

Figure 2.2: The three-dimensional front mesh grille is designed to maximize airflow into the case, contributing to efficient cooling.

Figure 2.3: An ultra-quiet 120mm FDB (Fluid Dynamic Bearing) fan is included, typically pre-installed at the rear for exhaust, ensuring quiet operation.

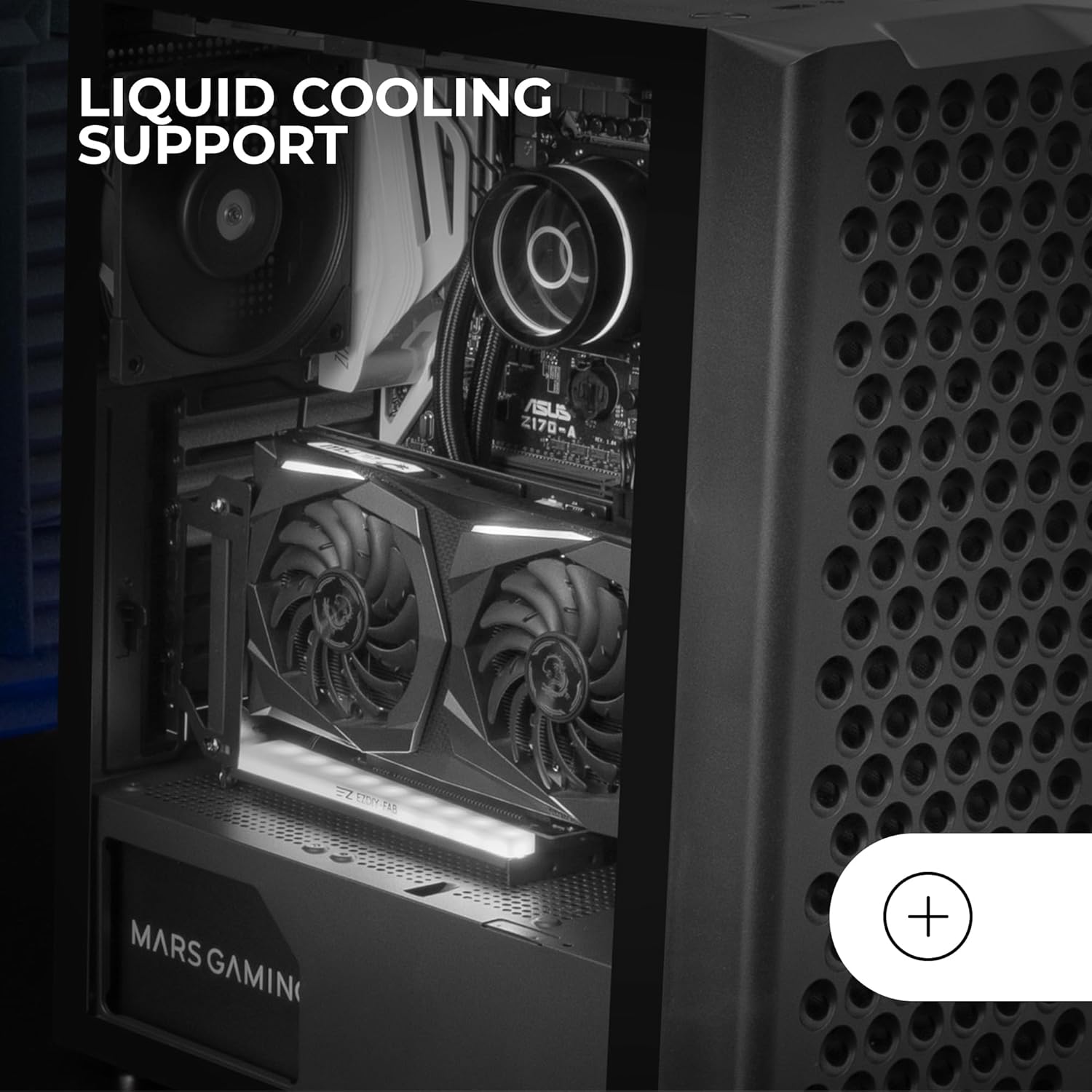

Figure 2.4: The case provides ample space and mounting points for various liquid cooling solutions, including radiators at the top, front, and rear.

3. סעטאַפּ און ייַנמאָנטירונג

This section guides you through the process of installing your PC components into the Mars Gaming MC-iPRO case.

3.1 צוגרייטן דעם פאַל

1. שטעלט דעם קעסטל אויף א סטאַבילער, גלאַטער ייבערפלאַך.
2. Carefully remove the tempered glass side panel by unscrewing the thumb screws. Set it aside in a safe place to prevent damage.
3. Remove the rear side panel to access the cable management area.

3.2 מאָטהערבאָאַרד ינסטאַללאַטיאָן

The MC-iPRO supports ATX, MicroATX, and Mini-ITX motherboards.

1. Install the I/O shield into the designated opening at the rear of the case.
2. Align your motherboard with the standoffs inside the case. Ensure all standoffs match the screw holes on your motherboard.
3. באַזײַטיקט דאָס מאַדערבאָרד מיט די פּאַסיקע שרויפֿן.

3.3 סטאָרידזש דרייוו אינסטאַלאַציע

The case offers capacity for 2 x 3.5" HDDs and up to 4 x 2.5" SSDs.

• 3.5" האַרט דיסקס: Locate the drive cage, typically near the power supply shroud. Slide the HDDs into the bays and secure them with screws or tool-less mechanisms if available.
• 2.5" SSDs: Mount SSDs to the designated trays or mounting points, often found behind the motherboard tray or on the power supply shroud. Secure with screws.

3.4 אינסטאַלאַציע פון ​​מאַכט צושטעל

1. Position your ATX power supply unit (PSU) in the dedicated compartment at the bottom rear of the case.
2. באַפֿעסטיקן די PSU מיט שרויפֿן פֿון דער הינטערשטער זײַט פֿון דער קעיס.

3.5 Expansion Card (GPU, etc.) Installation

The case provides 7 expansion slots.

1. Remove the necessary slot covers from the rear of the case.
2. Insert your expansion card (e.g., graphics card) into the appropriate PCIe slot on your motherboard.
3. Secure the card with screws.

3.6 קיל סיסטעם אינסטאַלאַציע

The MC-iPRO supports various cooling configurations:

• פאַנס: Up to 8 x 120mm fans can be installed. Refer to Figure 3.1 for fan placement options.
• פליסיק קאָאָלינג: Radiators can be mounted at the top (up to 240mm/120mm), front (up to 240mm/120mm), and rear (120mm).

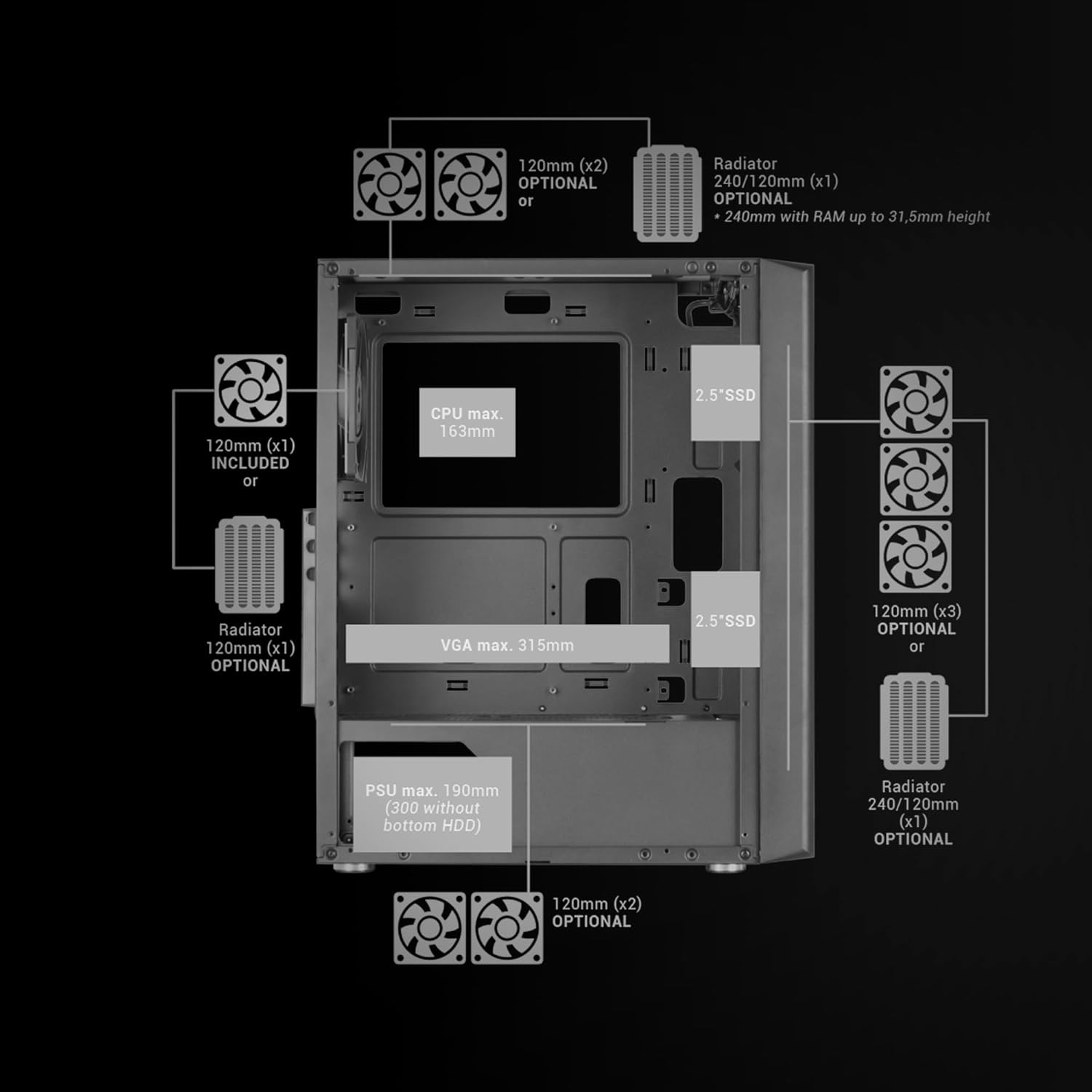

Figure 3.1: Internal layout diagram illustrating component clearances and optional fan/radiator placements. CPU cooler height max 163mm, VGA length max 315mm, PSU length max 190mm (300mm without bottom HDD).

3.7 קאַבלע מאַנאַגעמענט

ניצט די קאַבל רוטינג אויסשניטן און בינדפּונקטן הינטערן מאַדערבאָרד טאַץ צו אָרגאַניזירן קאַבלען. דאָס פֿאַרבעסערט לופֿטפֿלוס און עסטעטיק.

3.8 פראָנט פּאַנעל קאַנעקשאַנז

Connect the front panel cables (USB 3.0, USB 2.0, HD Audio, Power, Reset, LED indicators) to the corresponding headers on your motherboard. The top panel features one USB 3.0 port, two USB 2.0 ports, and HD audio/microphone inputs.

4. אַפּערייטינג ינסטרוקטיאָנס

Once all components are installed and secured, and all cables are connected:

1. Reattach the tempered glass side panel and the rear side panel.
2. פֿאַרבינדט אײַער מאָניטאָר, קלאַוויאַטור, מויז און מאַכט קאַבל צום פּיסי.
3. Press the power button on the top panel of the case to start your system.

Ensure the case is placed in a location with adequate ventilation to allow for proper airflow through the front mesh grille and exhaust points.

5. וישאַלט

רעגולערע אויפהאלטונג העלפט זיכער מאכן די בעסטע פאָרשטעלונג און לאַנגלעבעדיקייט פון אייערע פּיסי קאָמפּאָנענטן.

• שטויב רייניקונג: Periodically clean the dust filters (if present) and the interior of the case using compressed air or a soft brush. Pay special attention to the front mesh grille and fan areas.
• עקסטעריאָר רייניקונג: ווישן די יקסטיריער סערפאַסיז מיט אַ ווייך, דamp cloth. Avoid abrasive cleaners. For the tempered glass, use a glass cleaner and a microfiber cloth.
• פאָכער דורכקוק: Check fans for dust buildup and ensure they are spinning freely.

6. טראָובלעשאָאָטינג

If you encounter issues during or after installation, consider the following common troubleshooting steps:

• סיסטעם גייט נישט אן:
  • Ensure the power supply is switched on and properly connected to the wall outlet.
  • Verify all power cables (24-pin ATX, CPU, GPU, SATA) are securely connected to the motherboard and components.
  • קאָנטראָלירט די פֿאַרבינדונג פֿון דער פֿראָנט־פּאַנעל אויף דער מאַכט־קנעפּל צום מאַדערבאָרד.
• קיין אַרויסווייַז רעזולטאַט:
  • Confirm the monitor is connected to the graphics card (not the motherboard's integrated graphics, unless intended).
  • לייג צוריק די גראַפיקס קאַרטל אין איר PCIe סלאָט.
  • Check all power connections to the graphics card.
• אָוווערכיטינג ישוז:
  • Ensure all case fans are installed correctly and spinning.
  • Verify proper airflow direction (intake from front/bottom, exhaust from rear/top).
  • Clean any dust buildup on fans, radiators, and filters.
  • Ensure CPU cooler and GPU coolers are properly seated and functioning.
• קאָמפּאָנענט פּאַסיק פּראָבלעמען:
  • Refer to Figure 3.1 for maximum component dimensions (CPU cooler height, VGA length, PSU length).
  • Ensure cables are managed efficiently to avoid obstructing component installation or airflow.

7. ספּעסאַפאַקיישאַנז

8. וואָראַנטי און שטיצן

Mars Gaming products are designed for reliability and performance. For warranty information, please refer to the specific warranty terms provided at the time of purchase or visit the official Mars Gaming webפּלאַץ.

If you require technical assistance or have questions regarding your MC-iPRO PC case, please contact Mars Gaming customer support through their official channels. When contacting support, please have your product model (MCIPRO) and purchase details ready.

For the latest drivers, software, and product information, please visit the official Mars Gaming webפּלאַץ.
