Garvee Outdoor Handrails (1-3 Steps) - Instruction Manual

1. הקדמה און איבערview

Thank you for choosing Garvee Outdoor Handrails. This manual provides essential information for the safe and correct installation, adjustment, and maintenance of your new handrail system. Designed for 1 to 3 steps, this adjustable handrail offers enhanced safety and support for various outdoor and indoor environments.

Key features include an adjustable design to fit different step configurations, a comfortable circular grip, a one-piece handrail end to prevent water ingress and rusting, and a smooth powder-coated surface for easy cleaning.

2. זיכערקייַט אינפֿאָרמאַציע

• שטענדיק לייענען און פֿאַרשטיין אַלע אינסטרוקציעס איידער אינסטאַלירן און נוצן.
• Ensure all components are present and undamaged before beginning assembly. Do not use if any parts are missing or defective.
• Proper installation is crucial for the stability and safety of the handrail. If you are unsure about any step, consult a qualified professional.
• טראָגט פּאַסיקע זיכערהייט-עקוויפּמענט, ווי הענטשקעס און אויג-שוץ, בעת דער אינסטאַלאַציע.
• Regularly inspect the handrail for any signs of wear, damage, or loose connections. Tighten fasteners as needed.
• This handrail is designed to provide support. Do not use it for climbing or as a ladder.

3. פּעקל אינהאַלט

פֿאָרזיכטיק אויספּאַקן אַלע קאָמפּאָנענטן און באַשטעטיקן אַז איר האָט באַקומען די פֿאָלגנדיקע זאַכן:

• Upper Post (38.19" Tall) - 2 pieces
• Lower Post (38.19" Tall) - 2 pieces
• Top Rail (35.43" Length) - 1 piece
• Middle Rail (22.44" Length) - 1 piece
• Bore Bit - 1 piece
• Expansion Hexagon Screws (for concrete) - 8 pieces
• Expansion Screws (for wood) - 8 pieces
• Decorative Cover - 4 pieces
• M8 Phillips Screw - 2 pieces
• M6 Socket Head Cap Screw - 2 pieces
• Column Mounting Feet - 2 pieces
• Panel Mounting Feet - 2 pieces
• Mounting Foot Screws - 16 pieces

4. Setup (Installation Instructions)

This handrail can be installed on concrete, wood, or brick surfaces. Ensure the mounting surface is solid and capable of supporting the handrail's weight and intended use.

1. Assemble the Handrail Structure: Connect the upper and lower posts, top rail, and middle rail according to the diagram. Ensure all screws (M8 Phillips and M6 Socket Head Cap) are securely tightened. The new joint design enhances stability.
2. Position the Handrail: Place the assembled handrail in the desired location on your steps. Adjust the middle rail to ensure both posts are vertical to the ground. The handrail is suitable for 1 to 3 steps.
3. מאַרקירן דרילינג פּאָזיציעס: Using a pencil, mark the locations for drilling through the holes in the column mounting feet. Ensure the marks are precise for accurate installation.
4. בויער האָלעס: Use the provided bore bit and an impact drill to drill holes at the marked positions. The type of expansion screws used will depend on your surface (concrete or wood). Drill to the appropriate depth for the chosen screws.
5. זיכערן די האַנטרייל: Insert the appropriate expansion screws into the drilled holes. Place the column mounting feet over the holes and secure them tightly with the mounting foot screws. Ensure all connections are firm and stable.
6. ינסטאַלירן דעקאָראַטיווע קאָווערס: Once the handrail is securely mounted, place the decorative covers over the mounting feet to conceal the fasteners and provide a finished look.

5. Operating (Usage and Adjustment)

The Garvee Outdoor Handrail is designed for versatility, accommodating 1 to 3 steps. The adjustable middle rail allows you to customize the angle to ensure the posts remain vertical, providing optimal stability and support for various stair configurations.

• Adjusting for Steps: Loosen the fasteners connecting the middle rail to the posts. Position the handrail on your steps and adjust the middle rail until both vertical posts are plumb (perfectly vertical). Once aligned, securely tighten all fasteners.
• זיכער נוצן: Always use the handrail for support when ascending or descending steps. Ensure a firm grip on the circular top rail.

6. וישאַלט

Proper maintenance will ensure the longevity and continued safety of your Garvee handrail.

• רייניקונג: The handrail features a smooth powder-coated surface. Clean it regularly with water and a soft cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
• דורכקוק: Periodically check all screws and connections to ensure they remain tight. Loose fasteners can compromise the handrail's stability.

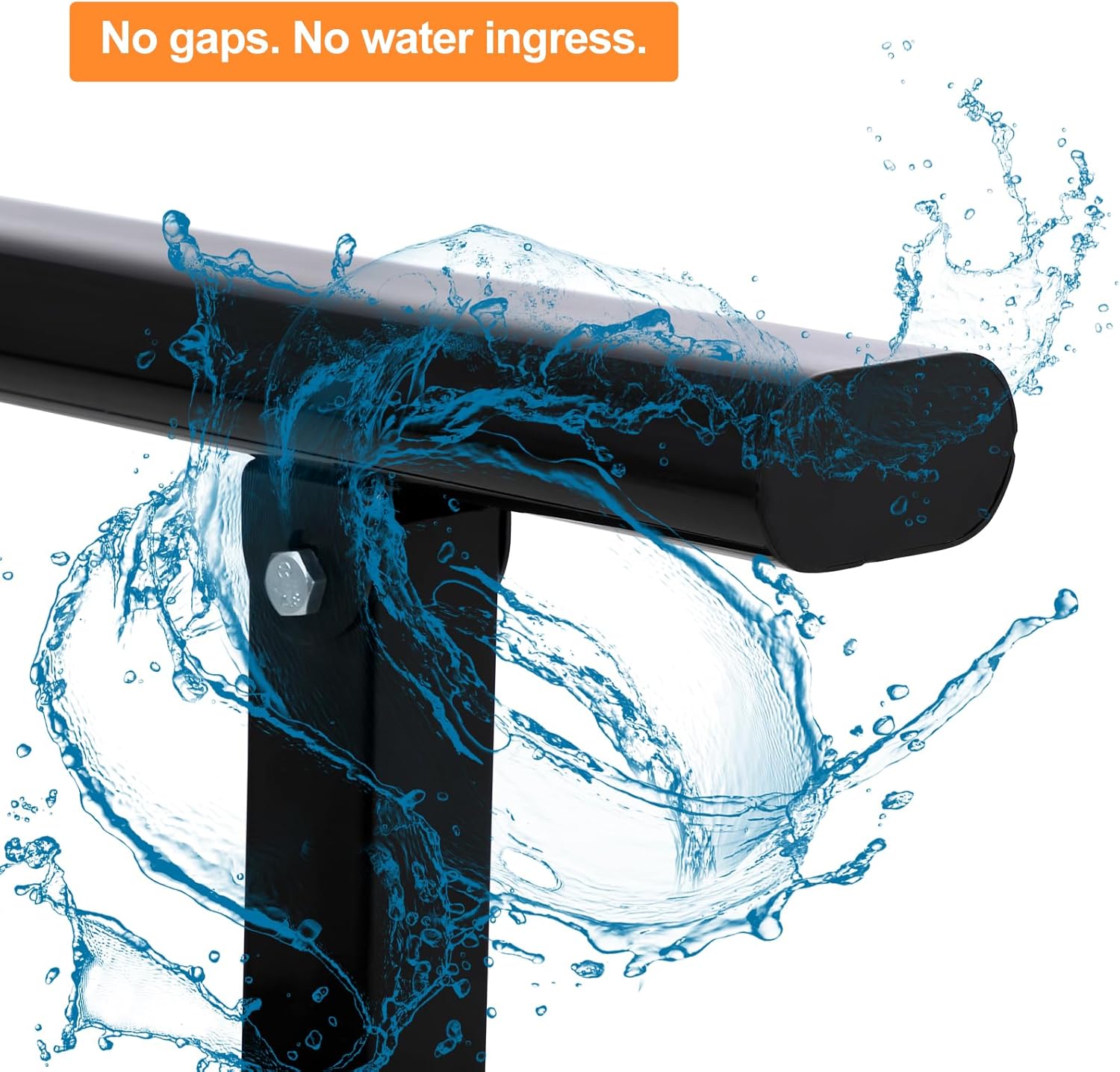

• פאַרהיטונג פון זשאַווער: The one-piece design of the handrail end prevents water from entering the interior, which helps to avoid rusting. However, if the powder coating is scratched or damaged, touch up the area to prevent rust formation.

7. טראָובלעשאָאָטינג

• האַנטרייל פילט זיך וואָקלדיק נאָך דער אינסטאַלאַציע:
  - Ensure all mounting screws are fully tightened. Over time, screws can loosen and may need re-tightening.
  - Verify that the mounting surface is solid and provides adequate support. If the surface is compromised, the handrail may not be stable.
• Difficulty adjusting the angle for steps:
  - Loosen the middle rail fasteners sufficiently to allow free movement. Ensure the posts are vertical before re-tightening.
• פעלנדיק טיילן:
  - Carefully check all packaging materials. If parts are genuinely missing, contact Garvee customer support immediately for assistance.

8. ספּעסאַפאַקיישאַנז

9. וואָראַנטי און שטיצן

For warranty information, product support, or to inquire about replacement parts, please contact Garvee customer service. Refer to your purchase documentation or the Garvee brand webוועבזייטל פֿאַר ספּעציפֿישע קאָנטאַקט דעטאַלן.

When contacting support, please have your product model number (Outdoor Handrails 35"x 38") and ASIN (B0CSRLT64S) available.
