KMINA Patient Transfer Chair Model 2211 User Manual

1. הקדמה

The KMINA Patient Transfer Chair Model 2211 is designed to assist individuals with reduced mobility in transfers and daily hygiene tasks. It functions as a patient transfer aid, a portable commode, and facilitates access to standard toilets. This manual provides essential information for the safe assembly, operation, and maintenance of your transfer chair.

פיגורע 1: איבערview of the KMINA Patient Transfer Chair.

שליסל פֿעיִקייטן:

• Facilitates patient transfer by a third party.
• Adjustable seat height (up to 23 inches).
• 180-degree seat opening for easy patient positioning.
• Integrated commode bucket for use as a portable toilet.
• Secure locking system with two safety belts.
• Locking wheels for stability during transfers.

Important Note: This chair is not suitable for showering.

2. זיכערקייַט אינפֿאָרמאַציע

Read all instructions carefully before using the KMINA Patient Transfer Chair. Failure to follow safety guidelines may result in injury or damage to the product.

אַלגעמיינע זיכערהייט וואָרנינגז:

• מאַקסימום באַניצער וואָג: Do not exceed a maximum user weight of 220 lbs (100 kg).
• טיר קלירענס: Ensure doorways are wider than 23.5 inches (60 cm) for safe passage.
• Not for Shower Use: This chair is not designed for use in the shower.
• השגחה: Always ensure a caregiver is present during patient transfers and use.
• בראַקעס: Always engage wheel brakes before transferring a patient or when the chair is stationary.
• זיכערהייט גאַרטלען: Always secure the patient with both the front and rear safety belts during transfers and when seated.
• סטאַביל ייבערפלאַך: Use the chair on a flat, stable, and dry surface.

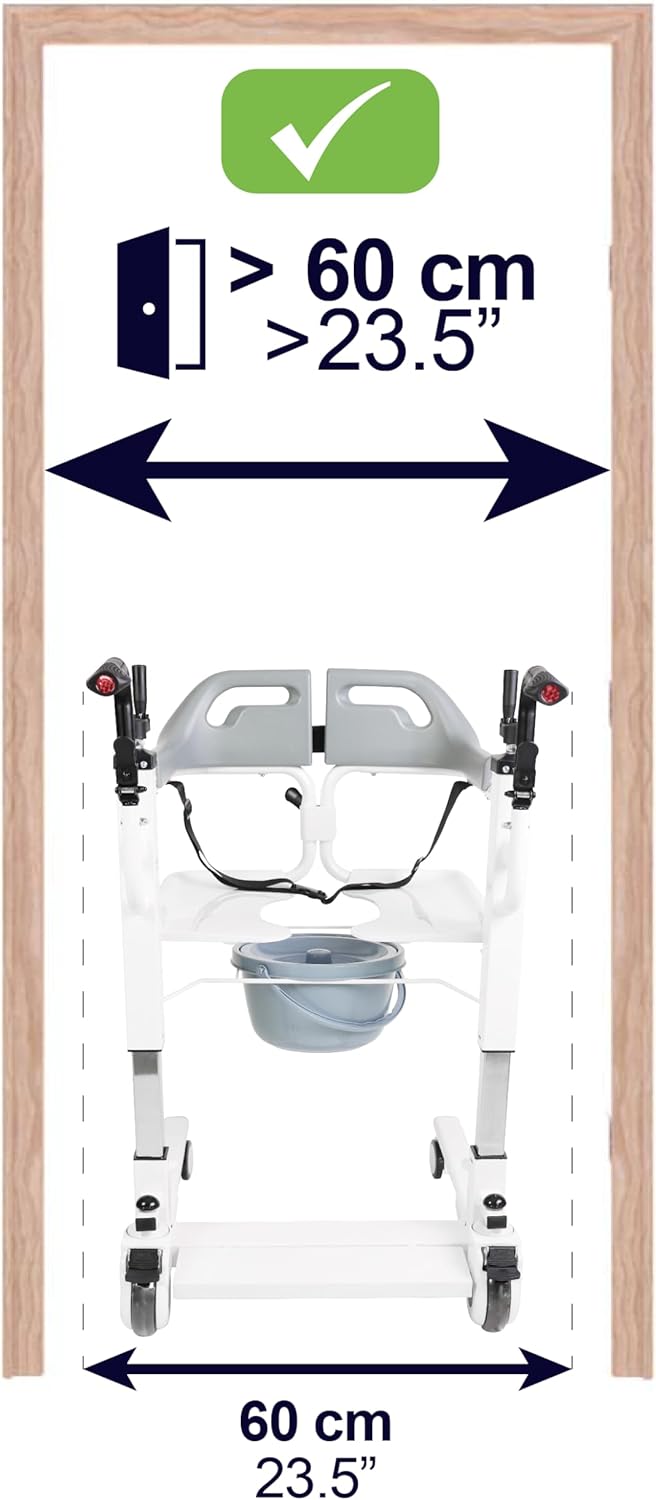

Figure 2: Ensure doorways are wider than 23.5 inches (60 cm) for safe passage.

Figure 3: Detail of the secure locking system with safety belts and height adjustment handle.

Figure 4: Engage the wheel brakes for stability.

3. סעטאַפּ

3.1 אויספּאַקן און ערשטע דורכקוק

1. קערפאַלי באַזייַטיקן אַלע קאַמפּאָונאַנץ פון די פּאַקקאַגינג.
2. Inspect all parts for any signs of damage. Do not use the chair if any components are damaged.
3. Ensure all parts listed in the packing list (refer to product packaging) are present.

3.2 הייך אַדזשאַסטמאַנט

The chair's seat height can be adjusted to match the height of a bed or other transfer surface, up to 23 inches (58 cm).

1. Locate the height adjustment handles on the front posts of the chair (refer to Figure 3).
2. Rotate the handles to raise or lower the seat to the desired height.
3. Ensure both sides are adjusted to the same height and the handles are securely tightened before use.

Figure 5: Adjust the chair height to align with the transfer surface.

4. אַפּערייטינג ינסטרוקטיאָנס

4.1 פּאַציענט טראַנספער

The 180-degree seat opening allows for easy positioning of the chair around a patient.

1. Position the chair next to the patient's bed or seating area.
2. Engage all wheel brakes.
3. Open the seat sections by releasing the locking mechanism (refer to Figure 6).
4. Carefully maneuver the open chair around the patient.
5. Close the seat sections securely, ensuring the locking mechanism is engaged.
6. Assist the patient to sit comfortably and securely in the chair.
7. Fasten both the front and rear safety belts around the patient (refer to Figure 3).
8. Disengage the wheel brakes to move the chair.

Figure 6: The seat opens 180 degrees for easy patient positioning.

4.2 Commode Function

The chair includes a removable commode bucket for use as a portable toilet.

1. Ensure the patient is securely seated and belted.
2. Engage all wheel brakes.
3. Position the commode bucket beneath the seat opening.
4. After use, remove the bucket for emptying and cleaning (refer to Figure 8).

Figure 7: Removing the commode bucket for emptying.

4.3 Using with a Toilet

The chair can be positioned over a standard toilet to facilitate access.

1. Adjust the chair's height to clear the toilet bowl.
2. Carefully roll the chair over the toilet.
3. Engage all wheel brakes to secure the chair in place.
4. Ensure the patient is securely seated and belted.

Figure 8: The chair can be positioned over a standard toilet.

4.4 באַוועגן דעם שטול

The chair features directional wheels and a braking system for safe movement.

1. Ensure the patient is securely seated and belted.
2. Disengage all wheel brakes.
3. Push the chair smoothly and steadily using the handles.
4. Engage wheel brakes immediately when the chair reaches its destination or when stationary.

5. וישאַלט

5.1 רייניקונג

• ריין די שטול קעסיידער מיט אַ מילד וואַשפּולווער און וואַסער.
• Wipe all surfaces dry after cleaning.
• The commode bucket should be emptied and cleaned after each use.
• ניצט נישט קיין שרײַבנדיקע רייניגער אדער סאָלווענטן, ווײַל די קענען שאַטן די מאַטעריאַלן.

5.2 דורכקוק

• Periodically check all bolts, screws, and fasteners to ensure they are tight.
• Inspect the wheels and brakes for proper function.
• Check safety belts for wear and tear. Replace if damaged.
• Ensure the seat opening and closing mechanism operates smoothly and locks securely.

6. טראָובלעשאָאָטינג

7. ספּעסאַפאַקיישאַנז

8. וואָראַנטי און שטיצן

For warranty information, technical support, or to inquire about replacement parts, please contact KMINA customer service. Refer to the product packaging or the KMINA official webפּלאַץ פֿאַר קאָנטאַקט דעטאַילס.

KMINA is a brand created by a team of engineers and health professionals, with the aim of improving people's mobility and daily living.
