קאָלינק יוניטי פּיק ARGB מידי טאַוער שאָוקייס באַניצער מאַנואַל

1. הקדמה

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Kolink Unity Peak ARGB Midi Tower Showcase. Please read this manual thoroughly before beginning assembly to ensure correct setup and to prevent damage to the product or other components. Keep this manual for future reference.

The Kolink Unity Peak is designed to accommodate high-performance PC components, featuring extensive mesh paneling for optimal airflow and tempered glass panels to showcase your build. It supports ATX motherboards and offers versatile cooling options.

2. זיכערקייַט אינפֿאָרמאַציע

Observe the following safety guidelines to prevent injury and damage to your system:

• שעפּן מיט זאָרג: The tempered glass panels are fragile. Avoid impacts and place the case on a stable, flat surface during assembly.
• Sharp Edges: Be aware of potential sharp edges inside the case. Wear protective gloves if necessary.
• עלעקטריקאַל זיכערקייַט: Ensure all power is disconnected from components before installation or removal.
• סטאַטיק עלעקטרע: Discharge static electricity by touching a grounded metal object before handling internal components.
• ווענטילאַטיאָן: Do not obstruct the ventilation openings of the case to ensure proper airflow and prevent overheating.

3. פּעקל אינהאַלט

ביטע באַשטעטיקן אַז אַלע זאכן זענען פאַראַן אין דעם פּעקל:

• Kolink Unity Peak ARGB Midi Tower Showcase
• אַקסעסאָרי קעסטל (מיט שרויפן, סטאַנדאָפס, קאַבל טייז, אאז"וו)
• באַניצער מאַנואַל (דעם דאָקומענט)
• ARGB Controller (may be pre-installed or included in accessory box)

4. ספּעסאַפאַקיישאַנז

5. סעטאַפּ און ייַנמאָנטירונג

5.1. צוגרייטן דעם פאַל

1. אויספּאַקן דעם קעסטל: Carefully remove the Kolink Unity Peak from its packaging. Inspect for any shipping damage.
2. אַראָפּנעמען זייַט פּאַנאַלז: The case features tempered glass side panels. Locate the thumbscrews on the rear of the case securing these panels. Unscrew them and carefully slide the glass panels off. Place them on a soft, flat surface to prevent scratches or breakage.

בילד 5.1: פאָרנט-לינקס view of the Kolink Unity Peak ARGB Midi Tower Showcase, illustrating the tempered glass side and front panels.

5.2. מאָטהערבאָאַרד ינסטאַללאַטיאָן

1. ינסטאַלירן סטאַנדאָפס: Ensure the correct standoffs are installed for your motherboard form factor (ATX, Micro-ATX, Mini-ITX). The Unity Peak typically has ATX standoffs pre-installed.
2. אינסטאַלירן I/O שילד: If your motherboard came with a separate I/O shield, install it into the rear opening of the case before mounting the motherboard.
3. מאָונט מוטערבאָרד: Carefully align your motherboard with the standoffs and the I/O shield. Gently lower it into place. Secure the motherboard using the provided screws. Do not overtighten.

5.3. מאַכט סופּפּלי ינסטאַללאַטיאָן

1. פאזיציע PSU: The power supply unit (PSU) is installed at the bottom rear of the case, within the PSU shroud.
2. זיכערע PSU: Slide the PSU into its designated bay from the rear of the case. Align the screw holes and secure it with the provided screws.

5.4. סטאָרידזש דרייוו אינסטאַלאַציע

The Kolink Unity Peak supports both 3.5" HDDs and 2.5" SSDs.

• 3.5" האַרט דיסקס: Locate the drive cage beneath the PSU shroud. Slide the 3.5" drives into the trays and secure them with screws.
• 2.5" SSDs: SSDs can be mounted on dedicated brackets behind the motherboard tray or on the 3.5" drive trays. Secure them with screws.

5.5. גראַפיקס קאַרטל און יקספּאַנשאַן קאַרדס

1. אַראָפּנעמען סלאָט דעקל: Remove the necessary PCIe slot covers from the rear of the case corresponding to your expansion card(s).
2. אינסטאַלירן קאַרטל: Align the card with the PCIe slot on the motherboard and press down firmly until it clicks into place. Secure the card to the case with screws.

5.6. אינסטאַלאַציע פון ​​ווענטילאַטאָר און ראַדיאַטאָר

The Unity Peak offers extensive cooling options:

• פראָנט: Supports up to three 120mm or 140mm fans, or a radiator up to 360mm.
• אויבן: Supports up to three 120mm or two 140mm fans, or a radiator up to 360mm.
• הינטן: Supports one 120mm fan or a 120mm radiator.

Install fans or radiators by aligning them with the mounting holes and securing them with the appropriate screws. Ensure proper airflow direction for optimal cooling.

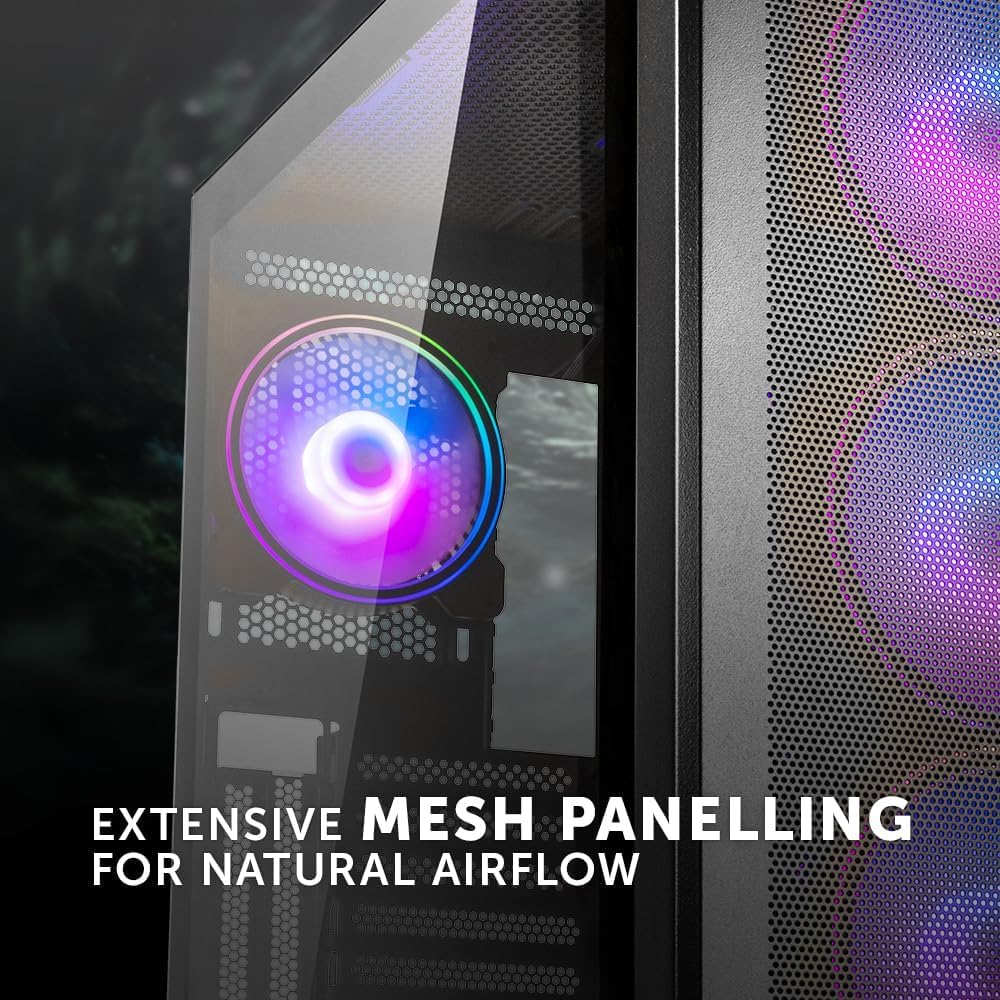

בילד 5.2: פון אויבן אַראָפּ view highlighting the extensive mesh paneling and mounting options for fans and radiators on the top and front of the case.

Image 5.3: Detail of the extensive mesh paneling designed for natural airflow, visible on the front and top of the case.

5.7. קאַבלע מאַנאַגעמענט

The case provides a dedicated 24mm space behind the motherboard tray for cable routing. Utilize the cutouts and cable tie points to organize and secure cables. This improves airflow and aesthetics.

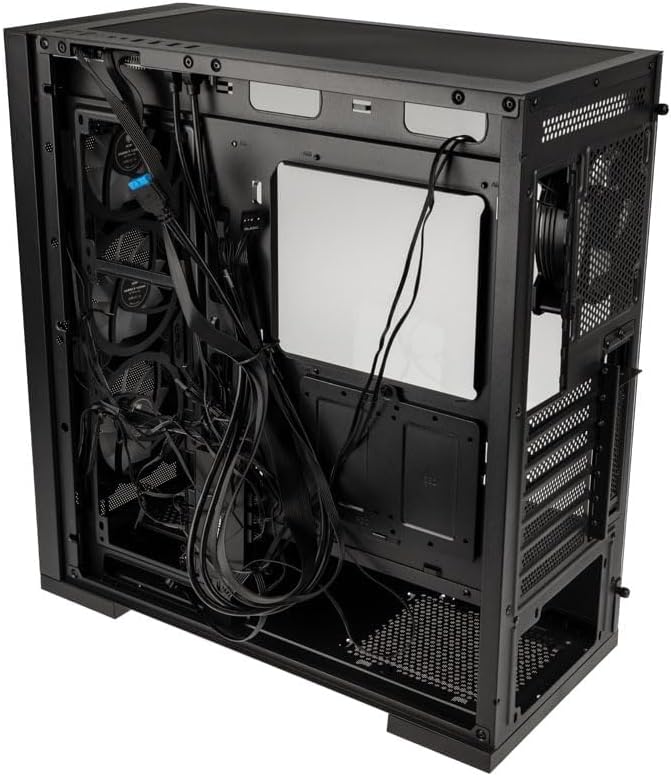

בילד 5.4: אינעווייניק view of the case, illustrating the dedicated space behind the motherboard tray for efficient cable routing.

Image 5.5: Rear perspective of the case, displaying the area behind the motherboard tray where cables can be neatly organized and secured.

5.8. Connecting Front I/O Panel

Connect the cables from the front I/O panel to the corresponding headers on your motherboard. These include:

• USB 3.0 (2x)
• USB 2.0 (2x)
• HD Audio (for microphone and headphone jacks)
• Power Switch, Reset Switch, Power LED, HDD LED
• ARGB Control (if applicable, connect to motherboard ARGB header or included controller)

בילד 5.6: דעטאַלירט view of the fully-featured front I/O panel, including USB 3.0, USB 2.0, audio jacks, and control buttons.

6. אַפּערייטינג ינסטרוקטיאָנס

6.1. פּאַוערינג אויף דיין סיסטעם

1. Ensure all components are correctly installed and all cables are securely connected.
2. Connect the power cable to your power supply and a wall outlet.
3. Flip the power switch on the PSU to the 'ON' position.
4. Press the power button on the front I/O panel of your Kolink Unity Peak case to start your system.

6.2. ARGB לייטינג קאנטראל

The Kolink Unity Peak ARGB fans can be controlled via the integrated ARGB controller or by connecting them to a compatible motherboard's ARGB header (3-pin, 5V). If using the integrated controller, use the dedicated ARGB button on the front I/O panel or the included remote control (if applicable) to cycle through lighting modes and colors.

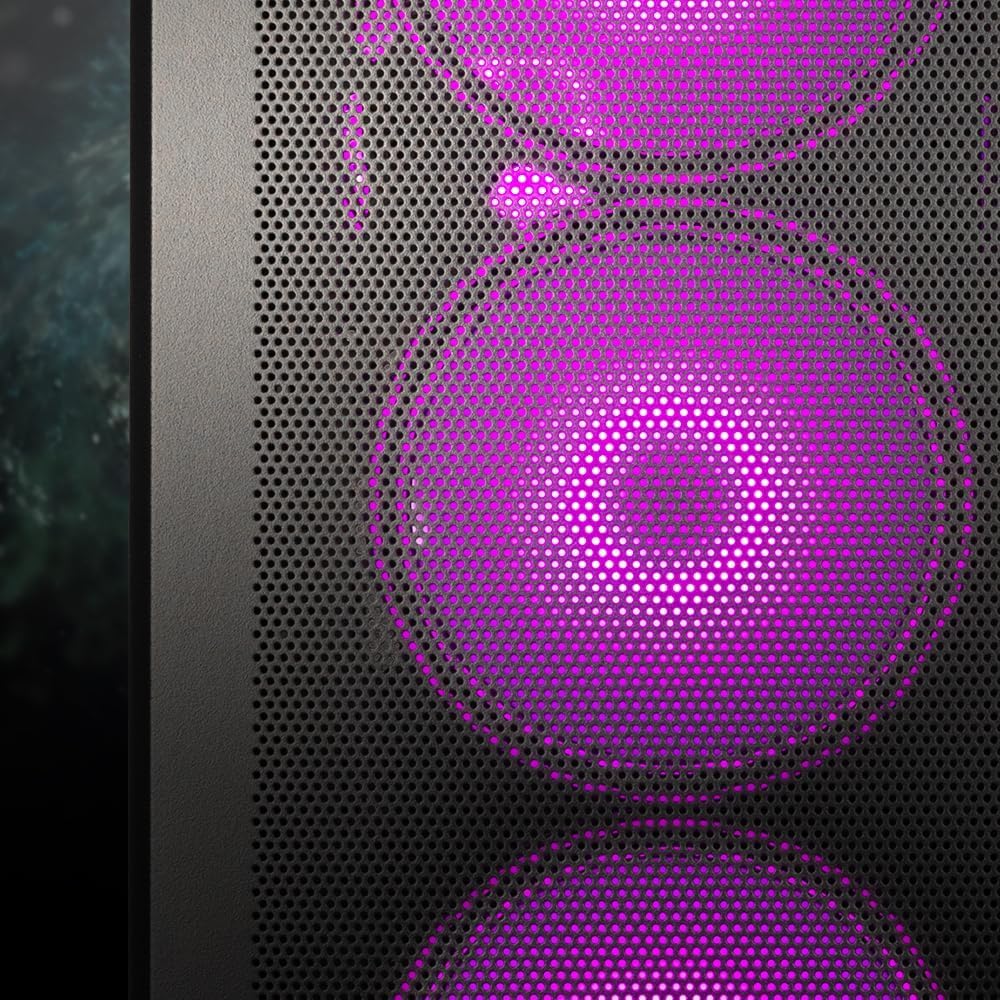

Image 6.1: Detail of the front panel showcasing the vibrant ARGB lighting of the pre-installed fans.

7. וישאַלט

רעגולערע אויפהאלטונג העלפט זיכער מאכן די בעסטע פאָרשטעלונג און לאַנגלעבעדיקייט פון אייערע פּיסי קאָמפּאָנענטן.

• שטויב פילטערס: The Kolink Unity Peak includes removable dust filters (e.g., on the top and bottom). Periodically remove and clean these filters with compressed air or water (ensure they are completely dry before reinstallation).
• עקסטעריאָר רייניקונג: Wipe down the exterior surfaces, including tempered glass panels, with a soft, lint-free cloth. For glass, a mild glass cleaner can be used sparingly. Avoid abrasive cleaners.
• ינלענדיש רייניקונג: Use compressed air to remove dust buildup from internal components, fans, and radiators. Ensure the system is powered off and unplugged before cleaning.
• Airflow Optimization: Periodically check that cables are not obstructing airflow paths and that fans are spinning freely.

8. טראָובלעשאָאָטינג

די סעקציע באהאנדלט אלגעמיינע פראבלעמען וואס איר קענט באגעגענען.

• סיסטעם טוט זיך נישט אן:
  • Check if the PSU is switched 'ON' at the back.
  • Ensure the power cable is securely connected to the PSU and the wall outlet.
  • וועריפיצירט אז דער פראנט פאנעל מאכט סוויטש קאבל איז ריכטיג פארבונדן צום מאדערבארד כעדער.
  • Confirm all internal power cables (24-pin ATX, CPU, GPU, etc.) are properly seated.
• פאַנס דרייען זיך נישט / ARGB צינדט זיך נישט אָן:
  • Check fan power connections to the motherboard or fan controller.
  • Verify ARGB cables are correctly connected to the ARGB controller or motherboard ARGB header.
  • If using an ARGB controller, ensure it is receiving power (usually SATA power).
• Front USB Ports Not Functioning:
  • Ensure the USB 3.0 and USB 2.0 headers from the front panel are correctly connected to the corresponding headers on your motherboard.
• Poor Airflow / High Temperatures:
  • Check fan orientation; ensure intake fans pull air in and exhaust fans push air out.
  • רייניקן שטויב פילטערס און אינעווייניקסטע קאָמפּאָנענטן.
  • זיכער מאַכן אַז קיין קאַבלען שטערן נישט די לופט־פֿלוס.

9. וואָראַנטי און שטיצן

Kolink products are manufactured to high-quality standards. For information regarding warranty terms and conditions, please refer to the warranty card included with your product or visit the official Kolink website. For technical support or further assistance, please contact your retailer or Kolink customer service.

Note: Specific warranty details may vary by region and retailer. Please retain your proof of purchase.
