1. זיכערקייַט אינסטרוקציעס
לייענט און פארשטייט שטענדיק אלע זיכערהייט ווארענונגען, אינסטרוקציעס, אילוסטראציעס און ספעציפיקאציעס וואס ווערן צוגעשטעלט מיט דעם עלעקטרישן געצייג. נישט נאכפאלגן אלע אינסטרוקציעס וואס ווערן אויסגערעכנט אונטן קען רעזולטירן אין עלעקטרישן שאק, פייער און/אדער ערנסטע שאדן.
- עלעקטריקאַל זיכערקייַט: פאַרזיכערן די מאַכט צושטעלן שוועבעלעך די וואָלtage specified on the dust extractor. Do not operate in wet conditions or near flammable liquids/gases.
- פערזענלעכע פּראַטעקטיוו עקוויפּמענט (PPE): Always wear appropriate PPE, including safety glasses, hearing protection, and a dust mask, especially when working with fine dust.
- געהעריק נוצן: Use the dust extractor only for its intended purpose. Do not use it to pick up hot ashes, sharp objects, or hazardous materials without proper precautions.
- וישאַלט: Disconnect from power before performing any maintenance or cleaning. Regularly inspect the hose, filters, and power cord for damage.
2. פּראָדוקט איבערview
The Fein Turbo II X AC PRO is a high-performance wet/dry dust extractor designed for professional use. It features a powerful motor, automatic filter cleaning, and HEPA filtration for efficient dust and liquid collection. Its robust construction and thoughtful design ensure durability and ease of use in demanding environments.
A worker uses the Fein Turbo II X AC PRO wet/dry dust extractor to clean a tiled floor, demonstrating its powerful suction for general cleanup.
3. סעטאַפּ און אַסעמבלי
Follow these steps to set up your Fein Turbo II X AC PRO dust extractor:
- אויספּאַקן: נעמט פֿאָרזיכטיק אַרויס אַלע קאָמפּאָנענטן פֿון דער פּאַקאַדזשינג. קאָנטראָלירט אויב עס זענען פֿאַראַן שאָדנס.
- פילטער ינסטאַלירונג: Ensure the HEPA filter is correctly installed. For dry vacuuming, a filter bag is recommended.
- קישקע קשר: Attach the anti-static suction hose to the inlet port on the front of the unit. Ensure a secure connection.
- אַקסעסערי אַטאַטשמאַנט: Connect the desired accessory (e.g., extension tubes, floor nozzle) to the end of the suction hose.
- מאַכט קשר: צאַפּן די מאַכט שנור אין אַ פּאַסיק עלעקטריקאַל ווענטיל.
This image highlights the premium HEPA filter feature of the Fein Turbo II X AC PRO, essential for capturing fine dust particles and maintaining air quality.
This video demonstrates the setup process for the Fein Turbo I (similar to Turbo II X AC PRO), including filter installation, hose connection, and power tool integration. It also showcases the unit's high suction power, low noise level, and mobility.
4. אַפּערייטינג ינסטרוקטיאָנס
The Fein Turbo II X AC PRO offers versatile operation for various cleaning tasks:
- מאַכט אויף / אַוועק: Use the main power switch to turn the unit on or off.
- Autostart Function: For synchronized operation with power tools, plug your tool into the integrated autostart outlet. The dust extractor will activate automatically when the power tool is switched on, with a slight delay to prevent current overload.
- נאַס וואַקוום: When vacuuming liquids, ensure the filter bag is removed and the HEPA filter is suitable for wet use or replaced with a wet filter. Monitor the liquid level to prevent overfilling.
- טרוקן וואַקוום: For dry debris, use the HEPA filter and a disposal bag for optimal collection and easy disposal.
- זויג קאָנטראָל: Adjust the suction power using the rotary knob on the control panel to match the task requirements.
The Fein Turbo II X AC PRO dust extractor is connected to a power tool, actively collecting dust during a woodworking task, highlighting its integration with other tools.
This video demonstrates the setup process for the Fein Turbo I (similar to Turbo II X AC PRO), including filter installation, hose connection, and power tool integration. It also showcases the unit's high suction power, low noise level, and mobility.
5. וישאַלט
Regular maintenance ensures optimal performance and longevity of your dust extractor:
- Automatic Filter Cleaning (AC): The unit features a fully automatic filter cleaning system. This system periodically pulses to dislodge dust from the filter, maintaining consistent suction.
- פילטער פאַרבייַט: Replace the HEPA filter periodically or when suction significantly decreases despite automatic cleaning. Refer to the filter type for specific replacement intervals.
- Disposal Bag: For dry vacuuming, use disposal bags. Replace them when full to prevent loss of suction and maintain hygiene.
- Cleaning the Container: Empty and clean the collection container regularly, especially after wet vacuuming, to prevent odors and bacterial growth.
- אַקסעסערי סטאָרידזש: Utilize the practical accessory storage on the unit to keep tools organized and protected.
The image shows the Fein Turbo II X AC PRO dust extractor, emphasizing its fully automatic filter cleaning system, which helps maintain optimal suction and extends filter life.
The dust extractor features practical on-board storage for accessories, keeping them organized and readily accessible during use.
6. טראָובלעשאָאָטינג
If you encounter issues with your Fein Turbo II X AC PRO, refer to the following common troubleshooting steps:
| פּראָבלעם | מעגלעך סיבה | לייזונג |
|---|---|---|
| קיין מאַכט | עלעקטרישע שנור אויסגעשטרעקט, אויסגעלאזטער קרייז ברעיקער, דעפעקטיווע ווענטיל. | קאָנטראָלירט די עלעקטרישע פֿאַרבינדונג, ריסעט די קרייַז ברעאַקער, פּרוּווט אַן אַנדער ווענטיל. |
| אָנווער פון סאַקשאַן | Clogged hose/nozzle, full filter bag, dirty HEPA filter, container full (wet vacuuming). | Clear obstructions, replace filter bag, clean/replace HEPA filter, empty container. |
| ומגעוויינטלעך ראַש | Foreign object in impeller, loose components, motor issue. | Disconnect power and inspect for foreign objects. If noise persists, contact customer support. |
| שטויב אנטלויפן | Improperly installed filter, damaged filter, loose hose connection. | Ensure filter is seated correctly, replace damaged filter, tighten hose connections. |
7. ספּעסאַפאַקיישאַנז
Key technical specifications for the Fein Turbo II X AC PRO:
| שטריך | באַשרייַבונג |
|---|---|
| סאָרט | פיין |
| מאָדעל נאָמען | Turbo II X AC PRO |
| קאַפּאַציטעט | 9.2 גאלאנען (אומגעפער 34.8 ליטער) |
| לופט לויפן (CFM) | 153 קפם |
| Static Water Lift (PSI) | 98 PSI (approx. 245 mbar) |
| מאָטאָר כאָרספּאַוער | 1.47 הפּ |
| פילטער טיפּ | HEPA פילטער |
| קישקע לענג | 13 פֿיס |
| מאַכט שנור לענג | 25 פֿיס |
| ראַש מדרגה | 70 דעציבעלן |
| פּראָדוקט דימענשאַנז | 10"L x 10"W x 10"H (Note: These dimensions seem generic and may not reflect the actual product size accurately.) |
| פּונקט וואָג | 25 פונט |
| אַרייַנגערעכנט קאַמפּאָונאַנץ | Accessory Kit (HEPA filter, anti-static suction hose, metal extension tubes, disposal bag, crevice nozzle, dusting brush, combination tool with inserts, elbow) |

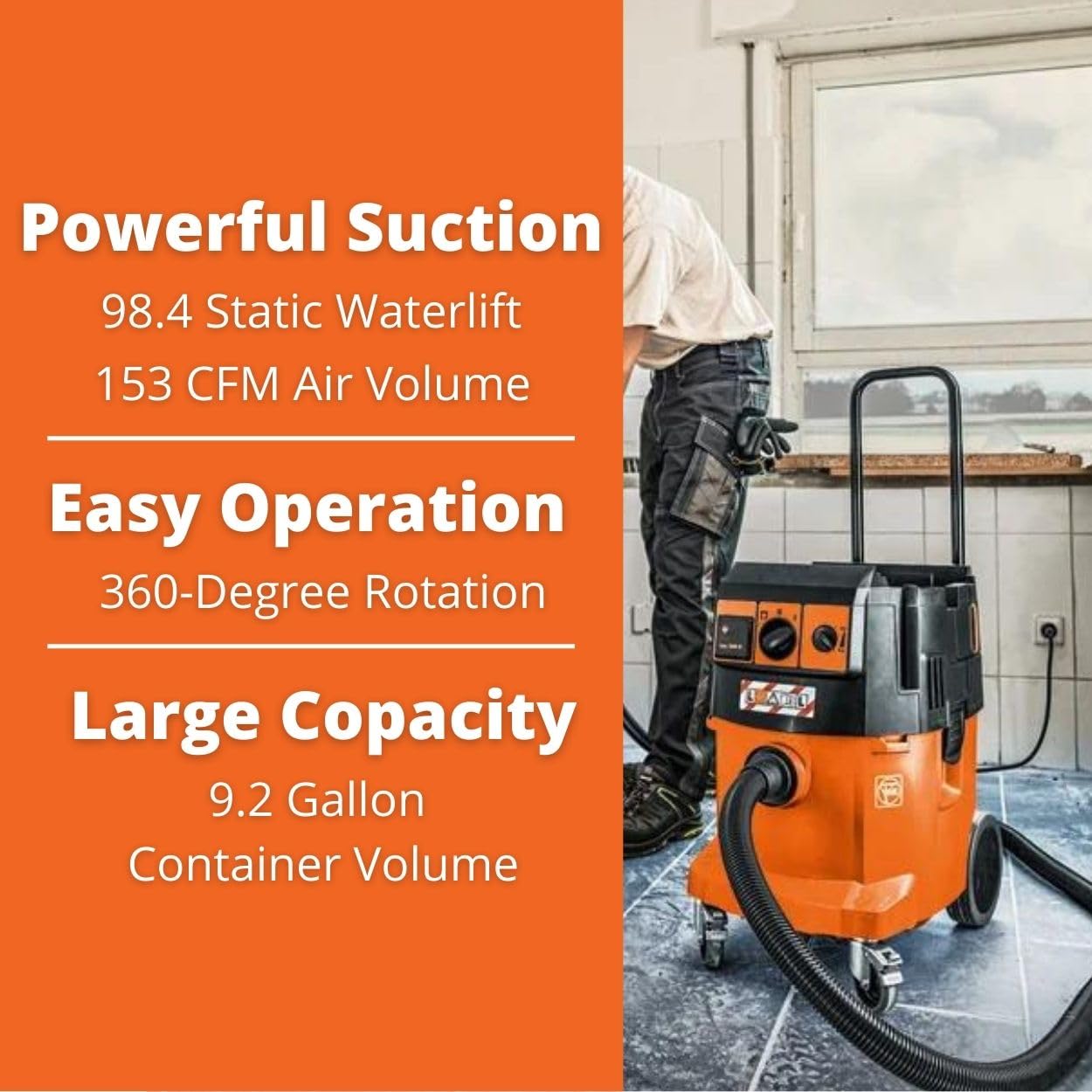

This graphic illustrates the key benefits of the Fein Turbo II X AC PRO: powerful suction (153 CFM, 98.4 Static Waterlift), easy 360-degree rotation, and a large 9.2-gallon container volume.

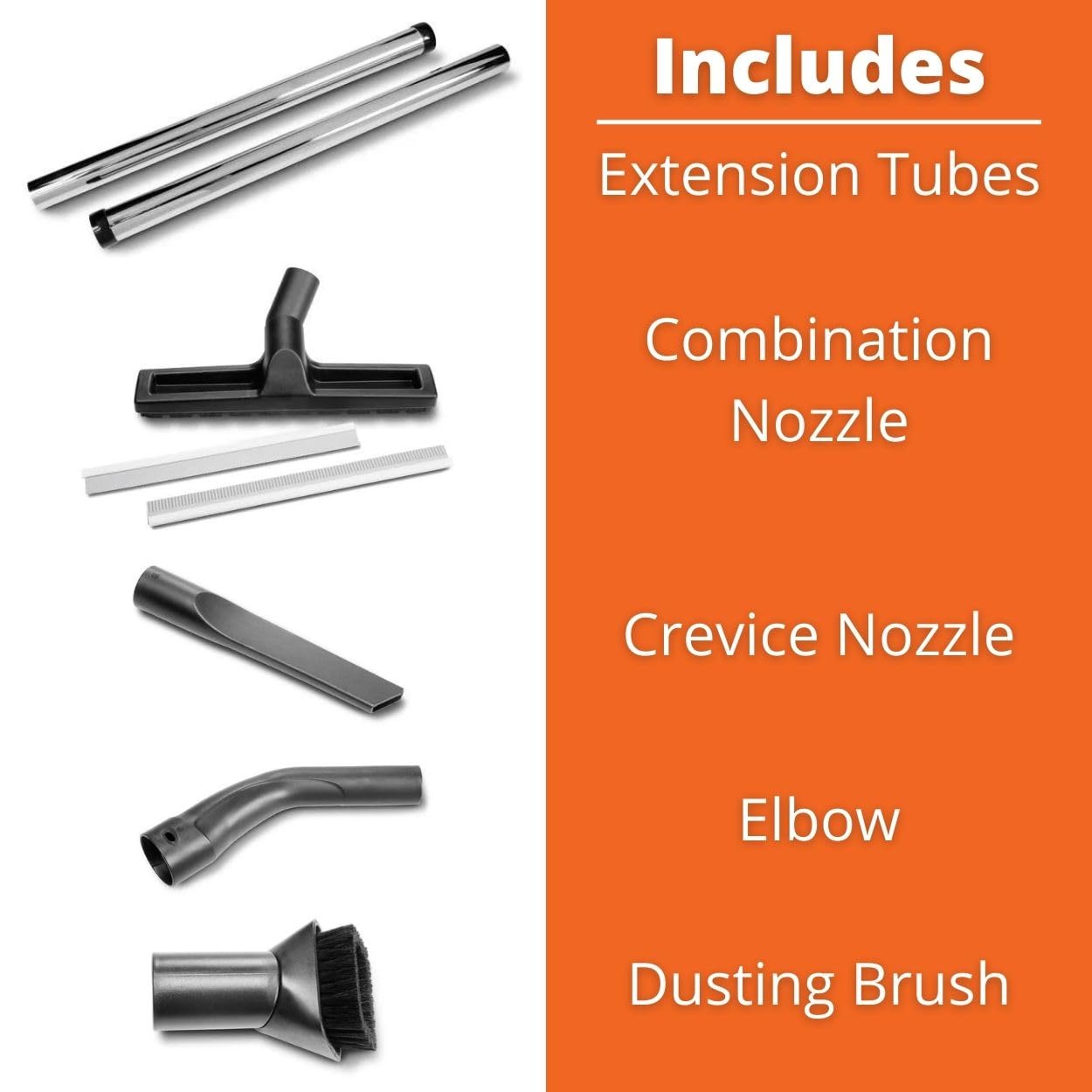

A visual representation of the comprehensive accessory kit provided with the dust extractor, including metal extension tubes, a combination nozzle, crevice nozzle, elbow, and dusting brush for diverse cleaning needs.

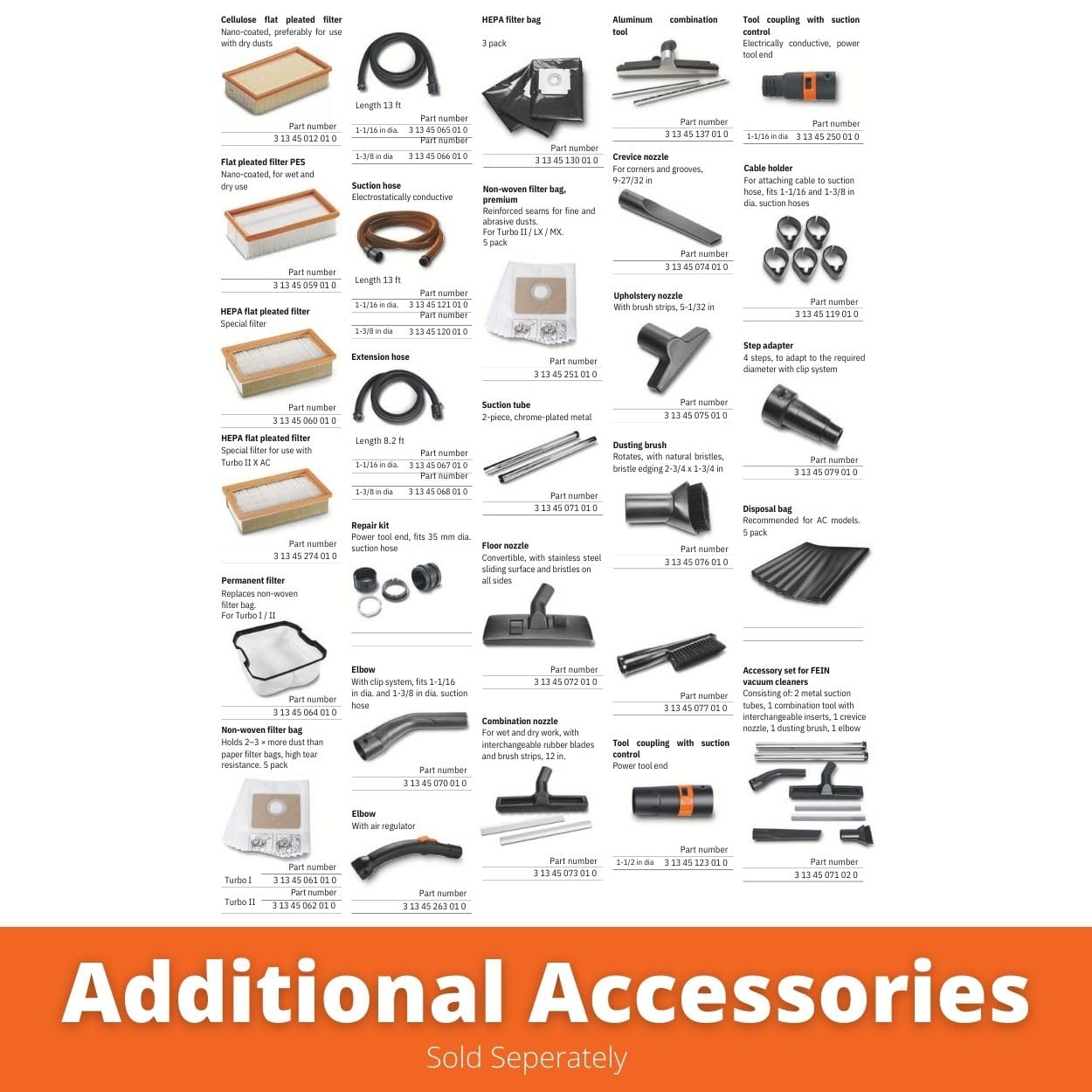

א דעטאַלירטע דיאַגראַמע ווייזטasing a range of additional accessories available for Fein Turbo dust extractors, including different filter bags, hoses, and specialized nozzles, all sold separately.
8. וואָראַנטי און שטיצן
Fein products are manufactured to the highest quality standards. For warranty information and customer support, please refer to the official Fein webפּלאַץ אָדער קאָנטאַקט זייער קונה סערוויס אָפּטיילונג.
וואָראַנטי: This product typically comes with a manufacturer's warranty covering defects in materials and workmanship. Specific terms and duration may vary by region and purchase date. Please retain your proof of purchase for warranty claims.
קונה שטיצן: For technical assistance, spare parts, or service, please visit the פיין קראָם אויף עמעזאן אדער די אפיציעלע פיין website. You can also find contact information for your local service center there.
