KOLINK Regulator Series 850W Power Supply Unit User Manual

1. הקדמה

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your KOLINK Regulator Series 850W Power Supply Unit (PSU). Please read this manual thoroughly before installation and retain it for future reference. This PSU is designed to provide stable and reliable power to your computer system, adhering to ATX 3.0 and PCIe 5.0 standards.

זיכערקייַט אינפֿאָרמאַציע

• Always disconnect the power cord from the wall outlet before installing, removing, or cleaning the PSU.
• נישט עפענען די פּסו casinז. הויך באַנדtages are present inside, which can cause electric shock.
• Ensure the PSU is installed in a well-ventilated area.
• Use only the modular cables provided with this PSU. Using incompatible cables may damage your system.
• דער פּראָדוקט איז דיזיינד בלויז פֿאַר דרינענדיק נוצן.

2. פּעקל אינהאַלט

באַשטעטיקט אַז אַלע זאכן וואָס זענען ליסטעד אונטן זענען פאַראַן אין אייער פּראָדוקט פּאַקאַדזשינג:

• KOLINK Regulator Series 850W Power Supply Unit
• Modular Cable Set (including 24-pin ATX, 4+4 pin CPU, 6+2 pin PCIe, 12VHPWR, SATA, and Peripheral cables)
• אַק מאַכט שנור
• מאַונטינג סקרוז
• באַניצער מאַנואַל (דעם דאָקומענט)

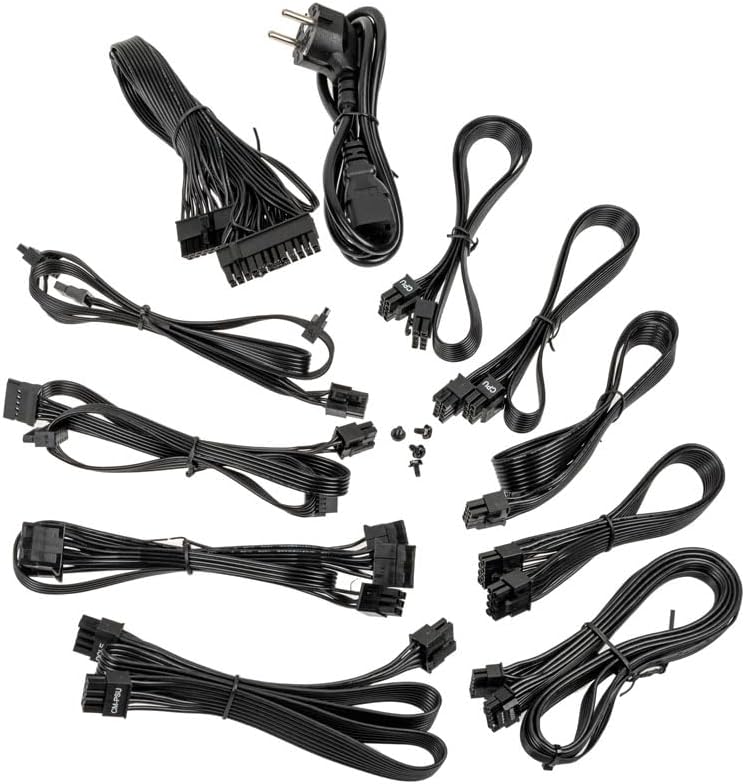

Image: A collection of all modular cables supplied with the Kolink Regulator PSU, including 24-pin ATX, CPU, PCIe, 12VHPWR, and SATA power cables.

3. שליסל פֿעיִקייטן

The KOLINK Regulator Series 850W PSU incorporates advanced features for optimal performance and reliability:

• ATX 3.0 & PCIe 5.0 Ready: Designed to meet the latest ATX 3.0 standard with native PCIe 5.0 support, including a 12VHPWR 600W cable for modern graphics cards.
• 80 פּלוס גאָלד סערטאַפייד: Achieves up to 90% efficiency at half load, reducing energy consumption and heat generation.
• גאָר מאָדולאַר פּלאַן: Allows for custom cable management by connecting only the necessary cables, improving airflow and aesthetics.
• 100% Japanese Capacitors: Utilizes high-quality Japanese capacitors for enhanced durability, stability, and long-term reliability.
• Switchable Semi-Fanless Mode: Features a 120mm Fluid Dynamic Bearing (FDB) fan that can operate in a semi-fanless mode, reducing fan speeds or stopping the fan entirely at lower loads for quieter operation.
• Multi-Protection Circuitry: Integrated safeguards protect your components from over-voltagE, אונטער-וואָלtage, over-power, short-circuit, and over-temperature conditions.
• קאָמפּאַקט פאָרם פאַקטאָר: Designed to fit a wide range of PC cases with its optimized dimensions.

Image: A close-up of the fully modular cable connection ports on the Kolink Regulator PSU, labeled for Motherboard, SATA, CPU/PCIe, and 12VHPWR.

בילד: א דעטאַלירטע view of the 120mm Fluid Dynamic Bearing fan within the Kolink Regulator PSU, highlighting its switchable semi-fanless operation for quieter performance at low loads.

Image: An internal perspective of the Kolink Regulator PSU, emphasizing the high-quality 100% Japanese capacitors used for enhanced reliability and performance.

Image: The Kolink Regulator PSU, illustrating its robust multi-protection circuitry designed to safeguard connected components.

4. סעטאַפּ און ייַנמאָנטירונג

פאַר-ינסטאַלירונג טשעקליסט

• Ensure your computer case is compatible with ATX PSUs.
• Verify that your motherboard and other components require 850W or less power.
• Gather necessary tools: screwdriver, zip ties (for cable management).

ינסטאַללאַטיאָן סטעפּס

1. צוגרייטן אייער סיסטעם: Disconnect the computer from the power outlet. Open your computer case to access the PSU mounting area. If replacing an old PSU, remove it first.
2. מאָנטירן די PSU: Carefully slide the KOLINK Regulator PSU into the designated PSU bay in your computer case. Ensure the fan is oriented correctly (typically facing downwards or inwards, depending on case design). Secure the PSU with the provided mounting screws from the rear of the case.
3. פֿאַרבינדן מאָדולאַרע קאַבלען: Identify the necessary cables for your components. Connect the modular cables to the corresponding ports on the PSU first, then route them to your components. Refer to the labels on the PSU for correct port identification.
   • מאַדערבאָרד מאַכט: Connect the 24-pin ATX cable to your motherboard.
   • CPU מאַכט: Connect the 4+4 pin CPU cable(s) to your motherboard's CPU power connector(s).
   • PCIe מאַכט: For graphics cards, use the 6+2 pin PCIe cables. For modern GPUs requiring 12VHPWR, use the dedicated 12VHPWR 600W cable. Ensure all connectors are fully seated.
   • SATA מאַכט: פֿאַרבינדט SATA מאַכט קייבאַלז צו אייערע SSDs, HDDs און אָפּטישע דרייווז.
   • Peripheral Power: Use peripheral (Molex) cables for any other components requiring them.
4. קאַבלע פאַרוואַלטונג: Route cables neatly to improve airflow and aesthetics. Use zip ties or cable straps to secure them.
5. שליסן פאַל: Once all connections are secure and verified, close your computer case.

בילד: א ווינקלדיקע view of the Kolink Regulator 850W Power Supply Unit, showcasinג עס איז שוואַרץ גasing and fan grille, ready for installation.

5. אַפּערייטינג ינסטרוקטיאָנס

1. קאָננעקט AC מאַכט: Plug the provided AC power cord into the PSU's power inlet and then into a wall outlet or surge protector.
2. Power On PSU: Locate the power switch on the rear of the PSU (next to the AC inlet) and flip it to the 'I' (On) position.
3. Power On Computer: Press the power button on your computer case to start your system.

Semi-Fanless Mode Operation

The KOLINK Regulator PSU features a semi-fanless mode. This means the 120mm FDB fan will remain off or spin at very low RPMs during low system loads to minimize noise. As the system load increases and the internal temperature rises, the fan will automatically activate and adjust its speed to maintain optimal cooling. This operation is normal and contributes to a quieter computing experience.

6. וישאַלט

Proper maintenance ensures the longevity and optimal performance of your PSU.

• האַלטן ווענט קלאָר: Ensure that the PSU's intake and exhaust vents are not obstructed by dust, cables, or other objects. Good airflow is crucial for cooling.
• שטויב רייניקונג: Periodically clean dust from the PSU's exterior and fan grille using compressed air. נישט עפענען די פּסו casing.
• ינווייראַנמענאַל טנאָים: Operate the PSU within recommended temperature and humidity ranges. Avoid extreme conditions.

7. טראָובלעשאָאָטינג

If you encounter issues with your KOLINK Regulator PSU, refer to the following common problems and solutions:

If troubleshooting steps do not resolve the issue, please contact KOLINK customer support.

8. ספּעסאַפאַקיישאַנז

Detailed technical specifications for the KOLINK Regulator Series 850W PSU:

Image: The rear panel of the Kolink Regulator PSU, displaying the electrical specifications label, power input, and on/off switch.

9. וואָראַנטי און שטיצן

וואָראַנטי אינפֿאָרמאַציע

KOLINK products are manufactured to the highest quality standards. This PSU is covered by a manufacturer's warranty against defects in materials and workmanship. The specific warranty period may vary by region and retailer. Please retain your proof of purchase for warranty claims.

קונה שטיצן

For technical assistance, warranty inquiries, or further information, please visit the official KOLINK website or contact your local retailer. You can often find support resources, FAQs, and contact details on the manufacturer's webפּלאַץ: www.kolink.eu
