This manual provides essential information for the safe and effective installation, operation, and maintenance of the Focket NLQ3 125 4P Power Automatic Transfer Switch. This device is designed to automatically switch between a normal power supply and a backup power supply, ensuring continuous power in critical applications. It is suitable for emergency power supply systems rated 110V 100A at 50 or 60Hz AC and is specifically designed for domestic rail installation within PZ30 distribution boxes.
Figure 1: Focket NLQ3 125 4P Automatic Transfer Switch, showing its compact design and terminal connections.
סעטאַפּ און ינסטאַלירונג
Before proceeding with installation, ensure all power sources are disconnected to prevent electrical shock. This automatic transfer switch is designed for DIN rail mounting.
פאַר-ינסטאַלירונג טשעק
- Inspect the Automatic Transfer Switch (ATS) for any signs of damage or integrity issues before installation.
- Manually operate the ATS using the operating handle to open or close it. Verify the flexibility of the drive mechanism.
- Test the generation and disconnection conditions for each stage of the load for both normal and standby power to ensure proper functionality.
וויירינג אינסטרוקציעס
Connect the wiring according to the provided diagram (refer to product packaging or specific wiring diagrams if available). Ensure all connections are secure and correctly polarized.
Figure 2: Proper installation of the automatic transfer switch by a qualified professional.
Environmental Conditions for Installation
- טעמפּעראַטור: The maximum ambient temperature should not exceed 40°C (104°F), and the minimum should not be lower than -5°C (23°F). The average temperature within a 24-hour period should not exceed 35°C (95°F).
- הייך: The installation site's altitude should not be higher than 2000 meters (6562 feet).
- הומידיטי: When the maximum temperature reaches 40°C (104°F), the relative humidity should not exceed 50%. At lower temperatures, such as -5°C (23°F), higher relative humidity is permissible. For example, at 25°C (77°F), the relative humidity can be up to 90%. Special measures should be taken to address occasional condensation on the product's surface due to temperature changes.
אַפּערייטינג ינסטראַקשאַנז
The Focket NLQ3 125 4P Automatic Transfer Switch offers both automatic and manual operation modes, ensuring reliable power transfer.
אָטאַמאַטיק מאָדע
In automatic mode, the switch continuously monitors the normal power supply. If the normal power supply becomes abnormal (e.g., power outage, voltage drop), the switch will immediately transfer the load to the backup power supply. This millisecond switching ensures uninterrupted power, maintaining continuity, reliability, and safety of the power supply.
מאַנואַל מאָדע
The device can also be operated manually using the integrated handle. This allows for controlled switching between power sources for maintenance or testing purposes. Ensure the switch is in the "Manual" position before attempting manual operation.

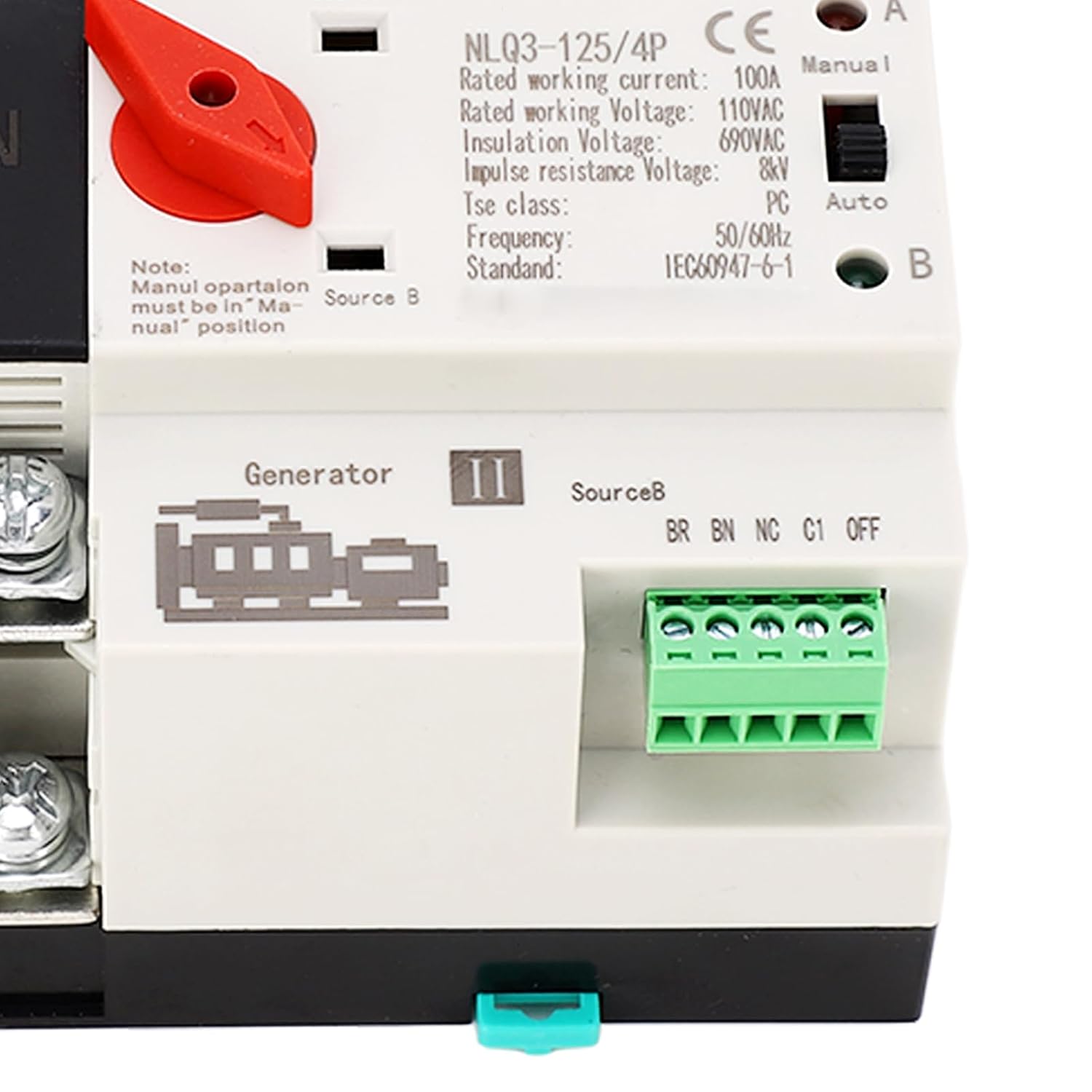

Figure 3: Detail of the switch mechanism, indicating manual and automatic operation options.
וישאַלט
Regular maintenance ensures the longevity and reliable operation of your automatic transfer switch. Always disconnect all power before performing any maintenance.
- רייניקונג: Periodically clean the exterior of the switch with a dry, soft cloth. Do not use abrasive cleaners or solvents.
- דורכקוק: Annually inspect all terminal connections to ensure they are tight and free from corrosion. Check for any signs of overheating, discoloration, or physical damage to the casinג אדער אינערלעכע קאמפאנענטן.
- אפעראציאנעל טשעק: אויב זיכער צו טאָן דאָס, פּרובירט פּעריִאָדיש די אויטאָמאַטישע טראַנספער פֿונקציע דורך סימולירן אַ מאַכט אויסגאַנג.tage to ensure the switch transfers correctly.
טראָובלעשאָאָטינג
If you encounter issues with your automatic transfer switch, consider the following common problems and solutions:
| פּראָבלעם | מעגלעך סיבה | לייזונג |
|---|---|---|
| סוויטש גייט נישט אויטאמאטיש אריבער. | Normal power supply not detected as abnormal; switch in manual mode; internal fault. | Verify normal power supply status. Ensure switch is set to "Auto" mode. Check wiring connections. If problem persists, contact support. |
| Switch makes unusual noises or smells. | Overload; loose connections; internal component failure. | Immediately disconnect power. Do not operate. This indicates a serious issue. Contact a qualified electrician or manufacturer support. |
| Power supply is intermittent after transfer. | Loose wiring; insufficient backup power; faulty switch. | Check all wiring connections for tightness. Ensure backup power source is stable and sufficient for the load. If issues continue, seek professional assistance. |
וויכטיק: If you experience issues such as the device burning out or self-destructing as reported by some users, immediately disconnect power and do not attempt to repair it yourself. Such incidents indicate a critical failure and require professional attention or replacement. Always prioritize safety.
ספּעסאַפאַקיישאַנז
Detailed technical specifications for the Focket NLQ3 125 4P Automatic Transfer Switch:
| פּאַראַמעטער | ווערט |
|---|---|
| נומער טיפּ | מאַכט אָטאַמאַטיק אַריבערפירן סוויטש |
| מאָדעל | NLQ3 125 4P |
| Rated Current (le) | 100 א |
| ינסאַליישאַן וואָלtage (וי) | AC690V |
| רייטאַד וואָלtagE (Ue) | AC110V |
| אָפטקייַט | 50 אָדער 60 הז |
| רייטאַד קאָנטראָל וואָלtage (Us) | 110VAC (85% Us to 110% Us) |
| מדרגה | PC level |
| באַשרייַבונג | 4P |
| Electrical Service Life | 2000 מאל |
| Mechanical Service Life | 5000 מאל |
| Rated Short Circuit Current | 50kA |
| רייטאַד ימפּאַלס וויטסטאַנד וואָלtage | 8קוו |
| אַגזיליערי קרייַז | 2 relays, each with two sets of contact capacity: AC110V 50HZ le=5y |
| מאַטעריאַל | PC and silver (flame retardant PC, silver contacts) |
| מאַונטינג טיפּ | דין רעלס בארג |
| קאַנעקטער טיפּ | דין |
| טערמינאַל טיפּ | שרויף |
| פּראָדוקט גרייס (אומגעפער) | 143 מם X 96 מם X 69 מם (5.63 X 3.78 X 2.72 אינטשעס) |
Figure 4: Approximate dimensions of the automatic transfer switch for installation planning.
אַפּפּליקאַטיאָנס
The Focket NLQ3 125 4P Automatic Transfer Switch is designed for various applications where continuous power is critical and outages are not permissible. Its robust design ensures reliable performance in diverse environments.
- רעזידענטשאַל נוצן: Ensuring uninterrupted power for homes, especially for critical systems like security, heating, or medical equipment.
- Commercial Buildings: Ideal for shopping malls, office buildings, and other commercial spaces to maintain essential services during power disruptions.
- Industrial Facilities: Suitable for factories and production lines where continuous operation is vital to prevent downtime and losses.
- לאַבאָראַטאָריעס: Providing stable power for sensitive laboratory equipment and experiments.
- Agricultural Settings: Used in farms for critical systems like irrigation pumps or livestock environmental controls.
- עמערגענסי סערוויסעס: Can be integrated into systems for fire fighting equipment or other emergency response infrastructure.
פיגורע 5: עקסamples of environments where the automatic transfer switch provides essential backup power.
וואָראַנטי און שטיצן
For warranty information, technical support, or service inquiries regarding your Focket NLQ3 125 4P Automatic Transfer Switch, please contact the seller or manufacturer directly. Keep your purchase receipt and product model number handy when contacting support.
Manufacturer: Focket
פֿאַר ווייטערדיקע הילף, קענט איר באַזוכן די Focket Store on Amazon.
