PHOTONTEK XT 1000W CO2 Pro LED Grow Light Instruction Manual

1. הקדמה

The PHOTONTEK XT 1000W CO2 Pro LED is a high-performance grow light designed for professional indoor cultivation. This fixture delivers a balanced, full-spectrum light with high Photosynthetic Photon Flux Density (PPFD) levels, optimized for plant growth cycles. It is engineered for use in 5'x5' coverage areas, particularly when supplemented with CO2, but can also be adapted for 6'x6' areas without CO2 supplementation. This manual provides essential information for the safe and effective installation, operation, and maintenance of your PHOTONTEK XT 1000W CO2 Pro LED grow light.

2. זיכערקייַט אינפֿאָרמאַציע

Please read all safety warnings and instructions carefully before installing or operating the PHOTONTEK XT 1000W CO2 Pro LED. Failure to follow these instructions may result in electric shock, fire, or other serious injury.

• Always disconnect power before installation, maintenance, or moving the fixture.
• Do not operate the fixture with a damaged cord or plug.
• זיכער מאַכן אַז די פֿיקסטשור איז זיכער אינסטאַלירט צו פאַרמייַדן פֿאַלן.
• Do not look directly at the operating LEDs; prolonged exposure can cause eye damage.
• Maintain adequate ventilation around the fixture to prevent overheating.
• דער פּראָדוקט איז דיזיינד בלויז פֿאַר דרינענדיק נוצן.
• האַלטן אַוועק פון וואַסער און אנדערע ליקווידס.

3. וואָס איז אין דער קעסטל

ביים אויספּאַקן, קאָנטראָלירט אַז אַלע קאָמפּאָנענטן זענען פאַראַן און נישט געשעדיגט.

• PHOTONTEK XT 1000W CO2 Pro LED Panel
• מאַכט שנור
• Hanging Kit (typically includes hangers/ratchets)
• ינסטרוקטיאָן מאַנואַל (דעם דאָקומענט)

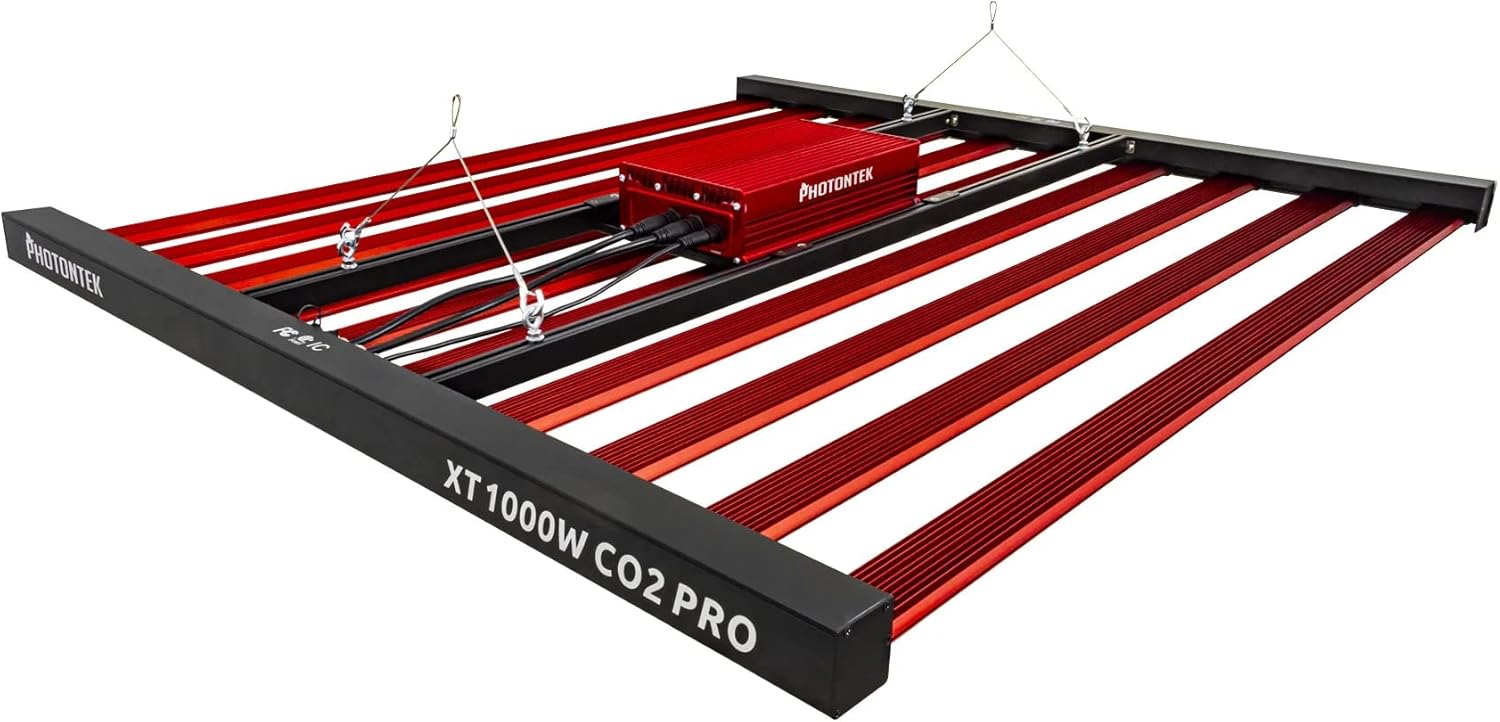

פיגורע 1: The PHOTONTEK XT 1000W CO2 Pro LED grow light, showing the multi-bar design and central driver box. This image illustrates the complete fixture as it would appear when assembled and ready for hanging.

4. סעטאַפּ און ייַנמאָנטירונג

4.1 אַנפּאַקינג און דורכקוק

1. קערפאַלי באַזייַטיקן אַלע קאַמפּאָונאַנץ פון די פּאַקקאַגינג.
2. Inspect the fixture for any signs of damage during transit. Contact your supplier immediately if any damage is found.
3. Ensure all listed components in "What's in the Box" are present.

4.2 מאַונטינג די ייַנאָרדענונג

The PHOTONTEK XT 1000W CO2 Pro LED is designed to be suspended above your plant canopy.

1. Identify a sturdy overhead structure capable of supporting the weight of the fixture (approximately 39.7 pounds or 17.999 kg).
2. Attach the provided hanging cables or ratchets to the designated hanging points on the fixture.
3. Securely attach the other end of the hanging system to your overhead structure.
4. Adjust the hanging height to achieve the desired distance from the plant canopy. Refer to the "Operating Instructions" section for recommended hanging heights based on CO2 usage.

פיגורע 2: זייַט פּראָfile of the PHOTONTEK XT 1000W CO2 Pro LED, illustrating its slim design and the distribution of LED bars. This view helps in understanding the fixture's dimensions for proper placement.

4.3 עלעקטריקאַל קאַנעקשאַן

פאַרזיכערן די מאַכט מקור שוועבעלעך די וואָלtage requirements of the fixture (277 Volts AC).

1. Connect the power cord to the input port on the fixture's driver box. Ensure a secure connection.
2. צאַפּן די אנדערע סוף פון די מאַכט שנור אין אַ גראָונדעד עלעקטריקאַל ווענטיל.
3. If using a dimmer or external controller (Control Method: App, Switch Style: Dimmer, Push Button), connect it according to its specific instructions to the designated dimming ports on the fixture.

פיגורע 3: דעטאַילעד view of the PHOTONTEK XT 1000W CO2 Pro LED driver box, highlighting the input port and product labeling. This shows where the main power connection is made.

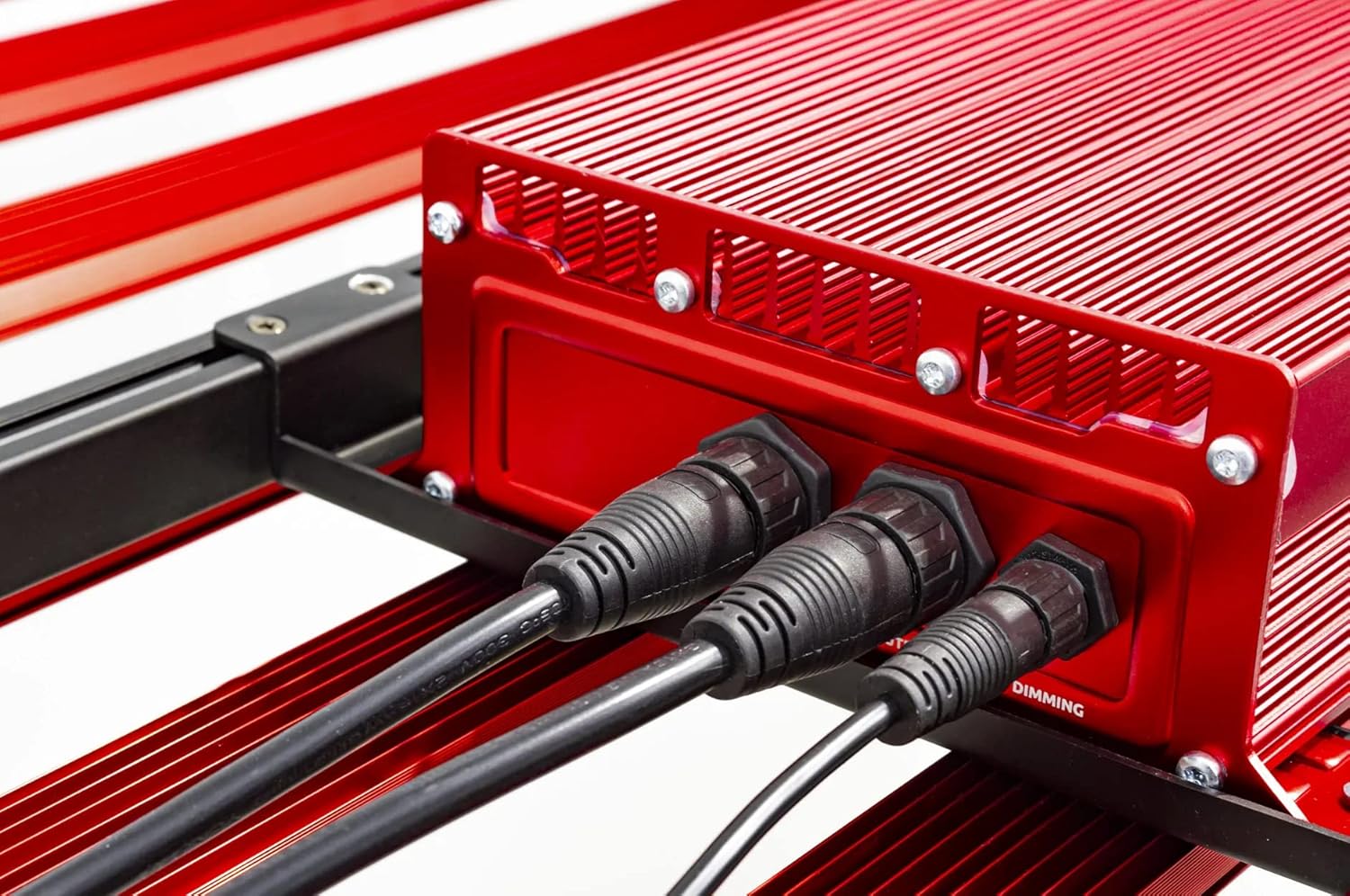

פיגורע 4: Close-up of the connection ports on the PHOTONTEK XT 1000W CO2 Pro LED driver, showing both power input and dimming control ports. This image clarifies where to connect the power cord and any optional dimming accessories.

5. אַפּערייטינג ינסטרוקטיאָנס

5.1 פּאַוערינג אויף / אַוועק

Once the fixture is securely mounted and connected to power, it can be turned on.

• To power on, ensure the power cord is plugged into a live outlet. If using a timer, set the desired light cycle.
• To power off, disconnect the power cord from the outlet or use a connected timer/controller.

5.2 Light Intensity and Spectrum

The PHOTONTEK XT 1000W CO2 Pro LED provides a full spectrum light. The intensity can be adjusted using the integrated dimmer or an external app/controller.

• דיממער קאָנטראָל: Use the push-button dimmer switch (if present) or the app control to adjust light output from 0-100%.
• Recommended PPFD Levels:
  • For 5'x5' coverage with CO2 supplementation: Aim for PPFD levels up to 1500 µmol/s/m². Maintain CO2 levels up to 1500 PPM, matching PPFD levels 1:1 once exceeding 1000 µmol/s/m².
  • For 6'x6' coverage without CO2 supplementation: Increase the distance between the fixture and the plant canopy to achieve optimal PPFD levels for the specific growth stage. This will result in lower overall PPFD intensity compared to CO2-supplemented setups.

פיגורע 5: נאָענט-אַרויף view of the individual LED diodes on one of the light bars of the PHOTONTEK XT 1000W CO2 Pro LED. This illustrates the quality and density of the light-emitting components.

6. וישאַלט

Regular maintenance ensures optimal performance and longevity of your PHOTONTEK XT 1000W CO2 Pro LED.

• רייניקונג: Periodically clean the LED bars and driver box with a soft, dry cloth to remove dust and debris. Ensure the fixture is unplugged and cool before cleaning. Do not use abrasive cleaners or solvents.
• דורכקוק: Regularly inspect the power cord, hanging cables, and all connections for any signs of wear or damage. Replace any damaged components immediately.
• ווענטילאַטיאָן: Ensure that the ventilation openings on the driver box are not obstructed to allow for proper heat dissipation.

7. טראָובלעשאָאָטינג

If you encounter issues with your PHOTONTEK XT 1000W CO2 Pro LED, refer to the following common problems and solutions.

If the problem persists after attempting these solutions, please contact PHOTONTEK customer support.

8. ספּעסאַפאַקיישאַנז

Detailed technical specifications for the PHOTONTEK XT 1000W CO2 Pro LED.

9. וואָראַנטי און שטיצן

PHOTONTEK products are manufactured to high standards and are designed for durability.

• וואָראַנטי אינפֿאָרמאַציע: Specific warranty terms and conditions are typically provided with your purchase documentation or can be found on the official PHOTONTEK webזייטל. ביטע באַהאַלטן אייער קויפן באַווייַז פֿאַר וואָראַנטי קליימז.
• קונה שטיצן: For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact PHOTONTEK customer support directly through their official webוועבזייטל אדער די קאָנטאַקט אינפֿאָרמאַציע וואָס איז צוגעשטעלט מיט דיין פּראָדוקט.
