OWON PC321-TY 3 Phase WiFi Smart Home Energy Monitor User Manual

הקדמה

This manual provides instructions for the installation, operation, and maintenance of your OWON PC321-TY 3 Phase WiFi Smart Home Energy Monitor. This device is designed to help you monitor your home's electricity consumption in real-time, offering insights into voltage, current, and power factor.

וויכטיק סאַפעטי אינפֿאָרמאַציע

ווארענונג: די מאַכט קלamp must be installed and serviced only by a qualified professional. Do not touch the terminals of the device during testing. Turn off all power supply to this equipment before installation to ensure safety.

פּראָדוקט פֿעיִקייטן

• ענערגיע מאָניטאָרינג: Real-time monitoring of power consumption, voltage, current, and power factor.
• רעאַל-צייט דאַטן: Provides 2-second data updates with an accuracy of ±2% via a 2.4 GHz WiFi connection.
• Appliance Monitoring: Includes three 80A sensors for monitoring individual appliances like air conditioners, furnaces, water heaters, washers, and dryers.
• SmartLife אַפּ ינטעגראַטיאָן: Compatible with the 'SmartLife' application for convenient monitoring and control.
• גרינג ינסטאַלירונג: Lightweight design for straightforward installation by clamping onto power cables.

סעטאַפּ און ינסטאַלירונג

1. אַנפּאַקינג און דורכקוק

Verify all components are present: OWON PC321-TY main unit, three 80A current sensors (clamps), and antenna.

2. אַפּ ינסטאַללאַטיאָן

Download and install the 'SmartLife' application on your smartphone from your device's app store. Follow the in-app instructions to create an account and add your device.

3. Current Sensor (Clamp) ינסטאַלירונג

וויכטיק: Ensure the main power supply to the circuit you are monitoring is turned OFF before proceeding.

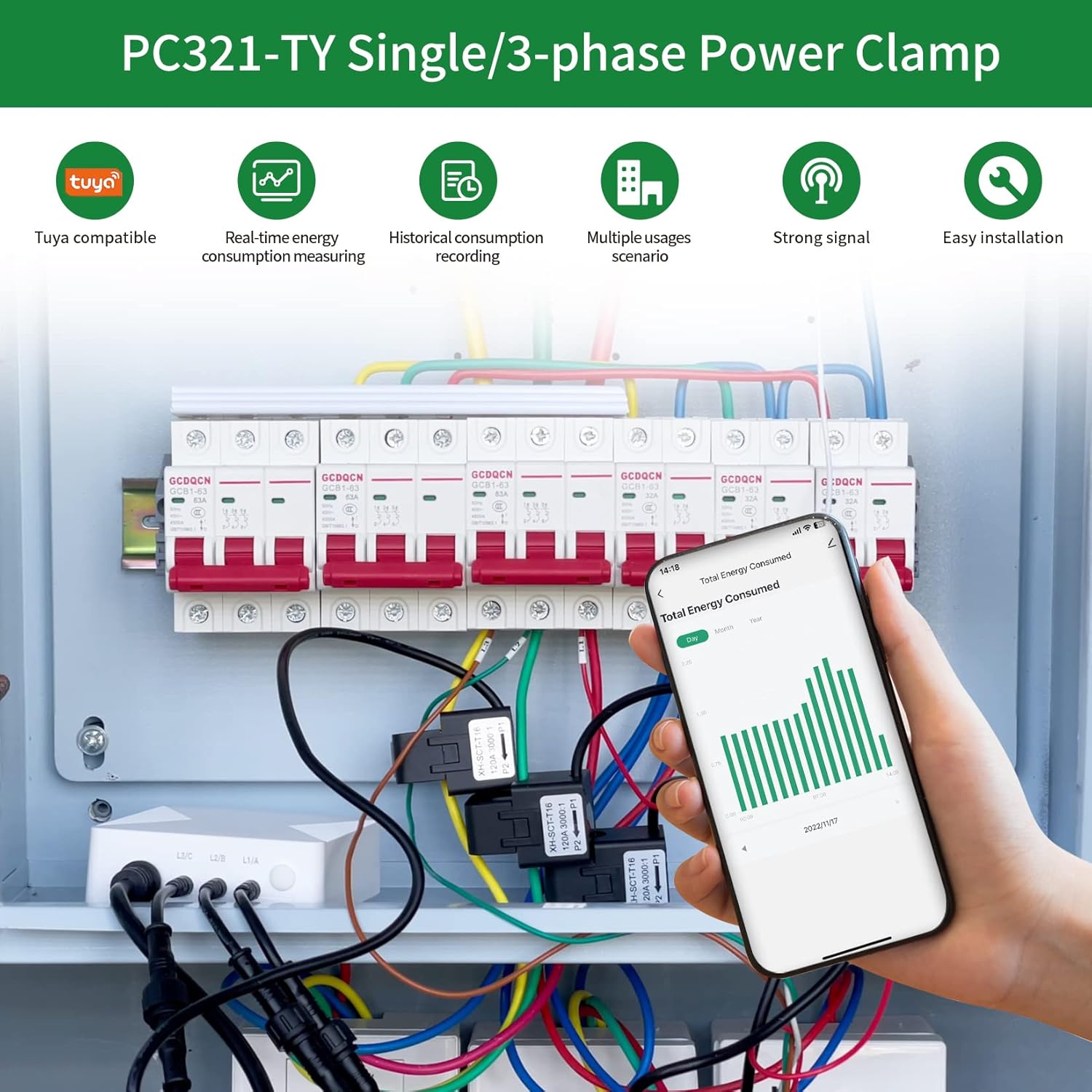

Connect the current sensors to the main unit. Attach the current clamps to the power cables of the circuits you wish to monitor. Ensure the arrow on each clamp points towards the load (P1→P2 or K→L) for correct current flow direction.

4. וויירינג דיאַגראַמס

איין-פאַסע וויירינג

For single-phase systems, connect the main unit and clamps ווי געוויזן אין די דיאַגראַמע אונטן.

3 Phase Wiring

For three-phase systems, ensure that each current transformer (CT) for L1, L2, and L3 corresponds to the respective phase of the circuit being measured.

5. Power On and WiFi Connection

Once all connections are secure and verified, restore power to the circuit. Follow the 'SmartLife' app instructions to connect the device to your 2.4 GHz WiFi network. An internet connection is required for real-time data monitoring.

אַפּערייטינג ינסטראַקשאַנז

Monitoring Energy Data

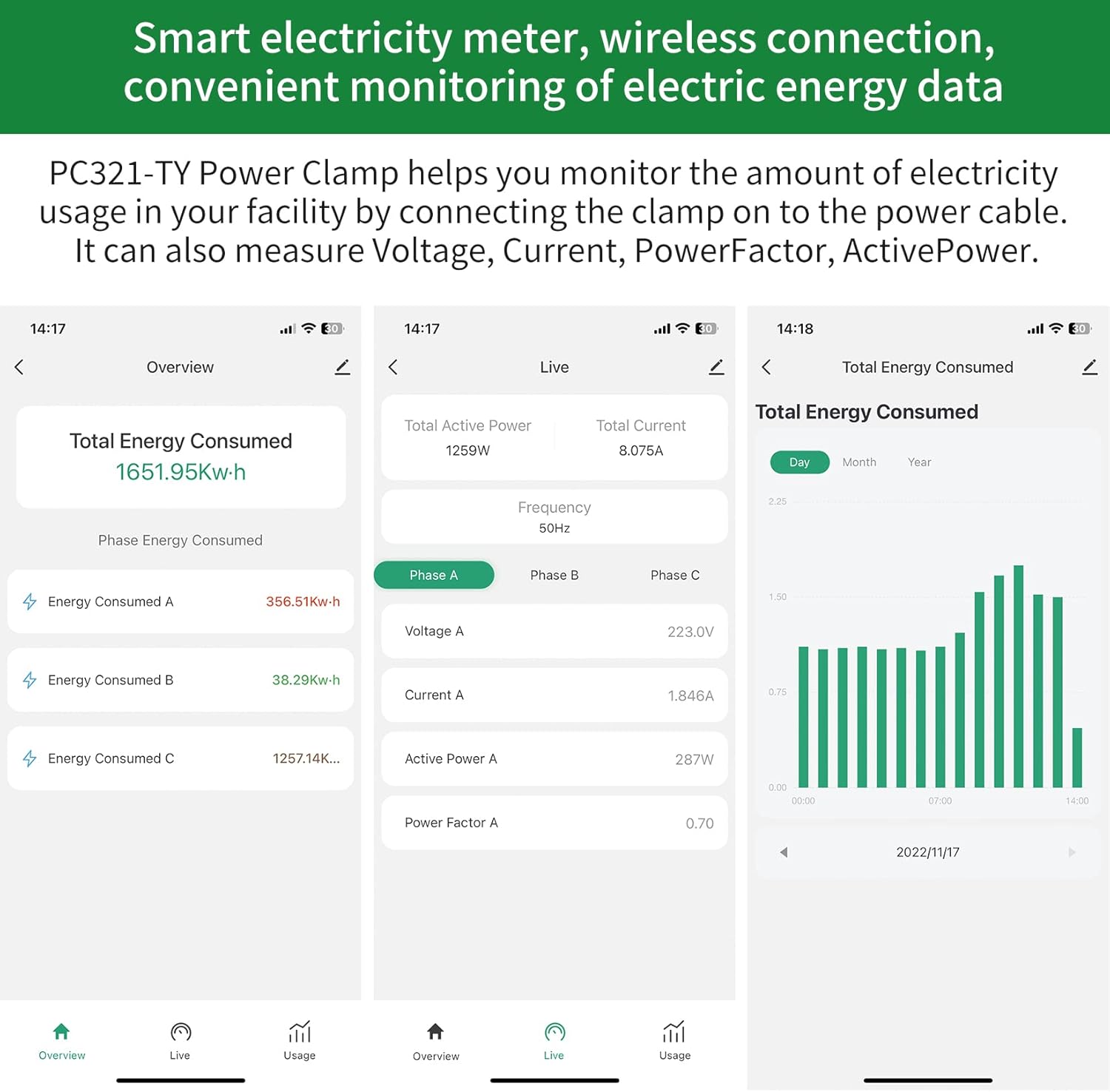

Open the 'SmartLife' app on your smartphone. The app will display real-time energy consumption data, including total energy consumed, individual phase consumption, voltage, current, active power, and power factor. The app provides data updates every 2 seconds.

היסטאָריש דאַטע

The 'SmartLife' app allows you to view historical consumption records, enabling you to track energy usage over time (daily, monthly, yearly).

וישאַלט

The OWON PC321-TY is designed for low maintenance. Periodically check all wiring connections for security and ensure the device is free from dust and moisture. No user-serviceable parts are inside the main unit.

טראָובלעשאָאָטינג

Device Not Connecting to WiFi

• זיכער מאַכן אַז אייער WiFi נעץ איז 2.4 GHz. די דעווייס שטיצט נישט 5 GHz נעטוואָרקס.
• Verify the WiFi signal strength at the installation location. If weak, consider relocating the device or using a WiFi extender.
• Confirm correct WiFi password entry in the 'SmartLife' app.
• Restart your WiFi router and the OWON device, then attempt to reconnect.

ומפּינקטלעך רידינגז

• Check that the arrows on the current clamps are pointing in the correct direction (towards the load). Incorrect orientation will result in inaccurate readings.
• פאַרזיכערן די קלamps are fully closed around the power cables.
• Verify that the correct CT (current transformer) is connected to the corresponding phase (L1, L2, L3) in a 3-phase setup.

App Not Displaying Data

• קאָנטראָלירט אייער סמאַרטפאָון'ס אינטערנעט פֿאַרבינדונג.
• Ensure the OWON device is connected to WiFi and has an active internet connection.
• Try closing and reopening the 'SmartLife' app.

Physical Damage to Antenna Cable

• Handle the antenna cable with care during installation to prevent damage. A damaged antenna cable can impair WiFi connectivity.

ספּעסאַפאַקיישאַנז

וואָראַנטי און שטיצן

For warranty information and technical support, please refer to the OWON official webזייטל אדער קאנטאקט זייער קאסטומער סערוויס. האלט אייער קויף קוויטל פאר גאראנטיע טענות.
