LEONLITE 5CCT 12 Inch Hardscape Lighting User Manual

1. פּראָדוקט איבערview

This manual provides detailed instructions for the installation, operation, and maintenance of your LEONLITE 5CCT 12 Inch Hardscape Lighting. Designed for outdoor use, these low voltage LED swivel lights offer selectable color temperatures to enhance your landscape lighting.

Figure 1: LEONLITE 12 Inch Hardscape Lights, illustrating the swivel capability and multiple units.

2. פּעקל אינהאַלט

ביטע באַשטעטיקן אַז אַלע קאָמפּאָנענטן זענען פאַראַן איידער איר הייבט אָן די אינסטאַלאַציע:

• LEONLITE 5CCT 12 Inch Hardscape Lights (4 units)
• Waterproof wire connectors (2 pcs per light)
• מאַונטינג סקרוז און וואַנט אַנגקערז
• ינסטראַקשאַנז מאַנואַל

Figure 2: Illustration of included accessories for installation.

3. שליסל פֿעיִקייטן

• 5 Color Temperatures Changing: These hardscape lights offer five selectable color temperatures (2200K Amber Warm, 2700K Soft White, 3000K Warm White, 4000K Cool White, 5000K Daylight). This allows for versatile ambient lighting in various outdoor settings such as steps, fire pits, outdoor kitchens, backyards, and pools. High CRI90 ensures natural color rendering.
• דרויסנדיקע האַלטבארקייט: Designed for outdoor environments, the lights operate within a temperature range of -4°F to 104°F and feature an IP65 waterproof rating, making them suitable for wet locations. The 12-24V AC/DC operation ensures safety around children and pets.
• Directable Design: Each step light can rotate from 0-180°, providing flexibility to direct light precisely where needed.
• Easy Installation & Maintainability: Includes waterproof wire connectors and necessary accessories. The design allows for replacement of the LED light strip instead of the entire fixture.
• Built To Last: The 7W retaining wall light emits 420lm. It is ETL listed with UL listed wire for safety. The die-cast aluminum housing is rust and corrosion resistant, contributing to a long 40,000-hour lifespan.

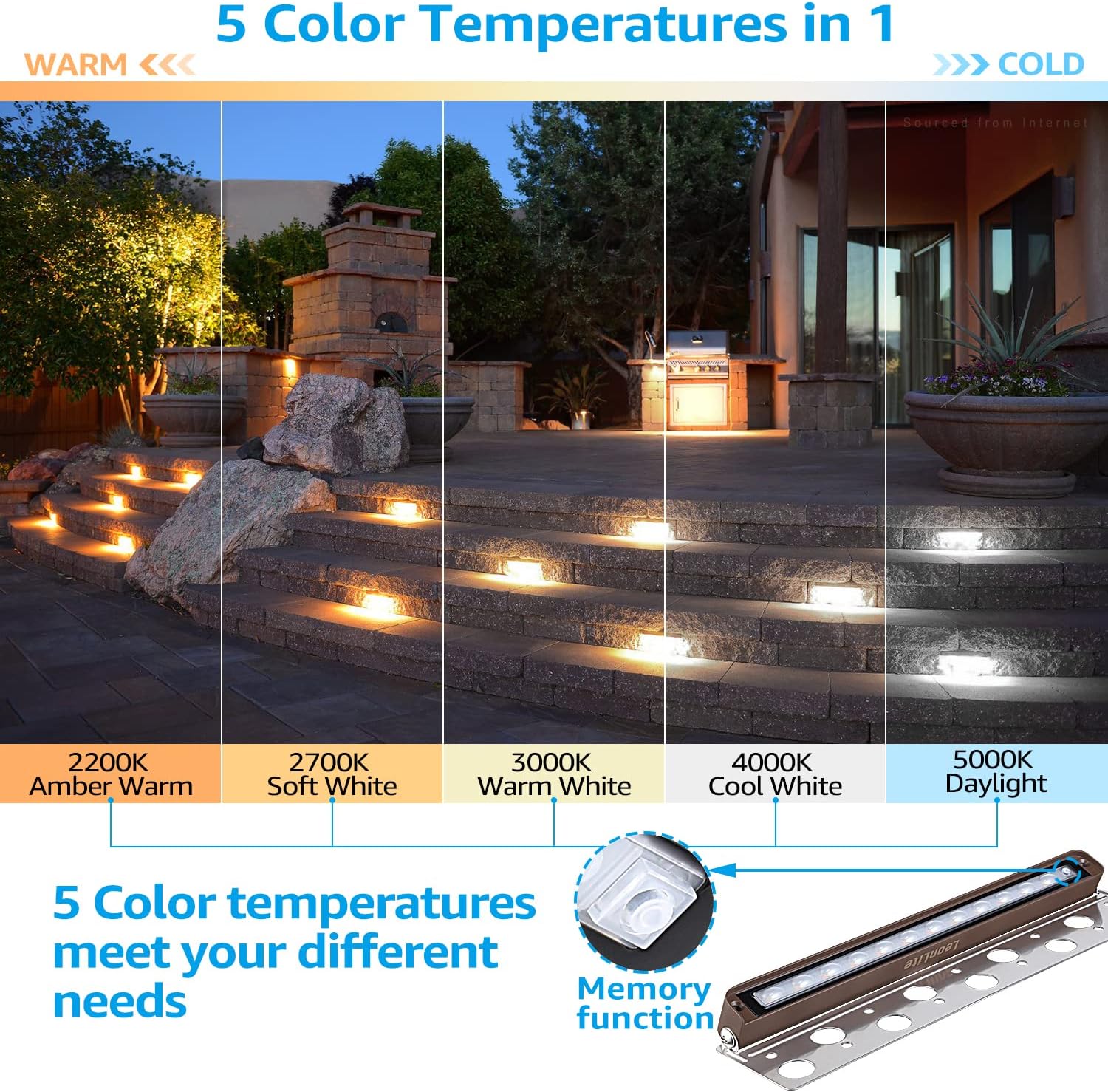

Figure 3: Visual representation of the 5 selectable color temperatures and memory function.

פיגורע 4: דעטאַילעד view highlighting the rotatable design, durable aluminum housing, waterproof sealing, and energy-efficient LED chips.

4. זיכערקייַט אינפֿאָרמאַציע

ביטע ליינט און פארשטייט אלע זיכערהייט אינסטרוקציעס איידער די אינסטאלאציע און באניץ. נישט נאכפאלגן די אינסטרוקציעס קען רעזולטירן אין עלעקטרישע שאק, פייער, אדער אנדערע געפארן.

• Ensure power is disconnected at the source before installation or maintenance.
• This product operates on 12-24V AC/DC low voltage. A compatible low voltage transformer (not included) is required.
• צי ניט יקסיד די ספּעסיפיעד וואָלtagע אָדער וואַטtage.
• All electrical connections must comply with local codes and ordinances. If unsure, consult a qualified electrician.
• The product is ETL Listed and uses UL Listed wire, ensuring compliance with safety standards.
• Do not immerse the light fixture in water beyond its IP65 rating.

5. ינסטאַללאַטיאָן גייד

These hardscape lights offer two primary installation modes: as a rotatable hardscape light or as a deck light.

5.1 נויטיקע מכשירים (נישט אַרייַנגערעכנט)

• בויער
• שרויפנ - ציער
• ווירע סטריפּערז
• נידעריק וואָלtage landscape lighting transformer

5.2 ינסטאַללאַטיאָן סטעפּס

1. צוגרייטן דעם אָרט: Choose a suitable location on your retaining wall, steps, or deck. Ensure the surface is clean and stable.
2. אָנקלאַפּן די בראַקאַץ:
   • For hardscape installation: Position the metal mounting bracket in the desired location. Mark the drilling points. Drill pilot holes and secure the bracket using the provided screws and wall anchors.
   • For deck light installation: The light can be mounted directly under a deck railing or step lip. Secure the light fixture using appropriate screws.
3. פאַרבינדן וויירינג:
   • פאַרזיכערן די נידעריק וואָלtage transformer is unplugged.
   • Connect the light's low voltage wire to your main landscape lighting power cable using the included waterproof wire connectors. Twist the wires together and secure them tightly within the connector.
   • זיכער מאַכן אַז אַלע פֿאַרבינדונגען זענען זיכער און וואַסערפּרוף.
4. צוטשעפּען די ליכט ייַנאָרדענונג: Once the bracket is secured and wiring is connected, attach the LED light fixture to the mounting bracket. The rotatable design allows for easy adjustment of the light angle after installation.
5. פּרובירן די לייץ: Plug in your low voltage transformer and test the lights.

Figure 5: Visual guide for installing the hardscape light as a rotatable wall light or a deck light.

6. אַפּערייטינג ינסטרוקטיאָנס

The LEONLITE 5CCT Hardscape Light features selectable color temperatures to suit your preference and environment.

6.1 Changing Color Temperature (CCT)

The color temperature can be changed by cycling through the available options. This is typically done via a switch or button on the fixture or by rapidly turning the power off and on from the transformer, depending on the specific model's design for CCT selection. Refer to the product's specific CCT selection mechanism, often a small button or a power cycle sequence.

• The available color temperatures are: 2200K Amber Warm, 2700K Soft White, 3000K Warm White, 4000K Cool White, and 5000K Daylight.
• The light includes a memory function, which means the selected color temperature will remain the same even after the power is turned off and on.

Figure 6: Demonstrating how to select different color temperatures on the fixture.

7. וישאַלט

Regular maintenance ensures optimal performance and longevity of your hardscape lights.

• רייניקונג: רייניקן די ליכט-פיקסטור פון צייט צו צייט מיט א ווייכן, טרוקענעם שטאָף.amp cloth to remove dirt, dust, and debris. Do not use abrasive cleaners or solvents.
• דורכקוק: Regularly inspect the wiring and connections for any signs of damage, wear, or corrosion. Ensure waterproof connectors remain sealed.
• LED סטריפּ פאַרבייַט: In the event of an LED failure, the design allows for replacement of the LED light strip instead of the entire fixture. This simplifies maintenance and extends the product's usable life.

Figure 7: Illustration of replacing the LED light strip, demonstrating ease of maintenance.

8. טראָובלעשאָאָטינג

If you encounter issues with your hardscape lights, refer to the following common problems and solutions:

9. ספּעסאַפאַקיישאַנז

10. וואָראַנטי און שטיצן

LEONLITE products are designed for durability and performance. This product comes with a 24-חודש וואָראַנטי פֿון דעם קויפֿדאַטום, וואָס דעקט חסרונות אין מאַטעריאַלן און אַרבעט אונטער נאָרמאַלן באַנוץ.

For warranty claims, technical support, or any inquiries, please contact LEONLITE customer service through their official website or the retailer where the product was purchased. Please have your purchase receipt and product model number (80793) ready when contacting support.
