1. וויכטיק סאַפעטי אינסטרוקציעס
ביטע ליינט אלע אינסטרוקציעס קערפול איידער איר שטעלט עס צונויף און ניצט עס. האַלט דעם מאַנואַל פֿאַר שפּעטערדיקע רעפֿערענץ.
- זיכער מאַכן אַז אַלע קאָמפּאָנענטן זענען פאַראַן און נישט געשעדיגט איידער איר הייבט אָן די פֿאַרזאַמלונג.
- צוזאַמענשטעלן דעם אַפּאַראַט אויף אַ ווייכער, ריינער ייבערפלאַך צו פאַרמייַדן קראַצן.
- נישט צו שטארק אנציען די שרויפן בעתן צוזאמענשטעלן כדי נישט צו באשעדיגן דאס מאטעריאל.
- האַלטן קליין טיילן אַוועק פון קינדער צו פאַרמייַדן טשאָוקינג כאַזערדז.
- Do not stand on the storage box. The seat load capacity is 120 kg.
- Do not exceed the internal load capacity of 100 kg for stored items.
- קאָנטראָלירט פּעריִאָדיש אַלע פֿאַסטנערס צו זיכער מאַכן אַז זיי בלייבן פֿעסט.
2. פּעקל אינהאַלט
באַשטעטיקט אַז אַלע טיילן וואָס זענען אויסגערעכנט אונטן זענען אַרייַנגערעכנט אין אייער פּעקל. אויב עס פעלן אָדער זענען צעבראָכן טיילן, ביטע קאָנטאַקטירט קונה שטיצע.
- Padded Chest Lid (1)
- זייט פּאַנעלן (2)
- Front/Back Panels (2)
- דנאָ פּאַנעל (1)
- שטאָל ראַם קאָמפּאָנענטן (פאַרשידענע)
- אַדזשאַסטאַבאַל פֿיס (4)
- Hinge Mechanism (1 set)
- פֿאַרזאַמלונג האַרדווער (שרויף, באָלץ, אַלען שליסל)
- Assembly Manual (this document)
3. סעטאַפּ און אַסעמבלי
Follow these steps carefully to assemble your TecTake Calico Quilted Storage Box.
- אויספּאַקן און אידענטיפיצירן טיילן: Carefully remove all components from the packaging. Lay them out on a clean, flat surface. Refer to the parts list to identify each piece.
- צוזאַמענשטעלן דעם שטאָל ראַם: Connect the steel frame components using the provided screws and Allen key. Ensure all connections are secure but do not fully tighten yet.
- Attach Side and Front/Back Panels: Insert the wooden side and front/back panels into the steel frame. Secure them with the appropriate screws.
- אינסטאַלירן אונטערשטע פּאַנעל: Place the bottom panel into the assembled frame and secure it.
- צוטשעפּען אַדזשאַסטאַבאַל פֿיס: Screw the four adjustable feet into the bottom of the steel frame legs. These feet allow for height adjustment on uneven surfaces.
- Attach Hinge Mechanism: Secure the hinge mechanism to the back of the storage box frame and the padded lid. Ensure the hinges are aligned correctly for smooth operation.
- Attach Padded Lid: Carefully place the padded lid onto the hinge mechanism and secure it.
- לעצט טייטנינג: Once all components are in place and aligned, fully tighten all screws. Do not overtighten.

Image: Adjustable foot for leveling the storage box.

Image: Detail of the lid hinge mechanism, ensuring smooth opening and closing.

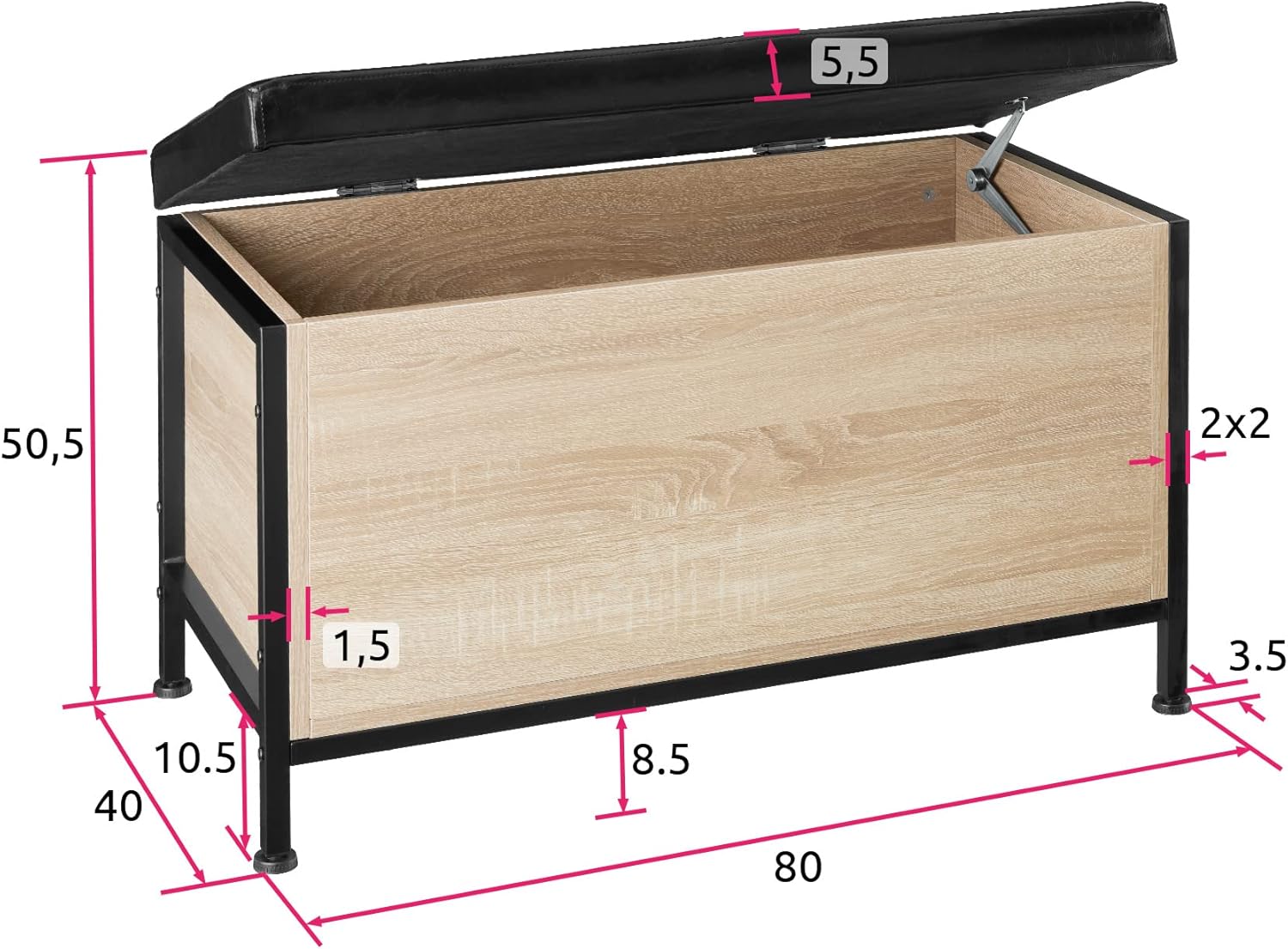

Image: Dimensional diagram of the storage box, illustrating overall and internal measurements.
4. אַפּערייטינג ינסטרוקטיאָנס
The TecTake Calico Quilted Storage Box is designed for versatile use as both a storage unit and a seating option.
- עפענען דעם דעקל: Gently lift the padded lid from the front edge. The hinge mechanism will support the lid in an open position, allowing access to the storage compartment.
- קלאָוזינג די דעקל: Carefully lower the lid until it rests securely on the box frame. Avoid slamming the lid to prevent damage to the hinges.
- ניצן ווי זיצפּלעצער: The padded lid provides a comfortable seating surface. Ensure the lid is fully closed before using it as a seat. The maximum weight capacity for seating is 120 kg.
- סטאָרידזש: Utilize the internal compartment for storing various items such as blankets, pillows, books, or other household goods. Do not exceed the internal load capacity of 100 kg.

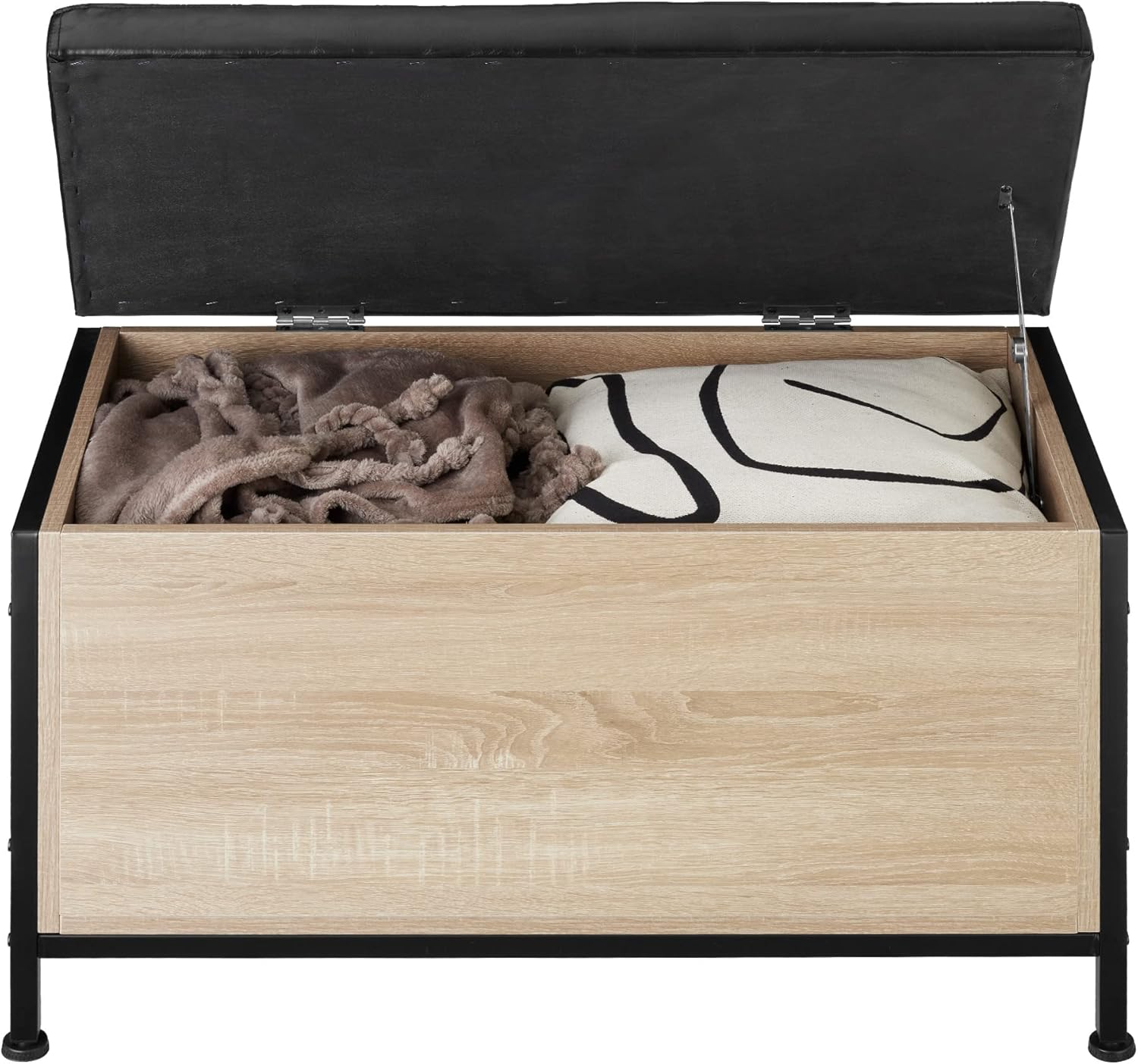

Image: The storage box with its lid open, showcasinג עס איז ample internal storage capacity for items like blankets.

בילד: נאָענט-אַרויף view of the black faux leather quilted top, highlighting its texture and button details.
5. וישאַלט
Proper care will ensure the longevity and appearance of your storage box.
- Cleaning the Wood Panels: ווישט אָפּ האָלצערנע ייבערפלאַכן מיט אַ ווייכן, דamp שטאָף. פֿאַרמײַדט שרײַבנדיקע רייניקונגס־מיטלען אָדער שאַרפֿע כעמיקאַלן וואָס קענען שאַטן דעם ענדיקונג.
- רייניקונג פון די פאָקס לעדער: For the padded top, use a soft cloth with mild soap and water. Wipe dry immediately. Do not use solvents or strong detergents.
- ראַם זאָרגן: The steel frame can be wiped clean with a damp שטאָף.
- רעגולער דורכקוק: קאָנטראָלירט פּעריִאָדיש אַלע שרויפן און פֿאַרשטאַרקער צו זיכער מאַכן אַז זיי זענען פֿעסט. פֿעסטשטײַערט ווידער אויב נייטיק.
- ויסמיידן דירעקט זונשייַן: Prolonged exposure to direct sunlight may cause fading or damage to the materials.
6. טראָובלעשאָאָטינג
If you encounter any issues with your storage box, refer to the following common solutions.
- Wobbly or Uneven: Check if all adjustable feet are properly installed and adjusted. Rotate the feet to level the box on uneven floors. Ensure all frame screws are tightened.
- דעקל איז נישט ריכטיק קלאָוזינג: Verify that the hinge mechanism is correctly aligned and secured. Check for any obstructions in the storage compartment that might prevent the lid from closing fully.
- קוויטשענדיקע גערוישן: Apply a small amount of silicone lubricant to the hinge points if they produce noise during operation.
- Scratches on Surfaces: Minor scratches on wood panels can sometimes be minimized with furniture polish or repair kits. For faux leather, avoid sharp objects.
אויב פראבלעמען בלייבן, ביטע קאנטאקטירט קאסטומער סופארט.
7. ספּעסאַפאַקיישאַנז
| מאָדעל נומער | 801077 |
| קוילעלדיק דימענשאַנז (ב x ד x ה) | אומגעפער 81.5 x 41.5 x 50.5 ס״מ (32.09 x 16.34 x 19.88 אינטשעס) |
| אינעווייניקסטע דימענסיעס (ברייט x טיף x הויך) | בעערעך 73 רענטגענ 37 רענטגענ 32.5 סענטימעטער |
| באַנד | אומגעפער 88 ליטער |
| וואַטן גרעב | 4 סענטימעטער |
| Chipboard Thickness | בעערעך. 1.5 סענטימעטער |
| Steel Frame (Width x Depth) | בעערעך 2 רענטגענ 2 סענטימעטער |
| Plastic Feet Adjustment | בעערעך. 1.5 סענטימעטער |
| Seat Load Capacity | 120 קג |
| Internal Load Capacity | 100 קג |
| מאַטעריאַלס | Engineered Wood, Faux Leather, Alloy Steel, Plastic |
| פּונקט וואָג | אומגעפער 17 ק"ג (37.4 פונט) |
8. וואָראַנטי און שטיצן
TecTake products are designed for quality and durability. For specific warranty information, please refer to the documentation provided at the time of purchase or visit the official TecTake webפּלאַץ.
If you require assistance with assembly, parts, or have any questions regarding your TecTake 801077 Calico Quilted Storage Box, please contact our customer support team:
- Webפּלאַץ: www.tectake.de (or your regional TecTake webפּלאַץ)
- בליצפּאָסט: זעט אייערע קויפן דאקומענטן פאר ספעציפישע קאנטאקט דעטאלן.
- טעלעפֿאָן: זעט אייערע קויפן דאקומענטן פאר ספעציפישע קאנטאקט דעטאלן.
ביטע האַלט אייער מאָדעל נומער (801077) און קויף דאַטע גרייט ווען איר קאָנטאַקטירט שטיצע.
