1. הקדמה
This manual provides detailed instructions for the installation, usage, and maintenance of your Focket Motorcycle Rear Luggage Rack. Designed specifically for the Monkey 125 models from 2018 to 2022, this rack offers a secure solution for carrying additional cargo.
2. פּראָדוקט פֿעיִקייטן
- High-Strength Material: Constructed from durable carbon steel with a chrome-plated surface for enhanced stability, longevity, and resistance to rust and discoloration.
- שטאַרק פּלאַן: Features a 22mm diameter rack pipe, engineered to resist deformation under load.
- מאַסע קאַפּאַציטעט: Capable of supporting a maximum weight of 20KG (approximately 44 lbs), suitable for various cargo types.
- Integrated Hand Grab Rail: Includes a tail seat hand grab rail area, providing a stable grip for rear passengers to improve safety.
- גרינג ינסטאַלירונג: Designed for direct attachment to existing frame points on the motorcycle, requiring no drilling or cutting.
Image 2.1: The Focket Motorcycle Rear Luggage Rack, showcasing its chrome-plated finish and robust construction.

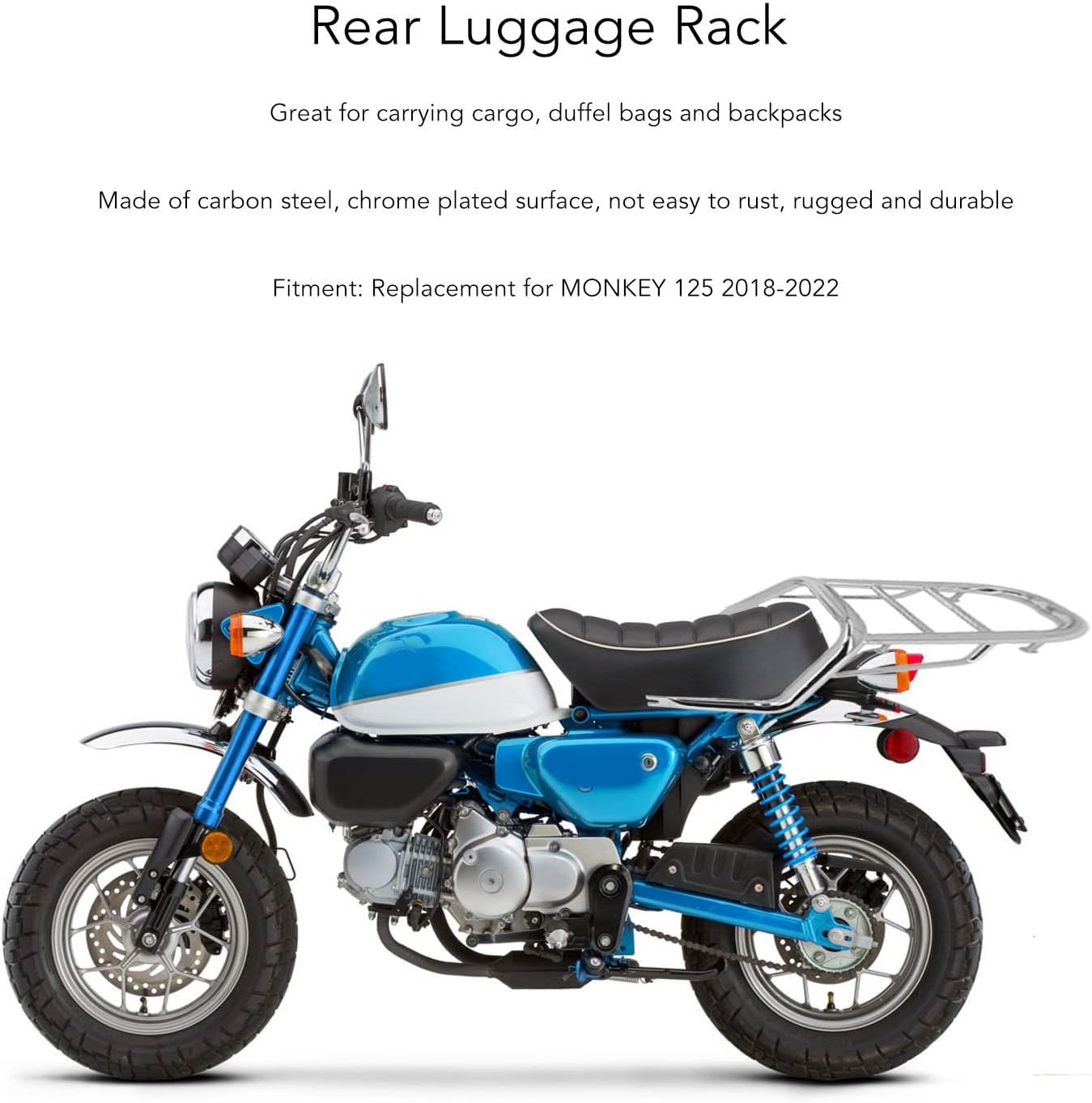

Image 2.2: A blue Monkey 125 motorcycle equipped with the Focket Rear Luggage Rack, demonstrating its integrated appearance.
3. ספּעסאַפאַקיישאַנז
| אַטריביוט | ווערט |
|---|---|
| מאַטעריאַל | Carbon Steel, Chrome Plated |
| דימענסיעס (L X W X H) | 420 X 270 X 120 מם (16.54 X 10.63 X 4.72 אינטשעס) |
| רער דיאַמעטער | אומגעפער 22 מ״מ (0.87 אינטשעס) |
| פּונקט וואָג | 1.56 קג (3.45 פונט) |
| מאַקסימום מאַסע קאַפּאַציטעט | 20 קג (44 לבס) |
| פיטמענט | MONKEY 125 (2018-2022) |
Image 3.1: Dimensional diagram of the luggage rack, indicating length, width, height, and pipe diameter.
4. פּעקל אינהאַלט
דער פּעקל טיפּיקלי כולל:
- 1 x Focket Motorcycle Rear Luggage Rack
- Necessary mounting hardware (bolts, washers, etc.)
5. זיכערקייַט אינפֿאָרמאַציע
- Ensure all mounting hardware is securely tightened before each ride.
- Do not exceed the maximum load capacity of 20KG (44 lbs). Overloading can affect motorcycle handling and stability.
- Distribute weight evenly on the rack to maintain balance.
- Regularly inspect the rack for any signs of wear, damage, or loose fasteners.
- Always use appropriate tie-downs or cargo nets to secure items to the rack, preventing shifting or loss during transit.
6. ינסטאַללאַטיאָן גייד
Installation of the Focket Motorcycle Rear Luggage Rack is designed to be straightforward, utilizing existing mounting points on your Monkey 125. No drilling or cutting is required.
- צוגרייטן דעם מאָטאָציקל: Ensure the motorcycle is stable on its kickstand or a stand. Turn off the engine and remove the ignition key.
- אידענטיפיצירן בארג-פונקטן: Locate the designated mounting points on the rear frame of your Monkey 125. These are typically where the original rear fender or seat bolts attach.
- שטעלט דעם געשטעל: Carefully align the Focket Rear Luggage Rack with the identified mounting points.
- צוטשעפּען האַרדווער: Insert the provided bolts through the rack's mounting holes and into the motorcycle's frame. Hand-tighten all bolts initially.
- לעצט טייטנינג: Once all bolts are in place and the rack is properly aligned, use appropriate tools to securely tighten all fasteners. Do not overtighten, but ensure they are firm.
- באַשטעטיקן סטאַביליטי: Gently shake the installed rack to confirm it is securely attached and does not wobble. Re-check all fasteners if any movement is detected.

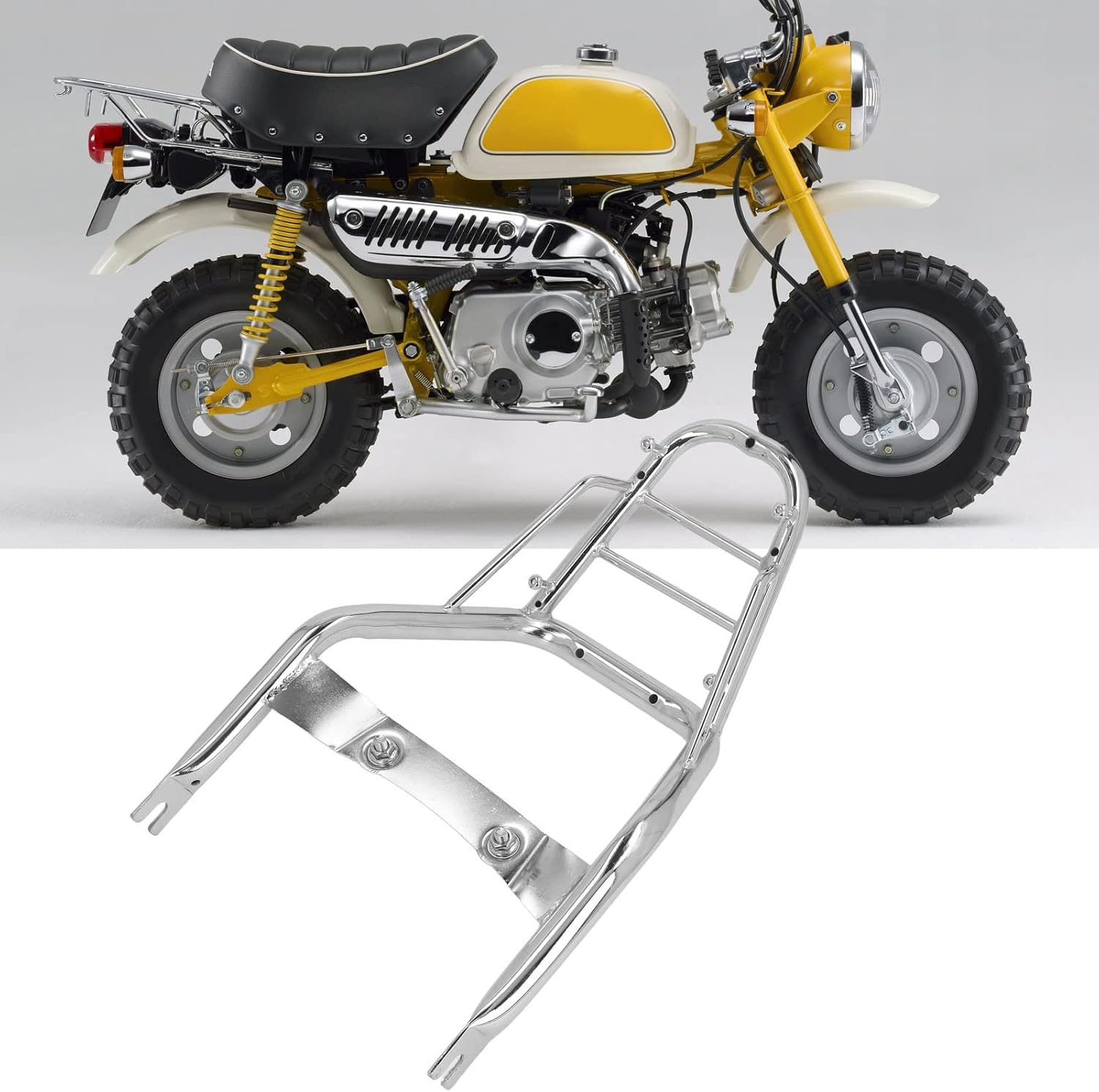

Image 6.1: The luggage rack positioned in front of a yellow Monkey 125, illustrating its intended placement.
Image 6.2: The luggage rack shown with a red Monkey 125, providing another visual reference for installation.
7. באַניץ
The Focket Rear Luggage Rack is designed to enhance the utility of your Monkey 125 by providing a stable platform for carrying various items.
- Cargo Transport: Use the rack to secure duffel bags, backpacks, small boxes, or other cargo. Always use bungee cords, cargo nets, or straps to prevent items from falling off during travel.
- Passenger Hand Grab: The integrated hand grab rail offers a secure point for rear passengers to hold onto, increasing their comfort and safety.
- וואָג פאַרשפּרייטונג: When loading cargo, distribute the weight as evenly as possible and keep heavier items closer to the center of the motorcycle to maintain optimal balance and handling.
8. וישאַלט
Proper maintenance will ensure the longevity and continued performance of your luggage rack.
- רייניקונג: Clean the chrome-plated surface regularly with a soft cloth and a mild, non-abrasive cleaner. Avoid harsh chemicals that could damage the finish.
- דורכקוק: Periodically check all mounting bolts and fasteners for tightness. Vibrations from riding can cause fasteners to loosen over time.
- שעדיקן טשעק: Inspect the rack for any signs of bending, cracks, or corrosion, especially after heavy use or impacts. Replace the rack if significant damage is observed.
9. טראָובלעשאָאָטינג
- רעקל פּאַסט נישט: Double-check that your motorcycle is a Monkey 125 model from the years 2018-2022. Ensure you are aligning the rack correctly with the designated mounting points.
- Rack Feels Loose After Installation: Re-tighten all mounting bolts. If the issue persists, ensure all washers and spacers (if any were included) are correctly installed.
- Chrome Finish Discoloration: Ensure proper cleaning methods are used. Avoid prolonged exposure to harsh chemicals or extreme weather conditions without protection.
10. וואָראַנטי און שטיצן
Focket products are manufactured to high-quality standards. For specific warranty information, please refer to the documentation provided with your purchase or contact Focket customer service directly. If you encounter any issues or have questions regarding your product, please reach out to the seller or manufacturer for assistance.
