1. הקדמה
The XTAR SC1 Plus is a versatile single-slot battery charger designed for various rechargeable Li-ion and Ni-MH batteries. It features a 3A fast charging capability and can also function as a portable power bank, allowing you to charge other devices using an inserted battery. Its compact design and Type-C input make it suitable for travel and everyday use.
2. זיכערקייַט אינפֿאָרמאַציע
- Use this charger only for specified battery types (3.6/3.7V Li-ion, 1.2V Ni-MH D batteries). Charging other battery types may cause explosion, battery rupture, or leakage, leading to property damage and personal injury.
- דו זאלסט נישט דיסאַסעמבאַל אָדער מאָדיפיצירן די טשאַרדזשער.
- Keep the charger away from water, high humidity, and high temperatures.
- דו זאלסט נישט לאָזן די טשאַרדזשער אַנאַטענדיד בעשאַס אָפּעראַציע.
- האַלטן אויס פון דערגרייכן פון קינדער.
- Ensure proper polarity when inserting batteries. Incorrect insertion can cause damage to the charger and battery.
- Use a compatible power adapter (QC/PD adapter >15W recommended for 3A fast charging).
3. פּעקל אינהאַלט
The XTAR SC1 Plus package includes:
- 1x XTAR SC1 Plus Charger
- 1x USB-C קאַבלע
- 1x Adjustable Strap
- 1x באַניצער מאַנואַל
Image: XTAR SC1 Plus package contents.
4. פּראָדוקט פֿעיִקייטן
- וניווערסאַל קאַמפּאַטאַבילאַטי: Supports 3.6/3.7V Li-ion batteries (18650, 18700, 20700, 21700, 22650, 25500, 26650, 26800) and 1.2V Ni-MH D batteries. Optimized for protected 26800 Li-ion batteries.
- 3A שנעלע טשאַרדזשינג: Achieves maximum 3A charging current, capable of charging a 5000mAh battery to 90% in approximately 90 minutes.
- מאַכט באַנק פֿונקציע: Converts into a portable power bank when a charged battery is inserted, providing 5V/2A USB output to charge other devices.
- טיפּ C אַרייַנשרייַב: Convenient USB-C input port for power supply.
- אַדזשאַסטאַבאַל רימען: Features a stretchable and durable silicone belt to securely fasten batteries of various sizes.
- Intelligent LED Indicators: Four LED lights indicate charging status and battery power level (25%, 50%, 75%, 100%).
- אָפּטימיזאַטיאָן פון באַטאַרייע לעבן: Accurate cut-off voltage and efficient charging prevent overcharge, extending battery lifespan.
- 0V Activation: Capable of activating over-discharged batteries.
- זיכערהייט סערטיפיקאַטיאָנס: Complies with CE and FCC standards.
Image: XTAR SC1 Plus demonstrating compatibility with various battery sizes.
Image: Adjustable silicone strap for secure battery fit.
5. סעטאַפּ און אָפּעראַציע
5.1 טשאַרדזשינג באַטעריז
- Connect the XTAR SC1 Plus charger to a power source using the provided USB-C cable. A QC/PD adapter (>15W) is recommended for optimal 3A fast charging.
- Insert a compatible rechargeable battery into the charging slot, ensuring correct polarity (+ and - ends).
- Adjust the blue silicone strap to securely hold the battery in place.
- The LED indicators will illuminate to show the charging progress.
- Once charging is complete, all four LED indicators will be solid. Remove the battery from the charger.
Image: XTAR SC1 Plus connected to a QC3.0 adapter for fast charging.
Image: Visual representation of the battery charging process.
5.2 פּאַוער באַנק פונקציע
- Ensure a charged compatible battery is inserted into the XTAR SC1 Plus charger.
- Connect your external device (e.g., smartphone, flashlight) to the USB-A output port of the SC1 Plus using a suitable USB cable.
- The SC1 Plus will begin to discharge the internal battery to charge your external device. The LED indicators will show the remaining power level of the inserted battery.

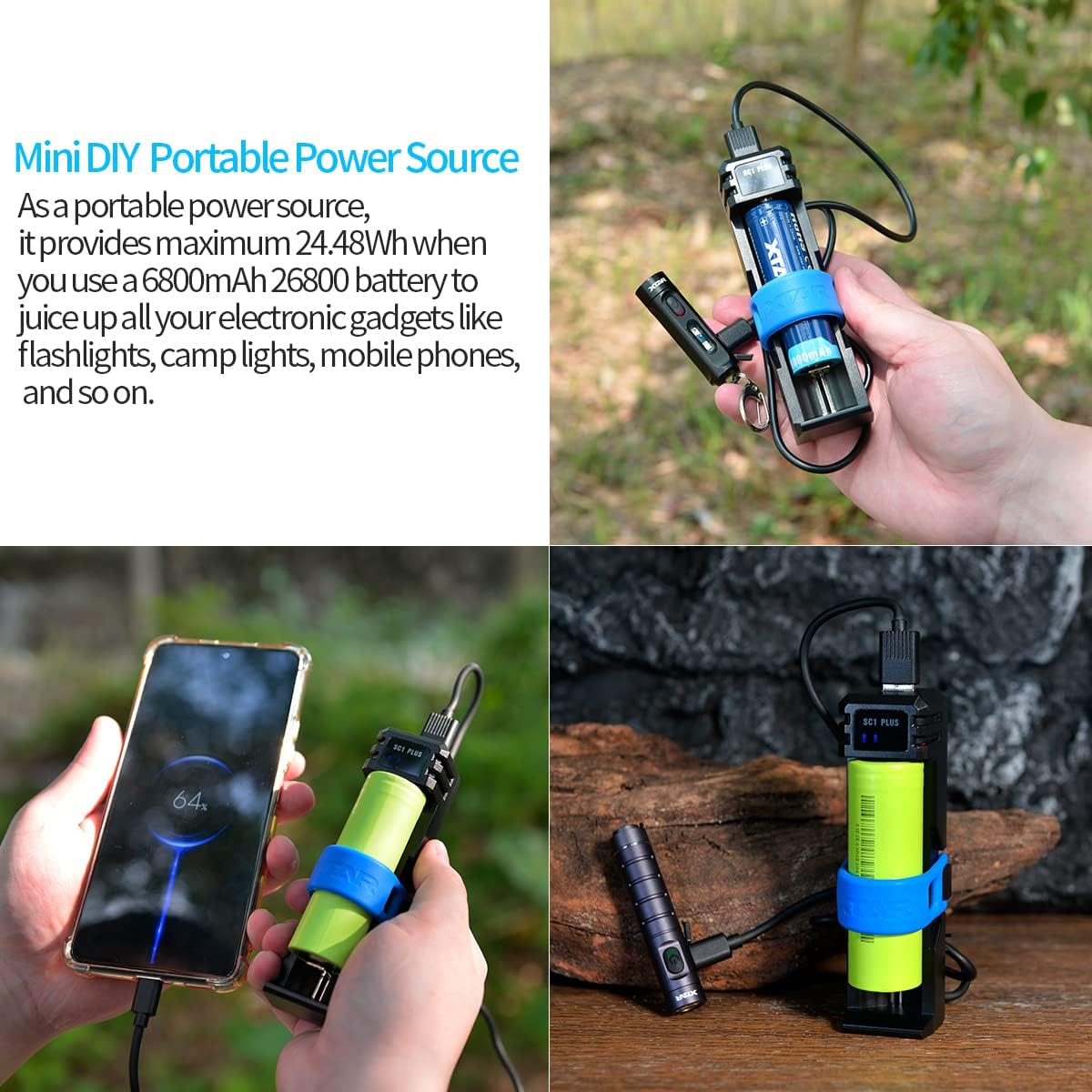

Image: XTAR SC1 Plus functioning as a power bank to charge a smartphone.
Image: XTAR SC1 Plus charging a small device.
6. באַטעריע קאָמפּאַטאַביליטי
The XTAR SC1 Plus is compatible with the following battery types:
- 3.6V/3.7V Li-ion Batteries: 18650, 18700, 20700, 21700, 22650, 25500, 26650, 26800 (including protected 26800 Li-ion batteries).
- 1.2V Ni-MH Batteries: D size.
Image: Visual guide to compatible battery types and sizes.
7. געפֿירט ינדיקאַטאָרס
The XTAR SC1 Plus features four LED indicators to display charging status and battery power level:
- איין LED: 0-25% charged / remaining power.
- צוויי על-אי-דיס: 25-50% charged / remaining power.
- דריי לעדס: 50-75% charged / remaining power.
- פיר לעדס: 75-100% charged / remaining power.
During charging, the LEDs will flash to indicate progress. Once fully charged, all four LEDs will remain solid.
Image: Explanation of LED indicator states for charge level.
8. וישאַלט
- Clean the charger regularly with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- סטאָר די טשאַרדזשער אין אַ קיל, טרוקן אָרט ווען ניט אין נוצן.
- פֿאַרמײַדט צו לאָזן פֿאַלן דעם טשאַרדזשער אָדער אים אויסשטעלן צו שטאַרקע קלאַפּן.
- Ensure the USB-C port and USB-A port are free from dust and debris.
9. טראָובלעשאָאָטינג
- טשאַרדזשער איז נישט פּאַוערינג: זיכער מאַכן אַז דער USB-C קאַבל איז זיכער פארבונדן צו ביידע דעם טשאַרדזשער און אַ אַרבעטנדיקער מאַכט מקור. פּרוּווט אַן אַנדער USB-C קאַבל אָדער מאַכט אַדאַפּטער.
- באַטערי נישט טשאַרדזשינג: Check if the battery is inserted with correct polarity. Ensure the battery is compatible with the charger. If the battery is deeply discharged (0V), the charger's activation function should attempt to revive it.
- פּאַמעלעך טשאַרדזשינג: Verify that your power adapter is capable of delivering sufficient power (QC/PD adapter >15W for 3A charging). The charger automatically adjusts current based on battery IR, so a very low or nearly full battery might charge slower.
- פּאַוער באַנק פונקציע אַרבעט נישט: Ensure the inserted battery is sufficiently charged. Check the connection between the charger's USB-A output and your external device.
10. ספּעסאַפאַקיישאַנז
| שטריך | דעטאַל |
|---|---|
| מאָדעל | SC1 פּלוס |
| טיפּ-C אַרייַנשרייַב | 5V ≈ 3A Max |
| Constant Current (Ni-MH) | 1.45V ≈ 2Ax1 Max |
| וסב רעזולטאַט | 5וו ≈ 2אַ |
| דורכשניט-אוף חלקtage | 4.20 ± 0.05V (Li-ion) / 1.45 ± 0.1V (Ni-MH) |
| דורכשניט-אַוועק קראַנט | ≤ 150 מאַ |
| אַפּערייטינג טעמפּעראַטור | 0-40 °C |
Image: Detailed specifications for the XTAR SC1 Plus charger.
11. פּראָדוקט ווידעאָ
ווידעא: איבערview of the XTAR SC1 Plus 18650 26800 Battery Charger with Power Bank Function, demonstrating its features and usage.
12. וואָראַנטי און שטיצן
XTAR has a long history of manufacturing quality chargers. For any questions or support during use, please contact the XTAR official team via Amazon. Customer inquiries are typically responded to within 8 hours.
