AOC CU34V5C 34-inch Ultrawide QHD Monitor User Manual

הקדמה

This manual provides essential information for the proper setup, operation, and maintenance of your AOC CU34V5C 34-inch Ultrawide QHD VA monitor. The CU34V5C features a curved panel with Ultrawide QHD 21:9 resolution, designed for an immersive viewing experience and enhanced productivity. It includes USB-C with Power Delivery up to 65W, multiple USB ports, and HDMI connectivity, along with Picture by Picture MultiView פאַנגקשאַנאַליטי.

סעטאַפּ

1. אויספּאַקן און שטאַנד אַסעמבלי

Carefully remove the monitor and all components from the packaging. Place the monitor face down on a soft, clean surface to prevent scratches. Assemble the stand base to the stand column, then attach the assembled stand to the monitor. Ensure all screws are securely tightened.

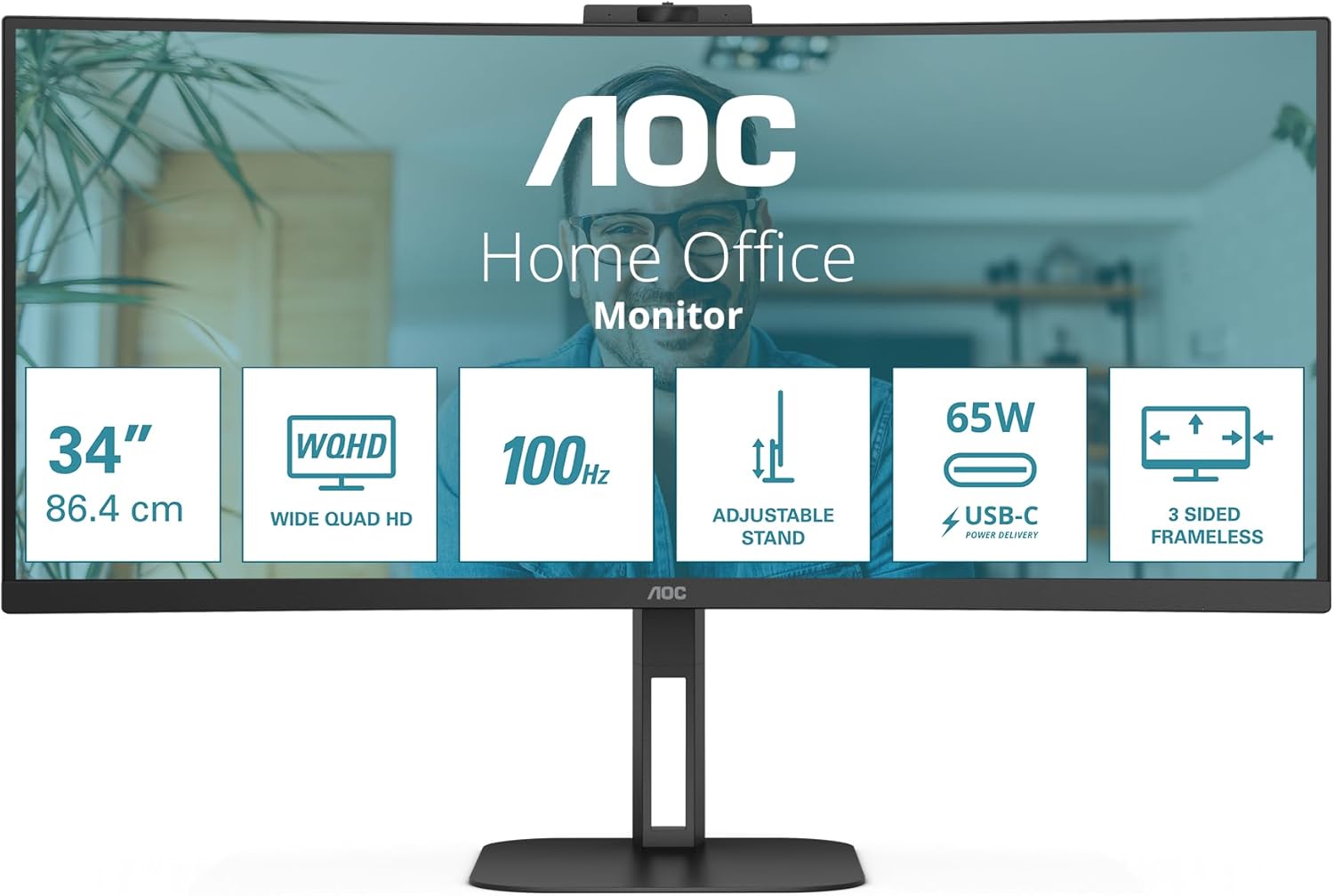

בילד: פראָנט view of the AOC CU34V5C monitor, illustrating its curved screen and adjustable stand.

בילד: הינטערשטע view of the AOC CU34V5C monitor, showing the attachment point for the stand and the overall design.

2. קאַנעקטינג קאַבלעס

Connect the necessary cables to the monitor's input ports. The monitor supports various connections for versatility.

• מאַכט קאַבלע: Connect the AC power cable to the monitor's power input and then to a power outlet.
• הדמי: Use an HDMI cable to connect your computer or other video source to the monitor's HDMI 1x2.0 port.
• DisplayPort: For optimal performance, connect your computer to the monitor using a DisplayPort cable.
• וסב- C: Connect a USB-C cable from your compatible device to the monitor's USB-C port. This port supports video, data transfer, and Power Delivery up to 65W, allowing you to charge your device while displaying content.
• וסב כאַב: Utilize the integrated USB hub by connecting the upstream USB cable (if not using USB-C for data) from your computer to the monitor. Then, connect your USB peripherals (keyboard, mouse, etc.) to the monitor's 4x USB 3.2 ports.
• אַודיאָ אָוט: פֿאַרבינדט עקסטערנע רעדנערס אָדער כעדפאָונז צו די אַודיאָ אויסגאַנג פּאָרט אויב איר ווילט.

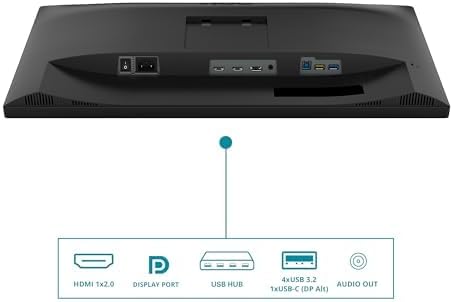

Image: Diagram illustrating the various input and output ports on the AOC CU34V5C monitor, including HDMI, DisplayPort, USB Hub, USB-C, and Audio Out.

3. Adjusting the Stand

The monitor features an adjustable stand for ergonomic viewing. You can adjust the tilt and height of the display to suit your preference.

• הייך אַדזשאַסטמאַנט: Gently push or pull the monitor up or down to adjust its height. The stand allows for up to 130 mm of vertical adjustment.
• טילט אַדזשאַסטמאַנט: Tilt the screen forward or backward to find your optimal viewינג ווינקל.

בילד: זייט view of the AOC CU34V5C monitor, highlighting the range of height adjustment available with its stand.

אַפּערייטינג ינסטראַקשאַנז

1. מאַכט אויף / אויסגעלאשן

Press the power button, usually located on the bottom right or rear of the monitor, to turn the display on or off. The power indicator light will illuminate when the monitor is active.

2. אויף-סקרין ווייַז (אָסד) מעניו

The OSD menu allows you to configure various monitor settings. Use the control buttons (joystick or individual buttons) typically found on the bottom or rear of the monitor to navigate the menu.

• בילד סעטטינגס: Adjust brightness, contrast, color temperature, and other image parameters.
• אַרייַנשרייַב סעלעקציע: מאַנועל אויסקלײַבן די אינפוט מקור (HDMI, DisplayPort, USB-C).
• אַודיאָ סעטטינגס: Control volume and other audio-related options for the built-in speakers or audio output.
• OSD סעטטינגס: Customize the OSD menu's language, transparency, and timeout.

3. מולטיView (Picture by Picture)

The AOC CU34V5C supports MultiView, specifically Picture by Picture (PbP) mode. This feature allows you to display content from two different input sources simultaneously on the screen, side-by-side. Refer to the OSD menu for specific instructions on activating and configuring PbP mode.

4. USB-C Functionality

The USB-C port provides a single-cable solution for compatible devices, offering:

• ווידעא סיגנאַל: Display content from your device.
• דאַטאַ אַריבערפירן: Access devices connected to the monitor's USB hub.
• Power Delivery (65W): Charge your connected laptop or device directly through the monitor.

וישאַלט

1. רייניקן דעם עקראַן

צו רייניקן דעם מאָניטאָר עקראַן, ווישט עס אָפּ מיט אַ ווייכן, לינט-פֿרייע שטאָף. פֿאַר שווערע פֿלעקן, ווישט עס אָפּ לייכט.ampen the cloth with water or a non-abrasive, monitor-safe cleaning solution. Avoid using harsh chemicals, alcohol, or ammonia-based cleaners, as these can damage the screen surface.

2. אַלגעמיינע קער

• האַלט דעם מאָניטאָר אַוועק פון דירעקטער זון, איבערגעטריבענער היץ און הומידיטי.
• זיכערט זיך אז עס זאָל זיין גענוג ווענטילאַציע אַרום דעם מאָניטאָר כדי צו פאַרמייַדן איבערהיצונג.
• פֿאַרמײַדט צו שטעלן שווערע זאַכן אויף דעם מאָניטאָר אָדער זײַנע קאַבלען.
• Unplug the monitor from the power outlet during electrical storms or when not in use for extended periods.

טראָובלעשאָאָטינג

אויב איר טרעפט פּראָבלעמען מיט אייער מאָניטאָר, זעט די פאלגענדע געוויינטלעכע טראָובלעשווטינג טריט:

• קיין מאַכט: זיכער מאַכן אַז דער עלעקטרישער קאַבל איז זיכער פֿאַרבונדן צו ביידע דעם מאָניטאָר און די עלעקטרישע אַוטלעט. קאָנטראָלירט צי די עלעקטרישע אַוטלעט אַרבעט.
• קיין סיגנאַל: Verify that the video cable (HDMI, DisplayPort, or USB-C) is correctly connected to both the monitor and your computer. Ensure the correct input source is selected in the monitor's OSD menu.
• פליקערנדיק אדער פארדרייט בילד: Check the video cable for damage. Try a different cable or input port. Ensure your computer's graphics drivers are up to date.
• Image Too Dark/Bright: Adjust the brightness and contrast settings in the OSD menu.
• וסב פּאָרץ נישט ארבעטן: Ensure the USB upstream cable (or USB-C cable) is connected from the monitor to your computer. Check device manager on your computer for any USB driver issues.

If problems persist after trying these steps, contact AOC customer support for further assistance.

ספּעסאַפאַקיישאַנז

Key technical specifications for the AOC CU34V5C monitor:

ענערגיע אינפֿאָרמאַציע

Image: EU Energy Label for the AOC CU34V5C monitor, indicating its energy efficiency class and consumption.

For detailed product information and energy efficiency data, please visit the EPREL database: https://eprel.ec.europa.eu/qr/1245431

וואָראַנטי אינפֿאָרמאַציע

AOC monitors typically come with a limited warranty. The exact terms and duration of your warranty may vary by region and retailer. Please refer to the warranty card included with your purchase or visit the official AOC website for detailed warranty information specific to your product and location. Keep your proof of purchase for warranty claims.

שטיצן

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact AOC customer support. You can usually find contact information, FAQs, and driver downloads on the official AOC webפּלאַץ.

א דאנק אייך פארן אויסקלויבן AOC.
