1. הקדמה
פּראָדוקט איבערview
The Maxxima 3-Way/Single Pole Digital Dimmer Wall Light Switch is designed to provide versatile lighting control for your home or commercial space. It features a button-controlled dimmer with green LED indicator lights to display brightness levels. This switch is compatible with incandescent, halogen, and dimmable LED/CFL bulbs, offering a flexible solution for various lighting needs.
- ווערסאַטאַל קאַמפּאַטאַבילאַטי: Supports both 3-way and single-pole wiring configurations.
- ברייטנאַס ינדיקאַטאָרס: Green LED lights clearly show the current dimming level.
- הויך קאַפּאַציטעט: Handles up to 600W for incandescent/halogen and 150W for dimmable LED/CFL.
- No Neutral Wire Required: Simplifies installation in many existing setups.
- פּינטלעך קאָנטראָל: Independent on/off button and dedicated dimming buttons for fine-tuning light levels.
- אַדזשאַסטאַבאַל סענסיטיוויטי: Trim buttons allow for fine-tuning compatibility with various LED lamps.

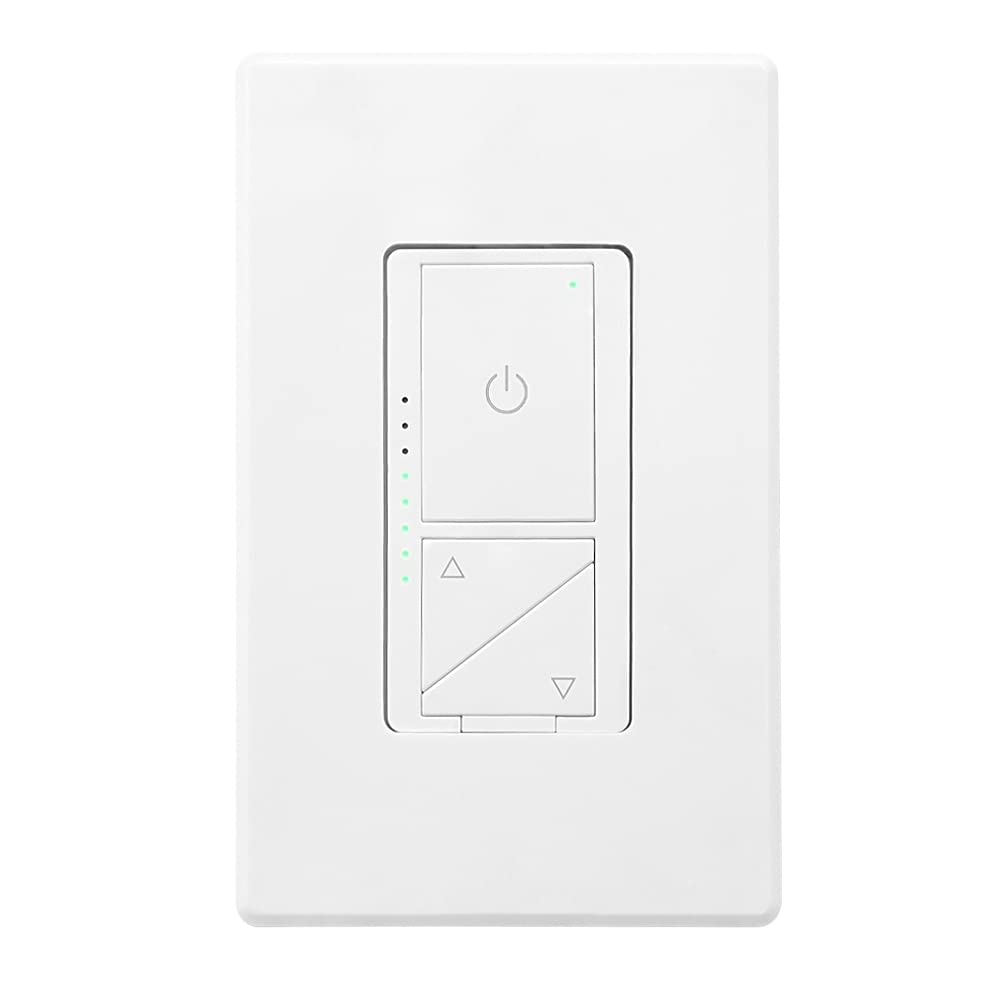

פיגורע 1: פראָנט view of the Maxxima Digital Dimmer Wall Light Switch.
2. סעטאַפּ און ייַנמאָנטירונג
איידער איר אָנהייבן
ווארענונג: To avoid fire, shock, or death, turn off power at the circuit breaker or fuse box and test that the power is off before wiring. Installation should be performed by a qualified electrician or a person with a thorough understanding of electrical wiring.
- Ensure the power is OFF at the circuit breaker before beginning installation.
- This dimmer is designed for use with 120VAC, 60Hz.
- Do NOT use with non-dimmable lighting or ceiling fans.
מכשירים פארלאנגט
- שרויפנ - ציער (פיליפּס און פלאַטהעאַד)
- דראָט סטריפּערז
- עלעקטריקאַל טייפּ
- VoltagE טעסטער
וויירינג דיאַגראַמע
The Maxxima Digital Dimmer is compatible with both single-pole and 3-way wiring configurations. Refer to the detailed wiring instructions provided in the official installation manual for specific diagrams. The switch operates at 120VAC and does not require a neutral wire.
פיגורע 2: צוריק view of the dimmer switch with wiring details.
ינסטאַללאַטיאָן סטעפּס
- קער אַוועק מאַכט: Locate the circuit breaker controlling the switch location and turn it OFF. Verify power is off using a voltagE tester.
- אַראָפּנעמען אַלטן סוויטש: Carefully remove the existing wall plate and switch from the wall box. Disconnect the wires.
- Wire the New Dimmer: Connect the wires from the wall box to the dimmer switch according to the wiring diagram in the full manual. Ensure all connections are secure.
- בארג די דימער: Gently push the wired dimmer into the wall box. Secure it with the provided screws.
- צוטשעפּען וואַנט פּלאַטע: Snap the screwless wall plate onto the dimmer for a clean finish.
- ומקערן מאַכט: צינדט צוריק אן די מאַכט ביים קרייַז ברעיקער.
Figure 3: Maxxima Digital Dimmer Switch installed on a wall.
3. אָפּעראַציע
יקערדיק קאָנטראָלס
The Maxxima Digital Dimmer features intuitive controls for easy light management:
- אויף / אַוועק קנעפּל: The large button with the power symbol (⏻) at the top controls the main power to the lights. Press once to turn lights ON or OFF.
- דימינג קנעפּלעך: The two triangular buttons below the power button control the brightness. The top triangle increases brightness, and the bottom triangle decreases brightness.
Figure 4: Controls of the Maxxima Digital Dimmer Switch.
ברייטנאַס אַדזשאַסטמאַנט
צו סטרויערן די ברייטנאַס מדרגה:
- קעסיידערדיק דימינג: Press and hold the up (▲) or down (▼) arrow button to smoothly increase or decrease the light intensity. Release the button when the desired brightness is reached.
- Preset Levels: Short-click the up (▲) or down (▼) arrow button to cycle through preset brightness levels.
- ינדיקאַטאָר לייץ: The green LED lights on the left side of the switch illuminate to indicate the current brightness level. More lights mean brighter illumination.
סענסיטיוויטי אַדזשאַסטמאַנט
For optimal performance with various LED lamps, the dimmer includes sensitivity adjustment trim buttons located below the cover plate. These allow you to fine-tune the dimmer's response to prevent flickering or ensure proper dimming range.
Figure 5: Trim buttons for sensitivity adjustment located under the cover plate.
4. וישאַלט
The Maxxima Digital Dimmer Wall Light Switch requires minimal maintenance. Follow these guidelines to ensure its longevity and proper function:
- רייניקונג: To clean the switch and wall plate, gently wipe with a soft, damp cloth. Do NOT use abrasive cleaners, solvents, or chemical sprays, as these can damage the finish or internal components.
- דורכקוק: Periodically inspect the switch for any signs of damage, loose connections, or unusual operation. If any issues are observed, turn off power at the circuit breaker and consult a qualified electrician.
- קיין באַניצער-סערוויסאַבלע פּאַרץ: There are no user-serviceable parts inside the dimmer. Do not attempt to open or repair the unit yourself.
5. טראָובלעשאָאָטינג
If you experience issues with your Maxxima Digital Dimmer, refer to the table below for common problems and their solutions.
| פּראָבלעם | מעגלעך סיבה | לייזונג |
|---|---|---|
| די ליכטער צינדן זיך נישט אן. | No power to the switch; Loose wiring connection; Burnt-out bulb. | Check circuit breaker; Verify wiring connections are secure; Replace bulb. |
| Lights do not dim or flicker. | Non-dimmable bulbs; Incompatible LED/CFL bulbs; Sensitivity not adjusted. | Ensure dimmable bulbs are used; Adjust sensitivity using trim buttons (refer to Section 3); Try different brand/type of dimmable LED/CFL. |
| דימער איז וואַרעם צום אָנרירן. | נאָרמאַלע אָפּעראַציע; איבערלאַסט. | Slight warmth is normal. If excessively hot, turn off power and check total wattage of connected bulbs. Do not exceed maximum capacity. |
| LED indicator lights are not working. | אינערלעכער שולד. | Contact Maxxima customer support for assistance. |
If the problem persists after attempting these solutions, please contact Maxxima customer support or a qualified electrician.
6. ספּעסאַפאַקיישאַנז
| באַשרייַבונג | דעטאַל |
|---|---|
| מאָדעל נומער | MEW-DM680 |
| פּראָדוקט דימענשאַנז | 1.74” W x 4.14” L x 1.28” D (4 x 2 x 1 inches) |
| וואָג | 5.29 אונסעס |
| אַרייַנשרייַב וואָלtage | 120VAC, 60Hz |
| מאַקס. גלייכנדיק/האַלאָגען לאָוד | 600 וו |
| Max. Dimmable LED/CFL Load | 150 וו |
| וויירינג טיפּ | Single-Pole or 3-Way |
| נייטראַל דראָט פארלאנגט | ניין |
| אָפּעראַציע מאָדע | מאַנואַל |
| סערטיפיקאַטיאָנס | ETL ליסטעד |
| אַרייַנגערעכנט אַקסעסעריז | סקרעוולעסס וואנט פּלאַטע |
7. וואָראַנטי און שטיצן
וואָראַנטי אינפֿאָרמאַציע
The Maxxima Digital Dimmer Wall Light Switch (Model: MEW-DM680) comes with a 2 יאָר וואָראַנטי from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, misuse, abuse, or unauthorized modifications.
קונה שטיצן
For technical assistance, troubleshooting, or warranty claims, please contact Maxxima customer support:
- Webפּלאַץ: Visit the official Maxxima webזייטל פֿאַר שטיצע רעסורסן און קאָנטאַקט אינפֿאָרמאַציע.
- בליצפּאָסט: Refer to your product packaging or the Maxxima webוועבזייטל פֿאַר קונה סערוויס אימעיל.
- טעלעפֿאָן: Refer to your product packaging or the Maxxima webזייטל פֿאַר קונה סערוויס טעלעפאָן נומער.
You can also find the official Installation Manual (PDF) for this product דאָ.
