זענדורע סופּערבייס פּראָ 1500 פּאָרטאַטיוו מאַכט סטאַנציע באַניצער מאַנואַל

1. הקדמה און איבערview

The Zendure SuperBase Pro 1500 is a high-capacity portable power station designed for versatile use, from emergency home backup to outdoor adventures. Featuring a 1440Wh LiFePO4 battery and 2000W AC output, it provides reliable power for a wide range of devices. This manual provides essential information for the safe and efficient operation of your SuperBase Pro 1500.

Figure 1.1: Zendure SuperBase Pro 1500 Portable Power Station, showcasing its compact design with wheels and handle.

שליסל פֿעיִקייטן:

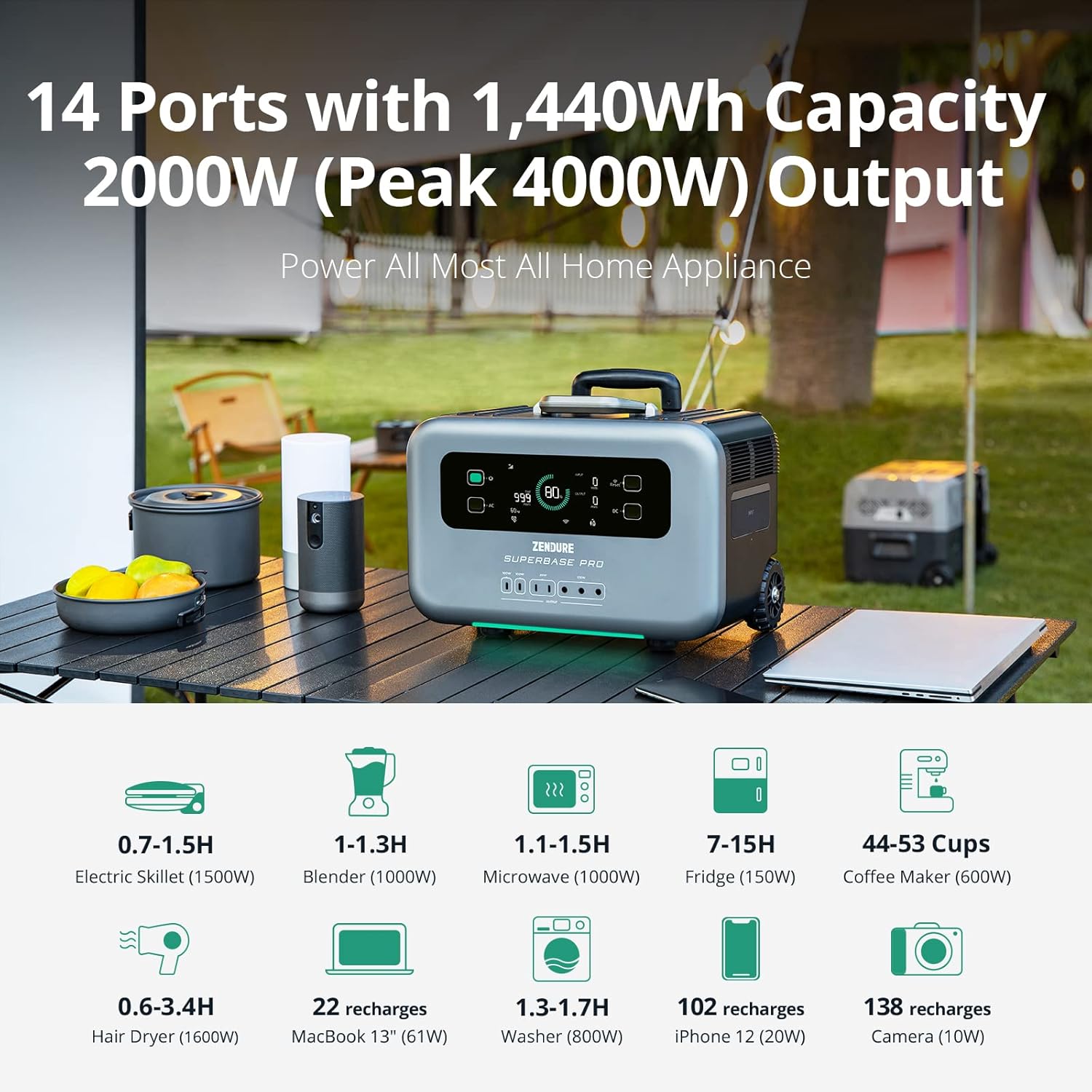

• 1440Wh Capacity & 2000W AC Output: Capable of powering up to 14 devices simultaneously with a surge capacity of 4000W.
• שנעל ריטשאַרדזשינג: Achieves 0 to 75% charge in 1 hour and 100% in 2 hours via AC1800W input.
• LiFePO4 באַטעריע: Offers a long life cycle of 3000 charges to 80% capacity, ensuring durability and safety.
• סמאַרט קאַנעקטיוויטי: Integrated 4G IoT, GPS, and Wi-Fi for remote monitoring and control via the Zendure app.

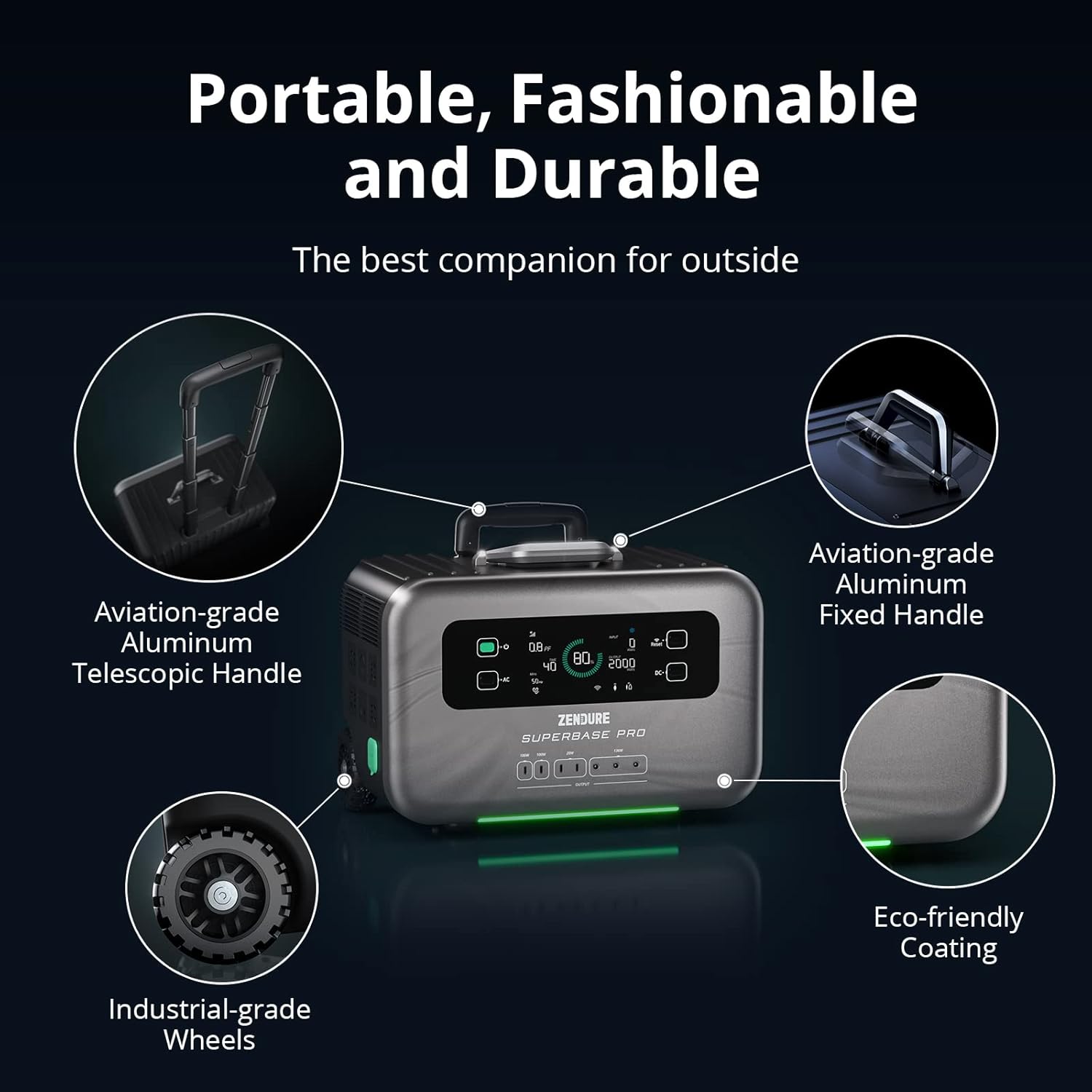

• פּאָרטאַטיוו פּלאַן: Equipped with industrial-grade wheels and a telescopic aluminum handle for easy transport.
• ונינטעררופּטיבלע מאַכט צושטעלן (UPS): Provides seamless power transition in 13ms during outages to protect sensitive equipment.

2. אויפשטעלן און ערשטע אויפלאדונג

Before first use, ensure your SuperBase Pro 1500 is fully charged. Unpack the unit and place it on a stable, flat surface in a well-ventilated area.

טשאַרדזשינג מעטהאָדס:

The SuperBase Pro 1500 supports multiple charging methods:

• AC וואנט אָוטלעט: Connect the power station directly to a standard AC wall outlet using the provided cable. This method supports up to 1800W input, allowing a full charge in approximately 2 hours.
• זונ פּאַנאַלז: Connect compatible solar panels (up to 1800W input) for eco-friendly charging.
• מאַשין טשאַרדזשער: Charge from your vehicle's 12V car outlet.
• גענעראַטאָר: Connect to a compatible generator for charging.

Figure 2.1: Illustration of the five different ways to recharge the SuperBase Pro 1500, including AC, solar, car, and generator.

Figure 2.2: The SuperBase Pro 1500 connected to a wall outlet for AC charging, demonstrating its fast charging capability.

Figure 2.3: The SuperBase Pro 1500 connected to multiple solar panels for solar charging, ideal for off-grid use.

3. אַפּערייטינג ינסטרוקטיאָנס

The SuperBase Pro 1500 is designed for intuitive operation. Familiarize yourself with the display and output ports before use.

מאַכט אויף / אַוועק:

Press and hold the main power button on the display to turn the unit on or off. Individual AC and DC outputs can be toggled using their respective buttons.

רעזולטאַט פּאָרץ:

The unit features 14 output ports to accommodate various devices:

• 6 x AC Outlets: 120V/2000W (AmpUp to 3000W) for household appliances.
• 4 x USB-C Outputs: USB-C1/C2: 5-20V 100W; USB-C3/C4: 5-12V 20W Total.
• 1 x Car Output: 13.6V/10A 136W.
• 3 x DC Outputs: 13.6V/10A 136W.

פיגורע 3.1: דעטאַילעד view of the SuperBase Pro 1500's 14 output ports, including AC, USB-C, car, and DC outputs.

Intelligent Display:

The 6.1-inch clear display provides real-time information on power factor, power ring, current input/output, remaining time, AC frequency, and more.

Figure 3.2: Close-up of the 6.1-inch intelligent display, showing various indicators like power factor, input/output wattage, and remaining battery life.

App Control & 4G IoT:

Download the Zendure app to control and monitor your power station remotely. The built-in 4G IoT hardware and GPS allow management even without Wi-Fi, providing features like low battery notifications and device tracking.

Figure 3.3: A smartphone displaying the Zendure app interface, demonstrating remote control capabilities for the power station.

Uninterruptible Power Supply (UPS) פֿונקציע:

When connected to an AC input, the SuperBase Pro 1500 can act as a UPS. In the event of a power outage, it automatically switches to battery power within 13ms, protecting connected sensitive electronics from data loss or damage.

Figure 3.4: Visual representation of the UPS function, showing power seamlessly switching to the SuperBase Pro 1500 during an outage.

4. וישאַלט און קער

Proper maintenance ensures the longevity and optimal performance of your SuperBase Pro 1500.

באַטערי זאָרגן:

The LiFePO4 battery is designed for 3000 charge cycles to 80% capacity. For best battery health, avoid prolonged storage at extremely low or high charge levels. Recharge the unit at least once every 3-6 months if not in regular use.

רייניקונג:

Wipe the exterior with a soft, dry cloth. Do not use abrasive cleaners or immerse the unit in water. Keep the ventilation openings clear of dust and debris.

סטאָרידזש:

Store the power station in a cool, dry place away from direct sunlight and extreme temperatures. Ensure it is adequately charged before long-term storage.

זיכערקייַט פֿעיִקייטן:

The SuperBase Pro 1500 incorporates multiple safety technologies, including a Battery Management System (BMS), patented power management, intelligent temperature-activated fans, and solid craftsmanship to ensure safe operation.

Figure 4.1: Diagram illustrating the internal safety features of the SuperBase Pro 1500, including BMS and cooling systems.

5. טראָובלעשאָאָטינג

This section addresses common issues you might encounter with your SuperBase Pro 1500.

די אַפּאַראַט איז נישט פּאַוערינג:

• Ensure the battery is not completely depleted. Connect to a power source and attempt to charge.
• Press and hold the main power button for a few seconds to ensure it registers.

טשאַרדזשינג ישוז:

• Verify that the charging cable is securely connected to both the power station and the power source.
• Check if the power source (wall outlet, solar panel, etc.) is functioning correctly.
• Ensure the ambient temperature is within the recommended charging range (typically 0°C to 40°C).

קיין רעזולטאַט פֿון פּאָרטן:

• Ensure the individual AC or DC output buttons are activated.
• Check if the connected device is within the power station's output limits (2000W for AC, 3000W surge).
• Verify that the cables connecting your devices are not damaged.

If issues persist, please refer to the warranty and support section for contact information.

6. טעכניש ספּעסאַפאַקיישאַנז

7. וואָראַנטי און שטיצן

Zendure offers a comprehensive warranty and dedicated customer support for your SuperBase Pro 1500.

וואָראַנטי אינפֿאָרמאַציע:

The Zendure SuperBase Pro 1500 comes with a standard 2 יאָר וואָראַנטי. You can extend this warranty by an additional 1 year (total 3 years) by downloading the Zendure app and registering as a Zendure member.

קונה שטיצן:

For technical assistance, troubleshooting, or warranty claims, please contact Zendure customer service. Zendure provides 24-hour friendly service.

Visit the official Zendure store for more information and support resources: Zendure Official Store
