vidaXL Mint Green Steel Storage Cabinet Model 336167 Instruction Manual

1. הקדמה

This manual provides detailed instructions for the assembly, operation, and maintenance of your vidaXL Mint Green Steel Storage Cabinet, Model 336167. Please read all instructions carefully before assembly and use to ensure safe and correct operation of the product. Keep this manual for future reference.

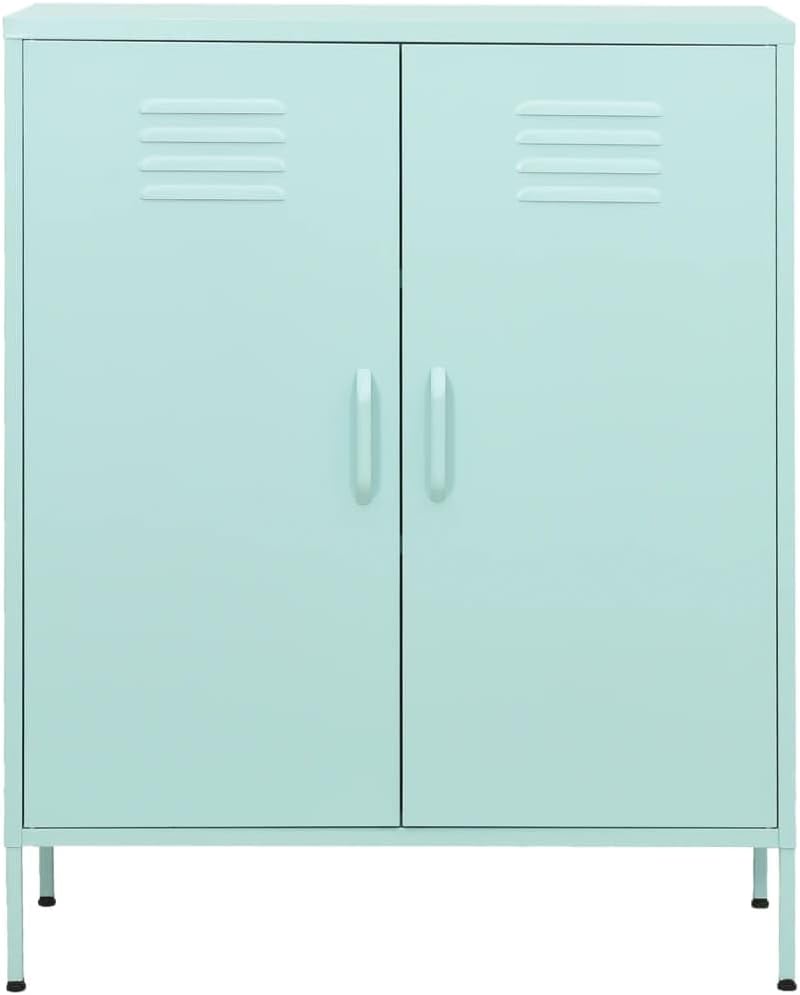

בילד 1.1: פראָנט view of the vidaXL Mint Green Steel Storage Cabinet.

2. זיכערקייַט אינפֿאָרמאַציע

• לייענען אַלע ינסטראַקשאַנז: זייט זיכער אז איר פארשטייט אלע צוזאמענשטעלונג טריט און זיכערהייט ווארענונגען איידער איר גייט ווייטער.
• האַלט קינדער און חיות אַוועק: Small parts can be a choking hazard. Keep them away from the assembly area.
• ניצן די צונעמען מכשירים: Ensure you have the necessary tools for assembly. Do not use power tools unless specifically instructed, as they may overtighten fasteners and damage the product.
• Assemble on a soft, clean surface: This prevents scratching the product during assembly.
• Two-person assembly recommended: For safety and ease of assembly, it is advisable to have two adults for certain steps.
• זיכער צו וואַנט: To prevent tipping, especially in households with children, it is highly recommended to secure the cabinet to a wall using appropriate hardware (not always included). Refer to Image 2.1 for potential wall mounting points.
• צי ניט אָווערלאָאַד: Adhere to the maximum weight capacity per shelf and for the entire cabinet. The maximum weight limit for this cabinet is 30 kilograms.
• קאָנטראָלירן די סטאַביליטעט: After assembly, ensure the cabinet is stable and level. Adjust levelling feet as needed.

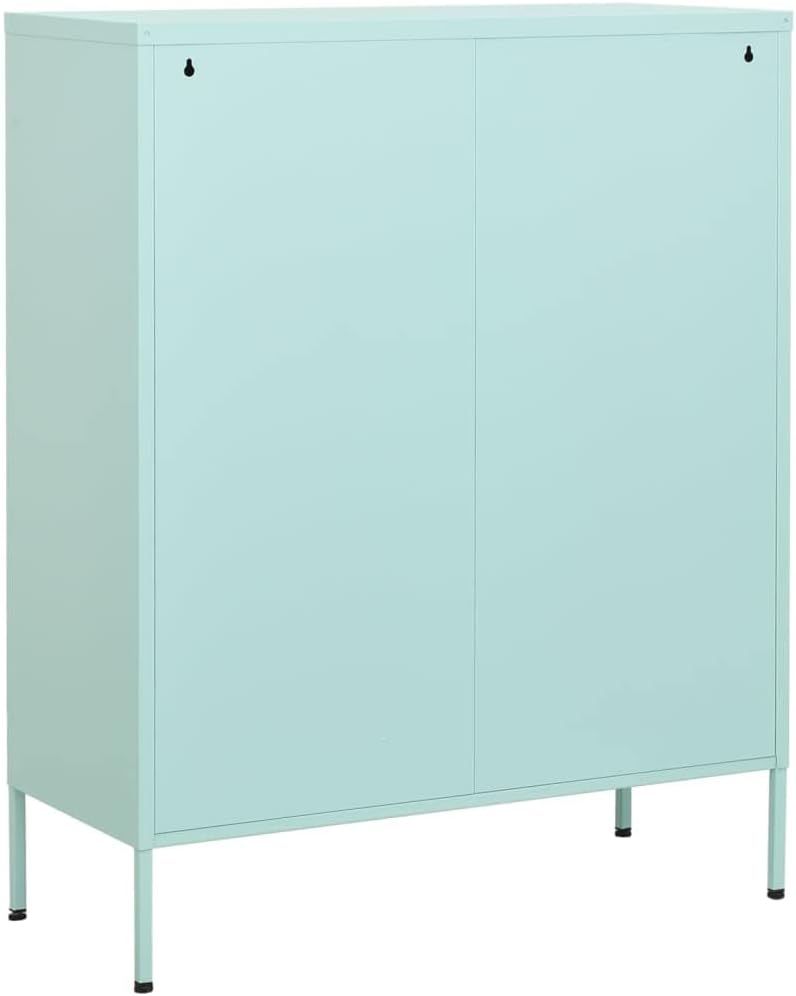

בילד 2.1: צוריק view of the cabinet, indicating potential wall mounting points for anti-tip safety.

3. פּעקל אינהאַלט

איידער איר הייבט אן צוזאמענשטעלן, זיכערט זיך אז אלע טיילן וואס זענען אויסגערעכנט אונטן זענען פאראן און נישט באשעדיגט. אויב עפעס טיילן פעלן אדער זענען באשעדיגט, גייט נישט ווייטער מיטן צוזאמענשטעלן און קאנטאקטירט קאסטומער סופארט.

• Top Panel (1)
• דנאָ פּאַנעל (1)
• זייט פּאַנעלן (2)
• הינטערשטע פּאַנעלן (2)
• טירן (2)
• אַדזשאַסטאַבאַל פּאָליצעס (2)
• פיס (4)
• שעפּן (2)
• Levelling Feet (4)
• Assembly Hardware (screws, bolts, shelf pins, etc.)

Note: The exact quantity and type of hardware may vary slightly. Refer to the included hardware bag for specific counts.

4. אינסטרוקציעס פֿאַר אויפֿשטעלן און פֿאַרזאַמלען

Assembly is required for this product. Please follow these general steps. For detailed diagrams, refer to the separate assembly sheet included in your package.

1. צוגרייטן די שטח: רייניק אַ ברייטע, ריינע און ווייכע געגנט פֿאַר פֿאַרזאַמלונג צו פאַרמייַדן שאָדן צו די קאַבינעט טיילן און דיין שטאָק.
2. Attach Legs and Levelling Feet: Secure the four legs to the bottom panel of the cabinet. Insert the levelling feet into the bottom of each leg. Do not fully tighten the levelling feet yet.

Image 4.1: Detail of a cabinet leg with an installed levelling foot.
3. אַסעמבאַל די ראַם: Attach the side panels to the bottom panel, then connect the back panels. Finally, secure the top panel to complete the main frame. Ensure all connections are snug but do not overtighten.


בילד 4.2: עקס.ample of a cabinet corner joint, illustrating proper alignment.

4. ינסטאַלירן שעלוועס: Insert the shelf pins into the desired holes on the side panels. Place the adjustable shelves onto these pins. Ensure shelves are level and securely seated.

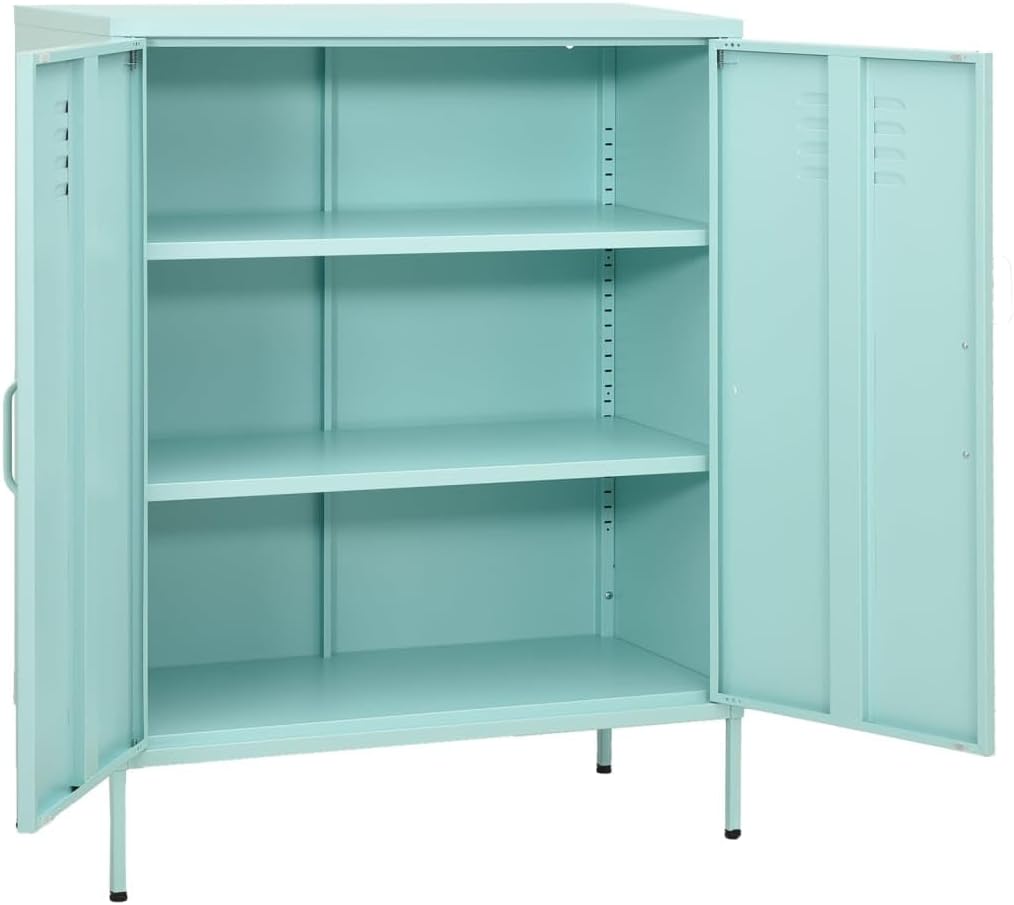

בילד 4.3: אינעווייניק view showing adjustable shelves in place.

5. צוטשעפּען טירן און הענטלעך: Mount the doors to the cabinet frame using the provided hinges. Attach the handles to the front of each door. Adjust hinges if necessary to ensure doors close properly and are aligned.

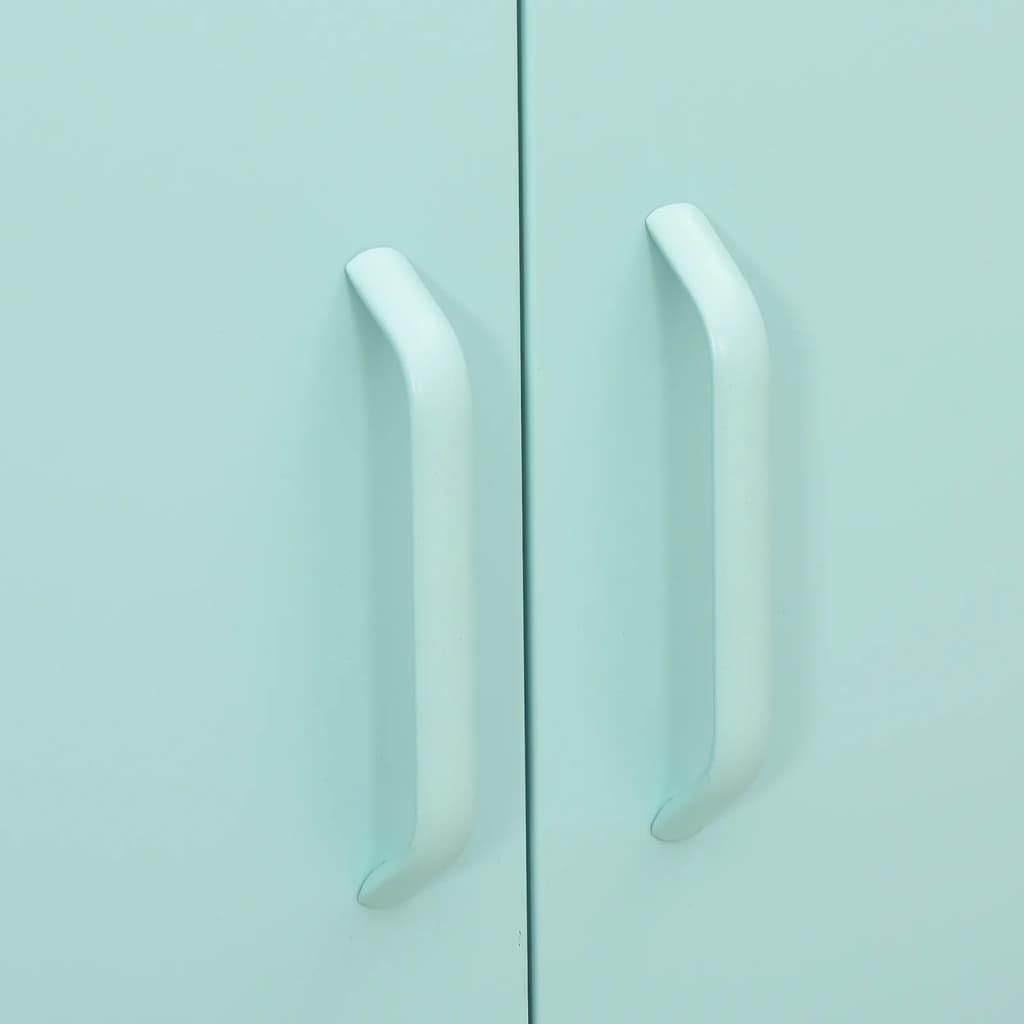

Image 4.4: Detail of the cabinet handles.
6. לעצט אַדזשאַסטמאַנץ: Place the cabinet in its desired location. Adjust the levelling feet by turning them clockwise or counter-clockwise until the cabinet is stable and does not wobble.
7. וואַנט אַנקערינג (רעקאָמענדירט): For added safety, especially in homes with children, secure the cabinet to a wall using anti-tip hardware (not always included). Follow the instructions provided with your anti-tip kit.

5. אַפּערייטינג ינסטרוקטיאָנס

• עפן און פארמאכן טירן: Use the handles to gently open and close the cabinet doors. Avoid forcing the doors.
• אַדזשאַסטינג שעלוועס: To adjust the height of the shelves, remove all items from the shelf. Carefully lift the shelf and remove the shelf pins. Reinsert the pins into the desired holes at the new height, ensuring they are level, then place the shelf back onto the pins.
• לאָדן דעם קאַבינעט: Distribute weight evenly across the shelves. Do not exceed the maximum weight limit of 30 kilograms for the entire cabinet. Place heavier items on lower shelves for better stability.

6. וישאַלט

• רייניקונג: ווישט די קאַבינעט ייבערפלאַכן מיט אַ ווייכן, דamp cloth. Avoid using abrasive cleaners, harsh chemicals, or solvents, as these can damage the finish. Dry immediately with a clean cloth.
• רעגולער דורכקוק: קאָנטראָלירט פּעריִאָדיש אַלע שרויפן און פֿאַרשטאַרקער צו זיכער מאַכן אַז זיי זענען פֿעסט. פֿעסטשטײַערט ווידער אויב נייטיק צו האַלטן די סטאַביליטעט.
• לעוועלינג פֿיס: Occasionally check and adjust the levelling feet to ensure the cabinet remains stable on uneven surfaces.
• ויסמיידן נעץ: Do not expose the cabinet to excessive moisture or direct sunlight, which can cause damage or fading.

7. טראָובלעשאָאָטינג

• קאַבינעט איז וואָקלדיק:
  לייזונג: Ensure all assembly screws are tightened. Adjust the levelling feet on the bottom of the legs until the cabinet is stable and level on the floor.
• Doors Do Not Close Properly or Are Misaligned:
  לייזונג: Check the hinge attachments on both the doors and the cabinet frame. Loosen hinge screws slightly, adjust the door position, and then re-tighten. Ensure the cabinet itself is level.
• Shelves Do Not Fit or Are Uneven:
  לייזונג: Verify that the shelf pins are inserted into corresponding holes on both side panels at the same height. Ensure no obstructions are preventing the shelf from seating correctly.
• פעלנדיקע טיילן אדער געשעדיגטע קאמפאנענטן:
  לייזונג: Do not proceed with assembly. Contact vidaXL customer support with your model number and a description of the issue for assistance.

8. ספּעסאַפאַקיישאַנז

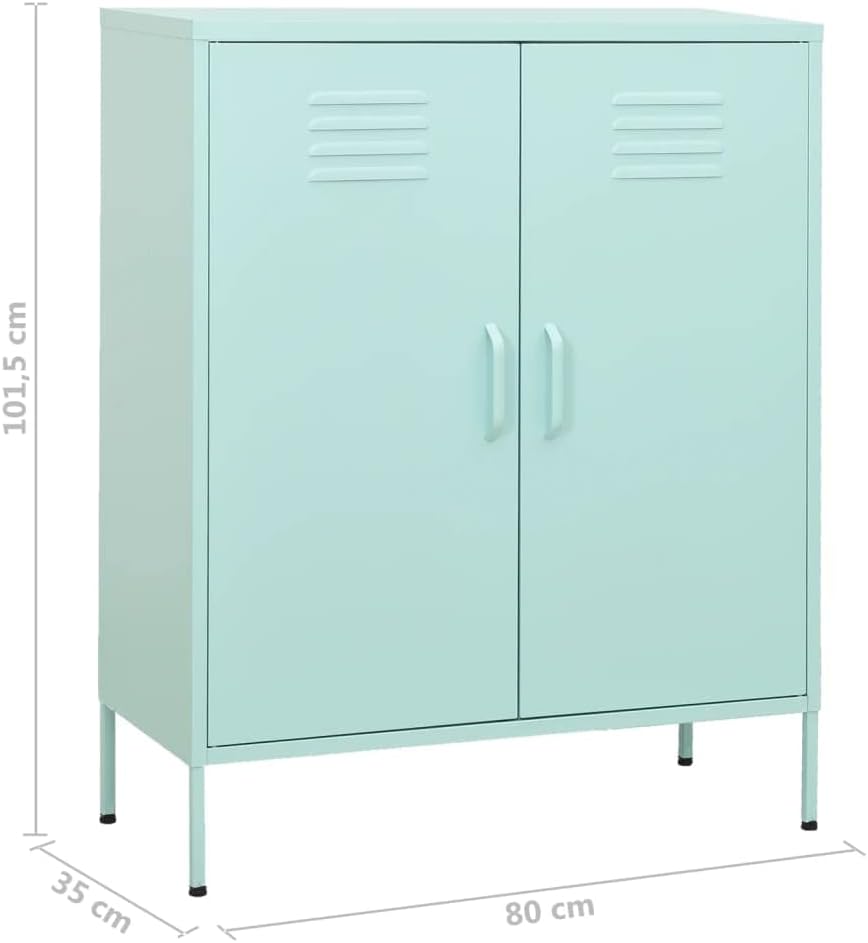

Image 8.1: Dimensional diagram of the storage cabinet.

9. וואָראַנטי און שטיצן

For warranty information, product support, or to report missing/damaged parts, please refer to the warranty card included with your purchase or contact vidaXL customer service directly. Please have your model number (336167) and proof of purchase ready when contacting support.

You can typically find contact information on the vidaXL official webוועבזייטל אדער דורך אייער הענדלער.
