1. פּראָדוקט איבערview
The LEONLITE H Track Live End Feed Connector is designed to provide power to H-type track lighting systems. It is a crucial component for setting up or extending your track lighting, ensuring a safe and reliable electrical connection. This connector is UL certified, indicating high safety standards, and is made from durable PC material.
Image: LEONLITE H Track Live End Feed Connector, white.
שליסל פֿעיִקייטן:
- קאַמפּאַטאַבילאַטי: Specifically designed for H Type 3-Wire-1 Circuit Track systems.
- ייַנמאָנטירונג פלעקסיביליטי: Supports both side holes open line installation and direct connection to a J-box through a knockout hole.
- גרינג סעטאַפּ: Designed for straightforward installation without requiring additional accessories.
- זיכערהייט סערטאַפייד: UL listed for enhanced safety and peace of mind.
- דוראַבאַל מאַטעריאַל: Constructed from flame-retardant PC material.
2. קאַמפּאַטאַבילאַטי
This connector is exclusively compatible with H Type 3-Wire-1 Circuit Track systems. It is essential to verify your existing track type before installation to ensure proper fit and function. The connector is not compatible with J Type or L Type tracks.
Image: Diagram illustrating compatibility with H-type track and incompatibility with J-type and L-type tracks.
3. ינסטאַלירונג אינסטרוקציעס
Please ensure the power supply to the track system is turned off at the circuit breaker before beginning any installation work to prevent electrical shock.
שריט-דורך-שריט ינסטאַלירונג:
- Prepare the Connector: If necessary, cut off one side of the shrapnel on the connector. This step is crucial for proper grounding and fit.
- Connect to Track: Carefully align the connector with the end of the H-type track. Slide the connector into the track until it is fully seated.
- באַוואָרענען די קשר: Tighten the screws on the connector to firmly secure it to the track. Ensure a snug fit to maintain electrical contact.
- אויסקלייבן פֿאַרבינדונג מאָדע: Determine your desired power connection method. This connector supports two main installation methods: side holes open line installation or direct connection to a J-box through the knockout hole.

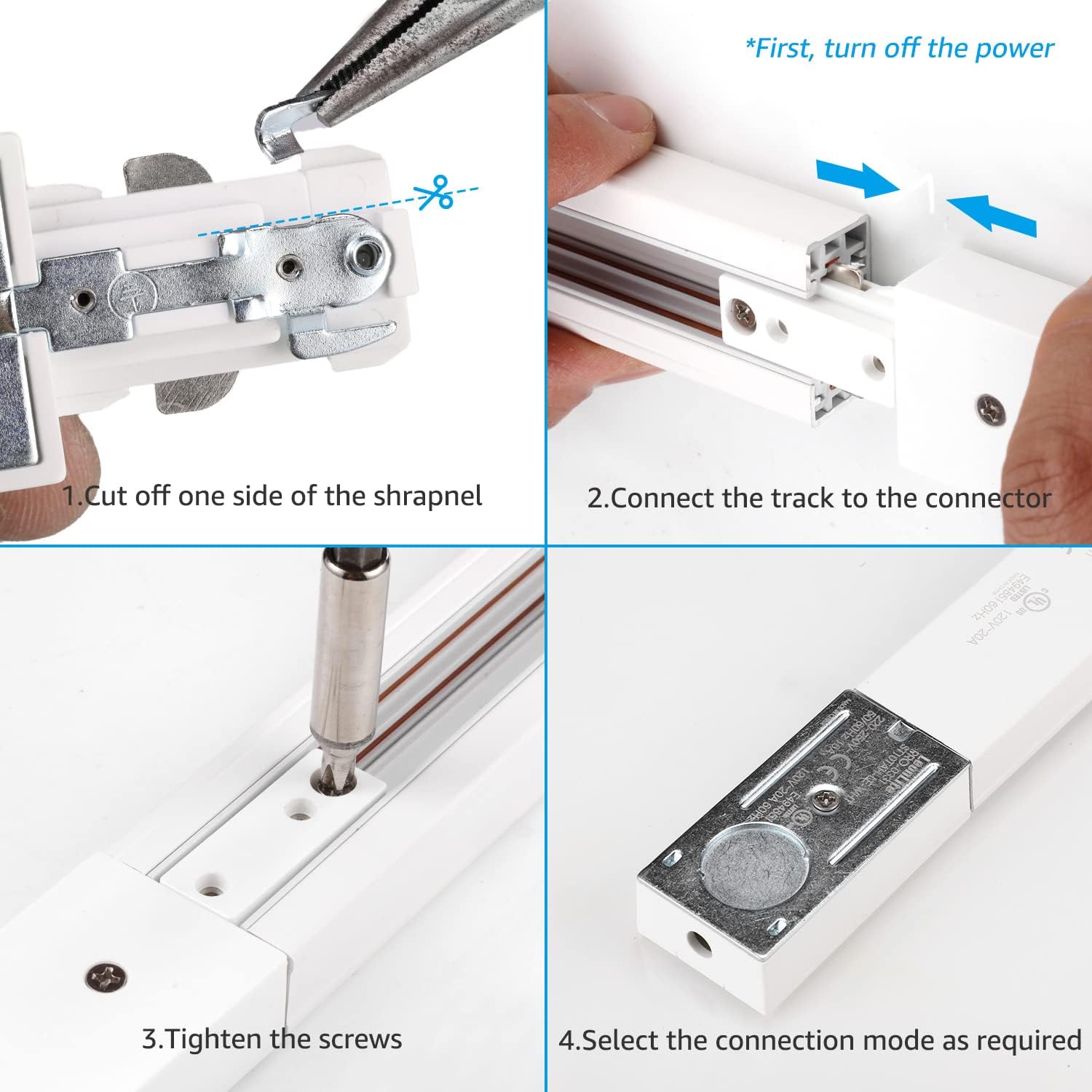

Image: Visual guide showing the four steps of connector installation: cutting shrapnel, connecting to track, tightening screws, and selecting connection mode.
Image: Diagram illustrating how to directly connect the live end feed connector to a junction box (J-box) for power input.
אינסטאַלאַציע ווידעא גייד:
Video: An official installation guide demonstrating the process of installing the LEONLITE H Track Live End Feed Connector. This video shows how to prepare the connector, attach it to the track, and secure it properly.
4. אַפּערייטינג ינסטרוקטיאָנס
Once properly installed and connected to a power source, the LEONLITE H Track Live End Feed Connector functions as the power entry point for your H-type track lighting system. It does not require any user interaction for operation beyond its initial installation. Ensure all track lights and accessories connected to the system are compatible and correctly installed for optimal performance.
5. וישאַלט
The LEONLITE H Track Live End Feed Connector requires minimal maintenance. To ensure longevity and safe operation:
- רעגולער דורכקוק: Periodically check the connector and track for any signs of damage, loose connections, or wear.
- רייניקונג: If necessary, gently wipe the exterior of the connector with a dry, soft cloth. Do not use abrasive cleaners or liquids.
- אויסשליסן פאר אויפהאלטונג: Always turn off the power at the circuit breaker before performing any inspection or cleaning.
6. טראָובלעשאָאָטינג
If your track lighting system has no power after installation, consider the following troubleshooting steps:
- Power Junction Box: Ensure that the power junction box is properly installed and that the metal shrapnel within the connector is making proper contact with the track copper wire.
- קאַבלע קאַנעקשאַנז: Verify that the N (neutral), L (live), and ground cables in the power input box are correctly connected and firmly secured.
- Grounding Suspended: If the connector is not easily loaded into the track, check if the grounding is suspended. Ensure that the spring of one side of the ground cable is cut off as per installation instructions.
- Correct Alignment: Make sure the connector is accessed into the track according to the correct line of defense (alignment).
If issues persist after following these steps, it is recommended to consult a qualified electrician.
7. ספּעסאַפאַקיישאַנז
| אַטריביוט | ווערט |
|---|---|
| סאָרט | LEONLITE |
| מאָדעל נומער | 73529 |
| גרייס | End Feed Connector |
| קאָליר | ווייַס |
| מאַטעריאַל | פּיסי (פלאַם ריטאַרדאַנט) |
| Voltage | 120 וואלטס |
| פּונקט וואָג | 2.39 אונסעס |
| פּראָדוקט דימענשאַנז | 4.44 X 0.82 X 1.57 אינטשעס |
| סערטיפיקאַטיאָנס | UL ליסטעד |
Image: Detailed dimensions of the LEONLITE H Track Live End Feed Connector, including length, width, and height, and the knockout hole location.
8. וואָראַנטי און שטיצן
This LEONLITE H Track Live End Feed Connector comes with a 3 יאָר וואָראַנטי, ensuring high quality and reliability. For any product-related inquiries, technical assistance, or warranty claims, please contact LEONLITE customer support through their official webזייטל אדער דעם פארקויפער וואו דער פראדוקט איז געקויפט געווארן. ביטע באהאלטן אייער באווייז פון קויפן פאר גאראנטיע באשטעטיקונג.
Returns are typically accepted within 30 days of purchase, subject to the retailer's return policy.
