VDIAGTOOL VT100 OBD2 Scan Tool User Manual

1. הקדמה

The VDIAGTOOL VT100 is a versatile OBD2 scan tool designed for comprehensive vehicle diagnostics. It supports 4 major systems (ABS, SRS, Engine, Transmission) and offers 5 essential reset services, including Oil Reset, EPB Reset, ABS Bleeding, Throttle Relearn, and SAS Reset. This tool provides full OBDII functionality and lifetime free updates, making it suitable for DIYers and professional mechanics.

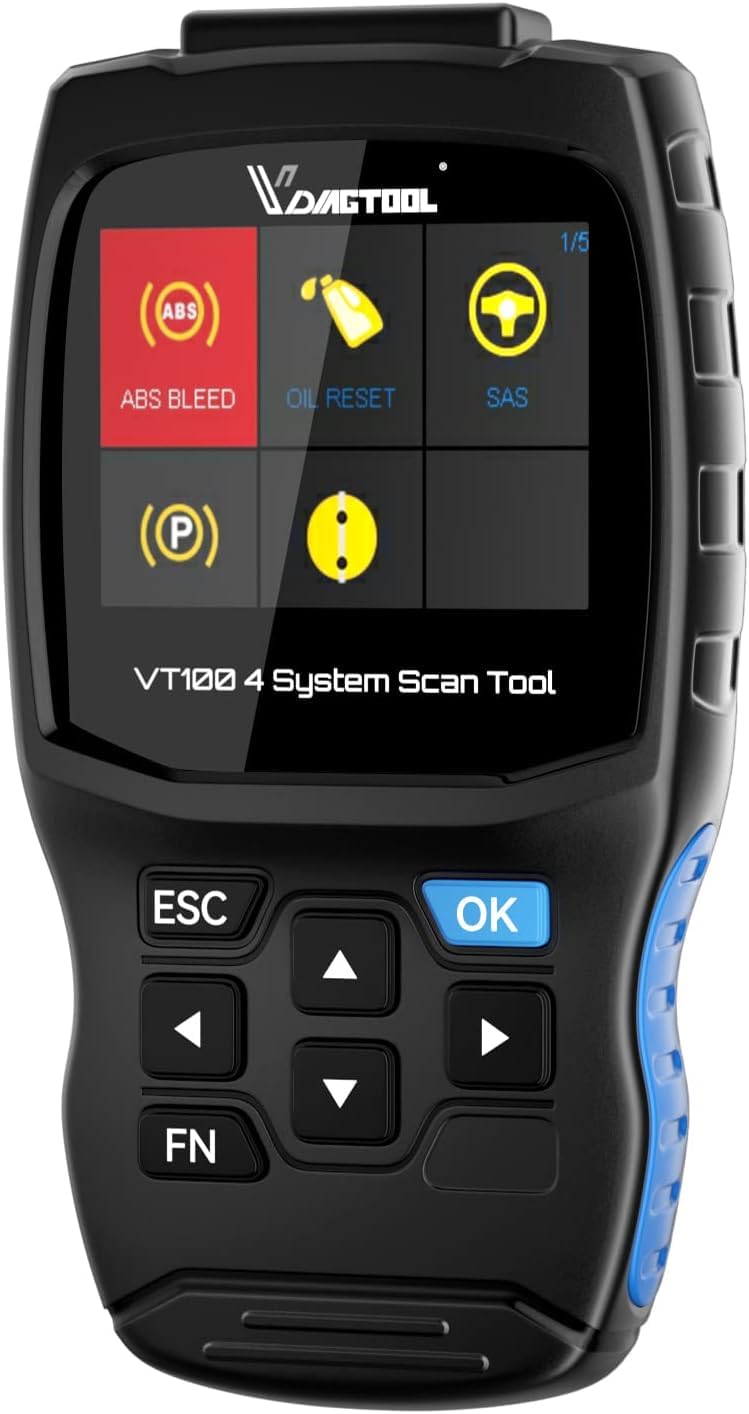

Image: VDIAGTOOL VT100 Scan Tool with its OBDII connector cable.

2. אויפשטעלן און ערשטע באנוץ

2.1 פּעקל אינהאַלט

• VT100 OBD2 Scanner Diagnostic Tool
• OBDII Connector cable
• באַניצער מאַנואַל

2.2 קאַנעקטינג די מיטל

To begin, locate your vehicle's OBDII port, typically found under the dashboard on the driver's side. Connect the provided OBDII connector cable from the VT100 scan tool to the vehicle's OBDII port. The device will automatically power on once connected.

Image: The VT100 scan tool, OBDII cable, and user manual included in the package.

2.3 ווייכווארג דערהייַנטיקונגען

The VT100 offers lifetime free software updates via Wi-Fi or USB to ensure compatibility with the latest vehicle models and diagnostic features. It is recommended to regularly update the device.

Image: The VT100 display showing options for software updates via Wi-Fi or USB connection.

Updating via Wi-Fi:

1. Navigate to the 'Update' menu on the device.
2. Select 'Via WiFi'. The device will search for available networks.
3. Choose your Wi-Fi network and enter the password if prompted.
4. Once connected, select the desired software updates and confirm to download and install.

אַפּדייטן דורך USB:

1. Download the update client software from the official VDIAGTOOL webפּלאַץ אויף דיין פּיסי.
2. Install the update client on your computer.
3. Connect the VT100 device to your PC using the provided USB cable.
4. Follow the on-screen instructions on the update client to download and transfer updates to the device.

3. אַפּערייטינג ינסטרוקטיאָנס

3.1 4-סיסטעם דיאַגנאָסטיקס

The VT100 scan tool provides diagnostic capabilities for four main vehicle systems: Engine, Transmission, Anti-lock Braking System (ABS), and Supplemental Restraint System (SRS/Airbag).

Image: Visual representation of the four main vehicle systems (ABS, SRS, Engine, Transmission) that the VT100 can diagnose.

צו דורכפירן א סיסטעם דיאַגנאָסטיק:

1. פֿון הויפּט מעניו, אויסקלײַבן 'דיאַגנאָזירן'.
2. Choose the vehicle brand (e.g., European, Asian, American).
3. Select the specific system you wish to diagnose (e.g., Engine Control Module, Transmission Control Module, Brakes, Airbag).
4. The tool will communicate with the vehicle's ECU and display diagnostic options such as 'Read DTC', 'Clear Fault Code', 'Read Data Stream', and 'Readiness'.

3.2 5 Reset Services

The VT100 offers five commonly used maintenance reset services:

• אָיל באַשטעטיק: Resets the engine oil life system, which calculates an optimum oil life change interval based on vehicle driving conditions and climate.
• EPB צוריקשטעלן: ריסעט די עלעקטראָנישע פּאַרקינג ברעיק סיסטעם נאָך די ברעיק פּעד פאַרבייַט.
• ABS בלוטונג: Performs various bi-directional tests to check the operating conditions of the Anti-lock Braking System. This function is used to cycle the ABS pump to remove air from the brake lines.
• גאז איבערלערנען: Initializes the throttle actuators to the default state for regulating throttle (or idle engine) operations accurately.
• SAS איבערשטעלן: Performs calibration for the Steering Angle Sensor, which permanently stores the current steering wheel position as the straight-ahead position in the sensor EEPROM.

Image: Visual guide to the five most used maintenance services available on the VT100.

3.3 OBDII פולע פונקציעס

The VT100 supports all 10 modes of OBDII standard for comprehensive system diagnosis:

• Read/Clear Codes
• View לעבן דאַטאַ
• View פרירן פריים דאַטאַ
• Retrieve Vehicle Information
• Check I/M Readiness Status
• אָ2 מאָניטאָר טעסט
• אויף-באָרד מאָניטאָר טעסט (מאָדע 06)
• אָ2 סענסאָר טעסט

Image: The VT100 screen showing the menu for OBDII functions, including Read Code, Erase Code, Live Data, and Smog Test.

3.4 Live Data in Graph

The VT100 can display live sensor data in a graphical format, allowing for easier monitoring and analysis of vehicle performance parameters over time.

Image: The VT100 screen showing live data represented as a waveform graph, useful for real-time monitoring of vehicle parameters.

3.5 Multilanguage Support

The device supports multiple languages, allowing users to operate the tool in their preferred language.

Image: The VT100 screen showing a selection of language options, including English, Simplified Chinese, Spanish, French, German, and Dutch.

3.6 פאָרמיטל קאַווערידזש

The VT100 supports over 60 car brands and 10,000 car models, including US, European, and Asian models.

Image: An infographic illustrating the extensive vehicle coverage of the VT100, including US, European, and Asian car models.

4. וישאַלט

Regular software updates are crucial for maintaining optimal performance and compatibility with new vehicle models. Ensure the device is kept clean and stored in a dry environment when not in use.

5. טראָובלעשאָאָטינג

5.1 פּראָסט ישוז

• די מיטל איז נישט פּאַוערינג: Ensure the OBDII cable is securely connected to the vehicle's port. Check the vehicle's battery status.
• קאָמוניקאַציע טעותים: Verify the vehicle's ignition is on. Ensure the correct vehicle brand and system are selected in the diagnostic menu.
• Update failures: Check your Wi-Fi connection or USB cable. Ensure the PC update client is correctly installed and running.
• ABS Bleeding issues: If experiencing issues with ABS bleeding, ensure all connections are secure and follow the on-screen prompts carefully. Some users have reported success in resolving brake-related issues using this function.
• SAS Reset errors: If the Steering Angle Sensor reset fails, ensure the steering wheel is in the straight-ahead position and reattempt the calibration.

6. ספּעסאַפאַקיישאַנז

7. וואָראַנטי

The VDIAGTOOL VT100 Scan Tool comes with lifetime free software updates, ensuring long-term functionality and compatibility.

8. שטיצן

For any questions or technical assistance, please contact VDIAGTOOL support via email at vdiagtool2@outlook.com אָדער דורך טעלעפאָן 1-213-355-7171.
