הקדמה
This manual provides essential instructions for the safe and efficient setup, operation, and maintenance of your Kegco 3P-XCK-2448S Two-Tap Stainless Steel Keg Dispenser. Please read all instructions carefully before use and retain this manual for future reference.
The Kegco 3P-XCK-2448S is a commercial-grade kegerator designed for dispensing beverages from kegs. It features a durable stainless steel exterior and interior, forced air refrigeration, and a dual-faucet tower. This unit is suitable for both freestanding and built-in installations.
זיכערקייַט אינפֿאָרמאַציע
- שטענדיק אָפּשטעקן די מאַכט איידער איר רייניקן אָדער דורכפירן וישאַלט.
- פאַרזיכערן געהעריק ווענטאַליישאַן אַרום די אַפּאַראַט.
- דו זאלסט נישט קראָם יקספּלאָוסיוו סאַבסטאַנסיז אַזאַ ווי אַעראָסאָל קאַנס מיט אַ ברענעוודיק פּראַפּעלאַנט אין דעם אַפּפּליאַנסע.
- דער אַפּפּליאַנסע איז נישט בדעה פֿאַר נוצן דורך מענטשן (אַרייַנגערעכנט קינדער) מיט רידוסט גשמיות, סענסערי אָדער גייַסטיק קייפּאַבילאַטיז, אָדער פעלן פון דערפאַרונג און וויסן, סייַדן זיי האָבן באקומען השגחה אָדער לימעד וועגן די נוצן פון דעם אַפּפּליאַנסע דורך אַ מענטש פאַראַנטוואָרטלעך פֿאַר זייער זיכערקייַט.
- האַלטן קינדער אַוועק פון די אַפּאַראַט.
סעטאַפּ
אויספּאַקן: Carefully remove all packaging materials. Inspect the unit for any shipping damage. Report any damage immediately to the carrier and retailer.
אָרט: This unit is designed for both freestanding and built-in use. Ensure adequate clearance for ventilation, especially around the front-accessible cooling unit. Place the unit on a level, stable surface capable of supporting its weight (234 lbs) plus the weight of full kegs.
עלעקטריקאַל קשר: Connect the unit to a grounded electrical outlet. Refer to the specifications for power requirements.
Important Note: This kegerator does not include a draft dispense kit. You will need to purchase dispensing equipment separately (e.g., CO2 tank, regulator, keg couplers, beer lines, gas lines).
ערשט אָפּעראַציע
- After placement, allow the unit to stand upright for at least 24 hours before plugging it in. This allows the refrigerant to settle.
- Plug in the unit. The digital temperature display will illuminate.
- Adjust the temperature controller to your desired setting. The unit features forced air refrigeration to maintain consistent temperatures.
- Install your chosen kegs and connect the dispense system (purchased separately). The interior is large enough to hold two full-size kegs, or a combination of smaller kegs such as three quarter slim kegs or up to seven 5-gallon kegs.

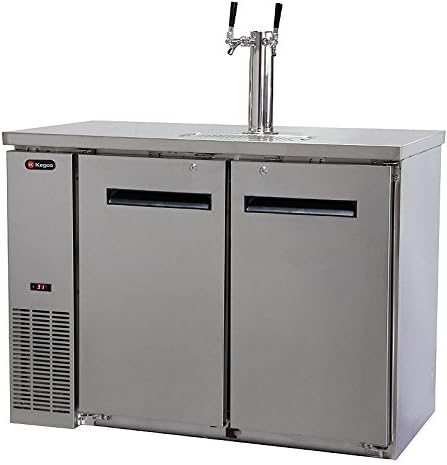

פיגורע 1: פראָנט view of the Kegco 3P-XCK-2448S Two-Tap Stainless Steel Keg Dispenser with dual faucet tower.
פיגורע 2: ינלענדיש view demonstrating capacity for two full-size kegs. Note the internal light and air hoses.
פיגורע 3: ינלענדיש view showing arrangement for multiple smaller kegs, such as seven 5-gallon kegs.
אַפּערייטינג ינסטראַקשאַנז
טעמפּעראַטור קאָנטראָל
The unit features a digital temperature display and an internal temperature controller. Adjust the temperature as needed for your specific beverages. Forced air is routed into the beer tower to maintain consistent cold temperatures from keg to faucet.
Figure 4: Close-up of the digital temperature display, showing the current internal temperature.

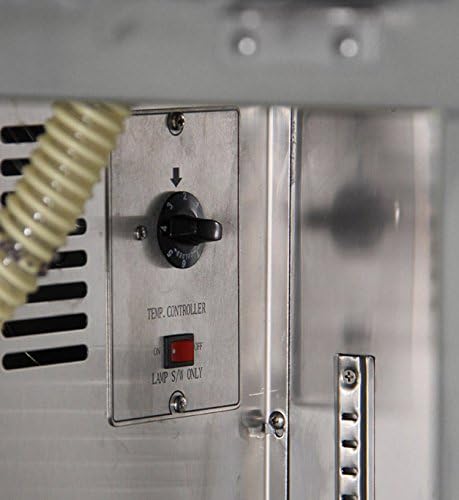

Figure 5: Interior temperature controller dial and switch for the internal light.
Keg Loading and Storage
- The interior is designed to accommodate various keg sizes, including two full-size kegs, up to three quarter slim kegs, or up to seven 5-gallon kegs.
- Two heavy-duty adjustable shelves are included, allowing for versatile storage of cans, bottles, or mugs alongside kegs.
- The rubber floor mat helps protect the stainless steel interior from heavy kegs.
- Self-closing doors with magnetic gaskets ensure a positive seal, and locks are provided for security.
Remote CO2/Nitrogen Cylinder Mount
The unit includes a knockout for mounting a remote CO2 or nitrogen cylinder, providing flexibility for gas supply placement.
וישאַלט
רייניקונג די דריפּן טאַץ
The built-in drip tray routes to an external drain, simplifying daily maintenance. Regularly empty and clean the external drain container and the drip tray grate.
Figure 6: Close-up of the removable drip tray grate on the top surface of the unit.

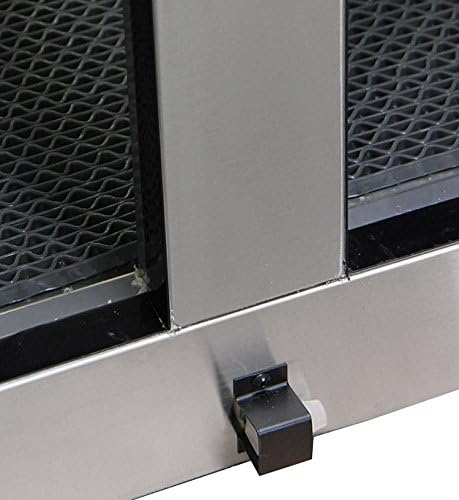

Figure 7: External drain connection point for the drip tray.
אַלגעמיינע רייניקונג
- Wipe down the stainless steel exterior and interior with a soft cloth and mild detergent. Avoid abrasive cleaners.
- Periodically clean the condenser coils located near the cooling unit for optimal performance.
- Ensure all hoses and lines within the cabinet are clear and properly routed.
טראָובלעשאָאָטינג
| פּראָבלעם | מעגלעך סיבה | לייזונג |
|---|---|---|
| דער אַפּאַראַט טוט נישט מאַכט אויף | קיין שטראָם צושטעל; אויסגעלאָשן קרייַז ברעאַקער; דעפעקטיווע שטראָם שנור. | קאָנטראָלירט די עלעקטרישע אַוטלעט; שטעלט צוריק די קרייַז ברעאַקער; קאָנטראָלירט די עלעקטרישע שנור פֿאַר שעדיקן. |
| Unit not cooling sufficiently | Temperature setting too high; obstructed airflow; dirty condenser coils; door not sealing properly. | Lower temperature setting; ensure proper ventilation; clean condenser coils; check door gaskets for proper seal. |
| יבעריק ראַש | איינהייט נישט גלייך; פארשטאפונג פון ווענטילאַטאָר; פרייע קאָמפּאָנענטן. | Ensure unit is level; check for obstructions around fan; contact service if noise persists. |
| Beer not dispensing properly | CO2 tank empty; regulator pressure incorrect; clogged lines; faulty coupler. | Check CO2 level; adjust regulator pressure; clean beer lines; inspect/replace coupler. (Note: Dispense system is separate). |
ספּעסאַפאַקיישאַנז
- מאָדעל נומער: 3P-XCK-2448S
- סאָרט: קעגקאָ
- פּראָדוקט דימענשאַנז: 49 x 25 x 36 אינטשעס (ברייט x טיפקייט x הייך)
- נומער וואָג: 234 פונט
- קאַפּאַציטעט: Two full-size kegs, up to three quarter slim kegs, or up to seven 5-gallon kegs.
- קאָאָלינג סיסטעם: Forced air refrigeration
- עקסטעריאָר מאַטעריאַל: ומבאַפלעקט שטאָל
- ינלענדיש מאַטעריאַל: Stainless Steel walls and ceiling, rubber floor mat
- פֿעיִקייטן: Two-faucet tower, digital temperature display, interior lighting, self-closing doors with locks, built-in drip tray with external drain, knockout for remote CO2/nitrogen cylinder.
וואָראַנטי און שטיצן
For technical assistance or questions regarding your Kegco 3P-XCK-2448S Keg Dispenser, please contact Kegco customer support. Our knowledgeable team is available during regular business hours to assist with setup and operational inquiries.
רעטורנס פּאָליטיק: Kegco offers hassle-free returns within 90 days of receiving your order if you are not completely satisfied with your purchase.
פֿאַר מער אינפֿאָרמאַציע, באַזוכן די באַאַמטער Kegco Store on Amazon.
