הקדמה
The HUTT DDC55 Window Cleaner Robot is an intelligent device designed to automate the cleaning of various smooth surfaces such as windows, tiles, and mirrors. Featuring advanced AI navigation, strong suction, and a robust security system, it provides an efficient and safe cleaning experience. This manual provides essential information for the proper setup, operation, and maintenance of your DDC55 robot.
Image: The HUTT DDC55 Window Cleaner Robot, its remote control, and a stack of microfiber cleaning cloths.
זיכערקייַט אינפֿאָרמאַציע
ביטע ליינט אלע זיכערהייט אינסטרוקציעס קערפול איידער איר ניצט דעם אפאראט. נישט נאכפאלגן די אינסטרוקציעס קען רעזולטירן אין עלעקטרישע שאק, פייער, אדער ערנסטע שאדן.
- Ensure the safety rope is securely attached to a fixed object before operation, especially when cleaning high windows.
- Do not use the robot on cracked or damaged glass surfaces.
- האַלטן הענט, האָר און פרייַ קליידער אַוועק פון מאָווינג טיילן.
- Do not allow children or pets near the robot during operation.
- Use only the original power adapter and accessories provided with the device.
- Do not immerse the robot in water or other liquids.
- אויב דער עלעקטרישער שנור איז געשעדיגט, מוז עס ווערן פארטרעטן דורך דעם פאבריקאנט אדער א קוואַליפֿיצירטן סערוויס אַגענט.
- The built-in UPS provides temporary power in case of power loss; retrieve the robot promptly if this occurs.
פּעקל אינהאַלט
באַשטעטיקן אַז אַלע זאכן זענען פאַראַן אין פּעקל:
- HUTT DDC55 פֿענצטער קלינער ראָבאָט
- ווייַט קאָנטראָל
- מאַכט אַדאַפּטער און מאַכט שנור
- זיכערקייַט שטריק
- Microfiber Cleaning Cloths (12 pieces)
- באַניצער מאַנואַל (דעם דאָקומענט)
סעטאַפּ
Follow these steps to prepare your HUTT DDC55 for its first use:
- Prepare Cleaning Cloths: Wet and wring the microfiber cloths until they are damp but not dripping. For initial dry cleaning, use dry cloths.
- Attach Cloths: Place the prepared cloths over the two rotating pads on the bottom of the robot, ensuring they are securely attached.
- צוטשעפּען זיכערהייט שטריק: Securely attach the safety rope to the designated attachment point on the robot and then to a sturdy, fixed object indoors, such as a heavy piece of furniture or a window frame anchor.
- פאַרבינדן מאַכט: Plug the power adapter into the robot and then into a power outlet. Ensure the connection is firm.
- מאַכט אויף: Press the power button on the robot to turn it on. The indicator light will illuminate.
Image: Visual guide demonstrating the five setup steps: wetting cloths, attaching cloths, securing safety rope, plugging in power, and turning on the robot.
אַפּערייטינג ינסטראַקשאַנז
The HUTT DDC55 offers intelligent cleaning modes for various needs.
Cleaning Modes and Operation:
- אָטאַמאַטיק רייניקונג: Once powered on and placed on the surface, the robot will automatically detect the window frame and obstacles using its built-in AI chip. It will then initiate a cleaning path.
- ווייַט קאָנטראָל: Use the provided remote control to select specific cleaning modes:
- לינקס צו רעכט: Cleans the surface moving predominantly from left to right.
- רעכט צו לינקס: Cleans the surface moving predominantly from right to left.
- אָרט רייניקונג: Focuses on a specific area for intensive cleaning.
- Automatic Suction Adjustment: The robot automatically adjusts its suction power (up to 3800Pa) based on the detected level of dirt, ensuring optimal cleaning performance.
- Return to Start: After completing its cleaning cycle, the HUTT DDC55 will automatically return to its initial starting position for easy retrieval.

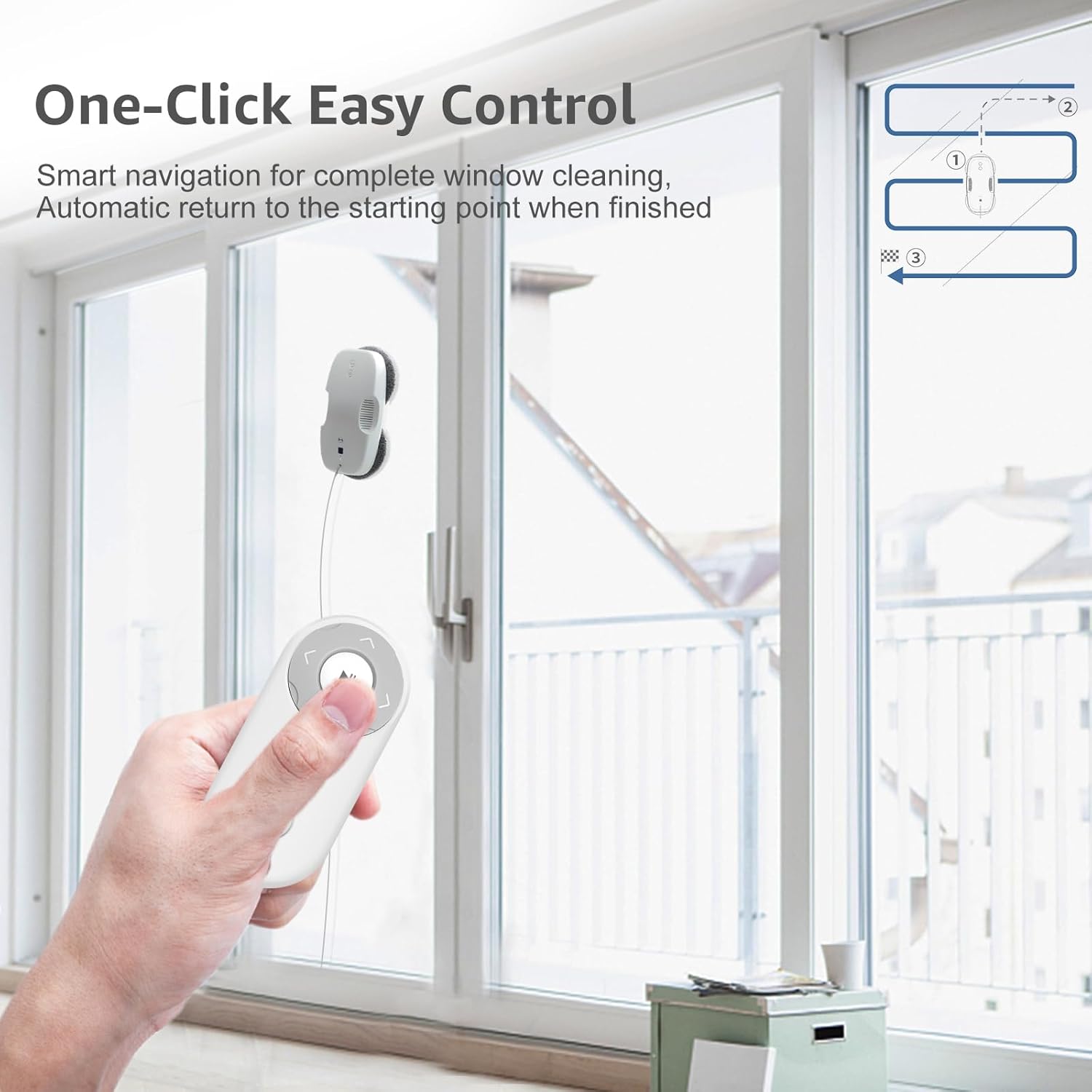

Image: A user operating the HUTT DDC55 robot on a large window using the remote control, illustrating its one-click easy control feature and cleaning path.
Spinning Wipe Technology:
The DDC55 utilizes a unique spinning wipe technology where two microfiber mops rotate continuously, pushing dirt towards a central intake hood for thorough cleaning. This method ensures strong cleanliness compared to traditional square window robots.
Image: A comparison diagram showing the circular motion of the HUTT DDC55's cleaning pads for superior dirt collection versus the linear motion of a square robot.
Adaptive Suction for Dirt Types:
The robot's intelligent system detects the type and amount of dirt, adjusting its suction power accordingly for optimal results. For example, it applies higher suction for oil stains and lower for light dust.
Image: An infographic detailing the automatic suction adjustment feature, showing different suction levels (2600Pa to 3800Pa) applied for various dirt types like rain stains, sand dust, mud spots, insect droppings, wall ash, and oil stains.
וישאַלט
Regular maintenance ensures the longevity and optimal performance of your HUTT DDC55.
- Cleaning Cloths: The microfiber cleaning cloths can be easily removed and washed in a washing machine. Ensure they are clean and damp (not wet) before each use.
- Robot Body: Wipe the exterior of the robot with a soft, dry cloth. Do not use abrasive cleaners or immerse the device in water.
- סענסאָרס: Periodically clean the sensors on the robot's underside with a dry, soft cloth to ensure accurate edge detection and navigation.
טראָובלעשאָאָטינג
If you encounter issues with your HUTT DDC55, refer to the following common problems and solutions:
| פּראָבלעם | מעגלעך סיבה | לייזונג |
|---|---|---|
| Robot does not power on. | No power connection; power adapter faulty. | Ensure power cord is securely plugged into robot and outlet. Check outlet functionality. |
| Robot slips or does not adhere to surface. | Cleaning cloths too wet; surface too dirty/slippery; suction motor issue. | Wring cloths thoroughly until damp. Clean surface of large debris first. Contact support if issue persists. |
| Robot stops mid-operation. | Power interruption; obstacle detected; low battery (UPS active). | Check power connection. Remove obstacles. Retrieve robot promptly if UPS is active. |
| שלעכטע רייניקונג פאָרשטעלונג. | Dirty cloths; insufficient water/cleaning solution; heavily soiled surface. | Replace or wash cloths. Ensure cloths are adequately damp. Pre-clean heavily soiled areas manually. |
ספּעסאַפאַקיישאַנז
Key technical specifications for the HUTT DDC55 Window Cleaner Robot:
- מאָדעל נאָמען: DDC55
- סאָרט: HUTT
- קאָליר: ווייַס
- פּראָדוקט דימענשאַנז: 32 ל רענטגענ 16 וו רענטגענ 13 ה סענטימעטער
- קאָנטראָללער טיפּ: ווייַט קאָנטראָל
- סאַקשאַן מאַכט: Up to 3800Pa (Frequency conversion strong suction)
- מאָטאָר: Japan NIDEC Motor (Advanced brushless motor with 2700RPM)
- ראַש מדרגה: 65dB (Low noise in daily life)
- Vertical Bearable Weight: 7.0 קג
- פילטער טיפּ: שטאָף
- Battery Life (UPS): Approximately 30 minutes (for power loss protection)
- ספּעציעלע פֿעיִקייטן: AI Navigation, Security Protection System, Corded Portable, Cordless (UPS), Corded
- ייבערפלאַך רעקאָמענדאַציע: Window, Mirror, Shower Screens, Wooden Door, Tiles, and other smooth surfaces.
Image: An internal diagram of the HUTT DDC55 highlighting its Japan NIDEC Motor, 65dB low noise level, 7.0KG vertical bearable weight, and 3800Pa suction power.
וואָראַנטי און שטיצן
For warranty information and technical support, please refer to the warranty card included with your product or visit the official HUTT webזייטל. האַלט אייער קויף קוויטל ווי אַ באַווייַז פון קויפן.
אָנליין רעסורסן: For additional FAQs, video tutorials, and software updates, please visit the manufacturer's official support page.
