FLEXISPOT CH2B Desktop PC CPU Holder Instruction Manual

1. הקדמה

This manual provides detailed instructions for the installation, operation, and maintenance of your FLEXISPOT CH2B Desktop PC CPU Holder. Please read this manual thoroughly before installation and use to ensure proper function and safety. Keep this manual for future reference.

2. פּראָדוקט איבערview

The FLEXISPOT CH2B CPU Holder is designed to securely store your desktop computer tower, optimizing workspace and protecting your PC from dust and accidental damage. Its adjustable design allows for versatile mounting options and compatibility with various CPU sizes.

שליסל פֿעיִקייטן:

• דוראַבאַל קאַנסטראַקשאַן: Made from carbon steel material with double protection for enhanced security and stability.
• Adjustable Frame: Features telescopic length and width adjustments to accommodate a wide range of CPU sizes. Height is adjustable from 300-565 mm, and width from 70-203 mm.
• הויך לאַסט קאַפּאַציטעט: Supports a maximum load of 30kg.
• קוואַליטעט מאַטעריאַל: Constructed from varnished and cold-rolled steel for durability.
• Rotational Functionality: Suspended off the floor and 360° adjustable, providing more spacious under-table area and freer leg movement.
• ינטעגראַטעד פּלאַן: Engineered to move with your desk, ensuring cables are not restricted during height adjustments.
• Multiple Installation Modes: Can be mounted on the side of a desk, underneath a desk, or on a wall.

פּראָדוקט קאַמפּאָונאַנץ:

Familiarize yourself with the main components of the FLEXISPOT CH2B CPU Holder.

3. זיכערקייַט אינפֿאָרמאַציע

• Ensure all mounting hardware is securely fastened before placing the CPU in the holder.
• דו זאלסט נישט יקסיד די מאַקסימום מאַסע קאַפּאַציטעט פון 30 קג.
• Verify that the CPU holder is compatible with your computer's dimensions before installation.
• Avoid installing the holder in locations where it could obstruct movement or create a tripping hazard.
• Regularly check all connections and adjustments to ensure they remain tight and secure.

4. סעטאַפּ און ייַנמאָנטירונג

The FLEXISPOT CH2B CPU Holder offers flexible installation options to suit your workspace needs. Follow these steps for proper setup.

Adjusting the Holder:

Before mounting, adjust the holder to fit your CPU tower's dimensions.

1. הייך אַדזשאַסטמאַנט: Loosen the vertical adjustment knob (refer to Figure 3) and slide the holder's base up or down to match your CPU's height. Tighten the knob securely.
2. ברייט אַדזשאַסטמאַנט: Loosen the horizontal adjustment mechanism and expand or contract the holder's side panels to snugly fit your CPU's width. Tighten the mechanism securely.

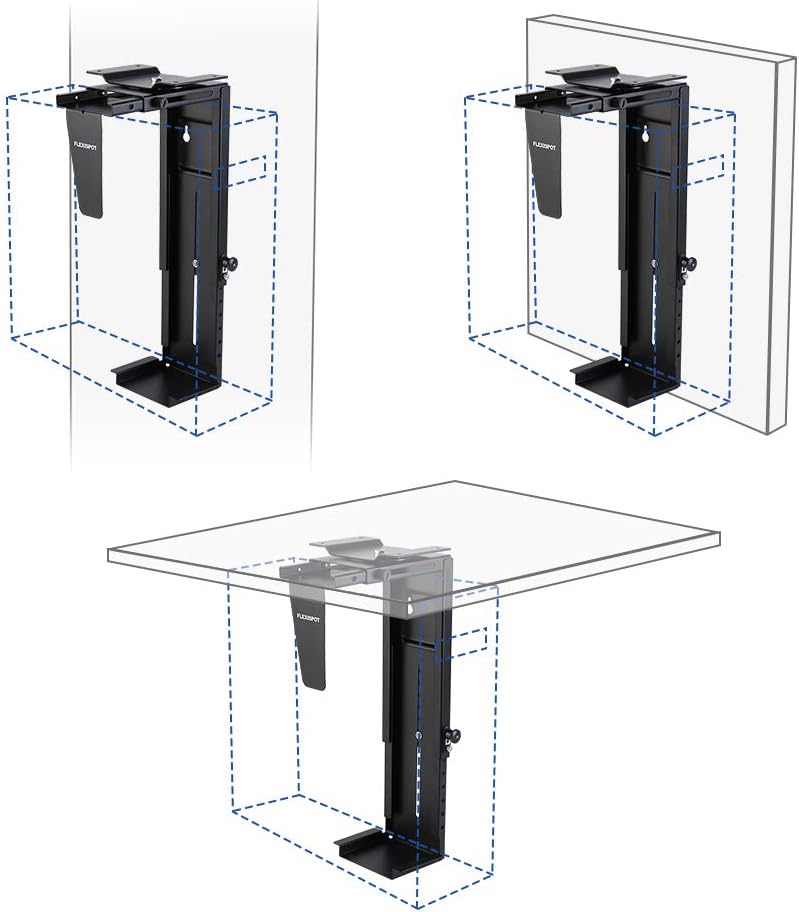

מאַונטינג אָפּציעס:

The CH2B can be installed in multiple ways:

• Under-Desk Mount: Attach the holder directly to the underside of your desk. This is ideal for standing desks as the holder moves with the desk.
• Side-Desk Mount: Secure the holder to the side panel of your desk.
• וואנט בארג: For maximum floor and desk space, the holder can be mounted to a sturdy wall.

Refer to the included hardware and specific instructions for your chosen mounting method. Ensure the mounting surface is capable of supporting the combined weight of the holder and your CPU (up to 30kg).

5. אָפּעראַציע

Once installed, the FLEXISPOT CH2B CPU Holder requires minimal operation. Its primary function is to securely hold your CPU.

• Movement with Desk: If mounted under a height-adjustable desk, the CPU holder will move synchronously with the desk's height adjustments, ensuring cables remain untangled and the CPU stays off the floor.
• ראָוטיישאַן: The holder allows for 360° rotation, which can be useful for accessing ports on the back of the CPU without removing it from the holder. Gently rotate the holder to the desired position.

6. וישאַלט

To ensure the longevity and proper function of your CPU holder, follow these simple maintenance guidelines:

• רייניקונג: ווישט דעם האָלדער מיט אַ ווייכן, דamp שטאָף צו באַזייַטיקן שטויב און שמוץ. פֿאַרמייַדן אַברייסיוו רייניגער אָדער סאָלווענטן.
• דורכקוק: Periodically check all screws, bolts, and adjustment knobs to ensure they are tight. Re-tighten if necessary.
• לאָדן קאָנטראָל: Ensure the weight of your CPU does not exceed the 30kg capacity.

7. טראָובלעשאָאָטינג

If you encounter any issues with your FLEXISPOT CH2B CPU Holder, refer to the following common problems and solutions:

• CPU does not fit: Verify that your CPU's dimensions (height and width) are within the adjustable range of the holder (Height: 300-565 mm, Width: 70-203 mm). Adjust the holder as described in Section 4.
• Holder feels unstable: Ensure all mounting screws are securely fastened to the desk or wall. Check that the adjustment knobs for height and width are fully tightened to secure the CPU. Confirm the CPU weight does not exceed 30kg.
• שוועריקייט צו דרייען דעם האָלדער: Ensure no cables are snagged or obstructing the rotation mechanism. Check for any debris that might be impeding movement.
• Cables are restricted: If the holder is mounted to a height-adjustable desk, ensure cables have enough slack to accommodate the full range of desk motion.

8. ספּעסאַפאַקיישאַנז

9. וואָראַנטי און שטיצן

For warranty information, please refer to the documentation provided with your purchase or visit the official FLEXISPOT website. If you require technical support or have questions not covered in this manual, please contact FLEXISPOT customer service through their official channels.
