ModernLuxe Twin-Over-Full Bunk Bed with Drawers Instruction Manual

1. פּראָדוקט איבערview

This manual provides instructions for the assembly, operation, and maintenance of the ModernLuxe Twin-Over-Full Bunk Bed with 2 Drawers. This bunk bed features a twin-sized upper bed and a full-sized lower bed, constructed from pine wood, plywood, and MDF board. It includes two integrated storage drawers beneath the lower bed and a ladder for access to the upper bunk. The design allows for the bunk bed to be separated into individual twin and full beds if desired.

Image 1.1: Fully assembled ModernLuxe Twin-Over-Full Bunk Bed with storage drawers.

בילד 1.2: פראָנט view of the bunk bed, showcasing the two integrated storage drawers.

2. זיכערקייַט אינפֿאָרמאַציע

לייענט קערפֿול אַלע אינסטרוקציעס איידער איר אַסעמבלט און ניצט עס. האַלט דעם מאַנואַל פֿאַר צוקונפֿטיקע רעפֿערענץ.

• מאַקסימום וואָג קאַפּאַציטעט: The upper bed has a weight capacity of 175 lbs. The bottom bed has a weight capacity of 275 lbs. Do not exceed these limits.
• עלטער רעקאָמענדאַציע: די אויבערשטע בעט איז נישט פּאַסיק פֿאַר קינדער אונטער 6 יאָר אַלט.
• גאַרדריילס: Always use the guardrails on the upper bunk. Ensure they are properly installed and secured.
• לייטער זיכערקייַט: Use the ladder for entering and exiting the upper bunk. Do not use the bed as a climbing frame.
• מאַטראַס רעקווירעמענץ: Use only mattresses that comply with the recommended dimensions and thickness to ensure proper guardrail height.
• ווענטילאַטיאָן: זיכער מאַכן אַז עס איז גענוג ווענטילאַציע אַרום דעם בעט.
• פֿאַרזאַמלונג: Assemble the bed on a flat, level surface. Ensure all bolts and screws are securely tightened before use and periodically check for tightness.
• פּראָוכיבאַטאַד זאכן: Do not attach or hang items to any part of the bunk bed that are not designed for use with the bed, such as hooks, belts, or ropes, as they can pose a strangulation hazard.
• פייער זיכערהייט: Keep open flames and other heat sources away from the bunk bed.

3. פּעקל אינהאַלט

איידער איר הייבט אן צוזאמענשטעלן, זיכערט זיך אז אלע טיילן זענען דא און נישט באשעדיגט. אויב עפעס טיילן פעלן אדער זענען באשעדיגט, גייט נישט ווייטער מיטן צוזאמענשטעלן. קאנטאקטירט קאסטומער סופארט פאר הילף.

• Headboards and Footboards (for both Twin and Full beds)
• Side Rails (for both Twin and Full beds)
• Bed Slats (for both Twin and Full beds)
• Ladder components
• Guardrails for upper bunk
• 2 Storage Drawers (unassembled)
• Hardware pack (bolts, screws, nuts, washers, Allen wrench)
• פֿאַרזאַמלונג אינסטרוקציעס (דיזער מאַנואַל)

Note: The main structural components are made from Pine Wood, Plywood, and MDF Board.

4. אויפשטעלן (אינסטרוקציעס פארן צוזאמענשטעלן)

Assembly typically requires two adults. Ensure you have sufficient space and the necessary tools (usually an Allen wrench, provided, and a Phillips head screwdriver, not provided).

1. אויספּאַקן און אידענטיפיצירן טיילן: Carefully unpack all components and lay them out on a soft, clean surface to prevent scratches. Compare all parts with the package contents list and hardware diagram.
2. Assemble Lower Bed Frame: Attach the side rails to the headboard and footboard of the full-sized bed using the provided hardware. Do not fully tighten bolts until the frame is complete.
3. Install Lower Bed Slats: Place the full-sized bed slats onto the support ledges of the lower bed frame. Secure them with screws as indicated in the detailed assembly diagram. Fully tighten all bolts for the lower bed frame.
4. Assemble Upper Bed Frame: Attach the side rails to the headboard and footboard of the twin-sized bed.
5. Install Upper Bed Slats: Place the twin-sized bed slats onto the support ledges of the upper bed frame. Secure them with screws.
6. Attach Upper Bed to Lower Bed: Carefully lift the assembled upper bed frame and align it with the designated connection points on the lower bed frame. Secure with the appropriate bolts and hardware. This step requires two people.
7. אינסטאַלירן גאַרדריילז: Attach the guardrails to the upper bunk according to the instructions, ensuring they are securely fastened.
8. צוזאַמענשטעלן און צובינדן לייטער: Assemble the ladder components. Attach the assembled ladder to the upper bunk in the designated position. Ensure it is stable and secure.
9. צוזאַמענשטעלן סטאָרידזש שופלאָדן: Follow the separate instructions for assembling the two storage drawers. These drawers are designed to roll freely under the lower bed and do not attach to the bed frame.
10. לעצט דורכקוק: Once assembly is complete, double-check all bolts, screws, and connections to ensure they are tight and secure. The bed should be stable and free from wobbling.

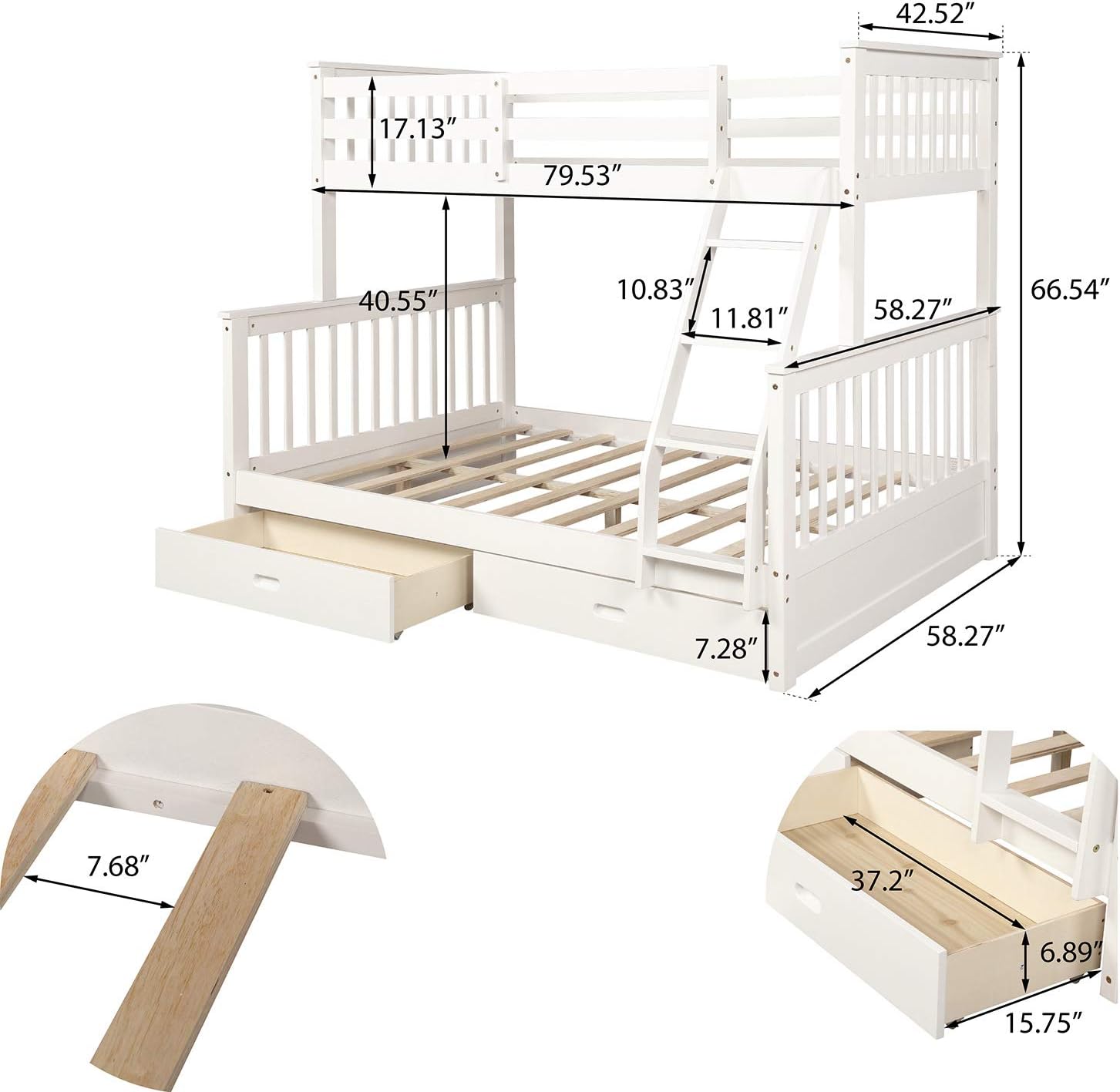

Image 4.1: Detailed dimensions and structural diagram of the bunk bed.

Image 4.2: Close-up details showing ladder attachment, bed slats, and drawer construction.

5. אפערירן (באַניץ גיידליינז)

This bunk bed is designed for sleeping and light recreational use. Adhere to the following guidelines for safe operation:

• Upper Bunk Access: Always use the provided ladder to access the upper bunk. Do not jump onto or off the upper bunk.
• שופלאָד נוצן: The two storage drawers are designed for storing lightweight items such as clothing, toys, or bedding. Avoid overloading the drawers or storing heavy objects that could impede their movement or damage the bed structure.
• צעשיידנדיקע בעטן: The bunk bed can be separated into a twin bed and a full bed. Refer to the assembly instructions for guidance on safely disassembling the bunk configuration and reassembling as individual beds. Ensure all components are properly secured in the new configuration.

Image 5.1: The bunk bed disassembled into separate twin and full beds.

6. וישאַלט

Regular maintenance will ensure the longevity and safety of your bunk bed.

• רייניקונג: ווישן סערפאַסיז מיט אַ ווייך, דamp שטאָף. פֿאַרמײַדט שאַרפֿע כעמיקאַלן אָדער אַברייסיוו רייניקונגסמיטלען וואָס קענען שאַטן די ענדיקונג.
• ייַזנוואַרג טשעק: Periodically (e.g., every 3-6 months) inspect all bolts, screws, and connections. Tighten any loose hardware to maintain structural integrity and prevent wobbling.
• לאַטע דורכקוק: Check bed slats for any signs of damage or cracking. Replace damaged slats immediately to ensure proper mattress support.
• שופלאָד וישאַלט: Keep drawer tracks clean and free of debris to ensure smooth operation.

7. טראָובלעשאָאָטינג

8. ספּעסאַפאַקיישאַנז

• קוילעלדיק דימענשאַנז: 79.53" ל x 58.27" W x 66.54" ה
• Upper-bed Dimensions: 79.52" L x 42.52" W (Twin)
• Under-bed Dimensions: 79.53" L x 58.27" W (Full)
• מאַטעריאַל: Pine Wood, Plywood, MDF Board
• Upper Bed Weight Capacity: 175 לבס
• Bottom Bed Weight Capacity: 275 לבס
• קאָליר: White (This specific model)
• אַסעמבלי פארלאנגט: יא
• נומער מאָדעל נומער: LP000065
• נומער וואָג: 177 פונט

בילד 8.1: זייט view of the ModernLuxe Twin-Over-Full Bunk Bed.

9. וואָראַנטי און שטיצן

This ModernLuxe bunk bed is backed by a 1 יאָר וואָראַנטי from the date of purchase, covering manufacturing defects. For any questions, missing parts, or concerns regarding your product, please contact ModernLuxe customer service. Our professional customer service team is available to provide friendly support.

Please have your model number (LP000065) and purchase information ready when contacting support.
