Silverline Face Mount Self-Closing Variable Overlay Cabinet Hinges Instruction Manual

1. פּראָדוקט איבערview

The Silverline Face Mount Self-Closing Variable Overlay Cabinet Hinges are designed for easy installation and reliable performance on cabinet doors. These hinges feature a self-closing mechanism, ensuring cabinet doors close securely. They are suitable for variable overlay applications, providing flexibility in cabinet design.

Figure 1: Silverline Face Mount Self-Closing Variable Overlay Cabinet Hinge in Black finish.

2. פֿעיִקייטן

• Face Mount Design: Easily mounts to the face frame of the cabinet.
• Self-Closing Mechanism: Ensures cabinet doors close automatically and securely.
• Variable Overlay: Accommodates different door overlay configurations.
• דוראַבאַל שטאָל קאַנסטראַקשאַן: Made from steel for long-lasting use.
• שוואַרץ ענדיקן: Provides a sleek and modern aesthetic.
• Complete Hardware: Each pair includes necessary screws for installation.

פיגורע 2: שפּיץ און זייַט views illustrating the hinge design and self-closing mechanism.

3. סעטאַפּ און ייַנמאָנטירונג

Before installation, ensure your cabinet doors are designed for variable overlay hinges. These hinges are specifically for face-frame cabinets, where the hinge mounts directly to the front face of the cabinet frame.

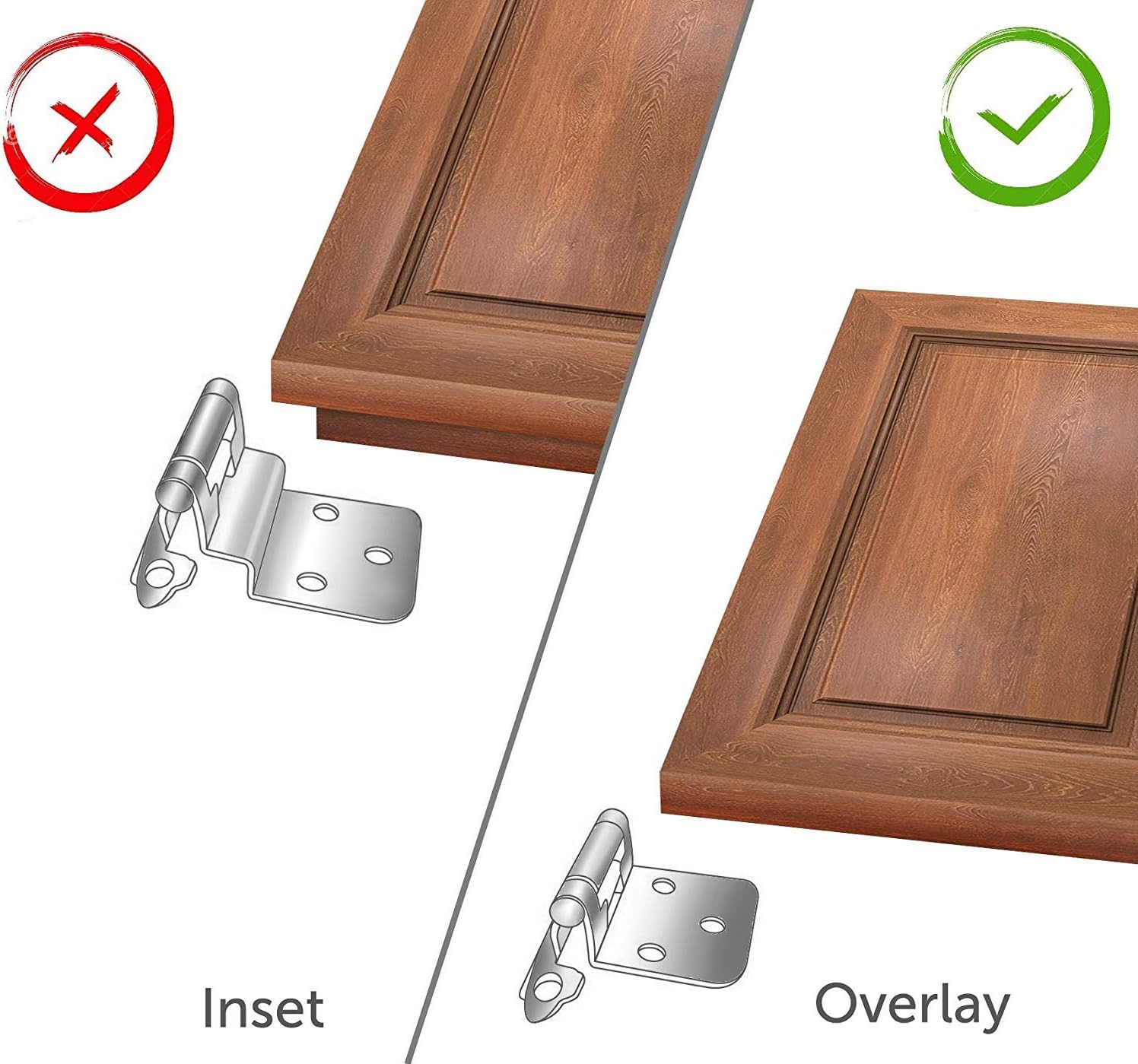

Figure 3: Illustration distinguishing between inset and overlay cabinet door types. This product is for overlay applications.

ינסטאַלירונג סטעפּס:

1. צוגרייטן די טיר: Position the hinge on the cabinet door. The part of the hinge with the larger plate typically attaches to the door. Mark the screw hole locations.
2. Attach to Door: Pre-drill pilot holes at the marked locations on the cabinet door. Secure the hinge to the door using the shorter screws provided.
3. Prepare the Cabinet Frame: Position the door with the attached hinges onto the cabinet frame. Ensure the desired overlay is achieved. Mark the screw hole locations on the cabinet face frame.
4. Attach to Cabinet Frame: Pre-drill pilot holes at the marked locations on the cabinet face frame. Secure the hinge to the cabinet frame using the longer screws provided.
5. פּרובירן און סטרויערן: Open and close the cabinet door to ensure smooth operation and proper alignment. The self-closing mechanism should engage effectively.

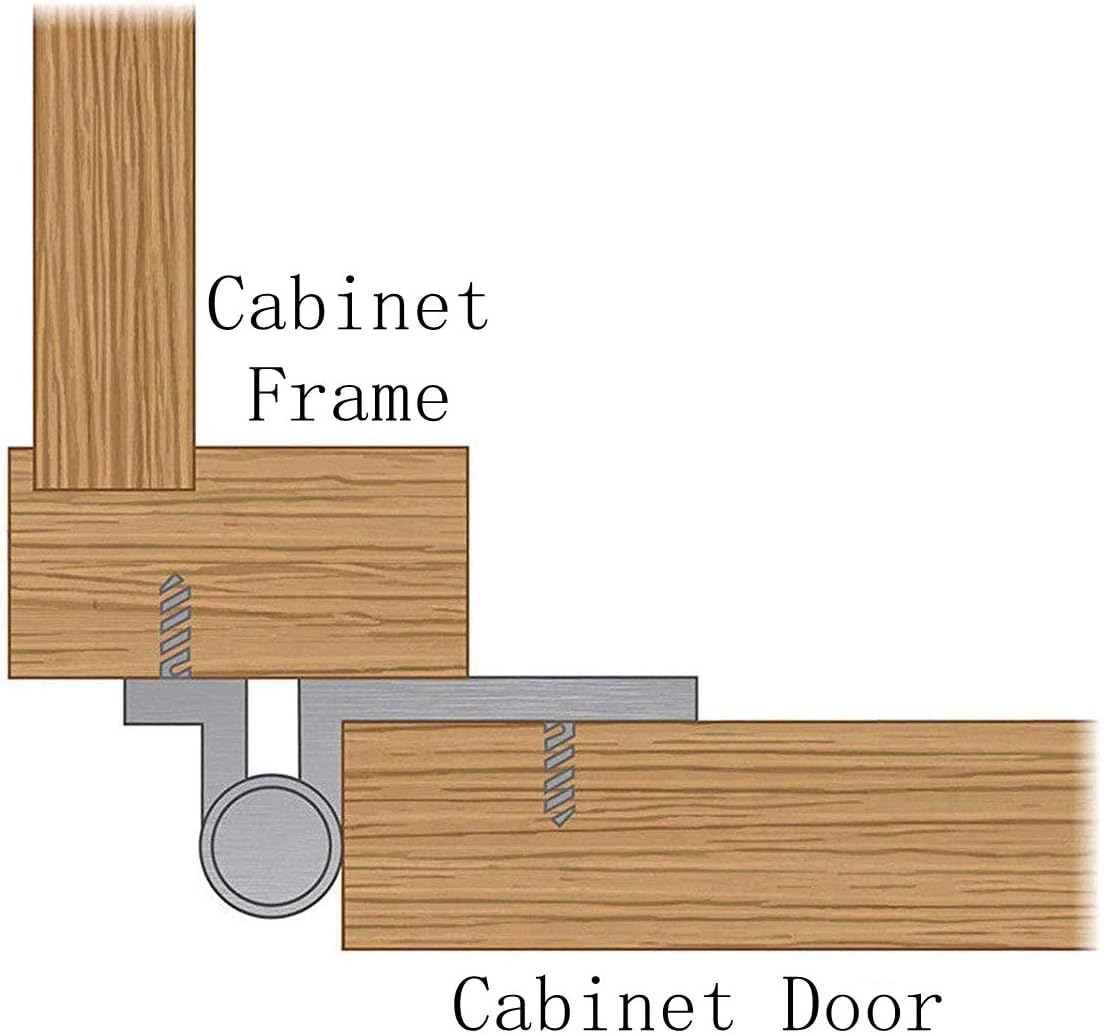

Figure 4: Cross-section diagram illustrating how the hinge connects the cabinet door to the cabinet frame.

4. אַפּערייטינג ינסטרוקטיאָנס

These hinges are designed with a self-closing feature. When the cabinet door is pushed to a certain point, the hinge mechanism will automatically pull the door shut, ensuring it remains closed. No special operation is required beyond normal opening and closing of the cabinet door.

5. וישאַלט

• רעגולער רייניקונג: Wipe hinges with a soft, damp cloth to remove dust and grime. Avoid abrasive cleaners that may damage the finish.
• שמירן: If hinges begin to squeak or become stiff, apply a small amount of silicone-based lubricant to the pivot points. Do not use oil-based lubricants as they can attract dust.
• טשעק סקרוז: Periodically inspect all mounting screws for tightness. Tighten any loose screws to maintain proper door alignment and hinge function.

6. טראָובלעשאָאָטינג

• טיר שליסט זיך נישט ריכטיג: Check for obstructions around the door or frame. Ensure all hinge screws are tight. If the issue persists, the hinge mechanism may be worn and require replacement.
• Squeaking Hinges: Apply lubricant as described in the Maintenance section.
• Loose Door: Tighten all mounting screws on both the door and the cabinet frame. If screw holes are stripped, consider using larger screws or wood filler to secure them.

7. ספּעסאַפאַקיישאַנז

8. וואָראַנטי און שטיצן

For warranty information or product support, please contact Silverline customer service directly. Refer to the product packaging or the official Silverline webזייטל פֿאַר די מערסט אַקטועלע קאָנטאַקט דעטאַלן און וואָראַנטי טערמינען.

This product is from a small business brand. Support small businesses.
