Hykolity CVC-5011 5-Light Integrated LED Pendant Light Instruction Manual

הקדמה

Thank you for choosing the Hykolity CVC-5011 5-Light Integrated LED Pendant Light. This modern fixture features premium bubble glass with a polished nickel finish, offering adjustable height and color temperature. Designed for various indoor spaces, it provides efficient and stylish illumination. Please read this manual thoroughly before installation and use to ensure safe and proper operation.

שליסל פֿעיִקייטן:

• הויך פאָרשטעלונג: 5-pendants integrated LED light with premium bubble glass, CRI 90+, 30W (180 watt equivalent), 2250 Lumens.
• אַדזשאַסטאַבאַל קאָליר טעמפּעראַטור: Features 4000K neutral white LED chips, with options for 3000K Warm Light, 4000K Neutral Light, and 6000K White Light via dip switch.
• דימאַבלע: 5%-100% dimming range, compatible with most household triac LED dimmers for smooth and flicker-free operation (dimmer switch not included).
• אַדזשאַסטאַבאַל הייך: Fully adjustable wire length by pulling on the wire while pressing the valve.
• ברייט אַפּלאַקיישאַן: Ideal for dining rooms, living rooms, kitchen islands, corridors, cafes, bars, clubs, restaurants, hallways, and more.
• גרינג ינסטאַלירונג: Comes with all mounting hardware for quick and easy setup.

וואָס איז אין די קעסטל

Please verify that all components are present and undamaged before beginning installation.

• LED Chips (Integrated)
• מאַונטינג ייַזנוואַרג
• ינסטראַקשאַנז מאַנואַל
• 5 Pendant Lights with Bubble Glass Shades
• סופיט כופּע

ספּעסאַפאַקיישאַנז

סעטאַפּ אינסטרוקציעס

וויכטיק: Before starting installation, ensure the power supply is turned off at the circuit breaker to prevent electrical shock. It is recommended to have two people for installation due to the fixture's weight.

1. צוגרייטן זיך פֿאַר אינסטאַלאַציע:

• אויספּאַקן אַלע קאָמפּאָנענטן און לייגן זיי אויס אויף אַ ריינער, ווייכער ייבערפלאַך צו פאַרמייַדן קראַצן.
• Review the included mounting hardware and ensure all parts are accounted for.
• אויסלעשן די עלעקטריע ביים הויפט קרייז ברעיקער.

2. Mount the Ceiling Canopy:

Attach the mounting bracket to your ceiling junction box using the provided screws. Ensure the bracket is securely fastened and can support the fixture's weight (approximately 12.8 lbs). A heavier-rated fan box is recommended.

3. Wire the Fixture:

• Connect the fixture's wires to your household electrical wires according to local electrical codes. Typically, this involves connecting:
  • Black (Live) wire from fixture to Black (Live) wire from junction box.
  • White (Neutral) wire from fixture to White (Neutral) wire from junction box.
  • Green or bare copper (Ground) wire from fixture to Green or bare copper (Ground) wire from junction box.
• באַוואָרענען אַלע קאַנעקשאַנז מיט דראָט ניסלעך און עלעקטריקאַל טייפּ.
• Carefully tuck the wires into the junction box.

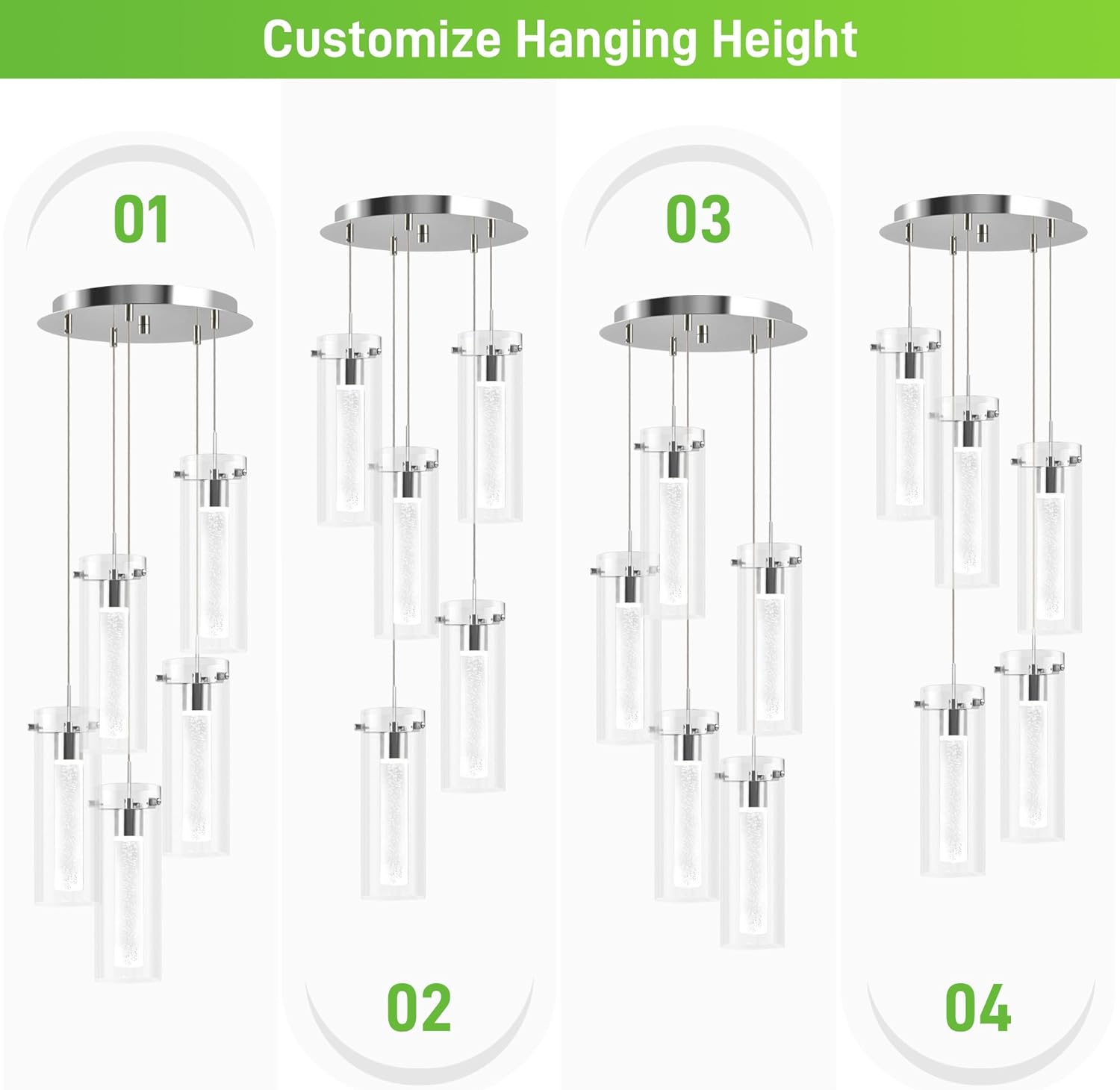

4. Adjust Pendant Height:

The pendant lights feature fully adjustable cords. To adjust the length of each wire, gently pull the wire while pressing the valve mechanism located at the base of the canopy for each pendant. Once the desired length is achieved, release the valve to lock the wire in place. It is easier to adjust the height before fully securing the canopy to the ceiling.

5. Secure the Canopy:

Once wiring is complete and pendant heights are set, carefully push the canopy up against the ceiling and secure it to the mounting bracket using the provided screws or nuts.

6. Attach Glass Shades:

Attach the bubble glass shades to each pendant light. Ensure they are securely fastened.

אַפּערייטינג ינסטראַקשאַנז

1. מאַכט אויף:

Once installation is complete, restore power at the circuit breaker. The light fixture should illuminate when the wall switch is turned on.

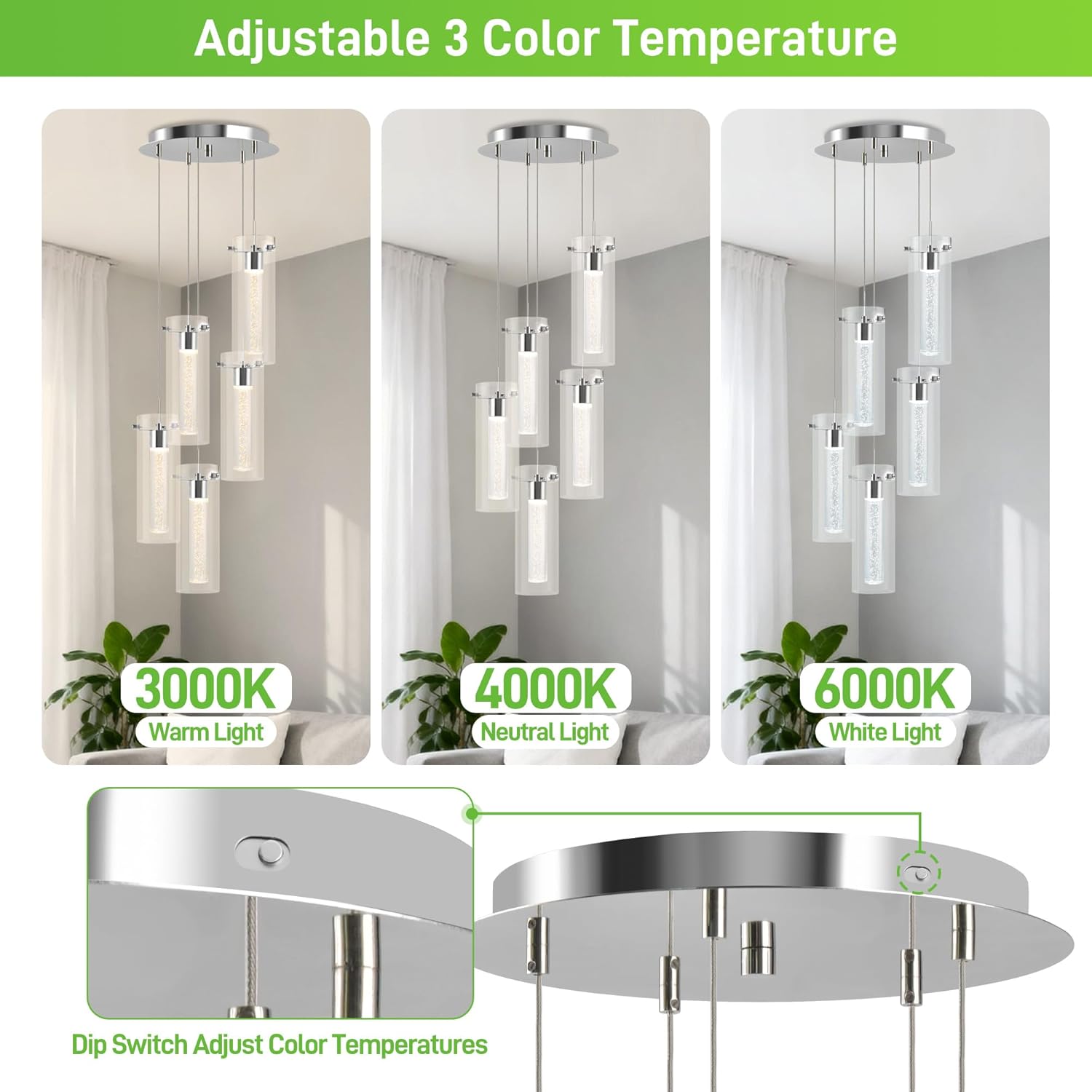

2. Adjust Color Temperature:

This fixture features adjustable color temperature. Locate the dip switch on the canopy (refer to the image below) to select between 3000K (Warm Light), 4000K (Neutral Light), and 6000K (White Light). Adjust this setting before final installation or with power off for safety.

3. דימינג פונקציע:

The fixture is dimmable from 5% to 100% when used with a compatible household triac LED dimmer switch (not included). Ensure your dimmer switch is specifically designed for LED lighting to avoid flickering or damage.

וישאַלט

• רייניקונג: To clean the fixture, turn off the power and allow it to cool. Wipe with a soft, dry cloth. Do not use abrasive cleaners or solvents, as these may damage the finish or glass.
• LED טשיפּס: The LED chips are integrated into the fixture and are not user-replaceable. Do not attempt to replace them.
• גלאז שאָטנס: Handle glass shades with care. If a shade becomes damaged, contact customer support for assistance.

טראָובלעשאָאָטינג

וואָראַנטי און שטיצן

This Hykolity product is backed by a 5-יאָר לימיטעד וואָראַנטי. Our after-sales team is based in the USA and is committed to providing high-quality products and professional support.

For any questions, technical assistance, or warranty claims, please contact Hykolity customer support. Refer to the contact information provided in the packaging or on the official Hykolity webפּלאַץ.
