Focket 750W Servo Motor for Sewing Machines Instruction Manual

1. הקדמה

This manual provides essential information for the safe and efficient operation of your Focket 750W Servo Motor. This motor is designed for various sewing machines, including industrial, household, high-head, double-needle, and flat sewing machines. It features energy-saving capabilities, adjustable speed, and a brushless design for extended durability.

2. פּעקל אינהאַלט

ביטע באַשטעטיקן אַז אַלע קאָמפּאָנענטן וואָס זענען ליסטעד אונטן זענען אַרייַנגערעכנט אין דיין פּעקל:

• 1 x סערוואָ מאָטאָר
• 1 x Motor Controller
• 1 x פֿיס פּעדאַל
• 1 pair of Pedal Connectors
• 3 x Installation Bolts
• 3 x Hexagon Nuts
• 3 רענטגענ וואַשערס
• 3 רענטגענ ספּרינג וואַשערס
• 3 x Cable Pressure Clips
• 1 pair of Self-Tapping Screws (large)
• 2 x Small Self-Tapping Screws
• 1 x באַניצער מאַנואַל (דאָס דאָקומענט)

פיגורע 2.1: איבערview of the Focket 750W Servo Motor and its complete set of accessories.

3. שליסל פֿעיִקייטן

• ענערגיע שפּאָרן: Quick start and shutdown with no idle power consumption, saving 60-75% energy compared to mechanical motors.
• אַדזשאַסטאַבאַל גיכקייַט: Infinitely adjustable speed from 0 to 4000 RPM, accommodating various sewing requirements.
• Brushless Design: Ensures long-term use without part replacement, maintenance-free operation, and extended service life.
• סאָליד און לייטווייט: Simple structure, small size, and lighter weight (approximately one-third of a mechanical motor).
• שפּאַלטן פּלאַן: Facilitates convenient installation and ease of use.
• Low Noise and Heat: Operates quietly with minimal heat generation, reducing interference with other electronic devices.

4. זיכערקייַט אינפֿאָרמאַציע

ביטע ליינט און פארשטייט אלע זיכערהייט אינסטרוקציעס איידער די אינסטאלאציע און באניץ. נישט נאכפאלגן די אינסטרוקציעס קען רעזולטירן אין עלעקטרישע שאק, פייער, אדער ערנסטע שאדן.

• Ensure the power supply matches the motor's voltage (220V EU).
• שטענדיק אָפּשטעקן די מאַכט איידער איר דורכפירן קיין ינסטאַלירונג, וישאַלט אָדער טראָובלעשווטינג.
• האַלט הענט און פרייַ קליידער אַוועק פון באַוועגלעכע טיילן בעת ​​אָפּעראַציע.
• דו זאלסט נישט אַרבעטן די מאָטאָר אין נאַס אָדער דamp באדינגונגען.
• פאַרזיכערן געהעריק גראַונדינג צו פאַרמייַדן עלעקטריקאַל כאַזערדז.
• If any unusual noise, smell, or smoke occurs, immediately turn off the power and contact support.

5. סעטאַפּ און ייַנמאָנטירונג

The Focket 750W Servo Motor is designed for straightforward installation. Follow these general steps:

1. מאָנטירן דעם מאָטאָר: Securely attach the servo motor to your sewing machine table using the provided installation bolts, hexagon nuts, washers, and spring washers. Ensure the motor is stable and aligned with the machine's drive wheel.
2. Connecting the Foot Pedal: Connect the foot pedal to the motor controller using the pedal connectors.
3. Connecting the Motor to the Controller: Plug the motor's cable into the designated port on the motor controller.
4. מאַכט קשר: Connect the motor controller to a suitable 220V power outlet.

פיגורע 5.1: Example of the servo motor and controller mounted on a sewing machine.

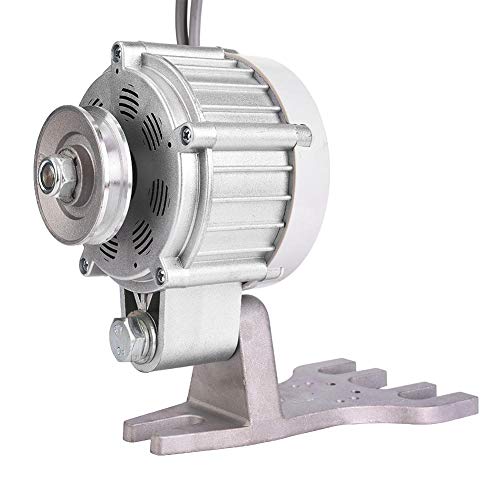

פיגורע 5.2: זייַט view of the servo motor, highlighting the pulley and mounting bracket.

פיגורע 5.3: דערציען view of the servo motor, illustrating its cooling fins.

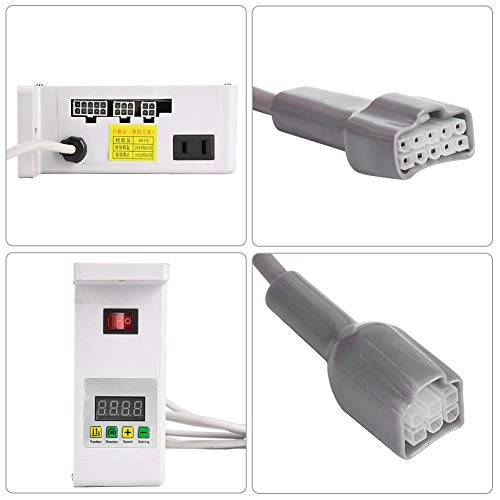

פיגורע 5.4: Close-up of the motor controller's connection ports.

6. אַפּערייטינג ינסטרוקטיאָנס

Once installed, operate the servo motor as follows:

1. מאַכט אויף: Flip the red power switch on the motor controller to the 'ON' position. The digital display will illuminate.
2. גיכקייט אַדזשאַסטמאַנט: Use the '+' and '-' buttons on the controller to adjust the desired maximum speed. The motor speed is continuously variable up to 4000 RPM.
3. ריכטונג קאָנטראָל: Press the 'Direction' button to change the rotation direction of the motor if needed for your specific sewing machine.
4. Needle Position (if applicable): Some models may offer automatic needle stop functionality. Refer to the controller's specific programming options for setting needle up/down positions. Note that additional sensors or cables may be required for this feature to function correctly, and these may not be included or universally compatible.
5. אָפּעראַציע: Press the foot pedal to start the motor. The motor speed will correspond to the pressure applied to the pedal, up to the set maximum speed. Release the pedal to stop.

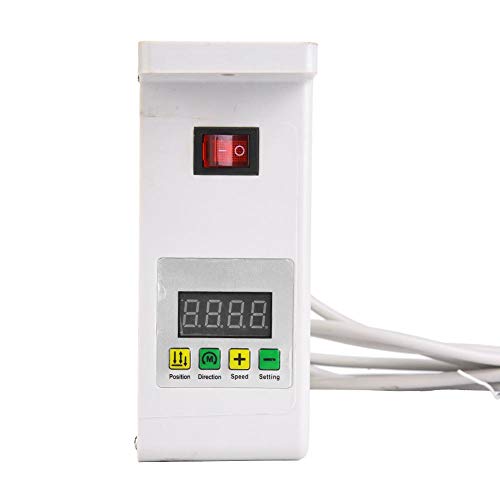

פיגורע 6.1: Motor controller display and control buttons for speed and direction.

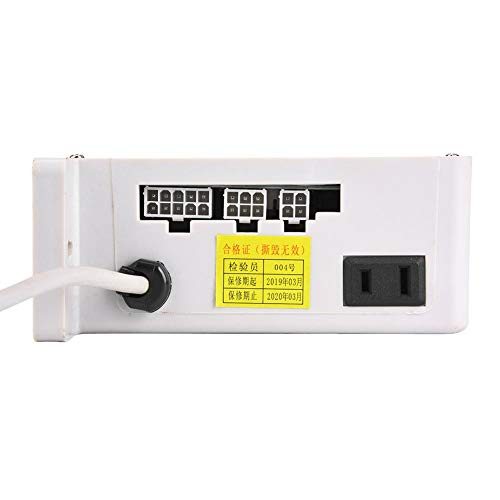

פיגורע 6.2: דערציען view of the motor controller, showing power input and other connections.

פיגורע 6.3: Example of a multi-pin cable connector used in the system.

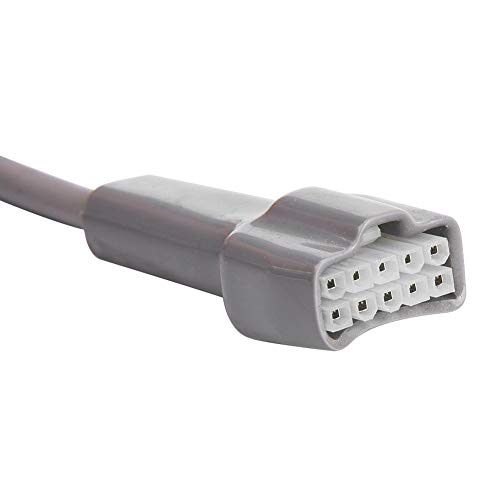

פיגורע 6.4: אן אנדער view of a multi-pin cable connector.

7. וישאַלט

The Focket 750W Servo Motor features a brushless design, which significantly reduces maintenance requirements. No regular part replacement is needed for the motor itself.

• Keep the motor and controller clean and free from dust and debris.
• Periodically check all connections to ensure they are secure.
• פֿאַרמײַדן אויסצושטעלן דעם אַפּאַראַט צו איבערגעטריבענער פֿײַכטקייט אָדער עקסטרעמע טעמפּעראַטורן.

8. טראָובלעשאָאָטינג

If you encounter issues with your servo motor, consider the following:

• מאָטאָר הייבט זיך נישט אָן:
  • Ensure the power switch is ON and the unit is properly plugged into a working outlet.
  • Check all cable connections between the motor, controller, and pedal.
• Incorrect Speed/No Speed Control:
  • Verify that the '+' and '-' buttons are functioning and the display shows the desired speed setting.
  • Ensure the foot pedal is correctly connected and not obstructed.
• Automatic Needle Stop Not Working:
  • The automatic needle stop feature often requires specific sensors or additional components that may not be universally included or compatible with all sewing machines. If this feature is critical, confirm compatibility and the presence of all necessary parts.
  • Consult the controller's programming options to ensure the needle stop function is enabled and configured correctly.
• ומגעוויינטלעך ראַש אָדער ווייבריישאַן:
  • Check for any loose mounting bolts or obstructions around the motor.
  • Ensure the motor pulley is correctly aligned with the sewing machine's drive wheel.

For persistent issues, please refer to the warranty and support section.

9. ספּעסאַפאַקיישאַנז

10. וואָראַנטי און שטיצן

דער פּראָדוקט קומט מיט אַ 12-חודש צופֿרידנקייט גאַראַנטירן. If you have any questions, concerns, or require technical assistance, please contact the seller or manufacturer's customer service. Please retain your proof of purchase for warranty claims.
