1. הקדמה
This manual provides essential information for the proper use, installation, and maintenance of your Federal ECOVAN ER02 P215/75R16 116R summer tire. Adhering to these guidelines will ensure optimal performance, safety, and longevity of your tire. The Federal ECOVAN ER02 is designed for light trucks and SUVs, offering reliable performance in summer conditions.
Figure 1.1: Federal ECOVAN ER02 P215/75R16 116R summer tire mounted on a wheel, showcasing its tread pattern and sidewall.
2. וואָס איז אין דער קעסטל
Your Federal ECOVAN ER02 tire package includes:
- One (1) Federal ECOVAN ER02 P215/75R16 116R Summer Tire
3. סעטאַפּ און ייַנמאָנטירונג
Proper installation is crucial for tire performance and safety. It is highly recommended that tire installation be performed by a qualified professional using appropriate equipment.
3.1 פאַר-ינסטאַלירונג טשעקס
- Verify that the tire size, load index, and speed rating match your vehicle's specifications as recommended by the vehicle manufacturer.
- Inspect the tire for any visible damage or defects prior to mounting.
- Ensure the wheel rim is clean, free of rust, and undamaged.
3.2 מאָנטירן און באַלאַנסירן
- Mount the tire onto the wheel rim according to industry standards, ensuring proper bead seating.
- Balance the tire and wheel assembly to prevent vibrations and ensure even tread wear.
- Inflate the tire to the vehicle manufacturer's recommended cold inflation pressure, typically found on a placard inside the driver's side door jamb or in the owner's manual. Do not exceed the maximum pressure indicated on the tire sidewall.
3.3 נאָך-אינסטאַלאַציע
- After driving the first 50-100 miles (80-160 km), re-check the lug nut torque to ensure they are properly tightened.
4. אַפּערייטינג גוידעלינעס
To maximize the life and performance of your Federal ECOVAN ER02 tires, observe the following operating guidelines:
- טייער דרוק: Maintain correct tire inflation pressure as specified by your vehicle manufacturer. Under-inflation or over-inflation can lead to premature wear, reduced fuel efficiency, and compromised handling.
- מאַסע קאַפּאַציטעט: Do not exceed the maximum load capacity indicated on the tire's sidewall or your vehicle's load rating. Overloading can cause tire failure.
- גיכקייַט רייטינג: Adhere to the tire's speed rating. The 116R rating indicates a maximum speed of 106 mph (170 km/h) under specified conditions. Do not exceed legal speed limits or the tire's maximum speed rating.
- דרייווינג באדינגונגען: While designed for summer conditions, avoid driving on ice or snow as these tires are not optimized for such environments. Drive cautiously, especially in wet conditions, as hydroplaning can occur.
5. וישאַלט
Regular maintenance is essential for tire longevity and safe driving.
5.1 Tire Pressure Checks
- Check tire pressure at least once a month, and always before long trips, using a reliable tire pressure gauge.
- Always check pressure when tires are cold (driven less than a mile).
5.2 רעדער ראָטאַציע
- Rotate your tires every 5,000 to 7,500 miles (8,000 to 12,000 km) or as recommended by your vehicle manufacturer. This promotes even wear across all tires.
5.3 ראָד אויסריכטונג און באַלאַנסינג
- Have your wheel alignment checked annually or if you notice uneven tire wear or steering issues.
- Re-balance tires if you experience vibrations or after a tire repair.
5.4 רעדער דורכקוק
- Regularly inspect tires for signs of damage, such as cuts, cracks, bulges, or punctures.
- Check tread depth using a tread depth gauge. Replace tires when the tread wears down to 2/32 inch (1.6 mm), indicated by the tread wear indicators (bars across the tread grooves).

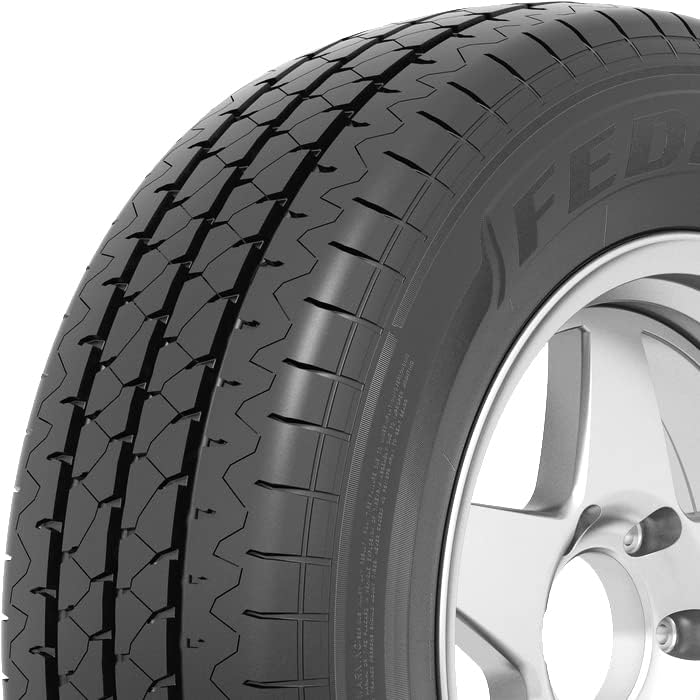

פיגורע 5.1: נאָענט-אַרויף view of the Federal ECOVAN ER02 tire tread pattern, highlighting the asymmetrical design for optimal grip.
6. טראָובלעשאָאָטינג
די סעקציע באהאנדלט אלגעמיינע פראבלעמען וואס איר קענט באגעגענען מיט אייערע טירעס.
| פּראָבלעם | מעגלעך סיבה | לייזונג |
|---|---|---|
| אומגלייכע טרעד טראָגן | Improper inflation, misalignment, unbalanced wheels, lack of rotation. | Check and adjust tire pressure. Have alignment and balancing checked. Rotate tires regularly. |
| Vibrations while Driving | Unbalanced wheels, bent rim, tire damage, suspension issues. | Have tires re-balanced. Inspect tires and wheels for damage. Consult a mechanic for suspension check. |
| Frequent Loss of Air Pressure | Puncture, leaky valve stem, damaged rim, bead leak. | Inspect tire for punctures. Have valve stem checked. Seek professional repair for leaks. |
| Bulge on Sidewall | Impact damage (e.g., hitting a pothole), internal cord damage. | Immediately replace the tire. A bulge indicates structural damage and risk of sudden failure. |
7. ספּעסאַפאַקיישאַנז
Detailed specifications for the Federal ECOVAN ER02 P215/75R16 116R summer tire:
| אַטריביוט | ווערט |
|---|---|
| סאָרט | פעדעראלע |
| מאָדעל | ECOVAN ER02 |
| גרייס | P215/75R16 |
| Load Index / Speed Rating | 116ר |
| סעאַסאָנס | Summer (Note: Product specifications may list 'Year Round' for general categorization, but this model is designed for summer performance.) |
| טיפּ טיפּ | אַסיממעטריק |
| רייַף דיאַמעטער | 28.7 אינטשעס |
| רים דיאַמעטער | 16 אינטשעס |
| פּונקט וואָג | 34 פונט |
| קאַנסטראַקשאַן טיפּ | RADIAL |
| אָעם טייל נומער | 30AE6AFE |
| נומער דימענשאַנז (L X W X H) | 29 X 29 X 9 אינטשעס |
| ערשטער דאַטע בנימצא | יולי 16, 2019 |
8. וואָראַנטי און שטיצן
For information regarding the warranty coverage for your Federal ECOVAN ER02 tire, please refer to the official warranty documentation provided at the time of purchase or visit the official Federal Tires webזייטל. גאַראַנטיע טערמינען און באדינגונגען קענען זיין אַנדערש.
If you require technical assistance, have questions about your tire, or need to initiate a warranty claim, please contact Federal Tires customer support through their official channels. Keep your purchase receipt and tire information (DOT code, size, etc.) readily available when contacting support.
