EPEVER TRIRON2210N 20A MPPT Solar Charge Controller User Manual

1. הקדמה

This manual provides detailed instructions for the installation, operation, and maintenance of your EPEVER TRIRON2210N 20A MPPT Solar Charge Controller. Please read this manual thoroughly before use to ensure optimal performance and safety. This controller is designed to manage power flow from solar panels to batteries and loads, ensuring efficient charging and protection for your solar system.

2. פּראָדוקט פֿעיִקייטן

• Advanced MPPT (Maximum Power Point Tracking) technology with tracking efficiency not less than 99.5% and maximum conversion efficiency of 98%.
• LCD דיספּלעי פֿאַר viewing operational data and system status, with LED indicators for abnormal information.
• Automatic 12V/24VDC system voltagE לעגיטימאַציע.
• Comprehensive electronic protection functions, including overload and over-discharge protection.
• RS485 communication module design for reading inverter/controller data and controlling inverter switch via relay interface.
• Dual 5V DC USB output interface for charging electronic devices.
• Suitable for various applications: communication base stations, home systems, street lighting, field monitoring, RV solar systems.

2.1 קאָנטראָללער איבערview

This image illustrates the main components of the EPEVER TRIRON2210N controller, including the solar panel indicator, battery indicator, load indicator, RS485 slave port, two USB ports, insulating material, LCD screen, PV terminals, battery terminals, and load terminals.

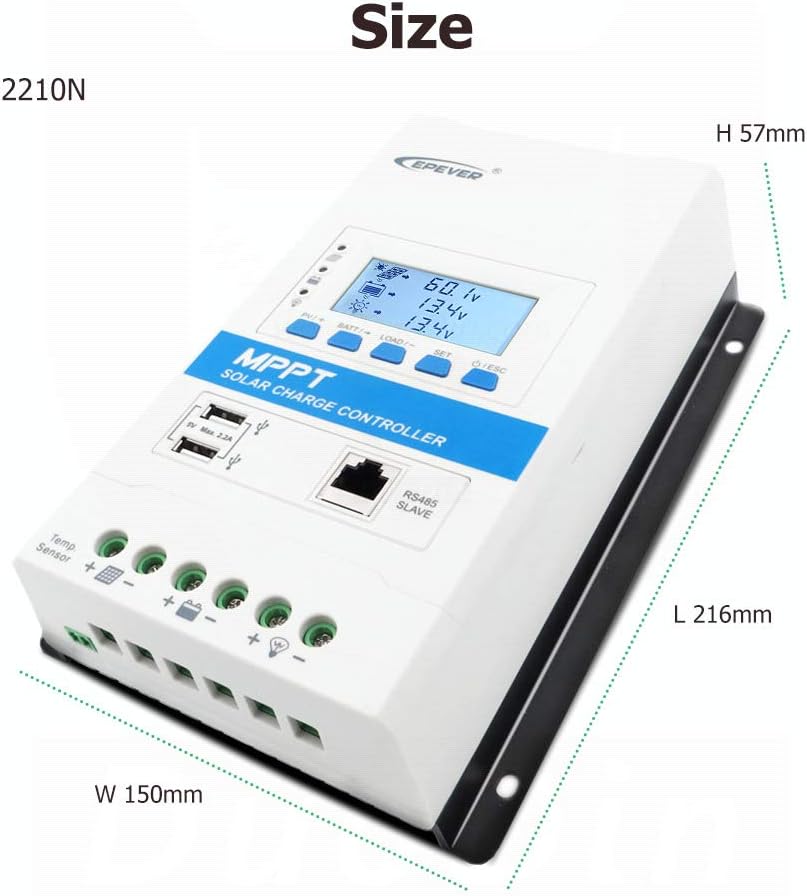

2.2 דימענשאַנז

The controller measures 216mm in length, 150mm in width, and 57mm in height, designed for compact installation.

3. ספּעסאַפאַקיישאַנז

3.1 באַטערי וואָלtage Control Parameters (12V System @ 25°C)

פֿאַר אַ 24V סיסטעם, טאָפּל די וואָלומעןtage values. These parameters are crucial for proper battery management and longevity.

This table provides detailed voltage control parameters for different battery types: Sealed, Gel, Flooded, and User-defined (9-34V). It includes settings for over-discharge, charge limits, equalization, boost, float, low voltage reconnect, low voltage disconnect, and warning voltages.

4. ינסטאַלירונג

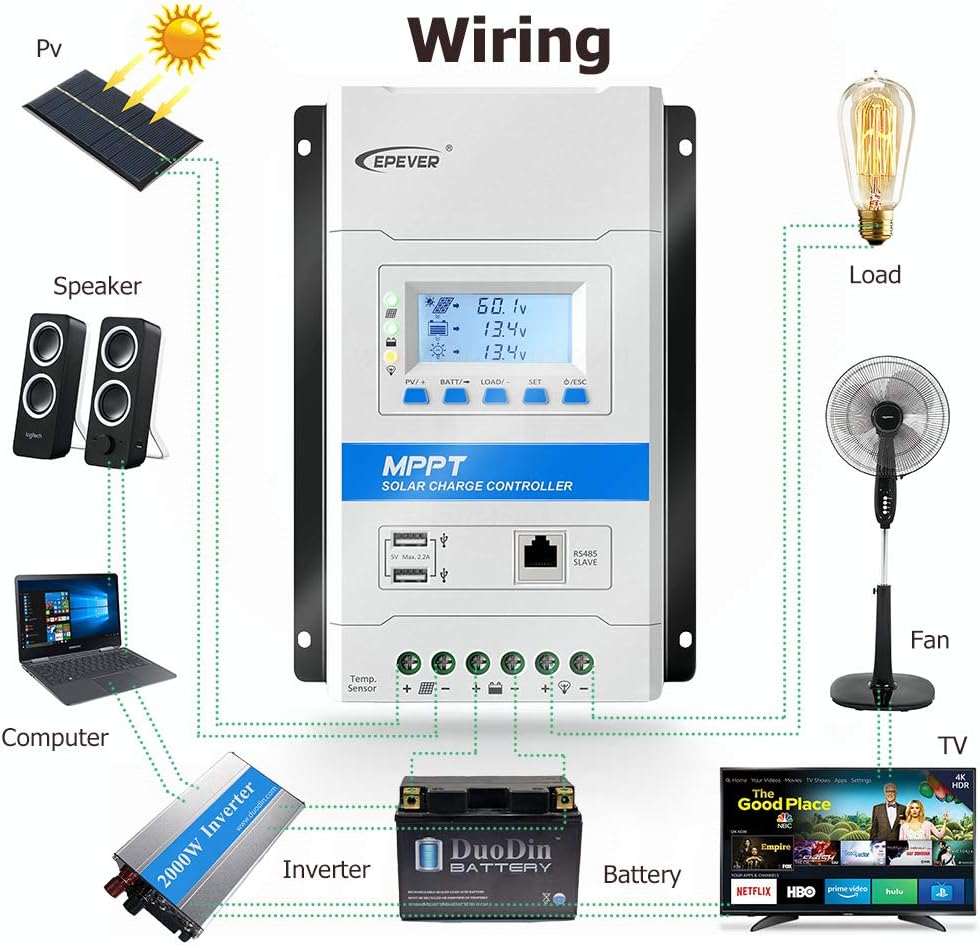

4.1 וויירינג דיאַגראַמע

This diagram illustrates the correct wiring sequence for connecting the solar panel, battery, and various loads (e.g., computer, fan, TV) to the controller. Ensure all connections are secure and correctly polarized.

4.2 Connection Order

1. פאַרבינדן די באַטאַרייע צו די קאָנטראָללער.
2. Connect the PV (solar panel) to the controller.
3. Connect the load to the controller.

4.3 Disconnection Sequence

1. Disconnect the load from the controller.
2. Disconnect the PV (solar panel) from the controller.
3. Disconnect the battery from the controller.

Important: Always follow the specified connection and disconnection order to prevent damage to the controller or other components.

4.4 Installation and Setup Video Guide

This video demonstrates the physical features of the controller and the correct connection order for the battery, solar panel, and load. It also shows how the display illuminates upon correct battery connection and guides through initial settings like battery type, capacity, temperature unit, and load working mode.

5. אָפּעראַציע

5.1 קנעפּל פאַנגקשאַנז

• ESC קנעפּל: Used to exit the current menu or cancel an operation.
• SET קנעפּל: Used to enter a menu, confirm settings, or navigate interfaces.
• לאָדן/- קנעפּל: Used to decrease values or navigate backward through display interfaces.
• BATT/+ Button: Used to increase values or navigate forward through display interfaces.
• PV/+ קנעפּל: Used to increase values or navigate forward through display interfaces.

5.2 אַרויסווייַז נאַוויגאַציע

The LCD screen displays various operational data such as voltage, current, power, and temperature. Use the PV/+, BATT/-, LOAD/-, SET, and ESC buttons to navigate through the interfaces and adjust settings as needed.

5.3 באַשטעטיקן באַטערי טיפּ

To set the battery type for optimal charging:

1. דריקן און האַלטן די BATT/+ button for 5 seconds to enter the battery type setting interface.
2. ניצן די PV/+ or LOAD/- buttons to select the desired battery type (e.g., Sealed, Gel, Flooded, LiFePO4, Li(NiCoMn)O2, or User).
3. דרוק די שטעלן קנעפּל צו באַשטעטיקן די סעלעקציע.

Note: Refer to the "Battery Voltage Control Parameters" table in the Specifications section for specific voltage settings for each battery type.

5.4 Setting Battery Capacity

To set the battery's Amp-hour (Ah) capacity:

1. דרוק די שטעלן button to navigate to the battery capacity interface.
2. דריקן און האַלטן די BATT/+ button for 5 seconds to enter the battery capacity setting.
3. ניצן די PV/+ or LOAD/- buttons to adjust the capacity value (e.g., 200 Ah).
4. דרוק די שטעלן קנעפּל צו באַשטעטיקן די באַשטעטיקן.

5.5 Setting Temperature Unit

To set the temperature unit (°C or °F) for display:

1. דרוק די שטעלן button twice to navigate to the temperature unit interface.
2. ניצן די PV/+ or LOAD/- buttons to switch between Celsius (°C) and Fahrenheit (°F).
3. דרוק די שטעלן קנעפּל צו באַשטעטיקן די באַשטעטיקן.

5.6 איינשטעלן לאָוד אַרבעט מאָדע

To configure how the load output operates:

1. דריקן און האַלטן די LOAD/- button for 5 seconds to enter the load working mode interface.
2. ניצן די PV/+ or LOAD/- buttons to select the desired mode (e.g., 100 for ON/OFF, 101-115 for timer modes, 116 for test mode, 117 for manual mode).
3. דרוק די שטעלן קנעפּל צו באַשטעטיקן די באַשטעטיקן.

Note: In manual mode (117), the ESC button controls the load ON/OFF.

5.7 Load Working Mode Table

The following table details the available load working modes and their corresponding settings:

This table provides a comprehensive list of load working modes, including light control (ON/OFF), various timer settings (e.g., 1 to 15 hours from dusk or before dawn), test mode, and manual mode. Each mode is assigned a specific code for selection.

6. וישאַלט

רעגולערע וישאַלט גאַראַנטירט די לאַנגלעבעדיקייט און אָפּטימאַל פאָרשטעלונג פון דיין זונ - אָפּצאָל קאָנטראָללער.

• Regularly inspect all wiring connections to ensure they are tight and free from corrosion. Loose connections can cause power loss and overheating.
• Keep the controller clean and free from dust and debris. Use a dry, soft cloth for cleaning. Avoid using harsh chemicals or abrasive materials.
• Ensure adequate ventilation around the controller to prevent overheating. Do not block ventilation openings.
• Periodically check the battery terminals for any signs of corrosion and clean if necessary. Corrosion can impede current flow.
• Monitor the system's performance through the LCD display to identify any anomalies early. Pay attention to unusual voltage or current readings.

For detailed maintenance procedures, refer to the full product manual provided with your controller.

7. טראָובלעשאָאָטינג

If you encounter issues with your EPEVER TRIRON2210N controller, refer to the following common troubleshooting tips:

• קיין ווייַז: קאָנטראָלירט די באַטאַריע פֿאַרבינדונגען און זיכערט זיך אַז די באַטאַריע איז פֿול מיט וואַסערtage is within the operating range (12V/24V). Verify the battery fuse is intact.
• קיין טשאַרדזשינג: Verify solar panel connections, ensure sufficient sunlight, and check for any shading on the panels. Confirm battery type settings are correct on the controller.
• לאָדן אַרבעט נישט: Check load connections, ensure the load current does not exceed the controller's rating, and verify the load working mode settings (e.g., not in manual OFF mode).
• טעות קאָדעס: If an error code appears on the display, consult the comprehensive manual for specific error definitions and detailed troubleshooting steps.

If issues persist after attempting these steps, contact EPEVER customer support for further assistance.

8. וואָראַנטי און שטיצן

EPEVER products typically come with a standard manufacturer's warranty. For specific warranty terms, product registration, and technical support, please refer to the official EPEVER website or contact your local distributor. It is recommended to keep your purchase receipt as proof of purchase for warranty claims.
